Samsung AX60T5080WD Manuel utilisateur

Air Purifier

User manual

AX60T5080WD

ꞏThank you for purchasing this Samsung air purifier.

ꞏBefore operating this unit, please read this user manual carefully and retain it for future reference.

Contents

Safety Information 3

Package Content 8

Accessories / Product specifications 8

At a Glance 9

At a Glance / General 9

Display and buttons 10

Removing the filter 11

Assembling the filter 12

Operation Features 15

Turning the power on/off / Controlling the fan speed 15

Sleep mode / Timed on/off function / Display lighting 16

Turning the Wi-Fi feature on/off / Clearing the filter replacement reminder / Lock function 17

Checking the air quality 18

Cleaning and Maintenance 19

Cleaning the air purifier exterior 19

Cleaning and drying the filter 20

SmartThings app 21

Appendix 25

Before Requesting Service 25

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories

(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of

their working life. To prevent possible harm to the environment or human health from uncontrolled waste

disposal, please separate these items from other types of waste and recycle them responsibly to promote the

sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local

government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This

product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Safety Information

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

Follow directions.

Do NOT attempt.

Make sure the machine is grounded to prevent electric shock.

Unplug the power plug from the wall socket.

Do NOT disassemble.

FOR INSTALLATION

WARNING

Only connect to a socket that can provide the rated power supply. Do not use the socket

with other products. Do not extend the power cord.

•Using a multi-socket with other products or extending the power cord may cause electric

shock or fire.

•Using a voltage converter may cause electric shock or fire.

•Failing to meet the exact voltage, frequency and/or rated current may cause electric shock

or fire.

Do not install the air purifier near a heat source and inflammable objects, or in areas that

are highly humid or dusty. Avoid exposure to oil, gas, direct sunlight and water.

•Follow instructions to avoid electric shock or fire.

CAUTION

When installing the product, make sure that the power plug can be easily removed when

needed.

•Follow instructions to avoid electric shock or fire due to electrical leakage.

Install the product on a solid flat ground.

•Follow instructions to avoid excessive vibration, noise and operational issues thereof.

These safety precautions are for owner’s safety and preventions of property damage.

Therefore, please read this manual thoroughly before using your product.

Safety Information

Keep a safe distance from surrounding objects.

•Clear space from each side: at least 60 cm and the front: at least 25 cm

•The space is necessary to ensure efficient air intake and proper purification.

•Make sure that the inlet and outlet are not covered.

Make sure that the power cord is not pressed under the product.

•Follow instructions to avoid electric shock or fire.

FOR POWER SUPPLY

WARNING

Use a dry cloth to wipe the power plug and the contact area to keep them free from dust,

water and other undesirable substances.

•Follow instructions to avoid electric shock or fire.

Check the position of the power plug when you connect it to a socket.

•Having the cord hanging from above the plug may damage the wires inside, which can

lead to electric shock or fire.

Please contact your local Samsung Service Centre if the power plug or cord is damaged.

Make sure that the power plug is securely fitted in the socket. Do not use it when the plug

or cord is damaged.

•Follow instructions to avoid electric shock or fire.

When you disconnect the power cord, pull it by the plug. Do not pull the cord itself.

•Follow instructions to avoid electric shock or fire.

Do not fold, pull out, twist or tie the power cord. Do not hang it over a metal object or place

a heavy object on it. Do not put the cord between objects or behind the air purifier.

•Follow instructions to avoid electric shock or fire.

CAUTION

Remove the power plug of your air purifier when it is not used for a period of time and

during a thunderstorm.

•Follow instructions to avoid electric shock or fire.

Product installation must be handled by official Samsung service personnel or a certified

local technician to avoid power cord or plug damage, which can be dangerous.

Disconnect the air purifier from the power source before cleaning or repairing.

Safety Information

FOR USING

WARNING

If the product is exposed to water, immediately disconnect it from the power source and

contact your local Samsung Service Centre.

•Follow instructions to avoid electric shock or fire.

If you notice a noise, burning smell or smoke from the product, immediately stop using it

and contact your local Samsung Service Centre.

•Follow instructions to avoid electric shock or fire.

In the event of a gas leak in proximity of the air purifier, do not touch it or attempt to unplug

it. Immediately ventilate the room and contact your provider or a certified technician for

advice.

•Do not turn the ventilation fan on.

•A spark can cause an explosion or fire.

Do not pull out the power plug while operating the air purifier.

•This may cause a spark when reconnecting the plug, which can lead to an explosion or fire.

Please contact your local Samsung Service Centre when you require repair service.

•Follow instructions to avoid electric shock or fire.

Do not handle the power plug with wet hands.

•Follow instructions to avoid electric shock or fire.

Safety Information

Do not use force on the air purifier or pull the unit away.

•Follow instructions to avoid fire, malfunction or injury.

Store the plastic package away from children or discard it according to the law.

•Follow instructions to protect children from a risk of suffocation.

Do not insert your finger or other objects into the air inlet or outlet.

•Take special care to protect children from injury.

Do not place an object near the air purifier as children may use them to climb onto the

product.

•Follow instructions to avoid injury from a tip-over or fall.

If the power plug area has contacted water, completely dry it before using the air purifier

again.

•Follow instructions to avoid electric shock or fire.

Do not insert a metal object and similar items inside the air purifier.

•Follow instructions to avoid electric shock or injury.

Do not place a heavy object on the air purifier.

•Follow instructions to avoid malfunction or noise.

If any of the electric components inside the air purifier has contacted liquid orwater,

disconnect the product from the power source and contact your local Samsung Service

Centre.

•Follow instructions to avoid electric shock or fire.

Do NOT attempt to repair or modify the product.

•Use only the standard rated fuse.

•Follow instructions to avoid electric shock, fire, malfunction or injury.

Safety Information

CAUTION

Keep your air purifier at least 2 meters away from a TV or other audio/visual media.

•They can be affected by video or audio noise.

Secure enough space around the air purifier when operating.

•Clear space from each side: at least 60 cm and the front: at least 25 cm

•Your air purifier is designed to take in air through the front inlet for purification. Keep the

area around the inlet clear and make sure that both the inlet and outlet are not covered by

curtains and such.

Do not step on the product or place other objects on it (laundry, candles, burning cigarettes,

plates, medicine, metal items, air fresheners, etc.).

•Follow instructions to avoid electric shock, fire, malfunction or injury.

Do not tilt or flip the air purifier while the power plug is connected to the socket.

•Follow instructions to avoid malfunction or fire.

Do not use bug repellent or other spray products on the air purifier.

•They can be harmful and may cause electric shock, fire or malfunction.

Do not submerge the air purifier.

•Follow instructions to avoid malfunction.

Do not handle the product with wet hands.

•Follow instructions to avoid electric shock.

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible

for their safety. Children should be supervised to ensure that they do not play with the

appliance.

FOR CLEANING

WARNING

Do not apply water, benzene, thinner, alcohol, acetone or similar substances directly on the

product.

•Follow instructions to avoid product discolouration or deformation, electric shock or fire.

Disconnect the product from the power source when cleaning. Wait for the fan to

completely stop before cleaning.

•Follow instructions to avoid electric shock or fire.

CAUTION

Be sure to disconnect the power plug from the socket before cleaning the product.

Package Content

Accessories

2-in-1 filter1EA

(Deodorization Filter+Dust

Collecting Filter)

Pre-filter

1 EA

User manual 1 EA

Product specifications

The product dimensions are based on the maximum dimensions. They may vary depending on the

measurement position.

The product design and specifications are subject to change without prior notice for quality improvement.

Model name Dimensions

(width × height × depth) Area coverage

AX60T5080WD 360 mm x 783 mm x 293 mm 60 m² 1)

1) The area coverage value is in accordance with the Korea Air Cleaning Association (KACA) standard.

Package Content

At a Glance

General

At a Glance

Air outlet (top)

Display and buttons

Display lighting

Filter holder

Air inlet / Front panel

Handle (rear side)

Dongle mount

• This model is provided with integrated Wi-Fi

connectivity and does not require an external

dongle to use this function.

Air outlet (side)

Laser PM sensor

Gas sensor

2-in-1 filter(Deodorization Filter+Dust Collecting

Filter)

Pre-filter

At a Glance

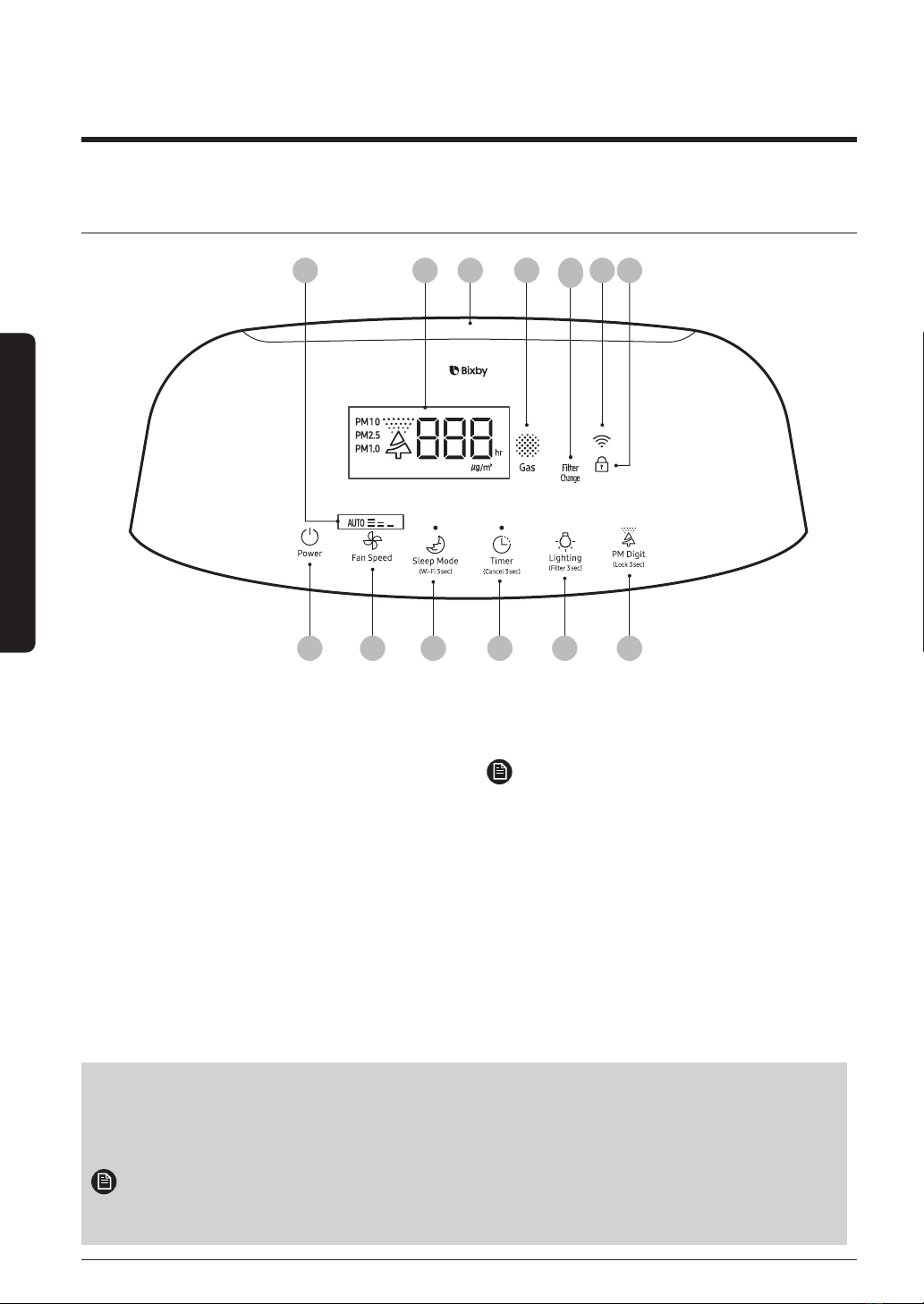

Display and buttons

08 09 1310 1211

03 04

01 07

Current fan speed

PM10 / PM2.5 / PM1.0 pollution / Concentration /

Timer indicator

Air quality indicator

Gas pollution indicator

Filter replacement indicator

Wi-Fi function indicator

Lock indicator

Power button

Fan speed button

Sleep mode /

Wi-Fi On or Off button

Timed on/off button

Lighting / Filter reset button

Air quality / Lock button

NOTE

•PM10: Dust in the airwith a diameter of 10 ㎛ or less

– Fine particles with about 1/5 of the diameter

of a human hair

•PM2.5: Dust in the air with a diameter of 2.5 ㎛

or less

– Fine particles with about 1/20 of the diameter

of a human hair

•PM1.0: Dust in the air with a diameter of 1.0 ㎛

or less

– Fine particles with about 1/50 of the diameter

of a human hair

* Diameter of a human hair: 50 to 70 ㎛

Bixby is the name of a Samsung AI solution and allows you to control the product with voice. To use the

voice recognition function, you must connect the SmartThings app on your smartphone to the product.

If the product does not support voice recognition directly, you can only control some functions using

Bixby on your Samsung smartphone.

NOTE

•Bixby only supports some languages, and the supported functions may differ depending on the

geographical area.

At a Glance

Table des matières

Autres manuels Samsung Purificateur d'air

Samsung

Samsung AC340B Manuel utilisateur

Samsung

Samsung SA604C series Manuel utilisateur

Samsung

Samsung AC-B90AVWA/HC Manuel utilisateur

Samsung

Samsung AX26 G3100G Series Manuel utilisateur

Samsung

Samsung AX40H6500WQ Series Manuel utilisateur

Samsung

Samsung AX40R3030WM Manuel utilisateur

Samsung

Samsung AX70A9510GE Manuel utilisateur

Samsung

Samsung AC-S38ANBA Series Manuel utilisateur

Samsung

Samsung AC160C Manuel utilisateur

Samsung

Samsung AX60R5080WD/ST Manuel utilisateur

Samsung

Samsung AX70J7000WT Manuel utilisateur

Samsung

Samsung AX300T9080S Manuel utilisateur

Samsung

Samsung AX32 G3100G Series Manuel utilisateur

Samsung

Samsung AX47T9080 Series Manuel utilisateur

Samsung

Samsung AX34T3020WW Manuel utilisateur

Samsung

Samsung AX60R5080WD Manuel utilisateur

Samsung

Samsung AX60R5080WD/SV Manuel utilisateur

Samsung

Samsung AX90R7080WD Manuel utilisateur

Samsung

Samsung AX53A9350GE Manuel utilisateur

Samsung

Samsung AX300T9080W Manuel utilisateur

Samsung

Samsung AX90 Manuel utilisateur

Samsung

Samsung AC401B Manuel utilisateur

Samsung

Samsung AC-M50ANSA Series Manuel utilisateur

Samsung

Samsung AX53A9310GE Manuel utilisateur

Manuels Purificateur d'air populaires d'autres marques

IKEA

IKEA UPPÅTVIND Manuel utilisateur

Nash

Nash AP-1 PureSmart Manuel utilisateur

LG PH-U450 Series Manuel utilisateur

DeLonghi

DeLonghi DDSX 220WFA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuel utilisateur

Sharp

Sharp FU-40SE Manuel utilisateur

Philips

Philips AC2721 Manuel utilisateur

Hitachi

Hitachi EP-A3000 Manuel utilisateur

TruSens

TruSens Z-2000 Manuel utilisateur

Motorola

Motorola MBP87SN Manuel utilisateur

Beko

Beko ATP 7100I Manuel utilisateur

Carrier

Carrier INFINITY 1620 Manuel utilisateur

AtmosAir

AtmosAir P2002 Manuel utilisateur

Winix

Winix NK300 Manuel utilisateur

Friedrich

Friedrich C-90A Instructions d'utilisation et d'installation

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuel utilisateur

Base aire

Base aire 555 Pro Manuel utilisateur

Champion

Champion CP25 Manuel utilisateur
