Congratulations on purchasing the Expedition XP300 Portable PA System from Samson! The

XP300 is a compact, all-in-one, portable PA system featuring a six-channel mixer and 300

watts of onboard power with dual 6” 2-way speakers, making it an ideal solution for a variety

of small- to medium-sized sound reinforcement applications. The XP300 is also extremely

portable, thanks to its lightweight and unique “Slide and Lock” design.

The six-channel mixer can be removed from the speaker for tabletop use or can be stand

mounted using the Samson SMS150 Mixer Stand Holder. It features two XLR inputs for

connecting microphones, one channel for connecting a stereo signal from an MP3 player, or

other electronic device. There’s also a built-in, 24-bit digital effects processor to add studio

quality effects to your voice or instruments. For music playback, the XP300 features wireless

Bluetooth®connectivity, to stream audio from your smart phone, tablet, or computer. The

mixer provides a robust output, with 300 watts total power from the lightweight, Class D

ampliﬁer section. The XP300 employs a matched speaker system with dual 2-way enclosures

that have proprietary 6” woofers and 1” high frequency drivers. To help project sound to a

larger audience, the XP300 speakers can be mounted on standard speaker stands, thanks to

the integral pole mount receptacles. The XP300 is constructed using durable ABS high impact

plastic, making it super road tough and, at the same time, lightweight.

We recommend you keep the following records for reference, as well as a copy of your sales

receipt.

Serial number: _____________________________________________________

Date of purchase: ___________________________________________________

If you have any questions or comments regarding the XP300 Portable PA System or any other

products from Samson, do not hesitate to contact us at [email protected].

With proper care and maintenance, your XP300 Portable PA System will operate trouble-

free for many years. Should your XP300 Portable PA System ever require servicing, a Return

Authorization (RA) number must be obtained before shipping your unit to Samson. Without this

number, the unit will not be accepted. Please visit www.samsontech.com/ra for an RA number

prior to shipping your unit. Please retain the original packing materials and, if possible, return

the unit in its original carton. If your XP300 Portable PA System was purchased outside of the

United States, contact your local distributor.

Introduction

XP300 • Portable PA System 5

Features

• Compact stereo PA system with onboard mixer, and 300 watt power ampliﬁer that

packs up into a single case.

• 2-way vented speaker enclosures with 6” woofers and 1” high frequency drivers.

• Internal 2 x 150 watt lightweight Class D power ampliﬁer.

• Removable six channel mixer with two Mic inputs, USB Wireless mic input, Stereo

Line Input channel and Bluetooth®

• Bass and Treble controls on the ﬁrst three input channels.

• USB jack for connecting a Samson XPD Wireless microphone receiver.

• Sixteen, 24-bit digital effects.

• Bluetooth® connectivity allows you to stream wireless audio from your

smartphone, tablet, or computer.

• Sub output allows for connecting an active subwoofer to expand the system.

• Includes 2 x 10’ speaker cables.

ENGLISH

FRANÇAISDEUTSCHEESPAÑOLITALIANO

Getting Started

1. Remove the mixer by turning the quarter turn screw counterclockwise towards the

RELEASE position.

LOCK

RELEASE

2. Carefully hold the mixer to remove it from the speaker.

3. Remove the accessory compartment

cover by turning the quarter turn screw

counterclockwise towards the RELEASE

position, and remove the included AC and

speaker cables.

4. Replace the accessory panel by aligning

the bottom of the panel with the slots.

Make sure the quarter turn screw is in the

RELEASE position; then close the panel

and turn the quarter turn screw clockwise

to LOCK.

XP300 • Portable PA System 7

5. Position the speakers on the ﬂoor or on standard

speaker stands.

Getting Started

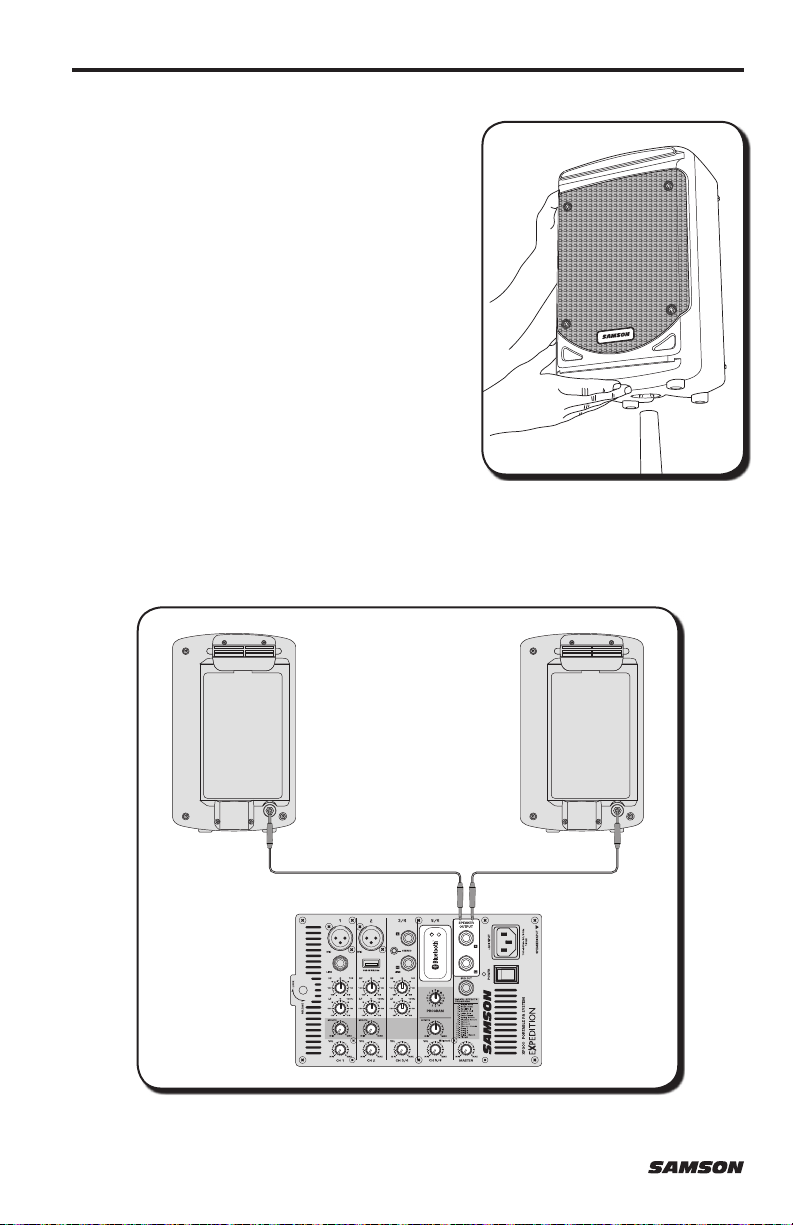

6. Using one of the included speaker cables, connect the mixer’s LEFT SPEAKER OUT to the

left speaker’s input connector. Next, use the second included speaker cable to connect the

RIGHT SPEAKER OUT to the right speaker’s input connector.

ENGLISH

FRANÇAISDEUTSCHEESPAÑOLITALIANO

Quick Start

1. Be sure that the XP300’s POWER switch is set to the OFF position.

2. Turn each of the channel LEVEL and MASTER volume controls fully counterclockwise, to

the “0” position.

3. Next, connect one side of the included power cable to the XP300 mixer’s power inlet and

the other to a grounded AC power outlet.

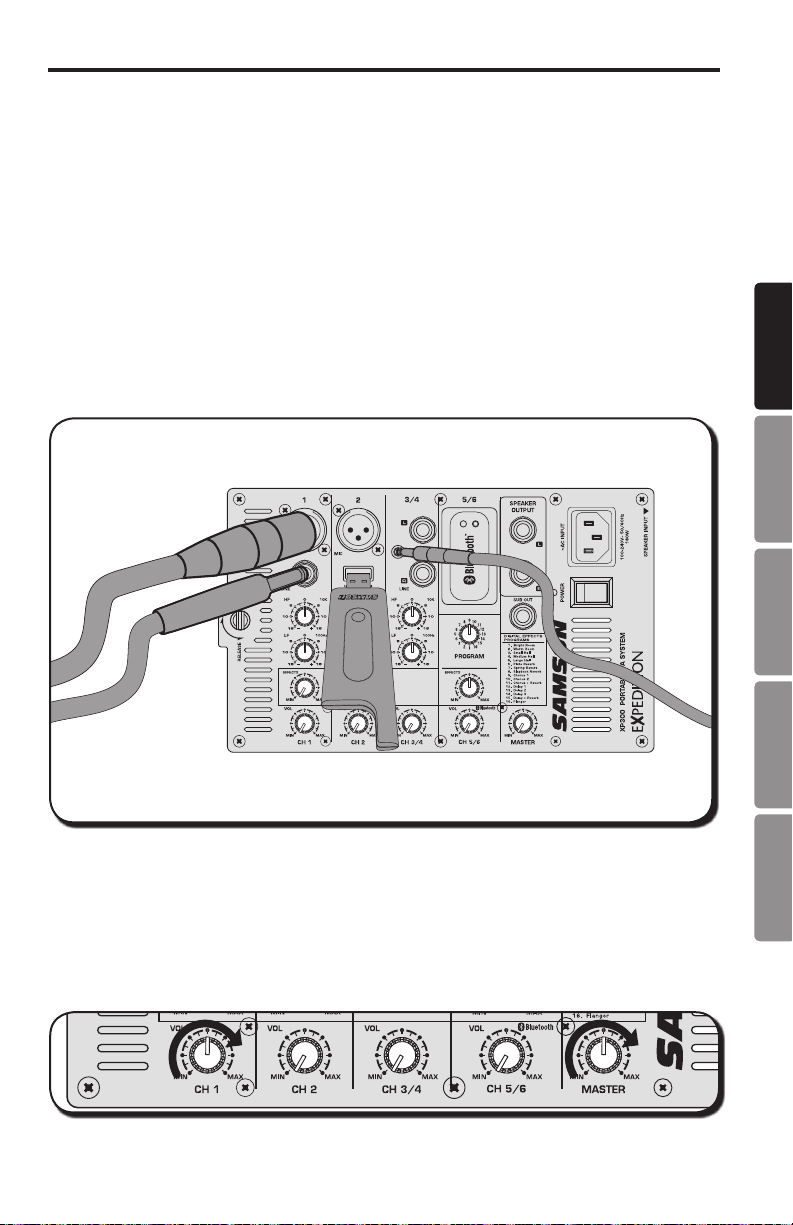

4. Connect your microphones using standard XLR cables, instruments using 1/4” phone

cables, and MP3 player using 1/8” cable, into the appropriate jacks on the mixer.

5. If using a Samson XPD Wireless Microphone ssytem, plug the receiver into the CH 2 USB

jack.

6. Switch on all equipment connected to the XP300 first, then switch the XP300’s POWER

switch to the ON position.

7. Turn the MASTER level control about 1/2 of the way up.

8. Start talking or playing into channel 1 while slowly adjusting the LEVEL control until you

have reached the desired level. Do the same for each channel you are using.

9. If you notice that the LIMITER indicator is lighting constantly, turn the MASTER volume

down so that the indicator only lights occasionally during loud hits.

XP300 • Portable PA System 9

Quick Start

To add depth to the mix or smooth out vocals, you can apply effects such as reverb to the first

two channels. To do this:

10. Use the PROGRAM selector to choose one of the 16 built-in digital effects.

11. Raise the EFFECTS level controls on the channel(s) to which you would like to add the

effect.

12. Slowly turn up the effects SEND knob until the desired sound is reached.

The XP300 input channels feature a 2-band equalizer allowing you to adjust the tonal

characteristic of the signal. You can independently adjust the bass and treble frequencies on

each channel. The channel’s frequency response is flat when the knobs are in the 12 o’clock

position.

13. If you find the audio too muddy, you may want to reduce the LF (low

frequency) control.

14. If you find that the audio sounds dull, you can increase the HF (high

frequency) control. There is no right or wrong way to EQ a sound. You

should listen to how the mix sounds in the room and fine-tune to your

liking.

Autres manuels pour Expedition XP300

Table des matières

Langues :

Autres manuels Samson Intervenants

Samson

Samson MEDIAONE BT3 Manuel utilisateur

Samson

Samson Expedition XP106 Manuel utilisateur

Samson

Samson StudioDock 3i Manuel utilisateur

Samson

Samson Expeditionn XP150 Manuel utilisateur

Samson

Samson XP 106 Manuel utilisateur

Samson

Samson Expedition XP310w Manuel utilisateur

Samson

Samson Auro D208 Manuel utilisateur

Samson

Samson RSX115 Manuel utilisateur

Samson

Samson XP308i Manuel utilisateur

Samson

Samson dB500 Manuel utilisateur

Samson

Samson Resolv RXA5 Manuel utilisateur

Samson

Samson Resolv A5 Manuel utilisateur

Samson

Samson Expedition EX30 Manuel utilisateur

Samson

Samson StudioDock Series Manuel utilisateur

Samson

Samson PORTABLE PA SYSTEM EXL250 Manuel utilisateur

Samson

Samson expedition xp1000 Manuel utilisateur

Samson

Samson Resolv A6 Manuel utilisateur

Samson

Samson XP308i Manuel utilisateur

Samson

Samson Auro D208 Manuel utilisateur

Samson

Samson Resolv 65 Manuel utilisateur

Samson

Samson EXPEDITION XP312w Manuel utilisateur

Samson

Samson Expedition XP800 Manuel utilisateur

Samson

Samson Studio GT Manuel utilisateur

Samson

Samson Resolv 50a Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
