PRODUCT COMPLIANCE
This product complies with the essential requirements of the
following EC Directives:
•Electro-Magnetic Compatibility directive 2004/108/EC
•Low Voltage Directive 2006/95/EEC
•EC Marking directive 93/68/EEC
SAFETY INFORMATION
These instructions are applicable to the Salus Controls model stated
on the front cover of this manual only, and must not be used with
any other make or model.
These instructions are intended to apply in the United Kingdom
only, and should be followed along with any other statutory
obligations.
This accessory must be fitted by a Competent person, and
installation must comply with the guidance provided in the current
editions of BS7671 (IEE Wiring Regulations) and Part ‘P’ of the
Building Regulations. Failure to comply with the requirements of
these publications could lead to prosecution.
Always isolate the AC Mains supply before opening or
removing the unit from the wall or wall box.
When fitting batteries don’t mix old and new batteries
together. Do not use rechargable batteries.
Please leave these instructions with the end user where they should
be kept in a safe place for future reference.
EP101 INSTRUCTION MANUAL 3
Salus EP101 Manual 001:89 21/11/10 11:49 Page 3
INTRODUCTION
A A programmable heating controller is used to switch the heating system
in your home on and off as needed. It works by controlling the heating
boiler according to a series of programmed settings that take effect at
different times of the day.
The EP101 from Salus Controls is
a stylish and accurate 5/2 or 7 day
programmable heating controller
with a large, easy to read Liquid
Crystal Display (LCD). This
controller has been specifically
designed to be used for single
channel Volt Free or 230V AC
heating applications.
A simple jumper switch changes
the EP101 between 5/2 or 7 day
programming.
Features
•Timed control of central heating
•Large LCD with blue backlight
•Stylish Casing
•Volt Free Contacts
•Built-in start up programme
•12 or 24 hour clock display
•Advance 1 hour facility
•Holiday Function
•5/2 or 7 day programming
•Three On / Off periods
•Memory backup
EP101 INSTRUCTION MANUAL
4
Salus EP101 Manual 001:89 21/11/10 11:49 Page 4
INSTALLATION
Please read the important safety information at the start of this manual
before you begin to install the device.
The ideal position to locate the EP101 programmable heating controller is
about 1.5m above floor level. It should be mounted in a location where the
controller is easily accessible, reasonably lit and free from extremes of
temperature.
The electrical connections to the EP101 are made to the supplied industry
standard backplate. This simplifies installation, as no connections are made
to the controller itself. Connection details are shown below - no Earth
connection is required for the correct and safe operation of the EP101, but
a parking terminal is provided to connect an Earth wire if one is present.
230V AC Switching
Terminal Description Backplate
N Mains Neutral
L Mains Live
1 Hot Water Off
2 No Connection
3 Switched Live (output)
4 230V link from Mains Live
(do not remove)
Earth Parking
(no electrical connection)
EP101 INSTRUCTION MANUAL 5
Salus EP101 Manual 001:89 21/11/10 11:49 Page 5
After installing the backplate in a suitable location, wiring connections can be
made as shown above. The following criteria apply to the installation:
•
The incoming AC mains supply should be 230V AC and fused at 6 amps.
•
Optimum cable size for installation is 1.5 mm2; wiring colours should be
in accordance with the current requirements of the IEE Wiring Regulations.
•
Cable entry should be from the rear of the backplate.
•
All wiring connections should be securely made, and be firmly
gripped beneath the terminal square brass washer.
Do not restore the mains supply to the system until all associated items are fully
installed.
NOTE: All electrical installation work should be carried out
by a suitably qualified Electrician or other competent person.
If you are not sure how to install this programmable thermostat consult either
with a qualified electrician, heating engineer or your boiler / heating system
supplier for advice on how to continue.
Do not remove or refit the EP101 onto the backplate without the mains
supply to the system being isolated.
Volt Free Switching
Terminal Description Backplate
N Mains Neutral
L Mains Live
1 Normally Closed (NC)
2 No Connection
3 Normally Open (NO)
4 Volt Free Common
Earth Parking
(no electrical connection)
EP101 INSTRUCTION MANUAL
6
Salus EP101 Manual 001:89 21/11/10 11:49 Page 6
JUMPER SETTINGS
Changes to the jumper settings should only be made by the Engineer
carrying out the installation or other qualified person.
The installer should select the jumper positions required if changes need to
be made to the factory default settings. These jumpers are found on the
rear of the controller.
Jumper Function Default
Program Type Movable jumper for 5-2 or 7 5-2
individual days programming. programming
Internal Movable jumper for Internal backup
Backup Battery enabling or disabling the battery disabled
internal backup battery.
The installer should enable the internal backup battery before fitting the
controller to ensure user settings are retained – the battery will be kept
charged from the controller mains supply.
EP101 INSTRUCTION MANUAL 7
Salus EP101 Manual 001:89 21/11/10 11:49 Page 7
AFTER INSTALLATION
After completing installation and powering up the EP101 for the first time
the controller will behave in the following way:
All the indicators on the display and the backlight will be turned on for two
seconds. After two seconds, the EP101 will then operate in Normal mode
(controller output OFF).
All the controller settings will be returned to default values. If the Reset
Button is pressed, the EP101 will behave in the same way as described
above, except that any previously saved user settings will be deleted and
overwritten with the default settings.
EP101 INSTRUCTION MANUAL
8
Salus EP101 Manual 001:89 21/11/10 11:49 Page 8
USER INTERFACE AND CONTROLS
The status and operation of the
EP101 can be clearly seen on the
large backlit Liquid Crystal Display
(LCD) - this display allows the user
to see at a glance the current status
of the heating system.
There are few user controls for the EP101, making the controller very easy to
operate. These controls are shown below, along with a description of each of
their functions.
User Control Function Summary
Key / Operation Symbol Functions
+1Hr Temporary override
UP key Increases the selected setting
DOWN key Decreases the selected setting
BACKLIGHT / Manually turns on the LCD backlight
HOLIDAY key for 5 seconds, or activates /
deactivates Holiday Override
MODE key Selects operating mode
SELECT key Selects a clock or programme setting
SET key Sets a clock or programme setting
RESET button Resets the controller to default
(original factory) settings
EP101 INSTRUCTION MANUAL 9
Salus EP101 Manual 001:89 21/11/10 11:49 Page 9
OPERATION
The EP101 is configured and
adjusted by the use of an intuitive
user interface with a minimal
number of user controls.
The backlit LCD gives a highly
visible, easily readable indication of
the controller status.
Setting the Time
Press and hold SET and SELECT when the EP101 is in Normal mode for three
seconds to enter the Clock setting mode. Releasing both keys will display
“12 hr” or “24 hr” and SET, as shown below:
Release the SET and SELECT keys and
press UP or DOWN to toggle between 12
and 24 hour time format.
Pressing and releasing SELECT will then display the time and a SET
indicator, with all other indicators cleared from the display. The hour part
of the time will be flashing to indicate that it is the currently selected item
and is ready to be adjusted.

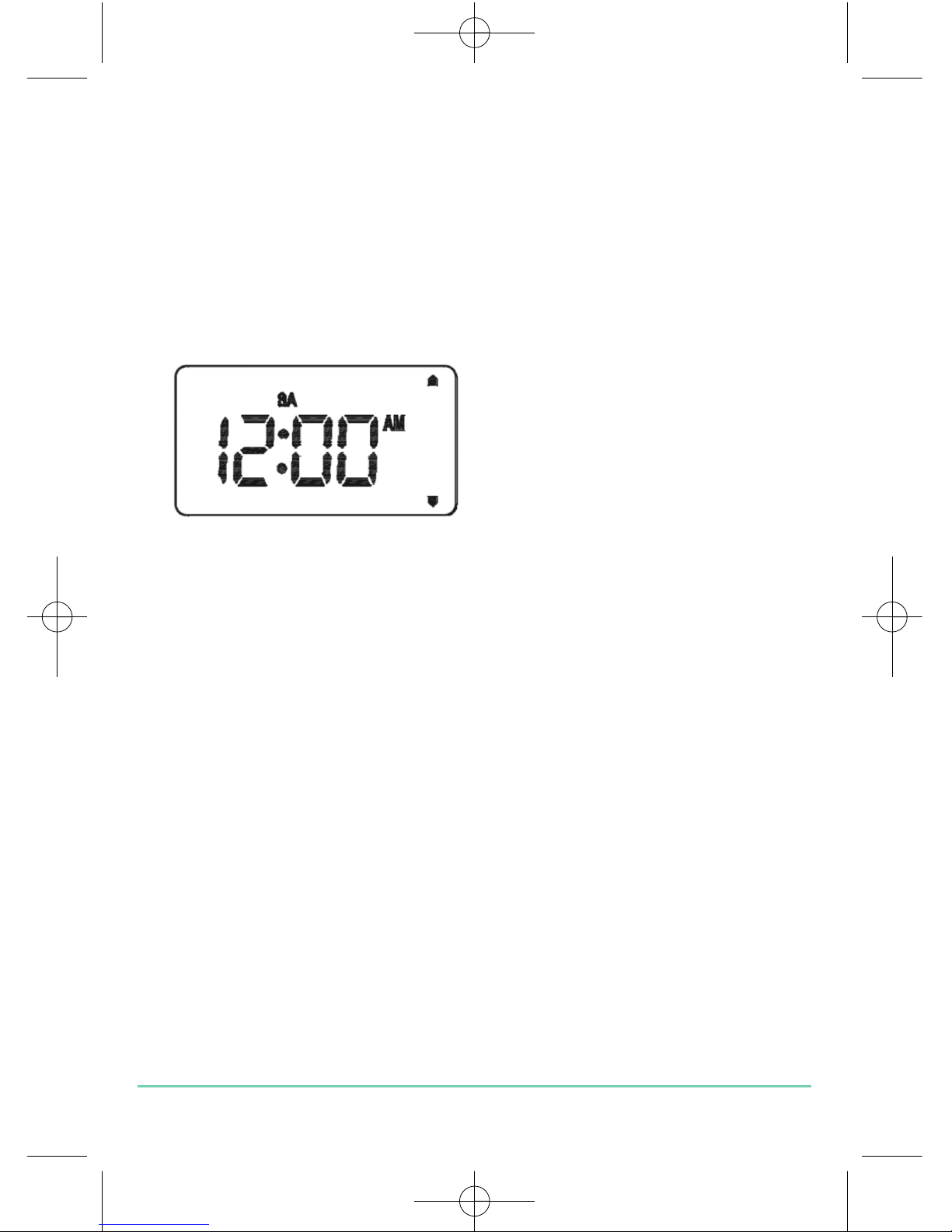

Press the UP or DOWN keys to increase or
decrease the hour setting – the selected
item will stop flashing while a key is
pressed, and will resume flashing when
you release the key.
Press the SELECT key to select the ‘minutes’ section of the time. Set the
minutes in the same way as the hour by using the UP and DOWN keys.
EP101 INSTRUCTION MANUAL
10
Salus EP101 Manual 001:89 21/11/10 11:49 Page 10
