SAILOR HC4500

MF/HF CONTROL UNIT

Operating Instructions

Distress Calls, see page ii. List of contents, see page 1.

5. Press “2182”.

6. Lift handset. Press PTT and say:

“MAYDAY”

“This is”

- the 9-digit identity and the call sign or other identification of the ship,

- The ship’s position,

- The nature of distress and

assistance wanted,

- any other information which might facilitate the rescue.

“OVER.”

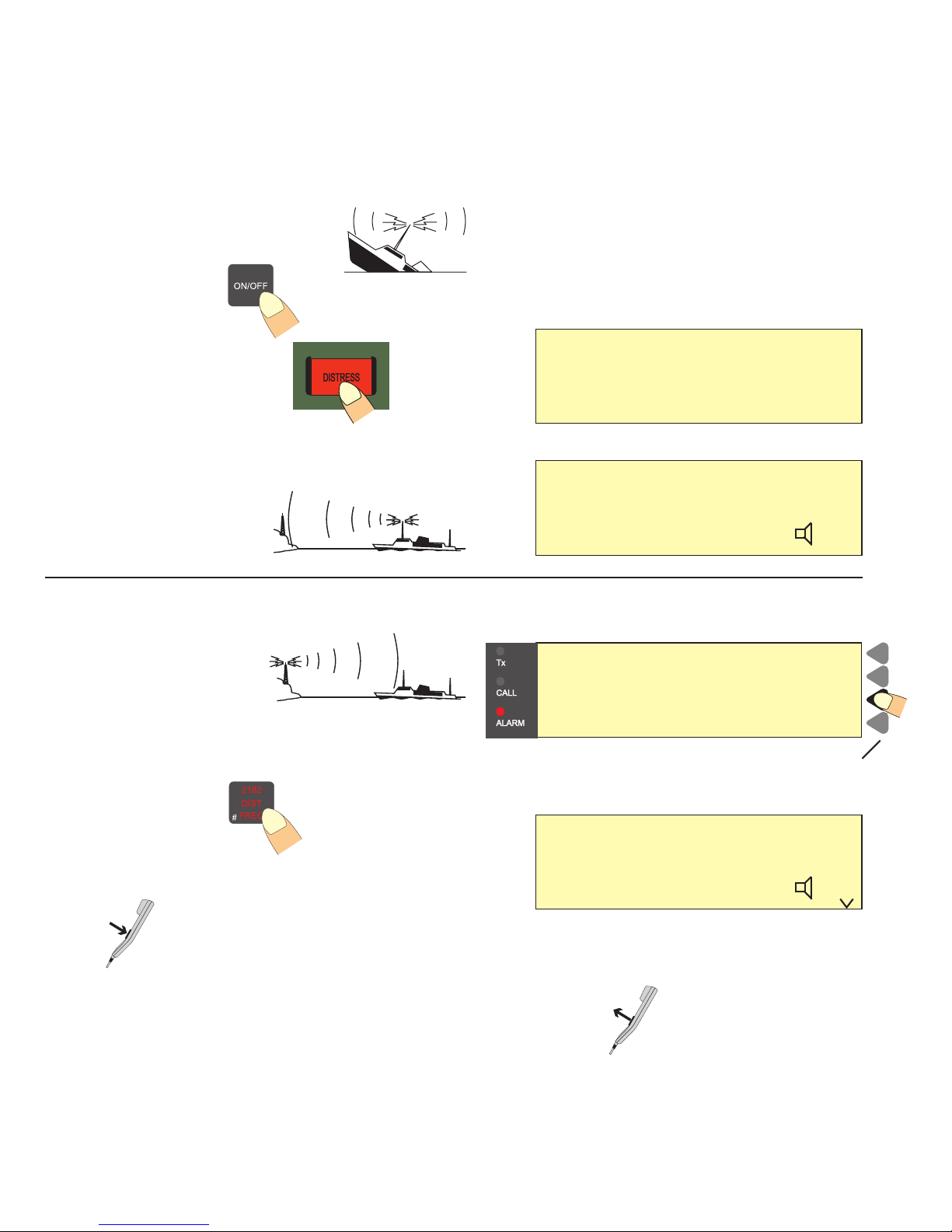

Quick DISTRESS Call

3 - 2 - 1 -

RELEASE

1. If off or STANDBY:

press ON/OFF.

2. Open DISTRESS lid.

3. Press DISTRESS

until RELEASE is displayed

Then the undesignated distress

call will be sent by default on the

distress frequency 2187.5 kHz.

Wait

for answer!

(The distress call is auto-

repeated every 5 minutes on

the same distress frequency.)

DISTRESS Acknowledgement

4. Press VIEW to read

the contents of call.

Press the DISTRESS button

for 3seconds to transmit

TYPE : Distress

MSG. : Undesignated

Pos : N57°01 W009°53

Time : 13:01 UTC CANCEL

FREQ

MODE

AM TELEPHONY SIGNAL

DISTRESS

Rx/Tx 2182.0 kHz

BAND

Read call contents.

Distress

acknowledgement

received

FROM: 002191000 VIEW

ABORT

Rx 2182.0 kHz

Tx 2182.0 kHz

CANCEL

MODE

SSB TELEPHONY TUNE<

SIGNAL CLRF

POWER HIGH SQUELCH ON | | | | | RF-G

Awaiting

Automatic

Repetition

Release

Press

Listen for answer! 0140

iii

What is What?

1. Display.

2. Indicator lamps. Condition when lit:

Tx: Transmitting.

CALL: DSC (see button 9) call for you received.

ALARM: Alarm call received.

3. Keyboard.

4. Shift key. Press and hold for yellow functions.

5. DISTRESS button. Protected by shield. To use, lift the shield

and press for 3 seconds, guided by the text displayed.

6. Tuning control.

7. ON/OFF push button.

8. Volume control.

9. TEL/DSC function switch.

In TELmode radiotelephone parameters are shown and

selected.

In DSC mode DSC parameters are shown and selected.

10. Opens the ADDR BOOK in DSC mode.

11. Tx CALL: Press to start creating a DSC call.

12. Opens the Rx log over received calls in DSC mode.

13. Soft keys. The function of each key is described in its respective

line at the right edge of the display.

13 12 11 10 9

345678

Introduction

Congratulations on your new SAILOR HC4500 MF/HF maritime ra-

dio telephone with built-in DSC (Digital Selective Calling) system and

radiotelex, fulfilling the highest international standards for marine

MF/HF communication and safety procedures. For an explanation of

DSC, see page 2.

Your SAILOR HC4500 MF/HF is a part of the modular system 4000

which also includes a HF single sideband radiotelephone. It has

built-in MF/HF telex if connected to a PC and/or a printer. If con-

nected to a GPS or other maritime navigation system it can auto-

matically include the true UTC time and your position in its DSC

distress messages.

SAILOR marine equipment is specially designed for the extremely

rugged conditions on bord a ship, based on more than 50 years’

experience with all kinds of boats, from small pleasure crafts, over

fishing boats working under all climatic conditions, to the biggest

ships.

S.P. Radio A/S is one of Europe’s leading manufacturers of maritime

radiocommunication equipment - a position which has been main-

tained by means of constant and extensive product development.

We have a worldwide network of dealers with general agencies in

more than fifty countries. All our dealers are specially trained to

service all your SAILOR products.

About this manual

This manual is for the daily user of the system. Additionally, it

includes a section on the installation procedures, and - on page ii -

standard distress procedures. We highly recommend you to read

the manual

before

you start using the equipment.

Please note

Any responsibility or liability for loss or damage in connection with

the use of this product and the accompanying documentation is

disclaimed. The information in this manual is furnished for informa-

tional use only, is subject to change without notice, may contain

errors or inaccuracies, and represents no commitment whatsoever.

This agreement is governed by the laws of Denmark.

Document no.: B4500GB0 E/0404

Abbreviations Used in this

Manual

ADDR Address

AGC Automatic Gain Control

AM Amplitude Modulation

ARQ Automatic Repetition reQuest

CLRF Clarify

CU Control Unit

DIRTLX Direct Telex

DSC Digital Selective Calling

ETSI European Telecommunications Standards Institute

FEC Forward Error Correction

GA GoAhead

GMDSS Global Maritime Distress and Safety System

GPS Global Positioning System

HF High Frequency

IMO International Maritime Organisation

IRS Information Receiving Station

ISS Information Sending Station

ITU International Telecommunication Union

MF Medium Frequency

MMSI Maritime Mobile Ship Identification

MOM Just a moment please

MSG Message

NBPD Narrow Band Direct Printing

PTT Push-To-Talk

RF-G Receiver Frequency Gain

Rx Receive

SSB Single Side Band

TEL Telephony

Tx Transmit

UTC Co-ordinated Universal Time

VHF Very High Frequency

0404

Advanced DSC Calls ......................................................... 15

Changing a Function...................................................... 17

The Function Tree .................................................... 18

GMDSS Radiotelex Terminal ............................................ 19

Introduction .................................................................... 19

Keyboard Indicator Lamps............................................. 20

Keyboard Function Keys................................................ 20

Switching On .................................................................. 21

Channel Selection.......................................................... 21

Transmitting a Message................................................. 21

Editing a Message ......................................................... 21

Receiving a Message..................................................... 22

Installation and Initial Set-up ......................................... 22

Printer ....................................................................... 22

Keyboard .................................................................. 22

Modem Set-up.......................................................... 22

Example of FEC Transmission ...................................... 23

Example of ARQ Transmission to a Coast Statio.......... 23

Contents

Quick DISTRESS Call .......................................................... ii

DISTRESS Acknowledgement............................................ ii

What Is What? ..................................................................... iii

Introduction......................................................................... iv

About this Manual .............................................................. iv

Abbreviations...................................................................... iv

MF/HF Fundamental Info .................................................... 2

Propagation of MF and HF Radio Waves........................ 2

Radiotelephony ................................................................ 2

Radiotelex ........................................................................ 2

DSC.................................................................................. 2

Basic Functions ................................................................... 3

Switching ON/OFF ........................................................... 3

Setting Backlight Level .................................................... 3

Switching Loudspeaker ON/OFF..................................... 3

Volume Control ................................................................ 3

Switching Squelch ON/OFF............................................. 3

Setting Transmitter Power Level...................................... 3

Manual Call Functions ........................................................ 4

Telephony Channel Display Functions: ........................... 4

Frequency Display Functions: ......................................... 4

Tuning .............................................................................. 4

Station Display Functions: ............................................... 5

Distress Telephony Frequencies ..................................... 5

Distress Frequency Display Functions: ........................... 5

Two-tone Alarm Signal ........................................................ 6

Two-tone Alarm Display Functions: ................................. 6

Listening for Calls ............................................................... 6

Making a Manual Call .......................................................... 6

DSC Main Buttons ............................................................... 7

Calling Watch ................................................................... 8

DSC Display Operation ....................................................... 9

Receiving an Individual DSC Call.................................... 9

Receiving DISTRESS Call............................................. 10

Calling a SHIP.................................................................11

Calling a SHORE Station............................................... 12

Address Book................................................................. 13

Using Two Control Units ................................................ 14

Priority of Control Unit #1......................................... 14

Control Unit #2 Taking Over the Control.................. 14

Status Indication....................................................... 14

Responding to Incoming DSC Calls ........................ 14

Power On/Off By Control Unit #2 ............................. 14

Interconnecting......................................................... 14

DSC Scanning Frequencies..................................... 14

0404

MF/HF Fundamental Info

Propagation of MF and HF Radio

Waves.

MF/HF radiocommunications provide a medium and long range

service.The 1.6-4 MHz marine band is intended primarily for coastal

operation beyond normal VHF communication range.A reliable

range of more than 150 nautical miles can be expected in most

areas in the daytime, more in the nighttime. Propagation of the radio

waves in this band is mainly by ground waves i.e. the waves from

the transmitter aerial follow the earth’s curvature to the receiver

aerial.The high frequency range 4 - 30 MHz can provide

communication for hundreds or even thousands of nautical miles.

The long range is achieved by sky waves reflected from the iono-

sphere. Propagation of the radio waves depends on a number of

factors such as frequency, time of day, time of year, and solar

activity.The channels allocated to the maritime mobile service in the

HF range are divided into a number of bands: 4, 6, 8, 12, 16, 18, 22,

25 MHz to allow a suitable frequency band to be selected for

communication dependent on distance and time of day.

Radiotelephony

The mode of emission used for telephony transmissions in the

marine bands is SSB (single-sideband, J3E). On the international

distress frequency 2182 kHz compatible AM (amplitude modulation,

H3E) may be used in addition for communication with non-GMDSS

ships. AM mode is used also when receiving broadcasting.The

frequencies for radiotelephone distress and safety traffic in the HF

bands are 4125 kHz, 6215 kHz, 8291 kHz, 12290 kHz, and 16420

kHz.Working frequencies for public correspondence with coast

stations are arranged in pairs for duplex/semi-duplex operation. For

the HF bands these channels are allocated numbers by ITU on an

international basis. In addition a number of simplex frequencies are

available in each band for ship-to-ship communication.

Radiotelex

Marine telex is also referred to as ‘Narrow Band Direct Printing’

(NBDP). Due to the narrow bandwidth of the transmissions, a longer

range may be expected compared to radiotelephony.The frequen-

cies for radiotelex distress and safety traffic are 2174.5 kHz, 4177.5

kHz, 6268 kHz, 8376.5 kHz, 12520 kHz, and 16695 kHz.Working

frequencies for public correspondence with coast stations are

arranged in pairs. For the HF bands these channels are allocated

numbers by ITU on an international basis. In addition a number of

simplex frequencies are available in each band for ship-to-ship

communication.

DSC

DSC (Digital Selective Calling) is an automatic calling system which

allows a specific station to be contacted and made aware that a

station wishes to communicate with it. In addition to calls to specific

stations the system can also be used to call ‘all ships’ and groups of

ships and this is of significance for its use for DSC distress alerting.

DSC is an alerting signal only and the communication which follows

the call is made on an appropriate frequency band using radiote-

lephony or radiotelex.The frequencies for DSC distress and safety

calling are 2187.5 kHz, 4207.5 kHz, 6312 kHz, 8414.5 kHz, 12577

kHz, and 16804.5 kHz. Calling frequencies for public correspond-

ence with coast stations are arranged in pairs, both international and

national frequencies are assigned. In addition the frequency 2177

kHz may be used for ship-to-ship calling.

Basic Functions

Switching ON/OFF

1. Press the ON/OFF button.

Setting Backlight Level

1. Press the Shift key followed by the DIM key.

The backlight is changed from zero to maximum in four steps.

Repeat until the desired setting is reached.

Switching Loudspeaker ON/OFF

1. Press the Shift key followed by the SPK key.

Volume Control

1. Rotate the VOL button to adjust the loudspeaker sound volume.

Switching Squelch ON/OFF

(SSB Telephony mode)

1. Press the Shift key followed by the Squelch key.

When squelch is ON, the receiver output is muted in speech pauses.

Setting Transmitter Power Level

1. Press the Shift key followed by the Power Key.

The output power is set to HIGH, MED or LOW.

Repeat until the desired setting is reached.

Rx frequencies may be keyed in directly from the keyboard

Tuning

(Frequency display only)

1. Rotate the TUNE button to adjust frequency or RF-gain of the receiver.

Functions indicated by arrow in the Frequency display:

TUNE: Frequency tuning in 1 kHz steps (AM), 100 Hz steps (SSB) or 500Hz (Telex).

CLFR: Frequency tuning in 10 Hz steps.

RF-G: Manual RF-gain tuning, AGC off.

Frequency Display Functions:

Manual Call Functions

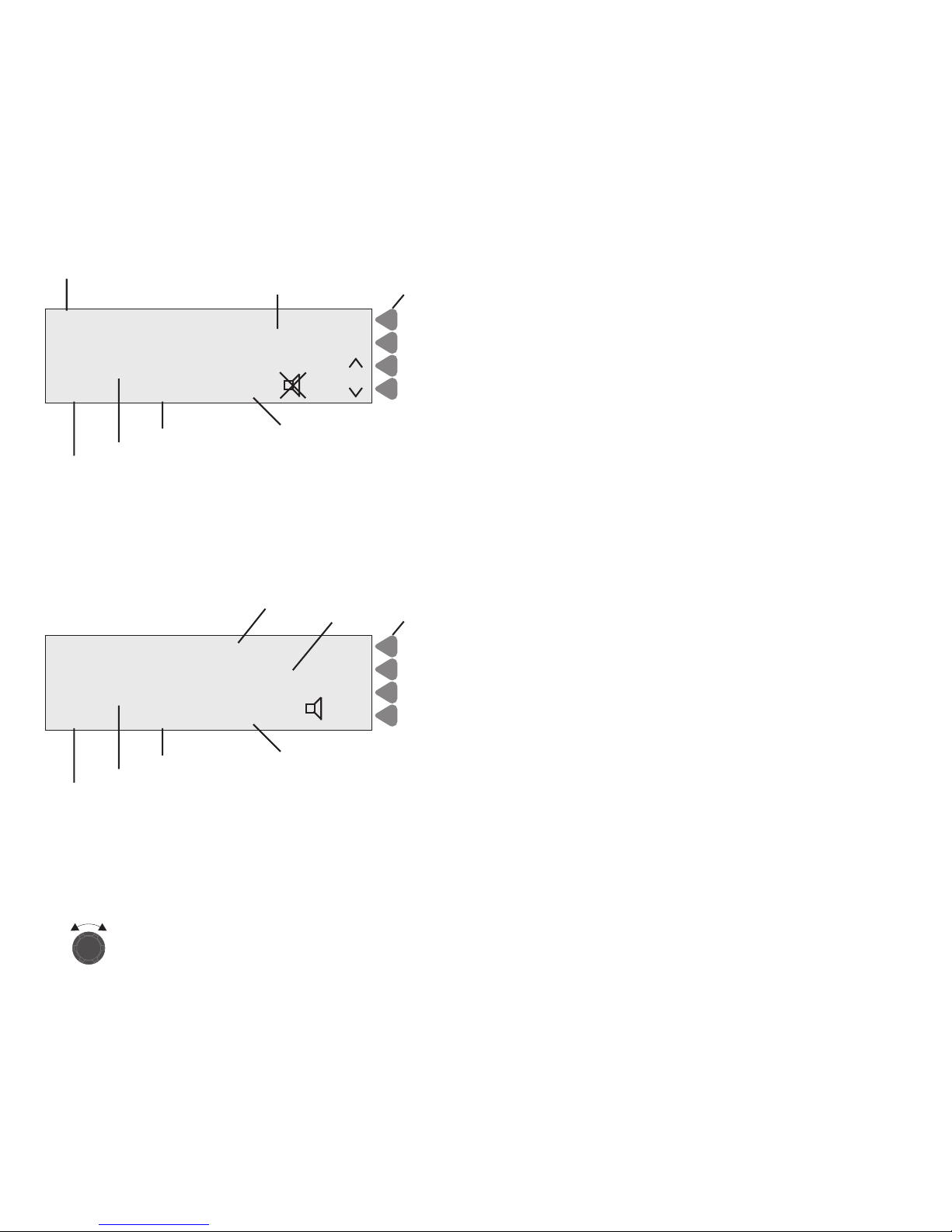

Telephony Channel Display Functions:

A channel number may also be keyed in directly from the keyboard.

If the channel is not allocated to the station selected, the station

name will disappear from the display.

Soft keys

Switches to Frequency display for viewing or altering frequencies.

Switches to Station display for selection of another station.

Steps to the next lower channel number of the station.

Steps to the next higher channel number of the station.

Squelch setting Receive: Signal strength

Mode of emission Transmit: Output power level

Output power setting

Name of station if selected. Channel number.

LYNGBY FREQ

STATION

SSB TELEPHONY SIGNAL

CH 4 1 8

Soft keys

Switches to Channel display and previous channel number.

Moves the arrow to Tx before keying in a Tx frequency.

Steps between SSB telephony, AM telephony and Telex mode.

Steps between Tune, Clarify and RF-Gain tuning functions.

Squelch setting Receive: Signal strength

Mode of emission Transmit: Output power level

Output power setting

> Rx 4357.0 kHz

Tx 4065.0 kHz

Receive frequency

Transmit frequency

MODE

SSB TELEPHONY TUNE<

SIGNAL CLRF

POWER HIGH SQUELCH ON | | | | | RF-G

Station Display Functions:

Distress Telephony Frequencies

To switch to Distress Frequency display: Press 2182 Distress Freq key.

Distress Frequency Display Functions:

Soft keys

Selects the station and switches to Channel display for choice of channel number.

Returns to Channel display without selecting the station.

Selects previous station.

Selects next station.

Telex call code

Name of station

MMSI number of station

SELECT

CANCEL

NAME LYNGBY

CALL SIGN OXZ

MMSI NO 002191000

TELEX NO 37383 STN

STATIONTABLE

FREQ

MODE

AM TELEPHONY SIGNAL

BAND

DISTRESS

Rx/Tx 2182.0 kHz

The frequencies for distress and safety telephony traffic are

2182 kHz, 4125 kHz, 6215 kHz, 8291 kHz, 12290 kHz, 16420 kHz

Soft keys

Switches to Channel display and previous channel number.

Switches to Frequency display.

Selects between AM and SSB mode of emission on 2182 kHz.

Steps to the distress telephony frequency in the next higher band.

Receive: Signal strength

Mode of emission Transmit: Output power level

Output power setting

Receive/transmit frequency.

Two-tone Alarm Signal

To switch to the Two Tone Alarm Signal display: Press the Shift key

followed by the Alarm key.

Transmission of the two tone alarm signal will continue for 45

seconds, but may be stopped manually by pressing the STOP key in

the frequency display.When the alarm signal ceases press the

handset key and transmit your distress message by speaking into

the handset microphone with a clear and calm voice.

Two-tone Alarm Display Functions:

Listening for Calls

Coast stations transmit traffic lists consisting of call signs/names of

the ships for which they have traffic.

The traffic lists are sent at specified times and at intervals of typically

two hours.They are broadcasted on the normal working frequencies

on the coast station. Ships should, as far as possible, listen to the

traffic lists transmitted by relevant coast stations.On hearing their

call sign they should establish communication as soon as they can

do so.

1. Select the appropriate station.

2. Select the channel on which traffic lists are transmitted.

3. Switch loudspeaker on and adjust volume to an appropriate

level.

If on HF, traffic lists are transmitted in more frequency bands

simultaneously, search for the channel with the best propagation

conditions.

Making a Manual Call

Wait until transmission of the traffic list has finished and the channel

is free. Call the coast station on the working frequency on which the

traffic list was received or as instructed by the coast station.

1. Hook off the handset.

2. Press the PTT key on the handset when speaking.

Say:

1. <Called station’s name (3 times)>

2.‘This is’ <Your ship’s name (3 times)>

3. ‘Over’

3. Release the PTT key to listen.

4. When answered:

Follow the instructions from the coast station.The coast station may

ask for further identification, information on position and next port of

call, and may suggest another working channel for the traffic to

follow.If the coast station is not ready to receive traffic immediately it

may ask you to wait for a specific number of minutes.

Note:The two tone alarm signal generator is intended for alerting

ships not yet equipped with DSC equipment. It may be used only to

announce a distress message and primarily on the frequency 2182

kHz in AM telephony mode.

Soft keys

Returns to frequency display.

Starts test of the alarm signal generator.

Starts transmission of the two tone alarm signal.

Press the START button FREQ

TEST

seconds to send alarm START

Table des matières

Autres manuels Sailor Unité de contrôle

Sailor

Sailor COMPACT HF SSB T2130 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
