Rosslare AY-Z12 Manuel utilisateur
Long range Multi Reader
AY-Z12
Installation Guide
May 2009
Table of Contents
AY-Z12 Installation Manual Page ii
Table of Contents
1. Introduction......................................................................3
2. Technical Specifications ..................................................5
3. Installation........................................................................6
3.1 The Installation Kit...................................................6
3.2 Installing the AY-Z12 Long Range Reader:.............6
4. Wiring Instructions..........................................................9
5. Operation Instructions ..................................................10
Appendix A: Limited Warranty...................................11
Appendix B: Technical Support...................................13
Introduction
1. Introduction
The AY-Z12 Long-range Reader is an RFID proximity card reader,
utilized with access control systems.

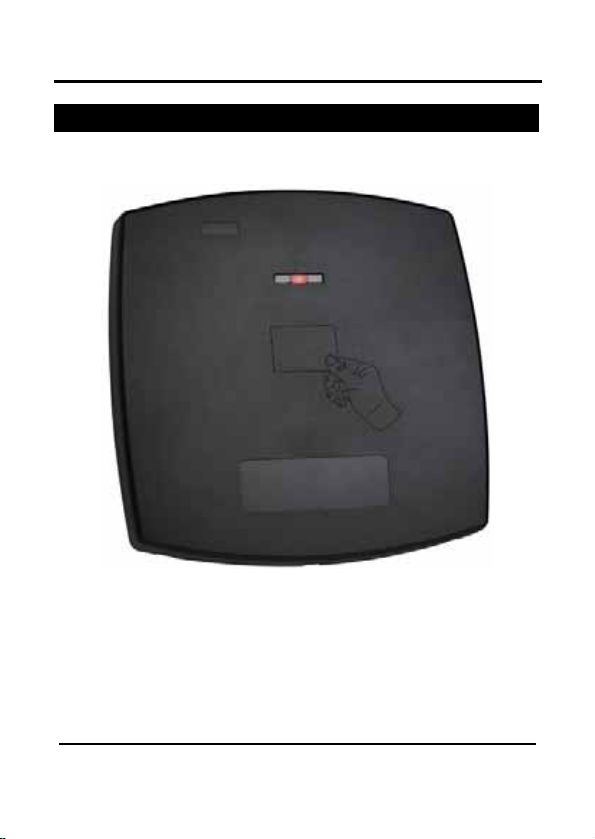

Figure 1 The AY-Z12 Long-Range Reader
This Manual contains the following information:
•Installation
•Wiring Instructions
•Operation Instructions
Page 3 AY-Z12 Installation Manual
Introduction
AY-Z12 Installation Manual Page 4
The AY-Z12, while easy to install and set up, must be installed
professionally.
This product has only one available channel.
Pursuant to FCC §15.21 [ 54 FR 17714 , Apr. 25, 1989, as amended
at 68 FR 68545 , Dec. 9, 2003], changes or modifications made to
equipment, which are not expressly approved by Rosslare
Enterprises, Ltd., may void the user's authority to operate the
equipment.
Technical Specifications
AY-Z12 Installation Manual
Page 5
2. Technical Specifications
Electrical Characteristics
Power Supply Type Linear type - recommended
Operating Voltage Range
10 - 16VDC
Absolute Maximum
(non-operating) 18VDC
Input Current Standby: 280mA
Read: 330mA
Tamper Output Open collector, active low, max.
sink current 30mA
Maximum Cable Distance
to Controller 500 ft (150 meters)
Card Read Distance Weigand 26 output format with a
23.6" (60 cm) maximum read
range*
Environmental Characteristics
Operating Temp. Range -22°F to 145° F (-30°C to 63°C)
Operating Humidity 0 – 95% (non-condensing)
Suitable for outdoor use (IP54)
Dimensions
Height x Width x Depth 11.81" x 11.81" x 1.0"
300mm x 300mm x 25.4 mm
Weight 2.35 Lbs. (1066g)
* Measured using Rosslare Proximity Card AT-R14 or equivalent. Range also
depends on electrical environment and proximity to metal.
Installation
3. Installation
3.1 The Installation Kit
The Installation kit comprises of the following items that are to be
used during the installation procedure:
•One Installation Template
•Four pan head screws & wall plugs
•One L shaped security screw tool
•Three Security screws
3.2 Installing the AY-Z12 Long Range Reader:
AY-Z12 Installation Manual Page 6
Installation
Figure 2: Removing the Top Cover
Figure 2shows the front view of the AY-Z12 Long-Range Reader.
When installing the reader, you must remove the snap-off cover to
access the screw holes.
The Reader must be mounted with the appropriate screws (not
supplied), as described in the template provided.
Installing the unit on metal surfaces will reduce the read range
considerably, to decrease the affect of the metal surface use
Rosslare’s MP-Z02 Spacer (sold separately) as described in the
image below for a max range of 43cm (17 inch).

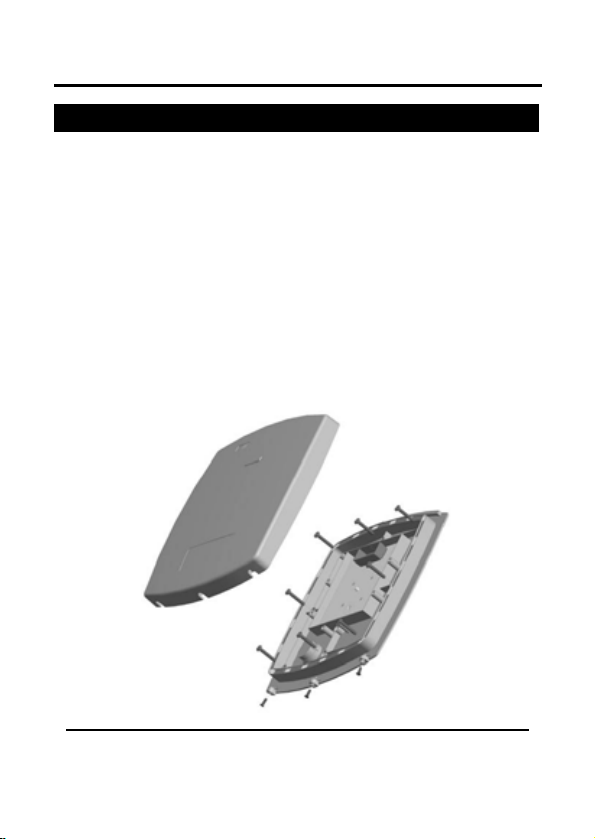

Figure 3: Installing the unit with the MP-Z02 spacer
Page 7 AY-Z12 Installation Manual
Installation
AY-Z12 Installation Manual Page 8
To Install the Reader:
1. Determine an approximate location for the installation of the
Reader.
2. Peel off the back of the self-adhesive installation label
template and locate it at the required location.
3. Using the template as a guide, drill the holes (the size of
which are indicated in the template) to install the Reader or
spacer onto the surface.
4. Drill a 7/16” (10mm) hole for the cable. In the event that you
are installing the reader on metal, place a grommet or
electrical tape around the edge of the hole and use the MP-
Z02 spacer.
5. Route the interface cable from the Reader to the Controller.
A linear type power supply is recommended.
Wiring Instructions
4. Wiring Instructions
The AY-Z12 Reader is supplied with an 18” pigtail, comprising a 6-
conductor cable.
To connect the Reader to the Controller:
1. Prepare the Reader cable by cutting its jacket back 1¼” and
strip the insulation from the wires, ½”.
2. Prepare the Controller cable by cutting its jacket back 1¼”
and strip the insulation from the wires, ½”.
3. Splice the Reader’s pigtail wires to the corresponding
Controller wires and cover each joint with insulating tape.
If the tamper output is being utilized, connect the purple wire
to the correct input on the Controller.
Reader Color Weigand Output
10~16 VDC Red DC+Input
Shield / Ground Black Ground
Data 1 White Data 1
Data 0 Green Data 0
LEDCTL Brown LED Control
Tamper Purple Tamper
4. Trim and cover all unused conductors.
Note:
•The individual wires from the Reader are color-coded according
the Wiegand standard.
•When using a separate power supply for the Reader, this supply
and that of the Controller, must have a common ground.
•The Reader’s cable shield wire should preferably be attached
to an earth ground, or a signal ground connection at the panel,
or power supply end of the cable. This configuration is best for
shielding the Reader cable from external interference
Page 9 AY-Z12 Installation Manual
