Rosslare AY-V64B Instructions de montage

AY-V64B

Multi-Reader

Installation and Programming Manual

This manual and the information contained herein are proprietary to ROSSLARE

ENTERPRISES LIMITED and/or its related companies and/or subsidiaries’

(hereafter: "ROSSLARE"). Only ROSSLARE and its customers have the right to

use the information.

No part of this manual may be re-produced or transmitted in any form or by any

means, electronic or mechanical, for any purpose, without the express written

permission of ROSSLARE.

ROSSLARE owns patents and patent applications, trademarks, copyrights, or

other intellectual property rights covering the subject matter in this manual.

TEXTS, IMAGES, AND ILLUSTRATIONS INCLUDING THEIR ARRANGEMENT IN

THIS DOCUMENT ARE SUBJECT TO THE PROTECTION OF COPYRIGHT LAWS

AND OTHER LEGAL RIGHTS WORLDWIDE. THEIR USE, REPRODUCTION, AND

TRANSMITTAL TO THIRD PARTIES WITHOUT EXPRESS WRITTEN PERMISSION

MAY RESULT IN LEGAL PROCEEDINGS.

The furnishing of this manual to any party does not give that party or any third

party any license to these patents, trademarks, copyrights or other intellectual

property rights, except as expressly provided in any written agreement of

ROSSLARE.

ROSSLARE reserves the right to revise and change this document at any time,

without being obliged to announce such revisions or changes beforehand or

after the fact.

Table of Contents

AY-V64B Installation and Programming Manual iii

Table of Contents

1. Introduction ................................................................7

1.1 Box Content ........................................................................... 7

1.2 Ancillary Equipment ................................................................ 7

2. Technical Specifications ..............................................8

3. Installation ..................................................................9

3.1 The Installation Kit .................................................................. 9

3.2 Installing the AY-V64B ............................................................ 9

4. Wiring Instructions ...................................................11

5. Operation Instructions..............................................12

5.1 Transmit Mode ..................................................................... 12

5.2 Programming the AY-V64B.................................................... 12

5.3 Entering Programming Mode................................................. 13

5.4 Exiting Programming Mode ................................................... 14

5.5 Selecting Keypad Transmission Format ................................... 14

5.5.1 Keypad Transmission Format Option Number ...............................15

5.6 Selecting Proximity Card Transmission Format......................... 20

5.6.1 Proximity Card Transmission Format Option Number ....................20

5.7 Changing the Programming Code.......................................... 21

5.8 Changing the Facility Code.................................................... 22

5.9 Return to Factory Default Settings.......................................... 22

5.10 Replacing a lost Programming Code....................................... 23

A. Limited Warranty ......................................................24

List of Figures

iv AY-V64B Installation and Programming Manual

List of Figures

Figure 1: Removing the Top Cover ....................................................................9

List of Tables

AY-V64B Installation and Programming Manual v

List of Tables

Table 1: Wiring Colors .....................................................................................11

Table 2: Programming Menus..........................................................................13

Table 3: Keypad Transmission Format..............................................................15

Notice and Disclaimer

vi AY-V64B Installation and Programming Manual

Notice and Disclaimer

This manual’s sole purpose is to assist installers and/or users in the safe and

efficient installation and usage of the system and/or product, and/or software

described herein.

BEFORE ATTEMPTING TO INSTALL AND/OR USE THE SYSTEM,THE INSTALLER AND THE

USER MUST READ THIS MANUAL AND BECOME FAMILIAR WITH ALL SAFETY

REQUIREMENTS AND OPERATING PROCEDURES.

The system must not be used for purposes other than those for which it

was designed.

The use of the software associated with the system and/or product, if

applicable, is subject to the terms of the license provided as part of the

purchase documents.

ROSSLARE exclusive warranty and liability is limited to the warranty and

liability statement provided in an appendix at the end of this document.

This manual describes the maximum configuration of the system with the

maximum number of functions, including future options. Therefore, not all

functions described in this manual may be available in the specific system

and/or product configuration you purchased.

Incorrect operation or installation, or failure of the user to effectively

maintain the system, relieves the manufacturer (and seller) from all or any

responsibility for consequent noncompliance, damage, or injury.

The text, images and graphics contained in the manual are for the purpose

of illustration and reference only.

All data contained herein subject to change without prior notice.

In no event shall manufacturer be liable for any special, direct, indirect,

incidental, consequential, exemplary or punitive damages (including,

without limitation, any and all damages from business interruption, loss of

profits or revenue, cost of capital or loss of use of any property or capital or

injury).

All graphics in this manual are for reference only, some deviation between

the image(s) and the actual product may occur.

All wiring diagrams are intended for reference only, the photograph or

graphic of the PCB(s) are intended for clearer illustration and

understanding of the product and may differ from the actual PCB(s).

Introduction

AY-V64B Installation and Programming Manual 7

1. Introduction

The AY-V64B is a programmable Wiegand and Clock & Data

proximity card and keypad reader, which supports multiple proximity

card and keypad formats to provide a high level of compatibility and

connectivity with host controllers.

The unit is programmable for proximity card data in 26-Bit Wiegand,

Clock & Data, or Wiegand Card + PIN format.

The keypad can also be programmed to output eight different data

formats.

The AY-V64B utilizes flash firmware for easy upgrades.

1.1 Box Content

Before beginning, verify that all of the following is in the box. If

anything is missing, please report the discrepancy to your nearest

Rosslare office.

The AY-V64B package contains the following items:

One AY-V64B access control unit

Installation kit

Installation and operating manual

1.2 Ancillary Equipment

The additional non-supplied equipment is required:

Compatible host controller

Power supply – 5 to 16 VDC (from a regulated power supply)

Other Rosslare accessories can be found at Rosslare's website:

http://www.rosslaresecurity.com

Technical Specifications

8 AY-V64B Installation and Programming Manual

2. Technical Specifications

Electrical Characteristics

Power Supply Type Linear type (recommended)

Operating Voltage Range 5–16 VDC

Absolute Maximum

(non-operating)

18 VDC

Input Current Standby: 150 mA

Read: 180 mA

Tamper Output Open collector, active low, max. sink current

30 mA

Maximum Cable Distance to

Controller

150 m (500 ft)

Card Read Distance* 22 cm (9 in.)

Environmental Characteristics

Operating Temp. Range -20°C to 63°C (-4°F to 145°F)

Operating Humidity Range 0 to 95% (non-condensing)

Suitable for outdoor use (meets IP54)

Dimensions

Height x Width x Depth 125 x 125 x 21 mm (4.9 x 4.9 x 0.8 in.)

Weight 285 g (10.1 oz)

* Measured using a Rosslare proximity card or equivalent. Range also depends

on electrical environment and proximity to metal.

Installation

AY-V64B Installation and Programming Manual 9

3. Installation

Installation of an RFID reader adjacent to metallic surfaces

might alter the reader’s specifications. To diminish this

interference, use a plastic spacer when mounting the reader.

3.1 The Installation Kit

The Installation kit comprises of the following items that are to be

used during the installation procedure:

One installation template

Two pan head screws and wall plugs

One L-shaped security screw tool

Two security screws

3.2 Installing the AY-V64B

When installing the reader, you must remove the snap-off cover to

access the screw holes (Figure 1).

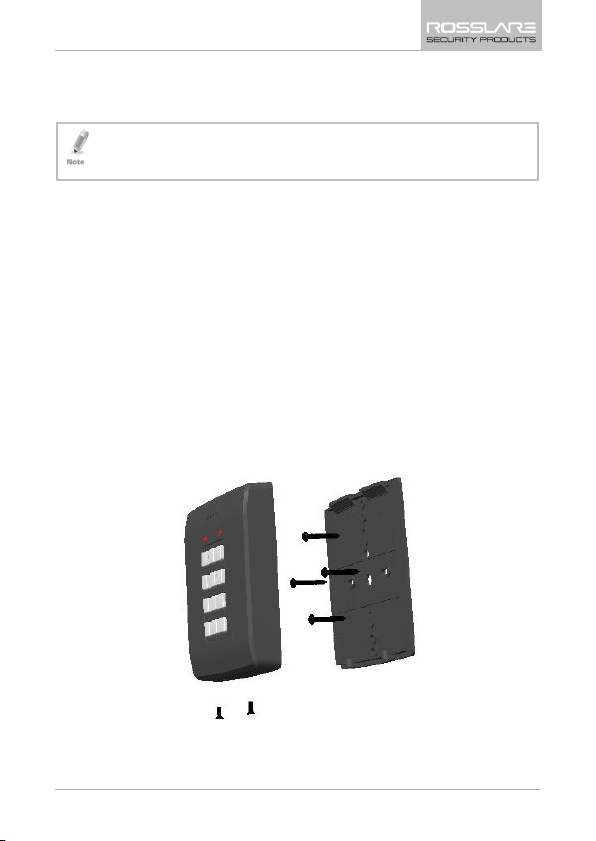

Figure 1: Removing the Top Cover

Installation

10 AY-V64B Installation and Programming Manual

The reader must be mounted with the appropriate screws, as

described in the template provided.

To install the reader:

1. Determine an approximate location for the installation of the

reader.

2. Peel off the back of the self-adhesive installation label template

and locate it at the required location.

3. Using the template as a guide, drill two holes (the size of which

are indicated in the template) to install the reader onto the

surface.

4. Drill a 10-mm (7/16”) hole for the cable. In the event that you are

installing the reader on metal, place a grommet or electrical tape

around the edge of the hole.

5. Route the interface cable from the reader to the controller. A

linear type power supply is recommended.

The reader can also be mounted using strong epoxy glue. After

application, the reader should be firmly held in place until the

glue dries.
