Rosewill LINE Manuel utilisateur

User’s Manual

User's ManualLINE

CASE

Contents

Disassemble Chart P.2

P.3

Accessory Box

Installation Guide

Product Overview

P.10

Information

Opening Chassis P.4

Installing Power Supply P.4

Installing Motherboard P.5

P.7~8Installing External 5.25" Device

P.7~8Installing External 3.5" Device

P.9Installing 3.5”/2.5” HDD/SSD

P.6

Installing Add On Card

User's ManualLINE

CASE

( Please refer to your motherboard’s user’s manual to connect. )

Disassemble Chart

USB 3.0 CONNECTOR

USB2.0 CONNECTOR HD CONNECTOR

AC97 CONNECTOR

Top 1x 120mm fan＊

Rear 120mm fan＊

Tool-less kit for

5.25” device＊

Tool-less kit for

3.5” device＊

＊

Left side panel

Right side panel

Front 2x 120mm fan＊

Front panel

5.25” to 3.5”

adapter

one 3.5” to 2x 2.5” SSD adapter ＊

( For reference only. Models’ option may be varied by countries. )

＊= optional

USB+5V

LP+

GND

USB+5V

LP+

GND

NO PIN

AUD GND

PRESENCE#

SENSE1 RETURN

NO PIN

SENSE2 RETURN

PORT1L

PORT1R

PORT2R

SENSE SEND

PORT2L

MIC

AUD GND

RET~R

NO PIN

RET~L

MIC

MIC~BIAA

FPOUT~R

+5V

FPOUT~L

NO PIN NO PIN

NO PIN

User's ManualLINE

CASE

Accessory Box

Motherboard

3.5” HDD

37 x Screw A

20 x Screw B 2.5” HDD

5.25” device

3.5” device

2 x PCI cover PCI slot

11 x Screw C PCI card

PSU

6 x MB stand-off

1 x PC SPEAKER Motherboard

Motherboard

5 x Cable tie Cables

1 x Stand-off socket Motherboard

Stand-off

User's ManualLINE

CASE

Unscrew to remove left and right panels.

Place the power supply from the left side into

the chassis and secure with screw-D.

NOTICE :

-If your power supply is equipped with single

fan (120mm, 135mm or 140mm), please have

the fan face to the bottom.

User's ManualLINE

CASE

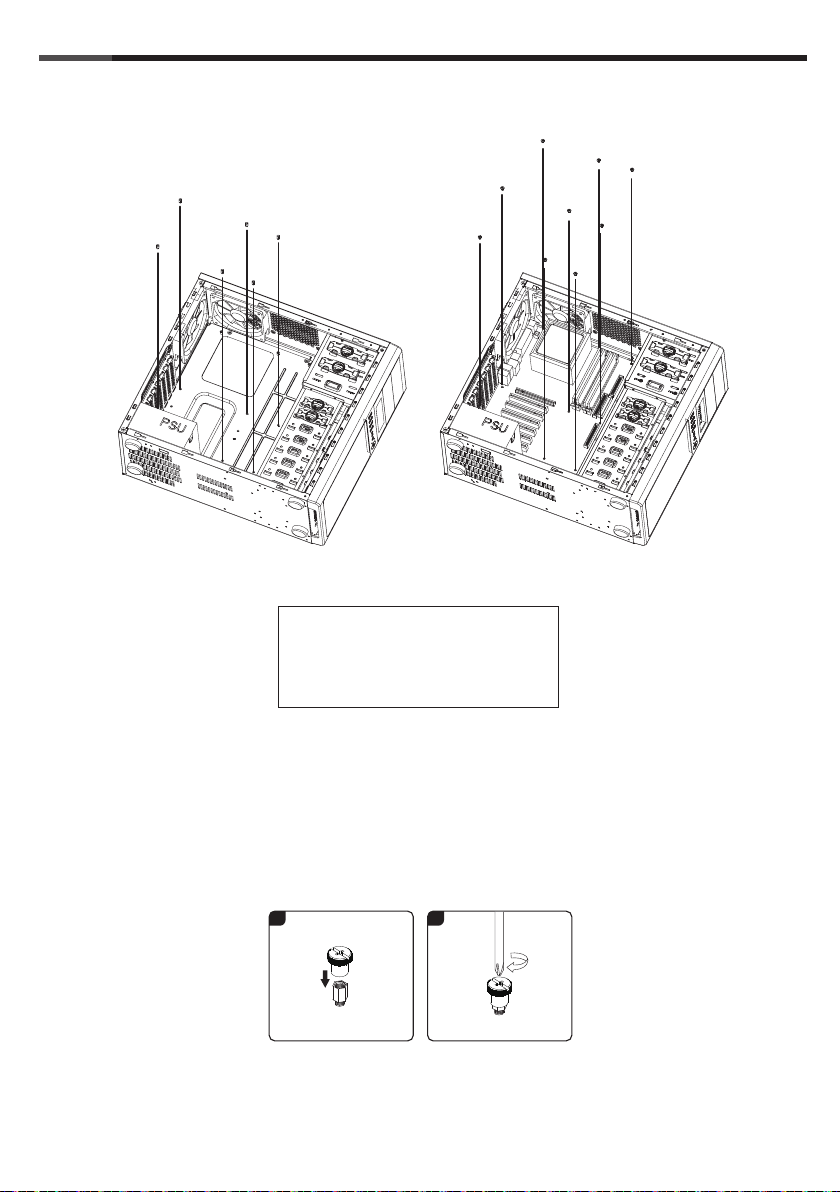

-Install motherboard stand-offs according to your motherboard’s form factor.

-Place the motherboard onto stand-offs and secure with screw-A.

* Install/Uninstall stand-offs by stand-off socket.

Motherboard stand-off position

M = Micro-ATX

A = ATX

User's ManualLINE

CASE

-Bend to remove the PCI slot cover.

-Install the add-on card into its position.

-Secure with screw-D.

User's ManualLINE

CASE

Confirm which bay(s) you want to install

device(s) then remove the bay cover.

Pull from the bottom to remove the front panel.

User's ManualLINE

CASE

-Put external 3.5” device onto the 5.25” to 3.5” adapter then secure with screw-B.

-Insert external 5.25” & 3.5 “ devices into position then secure with tool-less kits(or screw-B).

UNLOCK LOCK

User's ManualLINE

CASE

3.5” HDD

LOCK

UNLOCK

2.5” HDD/SSD

3.5” HDD

-Insert it into its slot and secure with tool-less kits(or screw-A).

2.5” HDD/SSD

-Install 2.5” HDD/SSD onto adapter with screw-B.

-Insert it into its slot and secure with tool-less kits(or screw-A).
