ATX Computer Case R7439K

User Manual

1

User Manual

ATX Computer Case R7439K

Chapter 1 Product Introduction

Drawing ………………………………….........................……….. 2

Speciﬁcation……………………………......................…….……. 2

Chapter 2 Installation

Removing and installing side panels..........................................3

Installing the Motherboard.........................................................3

Installing Add-on card ...............................................................4

Installing Drives (CD/DVD ROM, FDD and HDD)........................4

Replacing the Power Device ……………....…........................….5

Replacing/ Installing the Case Fan ……….….............................5

I/O Function Panel Installation Guide …………..........................6

2

User Manual

ATX Computer Case R7439K

Chapter 1: Introduction

Mechanical Drawing:

Speciﬁcations:

Dimensions 200mm(W) x 430mm(H) x 480mm(D)

M/B Type ATX 12” x 9.6” (30.5cm x 24.5 cm); Micro-ATX

Material SECC Metal 0.8cm

5.25” Drive Bay 4 (Exposed)

3.5” Drive Bay 1 (Exposed); 5 (Hidden)

I/O Panel USB2.0 x 2; MIC x 1; SPK x 1

Cooling System One 120mm rear fan ( Exhaust )

Power Supply Standard ATX PS2, 350W

Expansion slot 7 slots

3

User Manual

ATX Computer Case R7439K

Chapter 2: Installation

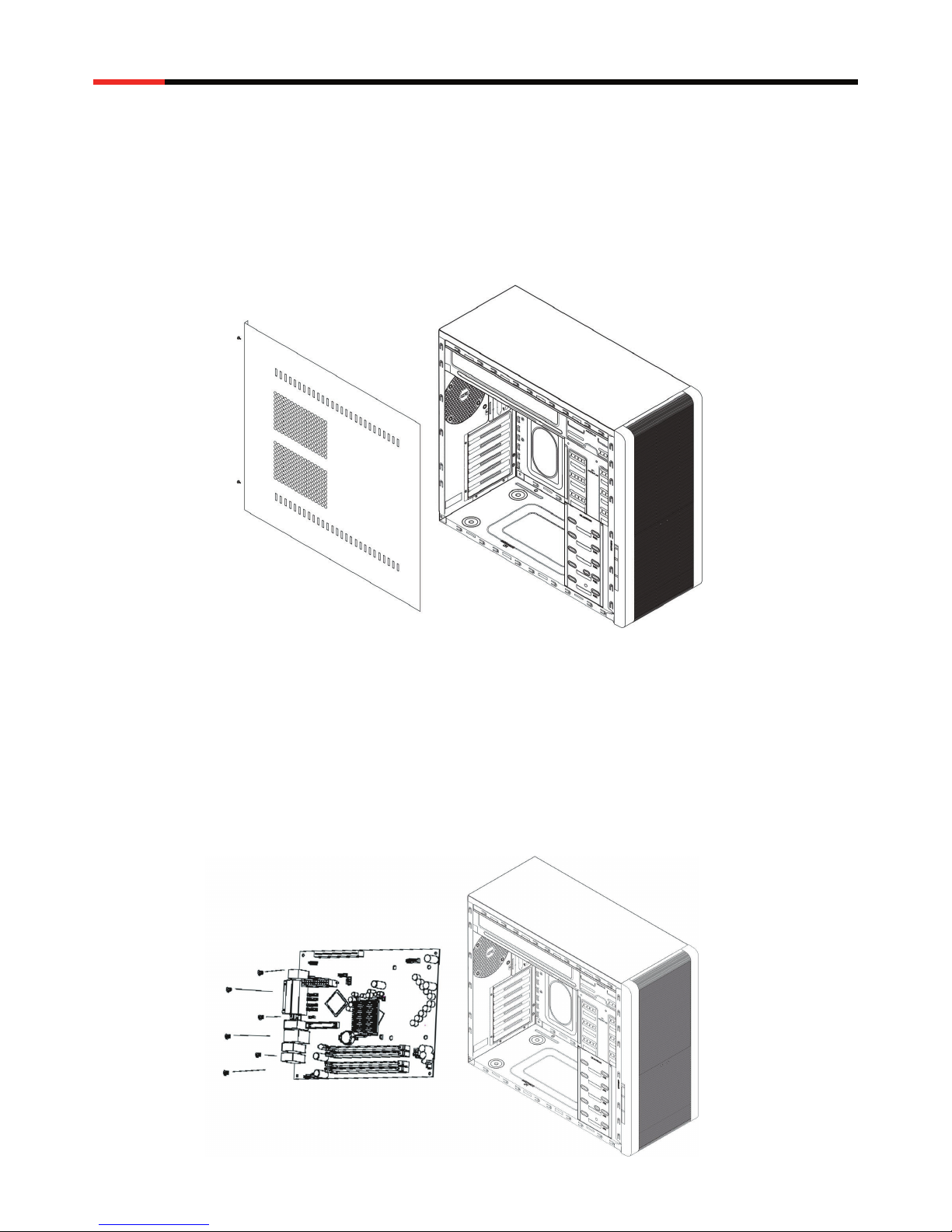

Removing and installing side panels

1. Loosen the thumb screws from the back and pull the side panel backward to remove it.

2. Fit the hooks of the panel to the elongated holes on the edges of casing, and slide the

panel toward and secure with screws to install the panel.

Installing the Motherboard

1. Installing the IO panel that comes with Motherboard package.

2. Aiming at the holes on the Motherboard, and secure the copper posts (stand off) on

Motherboard plate.

3. Align the holes of PCB and Motherboard plate, and secure them by fastening screws to

the cooper posts.

4

User Manual

ATX Computer Case R7439K

Install add-on card

1. Pressing the slot cover and bend forward and backward

to remove it.

2. Insert the add-on card.

3. Secure the add-on card with screws.

Installing Drives (CD/DVD ROM, FDD and HDD)

1. Detach the front panel from the casing by pressing the clips that on the rear side of front

panel.

2. Remove the metal cover of the bay.

3. Insert the device in place; and secure with screws.

5

User Manual

ATX Computer Case R7439K

Replacing the power device

1. Loosen the screws to remove the power supply.

2. Place the power supply on the power rack with the wiring end facing forward and connect

it to the back of the casing.

3. Secure the power supply device with screws.

Replacing/Installing the Case Fan

Change the Front Fan

1. Loosen the fan screws from the rear casing, and remove the fan.

2. Install the new fan and secure it with screws.

6

User Manual

ATX Computer Case R7439K

I/O Function Panel Installation Guide

Please refer to the illustration on the section of USB2.0 and Audio connector from the

motherboard user’s manual.

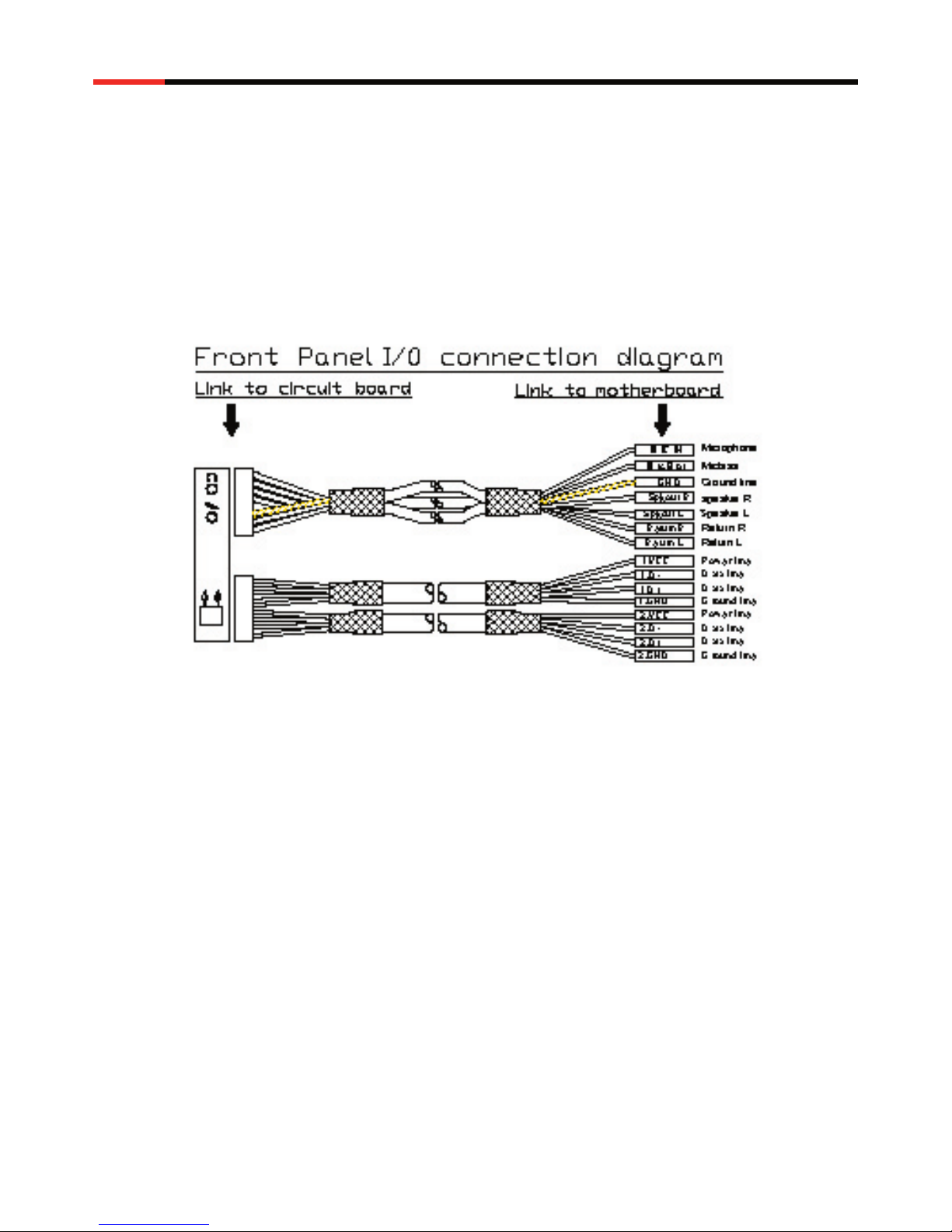

The following illustration is a connection diagram for the front panel I/O cable.

Please check with your motherboard manual before installing.

7

User Manual

ATX Computer Case R7439K

Thank you for purchasing Rosewill Product.

Please register your product at www.rosewill.com for complete warranty information and future

support for your product.
