Rosewill RNF-405U Manuel utilisateur
USB Ethernet Adapter RNF-405U
User Manual
USB Ethernet Adapter - RNF-405U- User’s Manual
2
Contents
Chapter 1: Introduction .................................... 3
1.1 Product Introduction...................................................... 3
1.2 Features........................................................................ 3
1.3 System Requirements................................................... 4
1.4 Package Contents......................................................... 4
Chapter 2: Getting Started ............................... 5
2.1 Hardware Installation..................................................... 5
2.2 Driver Installation .......................................................... 5
2.2.1 Installation for Windows XP / Vista / 7.................... 5
2.2.2 Installation for Mac OS X 10.5 / 10.6 / 10.7 / 10.8.. 7
2.3 Hardware Verify............................................................. 8
2.3.1 Verifying for Windows XP / Vista / 7....................... 8
2.3.2 Verifying for Mac OS X 10.5 / 10.6 / 10.7 / 10.8 ..... 9
Appendix A: Specification..............................10
USB Ethernet Adapter - RNF-405U- User’s Manual
3
Chapter 1: Introduction
1.1 Product Introduction
Thank you for purchasing Rosewill’s RNF-405U. This
USB 2.0 to Fast Ethernet Adapter add a single RJ-45
Ethernet networking port to a USB enabled computer
system with link speeds 10/100 Mbps. It is also
backwards compatible with USB 1.x computer system,
this compact and portable adapter is ideal as a desktop
replacement network adapter or laptop accessory.
1.2 Features
Compliant with USB 1.1 and 2.0
Compliant with IEEE 802.3 (10Base-T) and 802.3u
(100Base-TX)
Support Full Duplex Operation in 10/100 Mbps
Modes
Support USB Full and High Speed modes with bus
power capacity
Upstream port: USB type A
Downstream port: RJ45
LEDs indicate the status of Power status and
Ethernet connection
Support Windows® XP/Vista/7 (32/64 bit); Mac OS
10.5 or later
USB Ethernet Adapter - RNF-405U- User’s Manual
4
1.3 System Requirements
Windows® XP/Vista/7 (32/64 bit); Mac OS X 10.5 or
later
Available USB port
1.4 Package Contents
1 x RNF-405U - USB 2.0 to Fast Ethernet Adapter
1 x Driver CD
1 x User Manual
Note:
Make sure that the package contains the above items. If any of the listed
items are damaged or missing, please contact with your distributor.
USB Ethernet Adapter - RNF-405U- User’s Manual
5
Chapter 2: Getting Started
2.1 Hardware Installation
1. Plug the USB 2.0 to Fast Ethernet Adapter directly
into an available USB port on your computer.
2. Connect one end of your network cable into the RJ45
port of USB 2.0 to Fast Ethernet Adapter.
3. Connect the other end of the network cable into an
available Ethernet port on your router, switch, or any
other networking device.
2.2 Driver Installation
The following section shows you how to install the USB
2.0 to Fast Ethernet Adapter driver on different operating
systems.
Important! Do not connect the USB 2.0 to Fast Ethernet
to your PC before the install.
2.2.1 Installation for Windows XP / Vista / 7
1. Insert the provided CD into your disk drive. The
CD-ROM will start automatically. The following screen
will show up and please click “Install Driver”.
USB Ethernet Adapter - RNF-405U- User’s Manual
6
Note: If the install program doesn’t run automatically,
please locate and double-click on the Autorun.exe
file in the CD to launch the install program.
2. Please click “USB 2.0 100M” to start the installation.
*Note: Actual image may vary
3. Follow the instructions on screen to install the driver.
USB Ethernet Adapter - RNF-405U- User’s Manual
7
2.2.2 Installation for Mac OS X 10.5 or Later

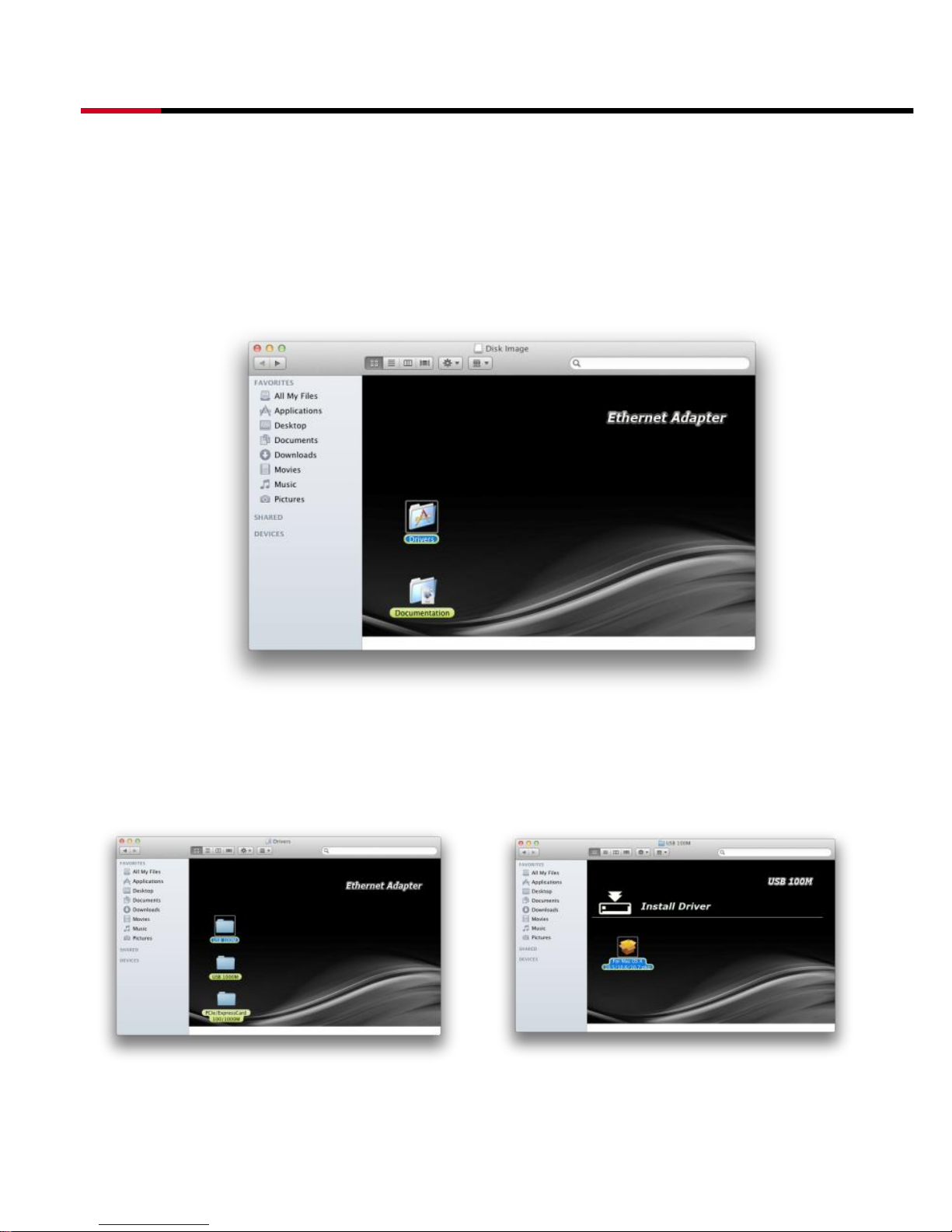

1. Insert the provided CD into your CD-ROM drive.
2. Double-click the “Ethernet Adapter” disc icon,
double-click “Drivers” folder.
3. Double-click “USB 100M” folder, and then double click
the “For Mac OS X 10.5/10.6/10.7.pkg” file to launch
the installer.
4. Follow the instructions on screen to install the driver.
After driver installation is complete, you must restart
USB Ethernet Adapter - RNF-405U- User’s Manual
8
your computer.
2.3 Hardware Verify
2.3.1 Verifying for Windows XP / Vista / 7
1. Click on the “Device Manager” tab in the Windows
Control Panel.
Start > Control Panel > Device Manager
2. Entry “Network adapters” item and you can read
“HighSpeed USB-Ethernet Adapter” in the Device
Manager.
USB Ethernet Adapter - RNF-405U- User’s Manual
9
2.3.2 Verifying for Mac OS X 10.5 or Later
1. Choose About this Mac from the Apple menu.
2. Click on More Info…
3. In the Contents sidebar select USB from the
Hardware section.
4. Scroll the list to reveal the USB 2.0 to Fast Ethernet
Adapter information
USB Ethernet Adapter - RNF-405U- User’s Manual
10
Appendix A: Specification
Spec
Chipset
Moschip MCS7832
Standards
IEEE802.3, IEEE802.3u
Speed
10/ 100Mbps
Connectors
1 x RJ45
Interface
USB 2.0
LEDs
Link, Activity
Dimension
Adapter: 2.32 x 0.98 x 0.67 in (59 x 25 x
17 mm); Cable Length + USB Connector:
7.6 in (193 mm)
Weight
0.04 lb (20 g)
Thank you for purchasing a quality Rosewill Product.
Please register your product at: www.rosewill.com
for complete warranty information and future
support for your product.
Rosewill Customer Service Hotline: 1-800-575-9885
Rosewill Customer Service Support:
techsupport@rosewill.com
