Wireless N Adapter RNX-N250UB
Quick Installation Guide
Wireless N Adapter RNX-N250UB Quick Installation Guide
About This Guide
This Quick Installation Guide only provides you some basic configuration instructions.
For more detailed information, please refer to the Wireless Network Adapter User Manual.
Before you begin, you must check the following minimum system requirements
A notebook /desktop pc with an available USB port
At least a 300MHz processor and 32MB of memory
An 802.11n、802.11g or 802.11b Access Point (for infrastructure Mode) or another
802.11n、802.11g or 802.11b wireless adapter (for Ad-Hoc; Peer-to-Peer networking
mode.)
Package Contents
Open the package carefully, and make sure that none of the items listed below are missing.
Do not discard the packing materials, in case of return; the unit must be shipped in its
original package.
One Wireless LAN USB Adapter
One CD-ROM with Drivers and User’s Manual Included
One Quick Installation Guide
1.3 USB Adapter Description
The USB adapter is a standard USB adapter that fits into any USB interface.
WPS button
PWR and LINK
LED Indicator
USB Connector
1
Wireless N Adapter RNX-N250UB Quick Installation Guide
Installation Guide
Before You Begin
Note: WiFi Alliance certification recommends WPA2 AES to be the
security mechanism under 11N mode. System driver will
automatically bring down wireless data rate to 54Mbps if
other security method such as WEP or WPA is used under 11n
mode.
If your 11N router is using security mechanism other than
WPA2 AES, you are recommended to disable security setting
or change it to WPA2 AES to fully utilize 11N capability. This
policy has no effect if connecting with b/g only wireless
access point.
During the installation, XP may need to copy systems files from its installation CD.
Therefore, you may need a copy of the Windows installation CD at hand before installing
the drivers. On many systems, instead of a CD, the necessary installation files are
archived on the hard disk in C:\WINDOWS \OPTIONS\CABS directory.
Installing the Drivers for XP, Vista, and Win7
Follow the steps below in order to install the USB adapter drivers:
1. Insert the CD-ROM that was provided to you in this package. The setup should
run automatically. If the setup does not run automatically, then must manually
select the setup.exe file from the CD-ROM drive.
2
Wireless N Adapter RNX-N250UB Quick Installation Guide

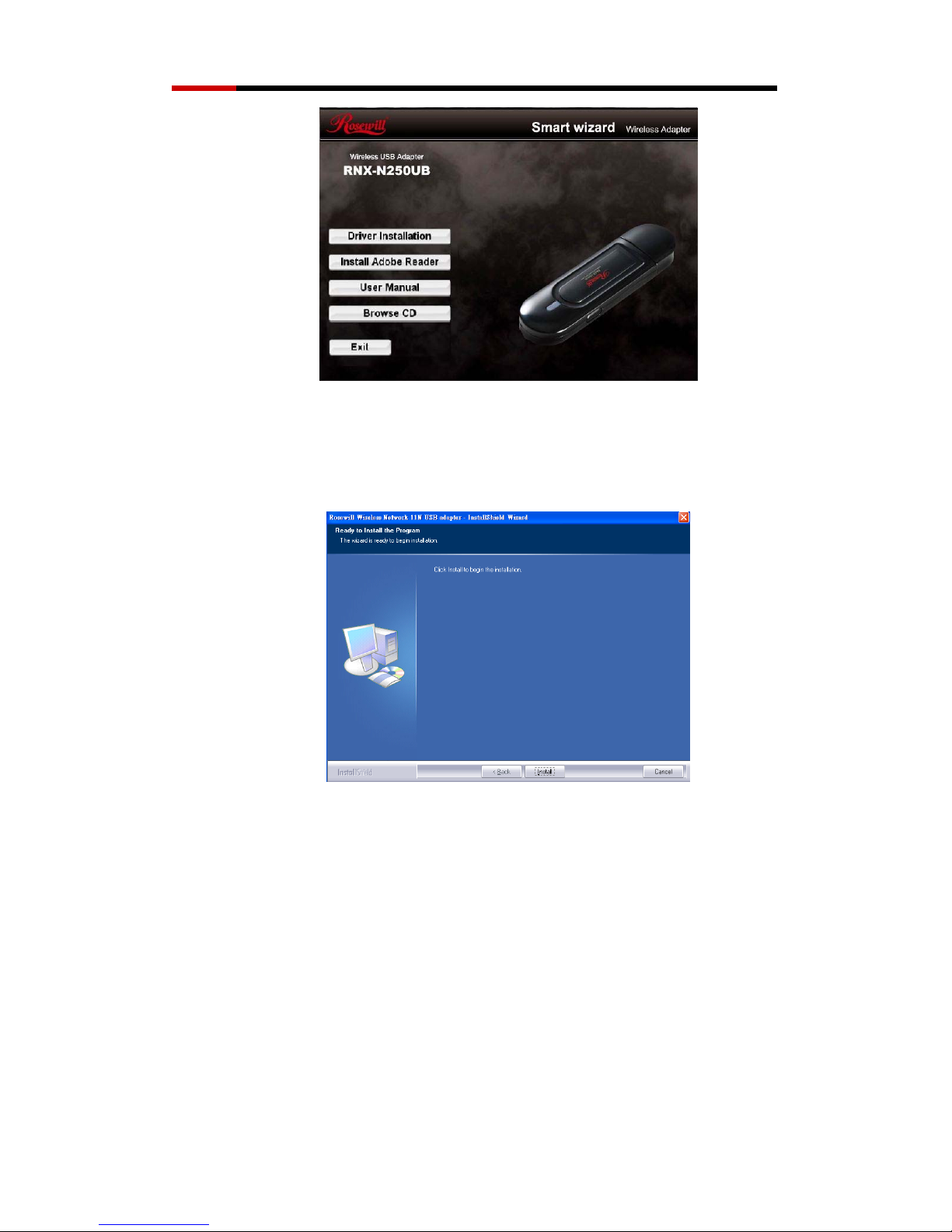

Figure 2-1
2. Click on Windows Driver to start the install process. Once the setup begins you
will see the InstallShield Wizard. Select Install driver and Rosewill WLAN
Utility and then click on the Next> button.
Figure 2-2
3. Wait for a few seconds until the driver and client utility is installed.
3
Wireless N Adapter RNX-N250UB Quick Installation Guide
Figure 2-3
4. The installation is complete. Click on the Finish button.
5. Carefully insert the USB adapter into the USB port. Windows will then detect and
install the new hardware.
Figure 2-4
6. A icon will then appear in the system tray. Right click on the icon and
then click on Launch Config Utility.
Note: Click on Use Zero Configuration as Configuration Utility if you would like to use
Windows Zero Configuration (XP only feature).
Vista
XP
Installing the Drivers for Mac OS X
Follow the steps below in order to install the USB adapter drivers:
4
Wireless N Adapter RNX-N250UB Quick Installation Guide
1. Insert the CD-ROM that was provided to you in this package. The setup should run
automatically. If the setup does not run automatically, then you must manually select
the setup file from the CD-ROM drive.
Figure 2-5
2. Click on the Continue button to configure the next step.
Figure 2-6
3. Select the Macintosh HD and then click on the Continue button.
5
Wireless N Adapter RNX-N250UB Quick Installation Guide
Figure 2-7
4. Click on the Continue button to configure the next step.
Figure 2-8
5. The installation is complete. Click on the Restart button.
6. Carefully insert the USB adapter into the USB port. MAC OS X will then detect and
install the new hardware.
7. The Client Utility is installed in the Applications folder.
6
Wireless N Adapter RNX-N250UB Quick Installation Guide
Uninstall the Drivers & Client Utility
If the USB client adapter installation is unsuccessful for any reason, the best way to
solve the problem may be to completely uninstall the USB adapter and its utility and
repeat the installation procedure again.
Follow the steps below in order to uninstall the client utility:
1. Click on Start > Rosewill Wireless > Uninstall Rosewill Wireless USB
Adapter
Figure 2-9
2. The un-installation process will then begin.
Figure 2-10
3. Click on the Yes button to confirm the un-installation process and then click on
the Next button.
Figure 2-11
Figure 2-12
7
Wireless N Adapter RNX-N250UB Quick Installation Guide
4. The un-installation process is complete. Select Yes, I want to restart my
computer now radio button and then click on the Finish button. Then remove the
USB adapter.
Figure 2-13
8
Wireless N Adapter RNX-N250UB Quick Installation Guide
Connection Guide
Connecting with Microsoft Zero Configuration (XPonly)
1. After specifying the Microsoft Zero Configuration tool to configure your
wireless network, right click on the icon on system tray as below. Select
“View available wireless Networks” to specify your wireless network.
Figure 3-1
2. The tool shows the available wireless networks. Select your network SSID to
connect with like Figure 3-2.
Figure3-2
3. If your wireless Network has encryption enable, you will be ask to enter the
password like Figure 3-3. Please enter your wireless password at “Network
key” section twice and click “Connect”to confirm.
9
