Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE

Introduction

Thank you for choosing Rosewill’s 802.11n Wireless Dual Band USB adapter – RNX-N600UBE.

This chapter is to introduce you more about this Wireless Adapter.

1.1 Package Content

Before getting started, please verify that your package includes the following items:

1. Rosewill RNX-N600UBE 802.11n Wireless Dual Band USB Adapter x 1

2. External 4dBi Dual Band Antenna x 2

3. Quick Installation Guide x 1

4. USB Cable x1

5. Resource CD x 1, including:

zWireless Utility and Driver

zUser Manual

Note:

Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with

your distributor.

1.2 Overview of the Product

With the 802.11n 2T2R MIMO technology, the RNX-N600UBE allows high packet throughput

rate up to 300Mbps maximum download and upload. It can also interoperate with other wireless

(802.11b, 802.11g, 802.11a) standard and support dual frequency at 2.4GHz and 5GHZ. The

adapter supports 64/128/152 bit WEP, WPA and WPA2 encryptions to prevent outside intrusion

and protect your personal information from being exposed.

The adapter is easy to install and manage. The Quick Setup guides you step-by-step through the

installation process; With unmatched wireless performance, reception, and security protection,

the RNX-N600UBE is the best choice for easily adding or upgrading wireless connectivity to your

notebook and computer.

1.3 Features

zComplies with IEEE 802.11n and 802.11a/b/g standard for 2.4GHz/5GHz Wireless LAN

z2T2R up to 300 Mbps upload and download Transfer Rate in 802.11n mode of operation

zHigh level of security with Wireless encryption of 64/128-bit WEP, WPA, WPA2, and Cisco

CCX V5 Compliance.

Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE

zRuns under most operating systems: Windows 2K/XP/Vista/7 (32/64 bits), Mac OSX

10.4~10.6 and Linux 2.6.x.

zSupports One-Click WPS (WiFi Protected Setup) connection.

zSupports MIMO Power Saving which reduce power under idle time

1.4 Product Specification

Chipset Ralink RT3572

Standard IEEE 802.11a/b/g/n

Modulation Type OFDM/CCK/16-QAM/64-QAM

Bus Type USB Interface (Mini 5pin)

Frequency Band 2.4GHz / 5GHz DUAL

Data Rate

11n: 300/150/108/81/54/27 Mbps

11b: 1,2,5.5,11 Mbps

11g: 6,9,12,24,36,48,54 Mbps,

135/121.5/108/81/54/40.5/27/13.5Mbps,

130/117/104/78/52/39/26/13 Mbps,

65/58.5/52/39/26/19.5/13/6.5 Mbps

11a: 6,9,12,24,36,48,54 Mbps,

135/121.5/108/81/54/40.5/27/13.5Mbps,

130/117/104/78/52/39/26/13 Mbps,

65/58.5/52/39/26/19.5/13/6.5 Mbps

Output Power 2.4GHz band: 20dBm Max

5GHz band: 16 dBm Max

Receive Sensitivity

300M: -68 dBm@10% PER

150M: -68 dBm@10% PER

130M: -68 dBm@10% PER

108M: -68 dBm@10% PER

54M: -68 dBm@10% PER

11M: -85 dBm@ 8% PER

6M: -88 dBm@10% PER

1M: -90 dBm@8% PER

Security 64/128/152 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

(TKIP/AES); WPS button; Cisco CCX5.0

Antenna 2x External 4dBi Dual Band Antenna (SMA Connector)

OS support Windows 200; Windows XP/Vista/7 32 and 64 bit; Linux Kernel

2.6.x; Mac OS X 10.4, 10.5, and 10.6

Dimension 3.54” x 2.16” x 0.47” (90 x 55 x 12 mm)

Temperature Operating: 32~104°F (0~40°C); Storage: -40~158°F (-40~70°C)

Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE

Humidity Operating: 10~90% (Non-Condensing); Storage: Max. 95%

(Non-Condensing)

1.5 System Requirement

You must have at least the following

zA laptop computer/desktop PC with an available USB port

zAt least a 300MHz processor and 32MB of memory

zWindows OS for Win98SE, ME, 2000, XP, Vista, 7 or Mac OS X 10.4~10.6

zA CD-ROM Drive

zUSB controller properly installed and working in the computer

zA 802.11n、802.11g or 802.11a/b Wireless (and Dual Band) Access Point/Router (for

infrastructure Mode) or another 802.11n、802.11g or 802.11b wireless (and Dual Band)

adapter (for Ad-Hoc; Peer-to-Peer networking mode).

1.6 LED Status

This USB Adapter contains one LED. Please refer to the following description for LED definition.

LED

Indications Status Working Status

Blink blue The Adapter is Radio on

Blink blue and flashing

intermittently The Adapter is already connected but

is not transmitting or receiving data

Blink blue and fast flashing The Adapter is activity and

transmitting of receiving data.

Radio/ACT

LED

Off The Adapter is Radio off

Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE

Installation Guide

2.1 Hardware Installation

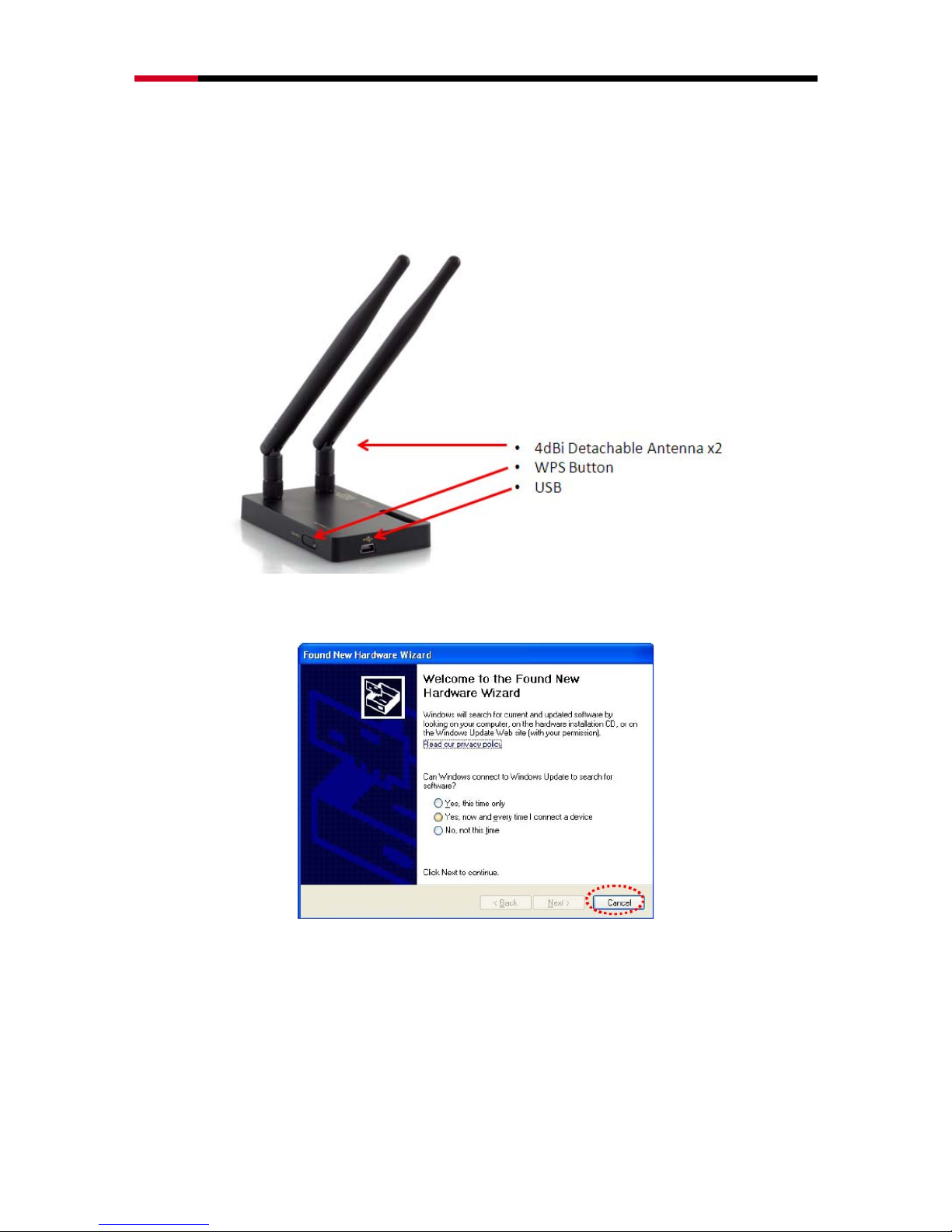

zPlease first connect the RNX-N600UBE with the USB cable, then insert into your PC or NB

USB slot.

zIf the following window popup, please click Cancel or Close:

Under Win XP

Under Windows Vista/Win7

Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE

2.2 Installing Drivers and/or Utility :

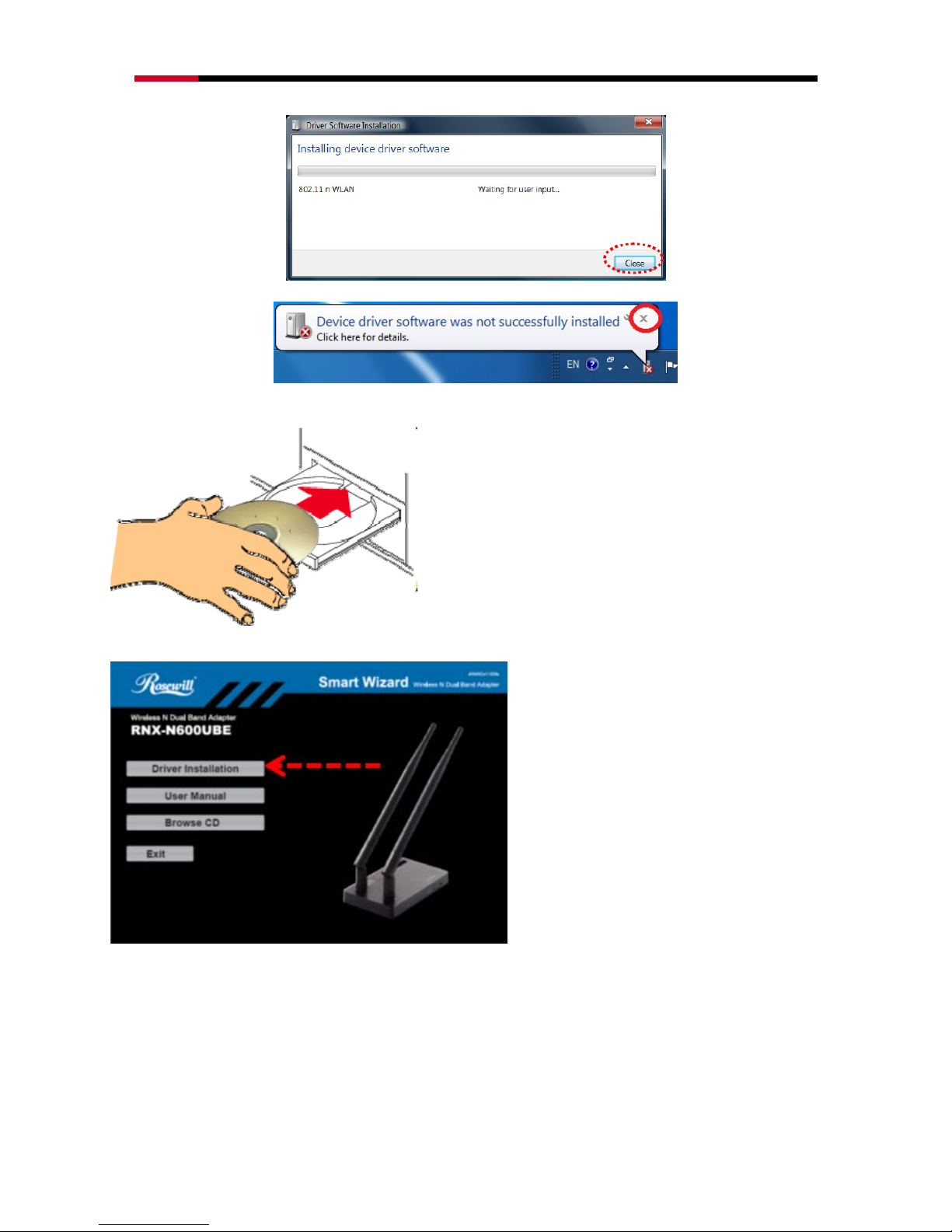

Please insert the CD into your

CD-rom drive

Click on the “Driver

Installation” option when the

Smart Wizard page popup.

Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE

If the program didn’t run

automatically, please select

Browse CD, and then double

click on the Setup.exe in the

CD to start the process.

Click Yes if the following

window popup

Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE

Upon Clicking Yes, you should

see a “License Agreement”

window popup. Please select “I

accept the terms of the

license agreement” then click

“Next>”

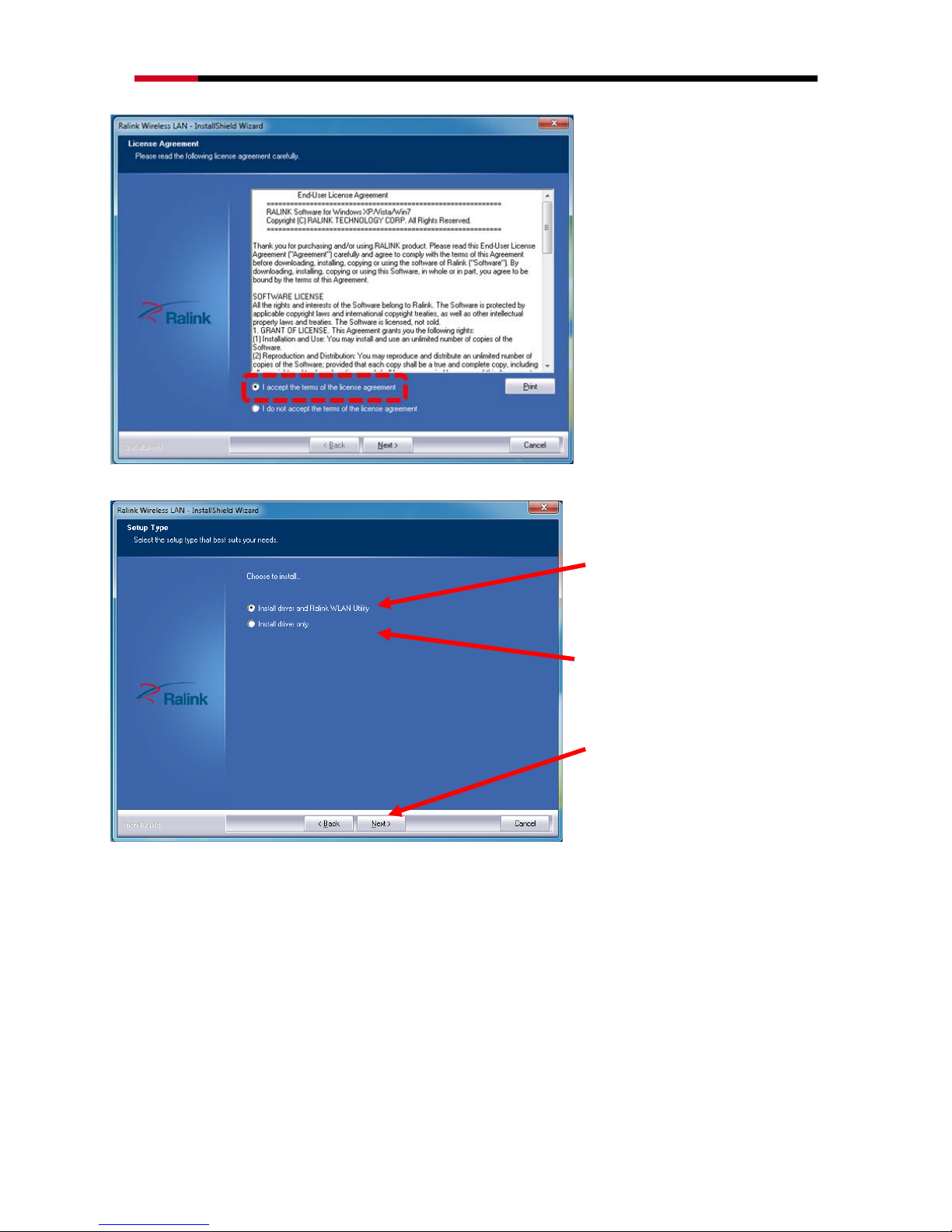

On the next window, you will

have the option of “Install

driver and Ralink WLAN

Utility” or “Install Driver only”

Win7 users are recommended

to select “Install Driver only”

Please select “Next >” after

your selection to continue the

installation process.

Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE

When Install under Window XP,

you may see this selection

window, you can select among

“Ralink Configuration Tool” or

“Microsoft Zero Configuration

Tool”

Once select, please click “Next

>” to continue.

Please select “Install” to

continue.

Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE

Setup wizard will process.

During the Installation process,

you may see this popup on your

lower right hand corner showing

you the installation status.

Click “Finish” to complete the

installation process

Wireless N Dual Band Adapter RNX-N600UBE QUICK INSTALLATION GUIDE

When complete, this window at

the lower right hand corner will

pop up, thus complete the driver

installation.

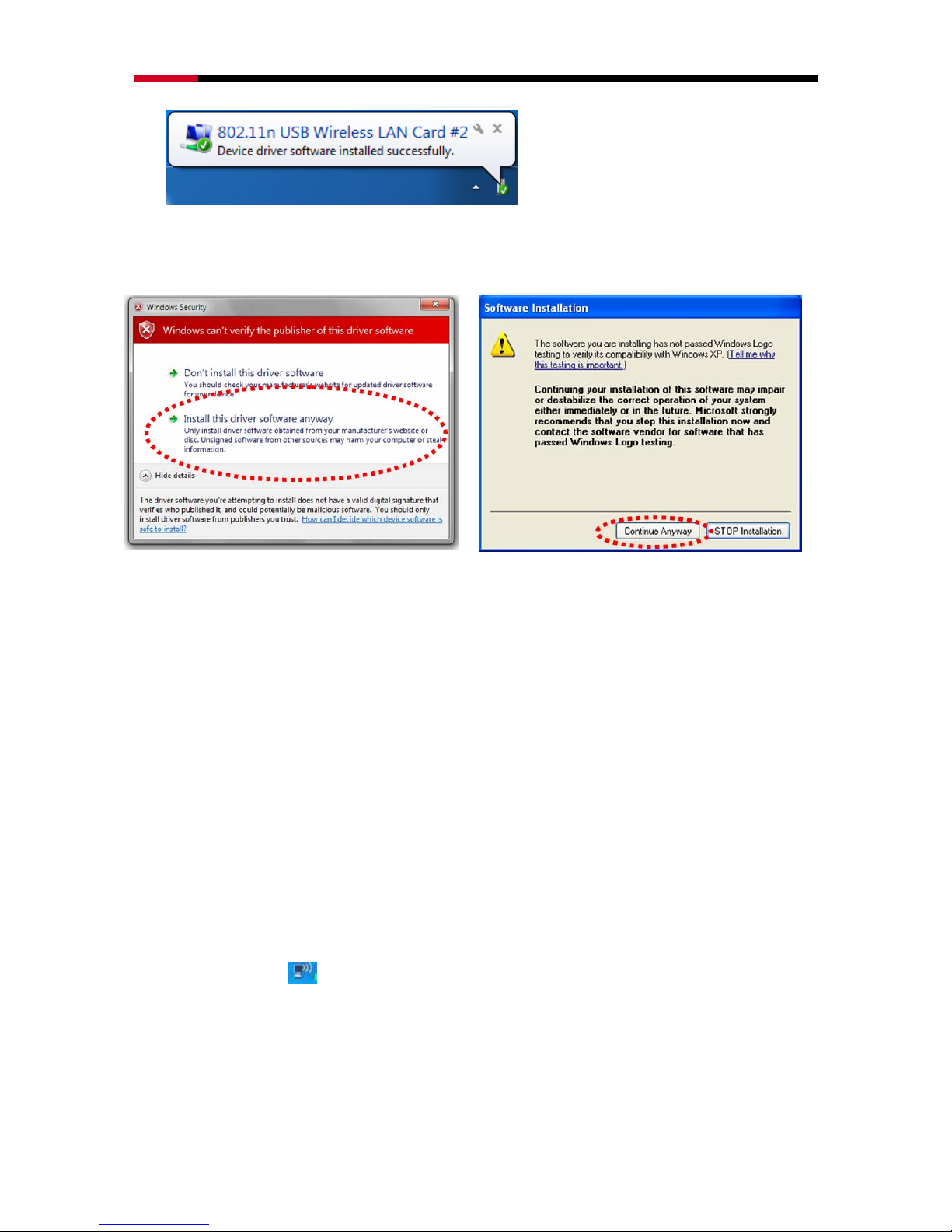

if you see below window popup, please select install this driver software anyway.

Win7 Win XP

Wireless Connection Guide

This chapter describes how to configure your Adapter for wireless connectivity on your Wireless

Local Area Network (WLAN) and use the data security encryption features.

After Installing the Adapter, the Adapter’s tray icon will appear in your system tray. It appears at

the bottom of the screen, and shows the signal strength using color and the received signal

strength indication (RSSI).

In the following instruction for making a network connection, we use the provided Utility to

configure your wireless network settings.

Note: You could use either the software we provide or Microsoft Zero Configuration tool to

configure this adapter.

3.1 Connecting with Microsoft Zero Configuration tool (Win XP)

zAfter specifying the Microsoft Zero Configuration tool to configure your wireless network,

right click on the icon on system tray. Select “View Available Wireless Networks” to

specify your wireless network.
