Rosemount 5708 Manuel utilisateur

Quick Start Guide

00825-0200-4570, Rev AA

June 2017

Rosemount™5708 3D Solids Scanner

Manhole Mounting Tool Kit

June 2017

Quick Start Guide

1.0 About this guide

This guide provides instructions for installing the Rosemount 5708 3D Solids

Scanner in small vessel connections using the manhole mounting tool kit. It

does not provide instructions for mounting the scanner head, electrical

installation, or configuration.

Refer to the Rosemount 5708 Quick Start Guide and Rosemount 5708

Reference Manual for more instructions. The manual and this guide are also

available electronically on Emerson.com/Rosemount.

Authorized personnel

All operations described in this document must be carried out by authorized, trained personnel only.

For safety and warranty reasons, any internal work on the devices must be carried out by

manufacturer-authorized personnel only.

Warnings about misuse

Inappropriate or incorrect use of the device may result in hazards and application-specific malfunctioning,

such as vessels overfill or damage to system components through incorrect mounting or adjustments.

If the device is used in a manner not specified in this document, the protection provided by the device will

be impaired.

General safety instructions

Consider local and national electrical codes and all common safety regulations and accident prevention

rules during installation.

Substitution of components may impair intrinsic safety.

For preventing ignition of flammable or combustible atmospheres, read, understand and adhere to the

manufacturer’s live maintenance procedures.

Contents

Install the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4

Rotate the antenna toward vessel center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9

Quick Start Guide

June 2017

1.1 Manhole mounting tool kit

Figure 1. Manhole Mounting Tool Kit (P/N 05708-3023-0001)

A. Installation adapter

B. Set screw

C. 2 mm hex key

Dimensions are in inches (millimeters).

1.2 Required equipment

Standard tools (e.g. screwdriver, pliers)

60 mm wrench

Wrench to secure the mounting plate bolts

2 mm hex key

Two ropes of appropriate type and length (see page 6)

1x 3x 1x

4.10 (104)

Ø 1.73 (44)

June 2017

Quick Start Guide

2.0 Install the antenna

Step 1: Verify the O-rings are in place

Step 2: Remove the nut from the neck tube

60 mm

Quick Start Guide

June 2017

Step 3: Mount the installation adapter on the antenna

Step 4: Place the mounting plate and nut on the scanner’s

mounting hole

H2 mm

Ø ≥2.05 in. (52 mm)

June 2017

Quick Start Guide

Step 5: Pull the rope through to the manhole

Secure one end of the rope and pull the other end through the nut, mounting

plate, and mounting hole to the manhole.

Step 6: Tie the rope to the installation adapter

Note

Consider securing the antenna by tying an additional rope to the adapter from the

manhole opening to prevent the scanner from hitting the side walls.

Step 7: Carefully lower the antenna into the manhole

Quick Start Guide

June 2017

Step 8: Pull the rope until the neck of the antenna is outside

the mounting hole

Step 9: Hand-tighten the nut

June 2017

Quick Start Guide

Step 10: Remove the installation adapter

Step 11: Tighten the mounting plate bolts

H2 mm

Quick Start Guide

June 2017

3.0 Rotate the antenna toward vessel center

Step 1: Slightly loosen the nut

Step 2: Rotate the antenna

The notch on top of the thread must be directed toward the vessel center.

60 mm

June 2017

Quick Start Guide

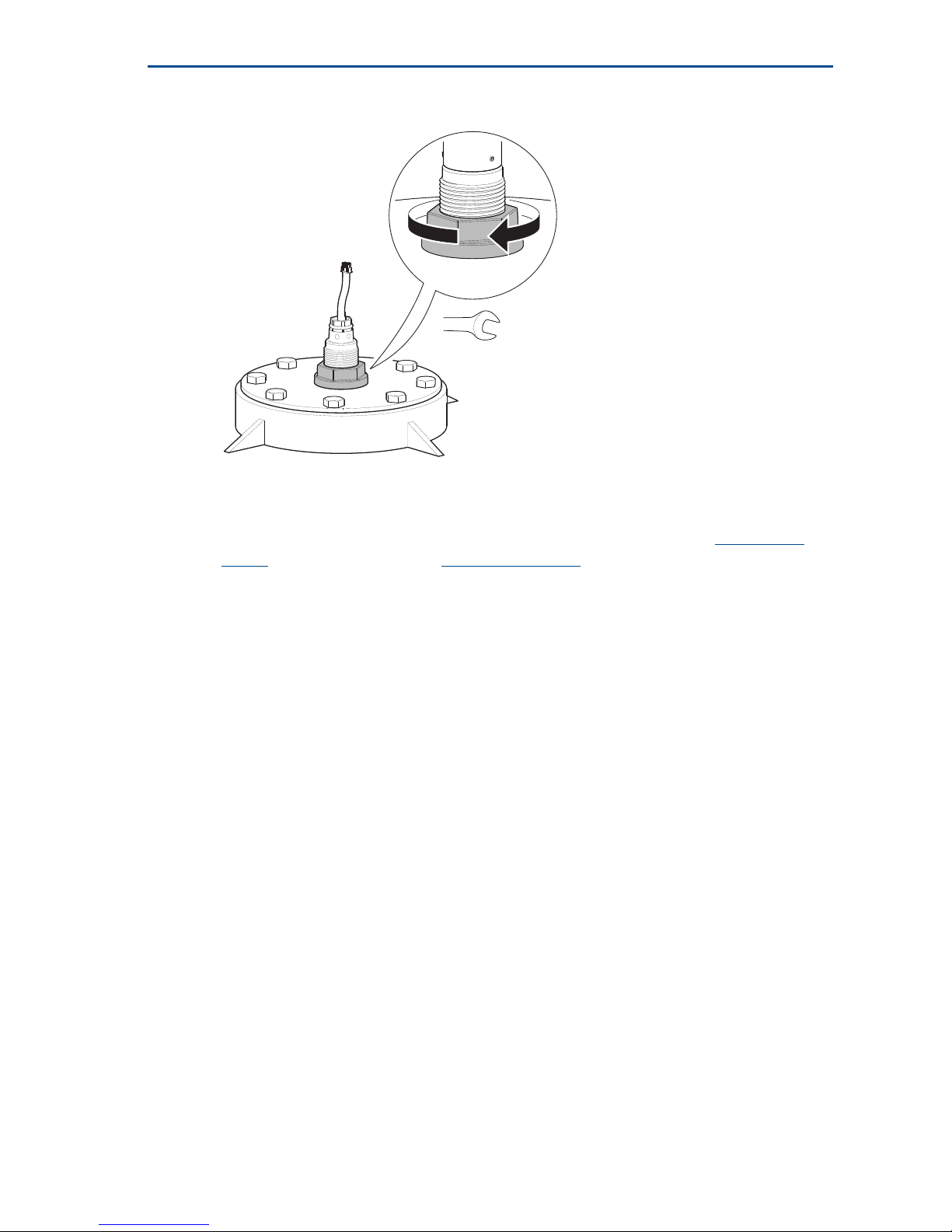

Step 3: Tighten the nut

Proceed with installation of scanner head. See Rosemount 5708 Quick Start

Guide and Rosemount 5708 Reference Manual for further installation

information.

60 mm
