Rose electronics UltraView DVI Manuel utilisateur

UltraView DVI

1×16 KVM Switch • DVI • USB2.0 • Audio

Installation

and

Operation Manual

10707 Stancliff Road

Houston, Texas

77099

Phone: (281) 933-7673

[email protected]

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and

recording, without the prior written permission of Rose Electronics.

manual-ultraview-dvi-2016-10-29

Rose Electronics®warrants the UltraView DVI to be in good working order for one year from the date of

purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at

any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as

set forth below. Repair parts and replacement units will be either reconditioned or new. All replaced parts

become the property of Rose Electronics. This limited warranty does not include service to repair damage to

the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit, including static

discharge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose

Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,

you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the

warranty service location, and to use the original shipping container or its equivalent. You must call for a return

authorization number first. Under no circumstances will a unit be accepted without a return authorization

number. Contact an authorized repair center or Rose Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A

PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS

OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTIED ABOVE, YOUR SOLE

REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE

ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST

SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR

THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER

PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE.

TABLE OF CONTENTS

Contents

Disclaimer 1

System Introduction 1

Features 1

Package Contents 2

UltraView DVI Models 3

Front View 3

Rear View 3

Installation 4

UltraView DVI Operation 5

Front Panel buttons 5

RS-232 Commands 5

Hotkey Commands 6

Safety 7

Maintenance and Repair 8

Technical Support 8

Figures

Figure 1. UltraView DVI Front View 3

Figure 2. UltraView DVI Rear Panel 3

Figure 3. UltraView DVI Installation 4

Appendices

Appendix A- Specifications 9

Appendix B- Part Numbers 10

Appendix C- Hotkey and RS-232 Commands 10

INTRODUCTION

UltraView DVI Manual 1

Disclaimer

While every precaution has been taken in the preparation of this manual, the manufacturer assumes no

responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting

from the use of the information contained herein. The manufacturer reserves the right to change the

specifications, functions, circuitry of the product, and manual content at any time without notice.

The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances

outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury

arising directly or indirectly from the use of this product. (See limited warranty.)

System Introduction

Thank you for choosing the UltraView DVI KVM Switch. It is the result of Rose Electronics commitment to

providing state-of-the-art solutions for today’s demanding workplace. The UltraView DVI is a dedicated multi-

platform KVM switch capable of managing up to 16 different computers through a single console’s DVI-D

monitor, USB keyboard & mouse. Stereo analog audio output and USB 2.0 devices can be shared between the

computers.

The USB emulation technology utilized by the UltraView DVI enables immediate hotkey source switching

through a USB keyboard. The UltraView DVI supports high resolution video up to 1920x1200 with zero pixel

loss through TMDS signal correction.

Switching computers can be controlled using keyboard hotkeys or RS-232 commands, as well as through the

unit’s front panel push buttons.

DDC signals from the console display are easily detected by the UltraView Pro’s EDID learning and

programming facility. This allows selecting each computer’s optimum video resolution for the console’s display.

Furthermore, the EDID feature continues to present the console monitor to each computer, even when the

computer is not currently selected.

USB keyboard and mouse emulation provides quick source switching by means of keyboard hotkey

sequences. The UltraView DVI imitates the presence of a keyboard and mouse to every attached computer

through its USB connection, even when the computers are not currently selected.

Features

■Supports Mac, PC, Linux and Sun DVI

■Supports DVI Single Link video up to 1920x1200 @ 60Hz (WUXGA)

■Uses TMDS signal correction for zero pixel loss

■Supports all USB 2.0 Devices (Flash Drives, Printers, Scanners, etc.)

■Supports USB HID keyboard and mouse

■Balanced stereo audio output

■Front panel push buttons with LCD display

■Switching by RS-232 comands

■USB keyboard hotkey commands for quick channel selection

■Complete keyboard emulation for error free booting

■Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to audio

from one computer while working on the other or scan a document and save in another computer.

UltraView DVI Manual 2

Package Contents

The package contents consist of the following:

■The UltraView DVI unit as ordered

■External power supply unit and country-specific power cable

■Manual

Additional cables that are required, but are not included in the package:

■DVI-D cables

■USB cables, A to B

■Audio cables

Additional cables are usually ordered separately. If the package contents are not correct, contact Rose

Electronics or your reseller so the problem can be quickly resolved.

MODELS

UltraView DVI Manual 3

UltraView DVI Models

The UltraView DVI comes in a single model as shown below.

Front View

Figure 1. UltraView DVI Front View

The front panel has a 2 x 20 character LCD display panel and 2 control buttons - Enter and Scroll.

Rear View

Figure 2. UltraView DVI Rear Panel

The rear panel of the UltraView DVI has 16 DVI, USB, and Audio connectors for signals to and from the

computers. Connect as many sets of PC cables as are required, up to a maximum distance of 20 ft (6.0 m)

from the switch.

The other ports on the back panel are as follows

■1 x DVI-D OUT Connect a DVI Monitor

■2 x USB KB/MS Connect a USB Keyboard/Mouse

■2 x USB 2.0 Connect any USB2.0 peripheral for sharing between computers

■1 x DB9F RS232 Serial control interface port

■1 x 3.5mm Audio Out Audio port for speaker connection

■1 x 5VDC Power connector for 5V PSU

INSTALLATION

UltraView DVI Manual 4

Installation

Installation of the UltraView DVI is very simple. The steps to do so are outlined below.

1. Ensure that power is disconnected from UltraView DVI.

2. Connect the DVI cables, USB cables (male-A to male-B), and audio cables from the computers to the

respective ports on the UltraView DVI.

3. Optionally connect RS-232 for control functions.

4. Connect USB keyboard and mouse to the two USB ports labeled “KB/MS”.

5. Optionally connect USB peripherals (flash drives, printers, etc.) to the USB ports labeled “USB 2.0”.

6. Connect speakers to the Audio Out port.

7. Connect the display monitor to the DVI connector labeled “OUT”.

8. Apply power to the UltraView DVI.

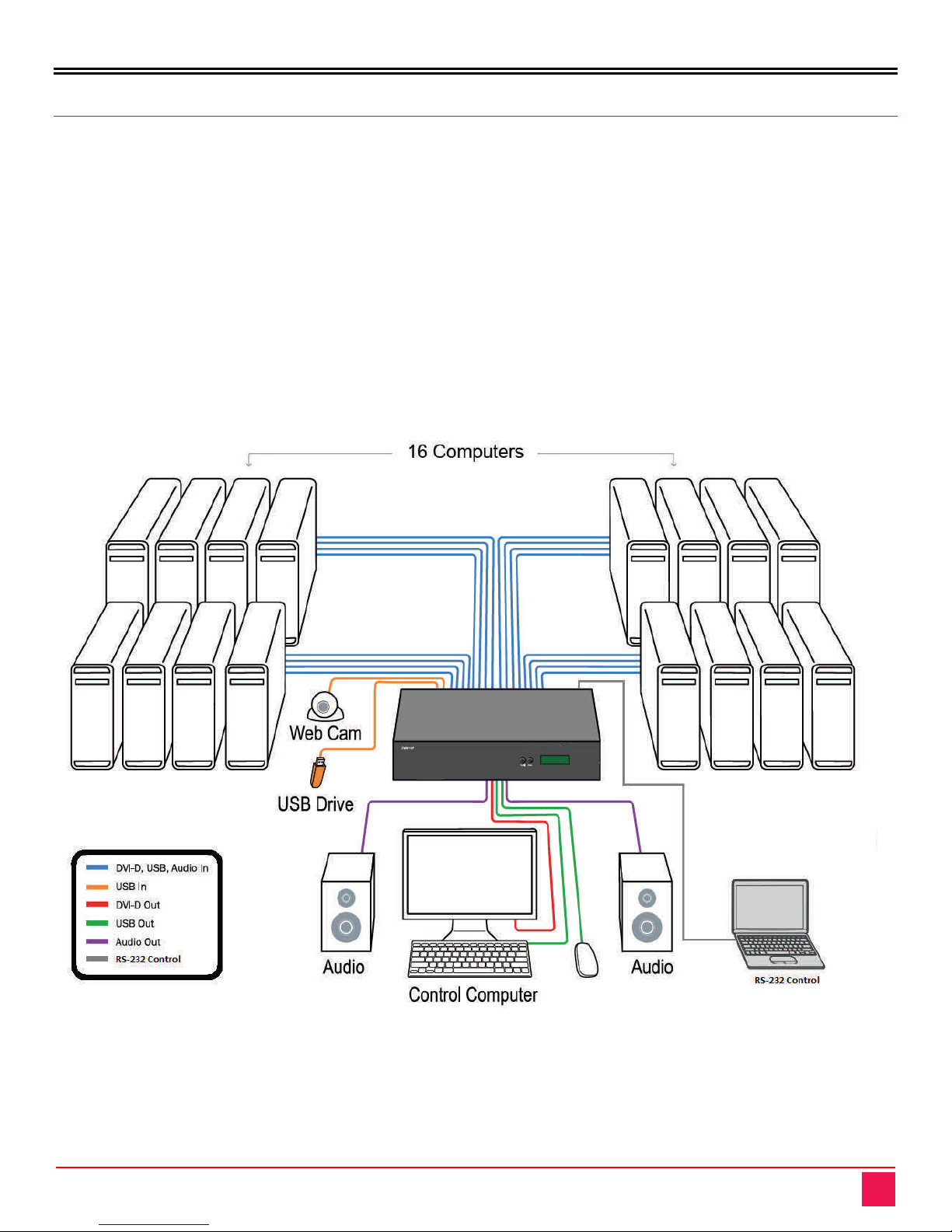

The completed installation will appear as in the figure below.

Figure 3. UltraView DVI Installation

Note:

It is not advisable to use CPU cable lengths greater than 20 ft (6 m), as longer cables may result in video

disturbances and /or intermittent USB keyboard/mouse performance.

OPERATION

UltraView DVI Manual 5

UltraView DVI Operation

This section deals with the use of the front panel buttons, and using RS-232 and hotkey commands

Front Panel buttons

As mentioned earlier, the front panel has a 2 x 20 character LCD display panel and 2 control buttons - Enter

and Scroll. Pressing both the Scroll and Enter buttons simultaneously will display a menu on the LCD. Press

the Scroll button to move between the menu selections and the Enter button to execute the selection.

The available selections are as follows.

■Learn Screen: Learn EDID from connected monitor

■Hot Plug: Resets a pin on the DVI connector causing the UltraView DVI to re-learn the connected monitor’s

EDID

■Exit: Exits menu

RS-232 Commands

The UltraView DVI may also be controlled via RS-232 commands. This feature requires that the controlling

computer has a RS-232 card. Otherwise, a USB to RS-232 adapter may be used. The UltraView DVI comes

with a DB9(F) serial communications port.

Establish a connection to the UltraView DVI :

1. Connect a straight-through RS-232 cable to the RS-232 connector on the PC.

2. Connect the other end of the cable to the RS-232 port of the UltraView DVI.

3. Power on the device.

To identify the COM port used by a Windows computer do the following:

1. Click on the start button.

2. Click on Control Panel.

3. Click on Device Manager.

4. Click on the arrow next to Ports (COM & LPT).

The adapter name and the COM port number in use should be displayed.

Setting up the Terminal Application:

1. Run the terminal client of choice (such as HyperTerminal, Tera Term or PuTTY).

2. Select the COM port on the PC where the unit is connected.

3. Use the following connection settings: 9600, N, 8, 1, No Flow Control.

Note:

PuTTY and other terminal software may not default to the settings above. If the RS-232 connection seems

unresponsive, cycling power to the UltraView DVI will reset all values and boot up messages will be sent to the

terminal display, verifying the connection.

A listing of available RS232 commands is shown in Appendix C.

UltraView DVI Manual 6

Hotkey Commands

The Hotkey command is a keyboard sequence used to trigger an action on the UltraView DVI through the use

of the keyboard connected to a USB KB/MS port. To activate the hotkey sequence, press and release the

CTRL key twice and then enter the desired hotkey command. A listing of available hotkey commands is shown

in Appendix C.

PRODUCT SAFETY

UltraView DVI Manual 7

Safety

The UltraView DVI, like all electronic equipment, should be used with care. To protect yourself from possible

injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.



Follow all instructions and warnings marked on this Unit.



Except where explained in this manual, do not attempt to service this Unit yourself.



Do not use this Unit near water.



Assure that the placement of this Unit is on a stable surface.



Provide proper ventilation and air circulation.



Keep connection cables clear of obstructions that might cause damage to them.



Use only power cords, power adapter and connection cables designed for this Unit.



Keep objects that might damage this Unit and liquids that may spill, clear from this Unit. Liquids and

foreign objects might come in contact with voltage points that could create a risk of fire or electrical

shock.



Do not use liquid or aerosol cleaners to clean this Unit. Always unplug this Unit from the power source

before cleaning.

Remove power from the Unit and refer servicing to a qualified service center if any of the following conditions

occur:



The connection cables are damaged or frayed.



The Unit has been exposed to any liquids.



The Unit does not operate normally when all operating instructions have been followed.



The Unit has been dropped or the case has been damaged.



The Unit exhibits a distinct change in performance, indicating a need for service.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Rose electronics Changer

Rose electronics

Rose electronics UltraMatrix Remote 2 Manuel utilisateur

Rose electronics

Rose electronics MultiVideo DP MDM-4T2DP-A1 Manuel utilisateur

Rose electronics

Rose electronics MultiVideo HDMI MDM-4T2HD-A1MultiVideo HDMI... Manuel utilisateur

Rose electronics

Rose electronics Video Easyware Manuel du propriétaire

Rose electronics

Rose electronics Vista LC DVI Manuel utilisateur

Rose electronics

Rose electronics Vista KVL-4PCA Manuel utilisateur

Rose electronics

Rose electronics Vista Remote 2 Manuel utilisateur

Rose electronics

Rose electronics Station Master Manuel utilisateur

Rose electronics

Rose electronics SuperSwitch SS-9 Manuel utilisateur

Rose electronics

Rose electronics VISTA DVI Manuel utilisateur

Rose electronics

Rose electronics Xtensys Manuel utilisateur

Rose electronics

Rose electronics MultiStation ML-2U Manuel utilisateur

Rose electronics

Rose electronics Xtensys XTS-V16x64D16-L Manuel utilisateur

Rose electronics

Rose electronics Vista KM III/A1 Manuel utilisateur

Rose electronics

Rose electronics Vista DP KVM-4TDP/A1 Manuel utilisateur

Rose electronics

Rose electronics QuadraVista Manuel utilisateur

Rose electronics

Rose electronics UltraView Pro Manuel utilisateur

Rose electronics

Rose electronics UltraMatrix AV Manuel utilisateur

Rose electronics

Rose electronics Ultraview Remote 2 Manuel utilisateur

Rose electronics

Rose electronics Vista Mini Manuel utilisateur

Rose electronics

Rose electronics Caretaker Plus Automatic Switch Manuel utilisateur

Rose electronics

Rose electronics MultiVideo Manuel utilisateur

Rose electronics

Rose electronics MasterSwitch MS-5P Manuel utilisateur

Rose electronics

Rose electronics UltraConsole Remote UCR-1R1X04U Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
