ROSE DISPLAYS ANOFRAME VERSAMOUNT WEIGHTED BASE SQ Manuel utilisateur

Parts

35 Congress Street, Salem MA 01970

Tel# 1-800-631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

AnoFrame VersaMount

Weighted Base

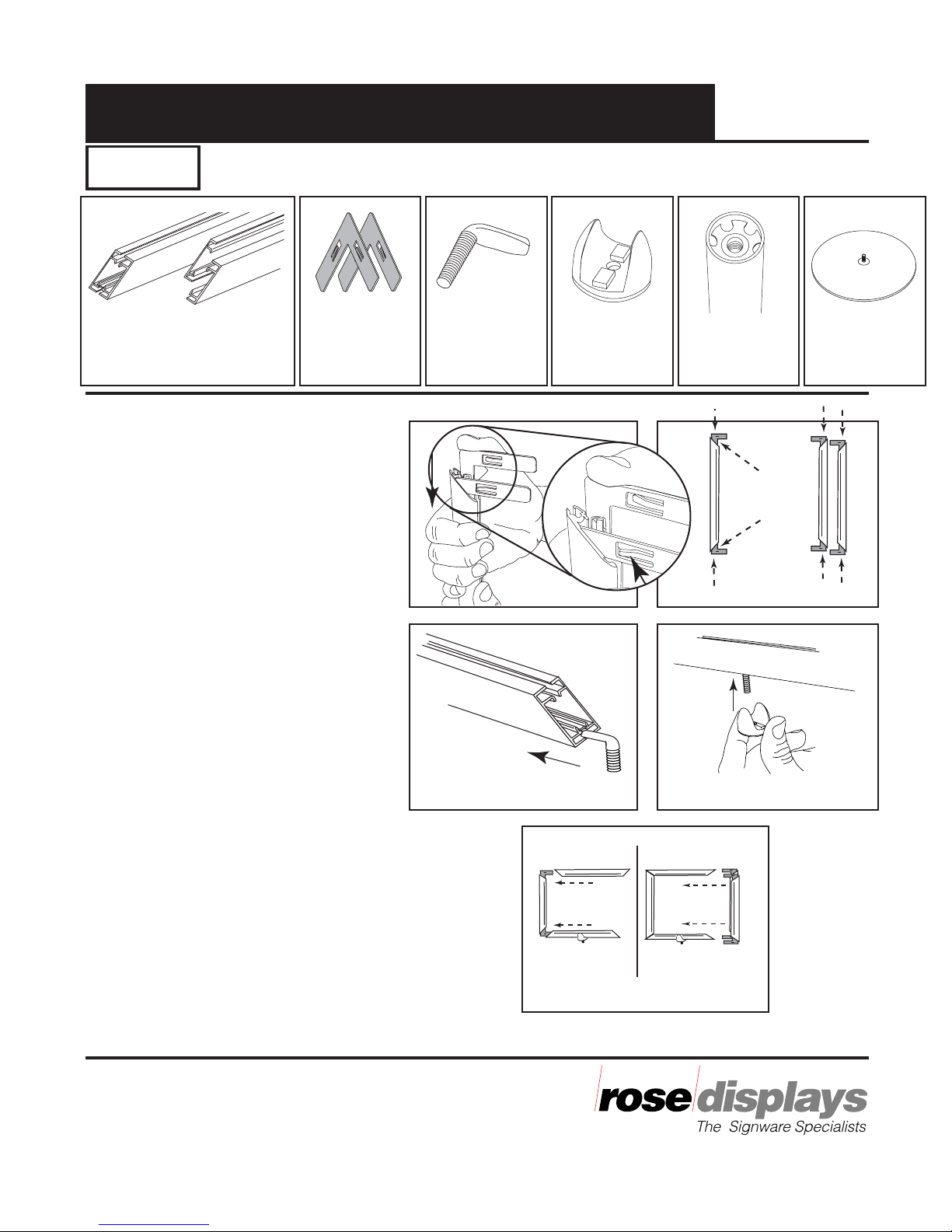

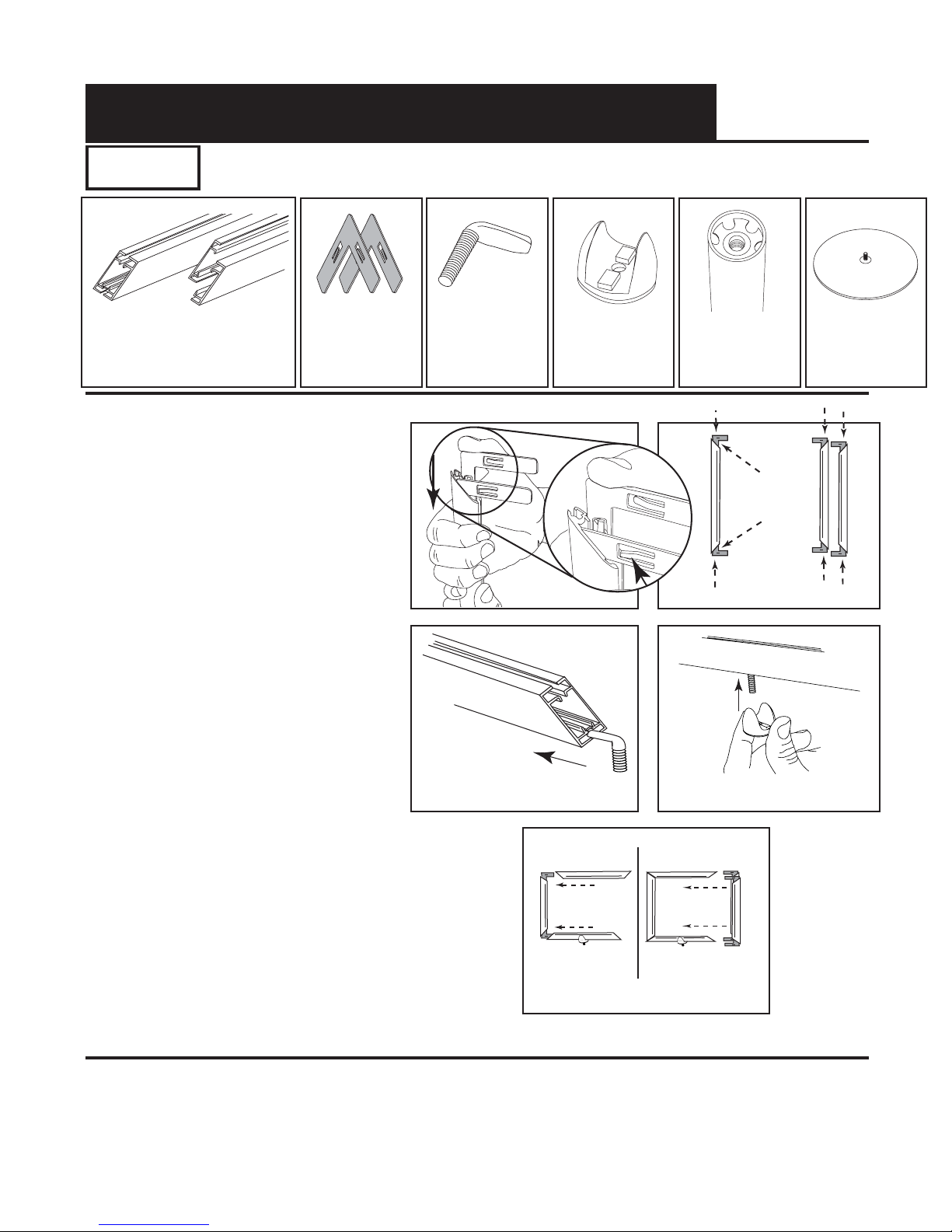

Step 1

Locate the two split rails and the solid

rail that is the same length as the split

rails.

Insert corner brackets into side

AnoFrame rails. Insert two corner

brackets into each end of the solid side

Ano rail. Insert one corner bracket

into each end of each split side Ano

rail. Fig. 1 & Fig. 2

Note: Tension tabs on corner

brackets face towards outside of

frame.

Step 2

Slide screw tab into channel of bottom

Ano rail. Fig. 3.

Step 3

Place transitional collar over screw tab

and push onto frame. Fig. 4.

Step 4

Finish assembling frame following the

sequence in Fig. 5.

Note: Placement of split rails will

depend on type of frame. Split rails

will be on the top for top-loading

frames and on the side for side-

loading frames.

split rails

solid rail

Instructions For Assembly

Incept-9.6.02

Figure 1

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss

or damage resulting from the use of these products.

Part #02INSVersaMountRoundBaseSQ

Figure 3

Corner

Brackets

AnoFrame

Rails

AnoFrame

Split Rails

Figure 2

Figure 4

Screw Tab Transitional

Collar

Vertical

Post

Weighted

Base

Instruction Sheet (page 1 of 2)

#97-0431SQ

solid rail

split rails

Figure 5

Parts

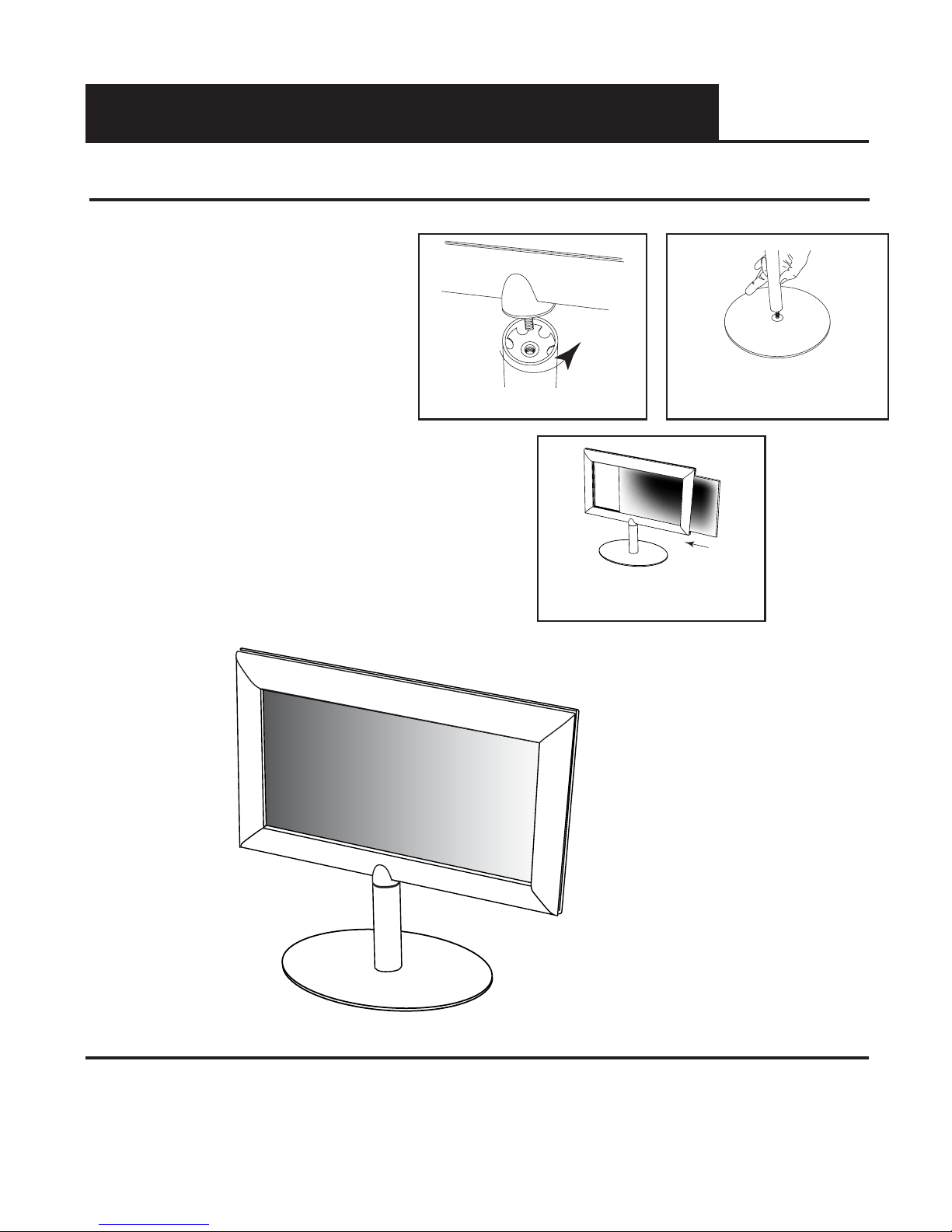

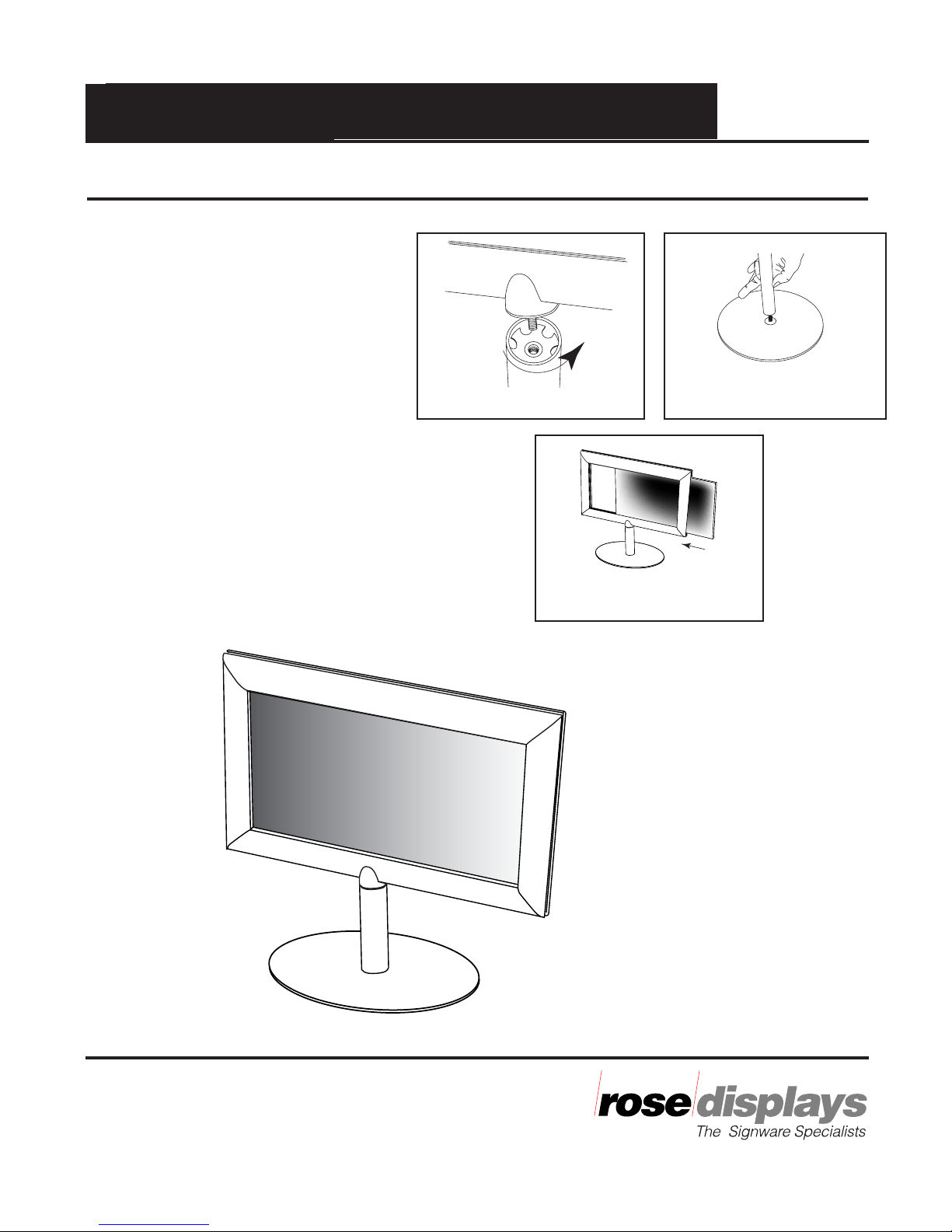

Step 5

Screw vertical post onto screw tab and

tighten. Fig. 6

Note: Use the end of the post with

the smaller opening.

Step 6

Screw the vertical post onto the

weighted base and tighten. Fig 7

Step 7

Slide your graphic into the AnoFrame.

Fig. 8

Instructions For Assembly

Incept-9.6.02

Figure 6

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss

or damage resulting from the use of these products.

Part #02INSVersaMountRoundBaseSQ

Figure 8

Figure 7

Finished Look

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

#97-0431SQ

Instruction Sheet (page 2 of 2)

AnoFrame VersaMount

Weighted Base

Parts

AnoFrame VersaMount

Weighted Base

split rails

solid rail

Incept-9.6.02

Figure 1

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss

or damage resulting from the use of these products.

Part #02INSVersaMountRoundBaseSQ

Figure 3

Corner

Brackets

AnoFrame

Rails

AnoFrame

Split Rails

Figure 2

Figure 4

Screw Tab Transitional

Collar

Vertical

Post

Weighted

Base

Instruction Sheet (page 1 of 2)

#97-0431SQ

solid rail

split rails

Figure 5

Step 1

Locate the two split rails and the solid

rail that is the same length as the split

rails.

Insert corner brackets into side

AnoFrame rails. Insert two corner

brackets into each end of the solid side

Ano rail. Insert one corner bracket

into each end of each split side Ano

rail. Fig. 1 & Fig. 2

Note: Tension tabs on corner

brackets face towards outside of

frame.

Step 2

Slide screw tab into channel of bottom

Ano rail. Fig. 3.

Step 3

Place transitional collar over screw tab

and push onto frame. Fig. 4.

Step 4

Finish assembling frame following the

sequence in Fig. 5.

Note: Placement of split rails will

depend on type of frame. Split rails

will be on the top for top-loading

frames and on the side for side-

loading frames.

Instructions For Assembly

Parts

Step 5

Screw vertical post onto screw tab and

tighten. Fig. 6

Note: Use the end of the post with

the smaller opening.

Step 6

Screw the vertical post onto the

weighted base and tighten. Fig 7

Step 7

Slide your graphic into the AnoFrame.

Fig. 8

Instructions For Assembly

Incept-9.6.02

Figure 6

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss

or damage resulting from the use of these products.

Part #02INSVersaMountRoundBaseSQ

Figure 8

Figure 7

Finished Look

#97-0431SQ

Instruction Sheet (page 2 of 2)

AnoFrame VersaMount

Weighted Base
