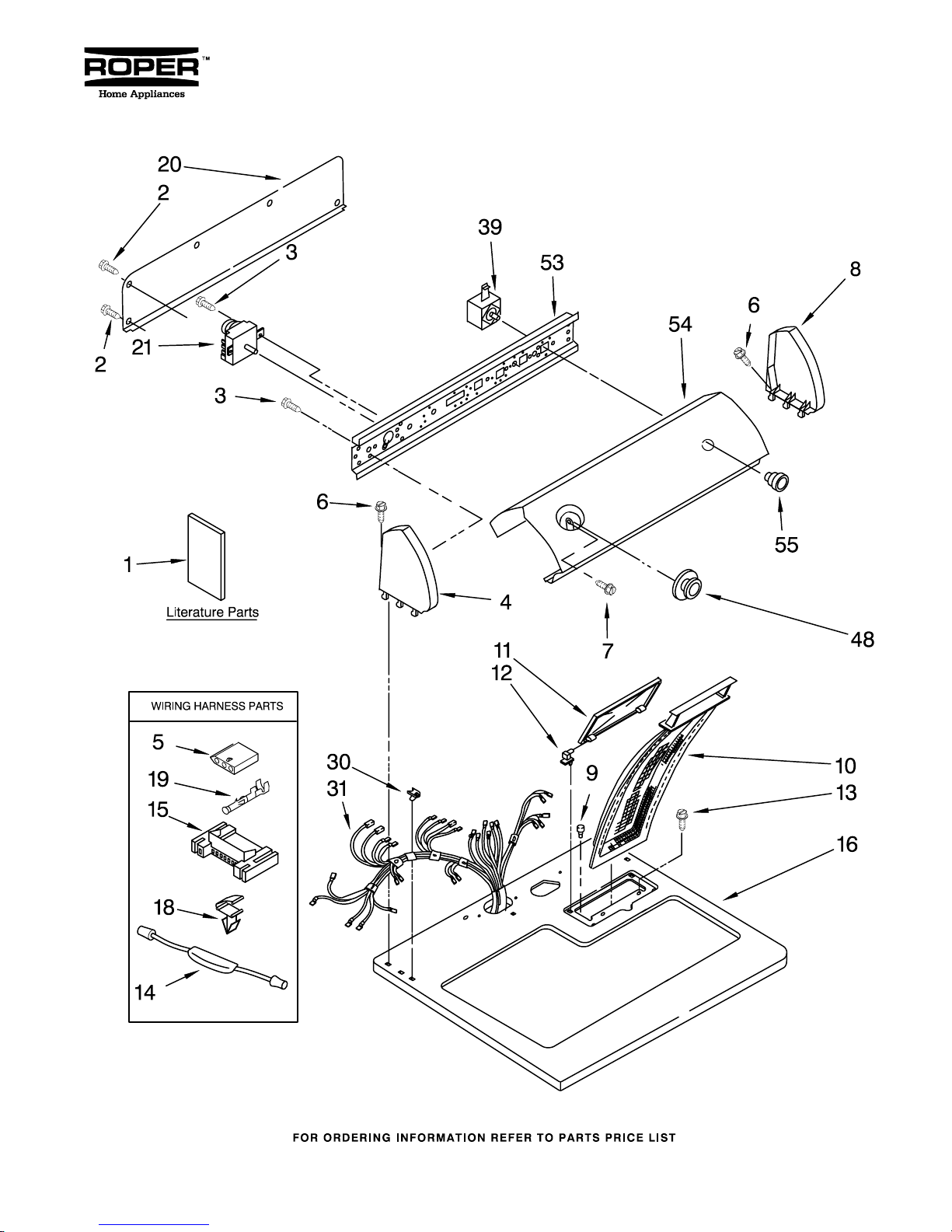

TOP AND CONSOLE PARTS

For Model: YREX4634KQ0

(Designer White)

2−01 Litho in U.S.A. (rcg) Part No. 4320257

29" ELECTRIC DRYER

TOP AND CONSOLE PARTS

OPTIONAL PARTS (NOT INCLUDED)

For Model: YREX4634KQ0

(Designer White)

4320257

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3978913

Use & Care Guide

LIT3397620

Installation

Instructions

LIT3406689

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

2 693995 Screw, Hex Head

3 3390646 Screw, 8−18 x 5/16

4 8274437 Cap, End (L.H.)

5 3936144 Connector

6 388326 Screw, Console

7 3400859 Screw, Grounding

(8−18 x 7/32)

8 8274434 Cap, End (R.H.)

9 297535 Bumper, Lint Lid

10 339392 Screen, Lint

11 8283378 Cover, Lint Screen

12 3978605 Hinge, R.H.

3978606 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3401076 Resistor Assembly

15 3395683 Connector

(Motor)

16 8271390 Top

18 3394427 Clip, Harness

19 94614 Terminal

20 8274261 Panel, Rear

Console

21 8299764 Timer, 60 Hz.

30 357213 Nut, Push−In (2)

31 3394316 Harness, Wiring

39 3977456 Switch,

Push−To−Start

48 8274380 Timer Knob

Assembly

53 8271418 Bracket, Control

54 3977926 Panel, Control

55 8274376 Knob, Push

To Start

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

DRY RACK

689790 Dry Rack

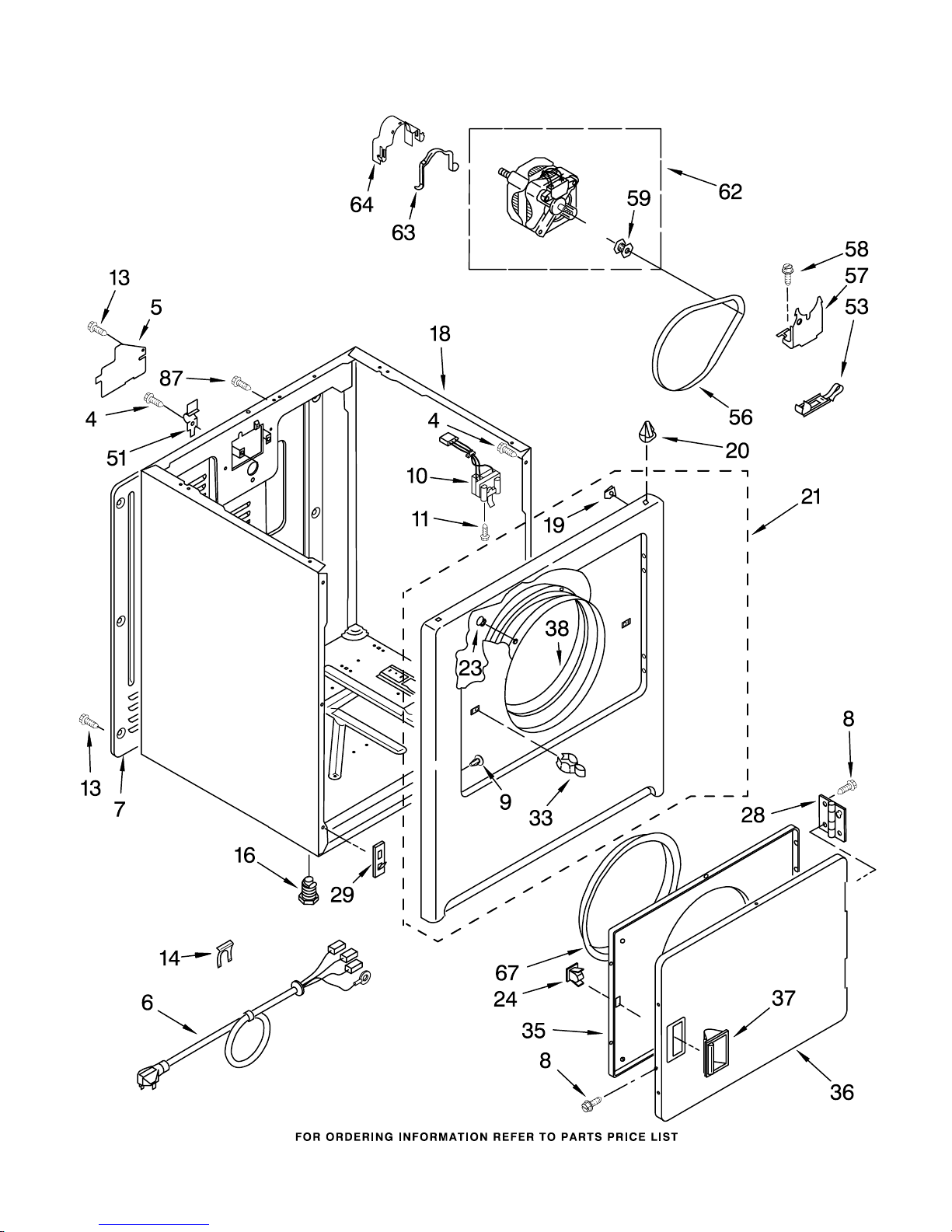

CABINET PARTS

For Model: YREX4634KQ0

(Designer White)

4320257

CABINET PARTS

For Model: YREX4634KQ0

(Designer White)

4320257

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

4 343641 Screw, 10−16 x 1/2

5 3394202 Cover, Terminal

Block

6 3394208 Cord, Power

7 3396807 Panel, Rear

8 342055 Screw, 8−18 X 1/2

9 3404413 Plug, Hinge

Hole (4)

10 3406104 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

13 693995 Screw, Hex

Washer Head

14 694415 Clip, Strain

Relief

16 3392100 Foot, Dryer (4)

18 3399580 Cabinet Assembly

(Includes Illus.

Nos. 5, 7, 16,

29 & 57)

19 98234 Clip, Ground

20 690363 Lock, Front

Top (2)

21 3403571 Front Panel

Assembly

23 685203 Clip, Felt Pad

24 690081 Catch, Door

28 3405514 Hinge and Pin

Assembly (2)

29 3394083 Clip, Front

Panel (2)

33 696144 Strike, Door

35 3403371 Door, Rear

36 3403361 Door Front

37 3405184 Handle, Door

38 349464 Seal & Bearing

Assembly

51 238088 Hinge, Top (2)

53 3394332 Idler & Slide

Assembly

56 8066065 Belt, Drive

57 348780 Base, Motor

58 3400500 Bolt,

5/16−18 x 3/4

59 3394341 Pulley, 60 Hz.

62 3976707 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

64 3404162 Clamp, Motor

(W/Shield)

67 3405245 Seal, Door

87 697776 Screw, 10−32 x 5/8

(External Ground)

BULKHEAD PARTS

For Model: YREX4634KQ0

(Designer White)

4320257

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute Assembly

2 489463 Screw, 8−18 x 5/8

3 8066086 Drum Hole

Plug

4 3388703 Washer, Support

5 90767 Screw, 8−18 x 3/8

6 3977393 Thermal Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

7 347139 Seal, Lint

Chute

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

11 3405016 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3977767 Thermostat,

High Limit 250 F

(121.1 C) (60 Hz.)

16 3394196 Seal, Blower

Shaft

17 3403585 Element, Heater

(For 240 Volt

Installation)

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

23 3392519 Fuse, Thermal

24 3387134 Thermostat,

Internal Bias

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3397264 Bulkhead

62 3394509 Ring, Bearing

63 97787 Screw, 11−16 x 3/4

66 8066085 Seal, Rear Drum

67 3396777 Drum Assembly

68 342847 Baffle, Drum

69 3976435 Bracket, Support

70 90296 Clip

73 339956 Seal

75 696302 Shield, Exhaust
