Roper RGX6634PQ0 Manuel utilisateur
1
TOP AND CONSOLE PARTS
For Model: RGX6634PQ0
(Designer White)
04−04 Litho in U.S.A. (djc) Part No. 8180368
29" GAS DRYER
TOP AND CONSOLE PARTS
2
OPTIONAL PARTS (NOT INCLUDED)
For Model: RGX6634PQ0
(Designer White)
8180368
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT8533782
Guide, Use & Care
LIT8535915
Instructions,
Installation
LIT8528187
Wiring Diagram
LIT8533780
Sheet,
Cycle Feature
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT677818
Dryer
2 693995 Screw, Hex
Washer Head
3 3397269 Connector, Timer
4 8274437 Cap, End (L.H.)
5 3936144 Connector
6 3395683 Connector
(Motor)
7 8274434 Cap, End (R.H.)
8 357213 Nut, Push−In (2)
9 8274261 Panel, Rear
Console
10 8558467 Screen, Lint
11 688805 Clip
13 688983 Screw, 8−18 x 5/8
14 388326 Screw, Console
15 3394427 Clip, Harness
16 8557930 Top
18 94614 Terminal
19 3400859 Screw, 8−18 x 7/32
20 8536939 Clip, Spring
21 8299764 Timer
22 3391249 Tie, Cable
23 8299876 Harness, Wiring
24 3403499 Connector,
2−Position
(Gas Valve)
25 3403498 Connector,
3−Position
(Gas Valve)
26 3390646 Screw, 8−18 x 5/16
27 3977456 Switch,
Push−To−Start
28 8557455 Timer Knob
& Dial
29 8271418 Bracket, Control
30 3977945 Panel, Control
31 717252 Receptacle
32 8557461 Knob,
Push−To−Start
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
279948 Kit,
Dryer Repair
8522199 Kit, Dryer
Vent Testing
346764 Kit, Hold−Down
(Gas Dryer Mobile
Home Installation)
689790 Dry Rack
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
3
CABINET PARTS
For Model: RGX6634PQ0
(Designer White)
8180368
4
CABINET PARTS
For Model: RGX6634PQ0
(Designer White)
8180368
Illus. Part
No. No. DESCRIPTION
1 697776 Screw, 10−32 x 5/8
2 343641 Screw, 10−16 x 1/2
3 693995 Screw, Hex Head
4 8541400 Bracket, Cabinet
5 3396795 Cover, Block
6 3394975 Plug, Front Panel
7 3396807 Panel, Rear
8 342055 Screw, 8−18 x 1/2
10 3406104 Door Switch
Assembly
11 697773 Screw, 6−20 x 7/8
12 3404413 Plug, Hole
15 3394083 Clip, Front Panel
16 3392100 Foot, Dryer (4)
18 8530603 Cabinet
(Includes
Illus. 4)
19 98234 Clip, Ground (2)
20 690363 Lock, Front Top (2)
21 3403574 Front Panel
Assembly
23 685203 Clip, Felt Pad
24 690081 Catch, Door
28 3405514 Hinge & Pin
Assembly (2)
33 696144 Strike, Door
35 3403371 Door, Rear
36 3403361 Door, Front
37 3405184 Handle, Door
38 8066124 Seal & Bearing
Assembly
42 3405245 Seal, Door
45 344020 Cord, Power
51 238088 Hinge, Top (2)
53 691366 Idler & Pulley
Assembly
56 8066065 Belt, Drive
57 348780 Base, Motor
58 3400500 Bolt,
5/16−18 x 3/4
59 3394341 Pulley, 60 Hz.
62 8538262 Motor, 60 Hz.
63 660658 Clamp, Motor
64 3404162 Clamp, Motor
(W/Shield)
67 8318272 Burner Assembly,
60 Hz.
(Refer To Pages
5 & 6 For Further
Breakdown)
68 341029 Clamp, Pipe
BA−150
8318272 BURNER ASSEMBLY
USE WITH TYPE 1 − NATURAL
AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES
5
For Model: RGX6634PQ0
(Designer White)
8180368
Illus. Part
No. No. DESCRIPTION
BA−150
8318272 BURNER ASSEMBLY
USE WITH TYPE 1 − NATURAL
AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES
1 8318272 Burner Assembly
60 Hz.
(Type 1)
(White Rodgers)
2 688617 Tube, Burner
3 694298 Bracket, Ignitor
4 686590 Ignitor
5 3393909 Screw & Washer
(8−32 x 5/8)
6 343641 Screw, 10−16 x 1/2
7 693986 Base, Burner
8 3387057 Screw, 8−18 x 3/8
9 Orifice, Burner
234826 Type 1
229742 Type 4 (Butane)
234868 Type 4 (Propane)
10 8318277 Valve, 60 Hz.
(Includes Pipe &
Illus. #7)
11 694421 Screw,
8−32 x 1/2 (2)
12 694538 Bracket, Coil
13 694540 Coil, 60 Hz.
(2 Terminal)
(Main)
14 694539 Coil, 60 Hz.
(Split)
(3 Terminal)
(Pilot Position)
15 694424 Leak Limiter
16 694423 Screw, Regulator
Adjustment
17 694422 Spring, Regulator
20 239822 Plug, Pipe
25 341029 Clamp, Pipe
694572 Conversion Kit
(Type 1)
to Type (4) L.P.G.
Following Parts Not Illustrated
6
For Model: RGX6634PQ0
(Designer White)
8180368
7

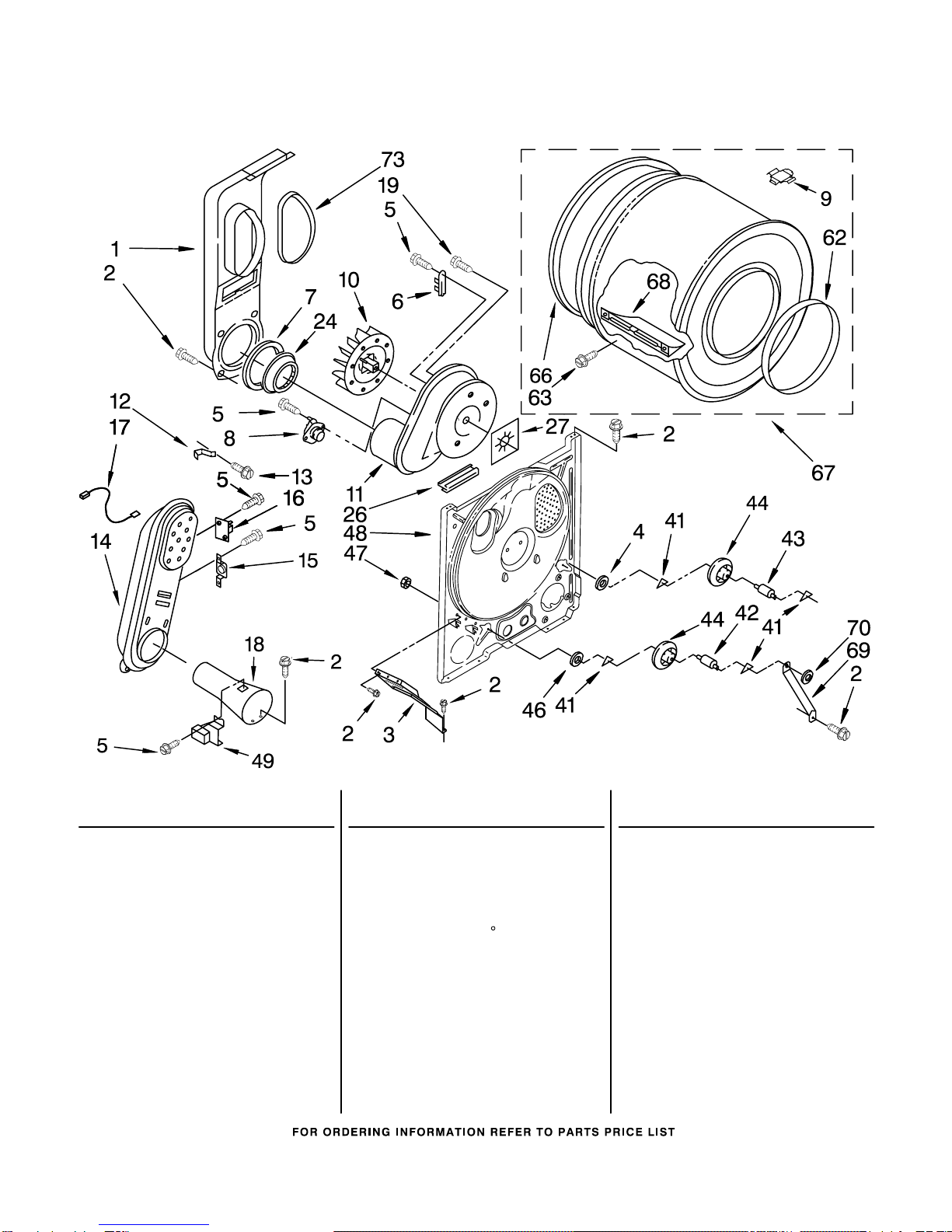

BULKHEAD PARTS
For Model: RGX6634PQ0
(Designer White)
8180368
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 694283 Lint Chute
Assembly
2 343641 Screw, 10−16 x 1/2
3 3406022 Bracket, Bulkhead
4 3388703 Washer, Support
5 90767 Screw, 8−18 x 3/8
6 3392519 Fuse, Thermal
7 347139 Seal, Lint
Chute
8 3387134 Thermostat,
Internal Bias
9 8066086 Drum Hole
Plug
10 694089 Wheel, Blower
(Includes
Illus. 27)
11 8557384 Housing, Blower
12 3398161 Clip
13 489463 Screw, 8−18 x 5/8
14 8530285 Box, Heater
15 3403140 Thermostat,
205 F (96C)
16 280010 Kit,
Thermal Cut−Off
(Includes
Illus. 15)
17 3401707 Wire, Jumper
18 8066048 Funnel, Burner
19 3390647 Screw, 8−18 x 1/2
24 696302 Shield, Exhaust
26 3392247 Pad, Blower
Housing
27 3394196 Seal, Blower Shaft
41 690997 Ring, Tri
42 3399506 Shaft, L.H.
43 3399507 Shaft, R.H.
44 3397588 Roller, Support
46 348197 Washer, Support
47 3359452 Nut, 3/8−16
48 8529955 Bulkhead
49 338906 Sensor, Radiant
62 3394509 Ring, Bearing
63 97787 Screw, 11−16 x 3/4
66 8066085 Seal, Rear Drum
67 3396777 Drum Assembly
68 342847 Baffle, Drum
69 3976435 Bracket, Support
70 90296 Clip
73 339956 Seal
