Roper REX3514PQ0 Manuel utilisateur

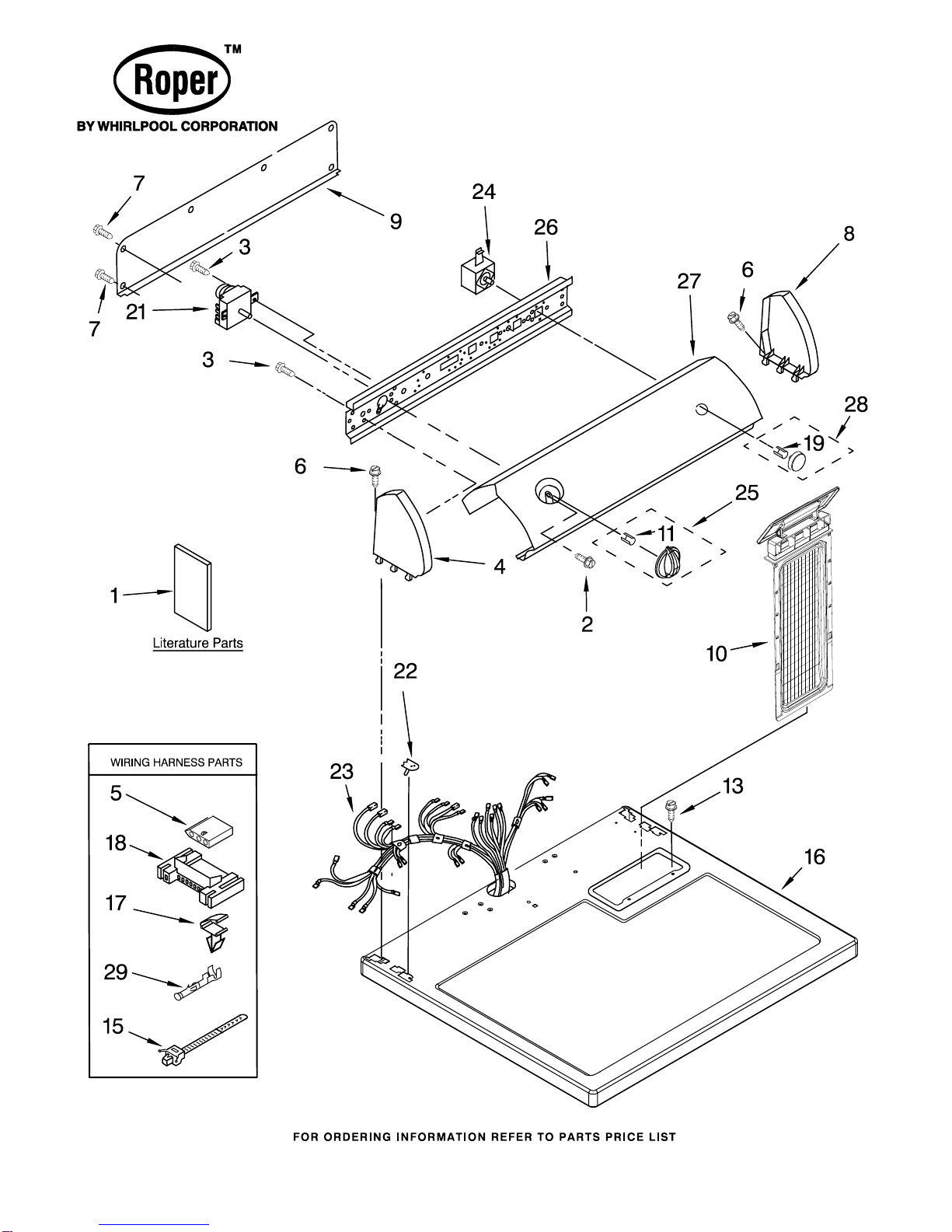

TOP AND CONSOLE PARTS

For Model: REX3514PQ0

(Designer White)

04−04 Litho in U.S.A. (djc) Part No. 8180381

29"ELECTRIC DRYER

TOP AND CONSOLE PARTS

OPTIONAL PARTS (NOT INCLUDED)

For Model: REX3514PQ0

(Designer White)

8180381

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8533782

Guide, Use & Care

LIT8535914

Instructions,

Installation

LIT8533780

Sheet,

Cycle Feature

LIT8528187

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

2 3400859 Screw, Grounding

3 3390646 Screw, 8−18 x 5/16

4 8274437 Cap, End (L.H.)

5 3936144 Connector

6 388326 Screw, Console

7 693995 Screw, Hex Head

8 8274434 Cap, End (R.H.)

9 8274261 Panel, Rear

Console

10 8558467 Screen, Lint

11 688805 Clip

13 688983 Screw, 8−18 x 5/8

15 3391249 Tie, Cable

16 8557930 Top

17 3394427 Clip−Harness

18 3395683 Connector

(Motor)

19 8536939 Clip, Spring

21 8299780 Timer

22 357213 Nut, Push−In (2)

23 8299865 Harness, Wiring

24 3977456 Switch,

Push−To−Start

25 8557455 Timer Knob

Assembly

26 8271418 Bracket, Control

27 3977941 Panel, Control

28 8557461 Knob,

Push−To−Start

29 94614 Terminal

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

8522199 Kit, Dryer

Vent Testing

689790 Dry Rack

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

CABINET PARTS

For Model: REX3514PQ0

(Designer White)

8180381

CABINET PARTS

For Model: REX3514PQ0

(Designer White)

8180381

Illus. Part

No. No. DESCRIPTION

1 342055 Screw, 8−18 x 1/2

2 3393008 Screw, 10−16 x 1/2

3 8541400 Bracket, Cabinet

4 343641 Screw, 10−16 x 1/2

5 3396795 Cover, Terminal

Block

7 3396807 Panel, Rear

8 694091 Screw, 8−18 x 3/8

10 3406102 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

12 3392100 Foot Dryer

279810 Foot − Optional

(Extended Length

Package of 2)

(Not Included)

13 8530603 Cabinet

(Includes

Illus. 3)

14 98234 Clip, Ground

15 690363 Lock, Front

Top (2)

16 693197 Front Panel

Assembly

17 685203 Clip, Felt Pad

18 3389441 Catch, Door

19 348023 Hinge and Pin

Assembly (2)

20 3394083 Clip, Front

Panel (2)

21 696144 Strike, Door

22 695656 Door, Rear

23 348205 Door Front

24 686711 Handle, Door

25 8066123 Seal & Bearing

Assembly

26 279393 Terminal Block

Kit For

Terminal Block

27 3397659 Block, Terminal

28 238088 Hinge, Top (2)

29 691366 Idler & Pulley

Assembly

30 8066065 Belt, Drive

31 348780 Base, Motor

32 3400500 Bolt,

5/16−18 x 3/4

33 3394341 Pulley, 60 Hz.

34 8538262 Motor Assembly

60 Hz.

35 660658 Clamp, Motor

36 3404162 Clamp, Motor

(W/Shield)

37 3390734 Seal, Door

38 697776 Screw, 10−32 x 5/8

(External Ground)

39 693995 Screw, Hex Head

40 279318 Terminal, Tinned& Brass (3)

(Includes Illus. 40)

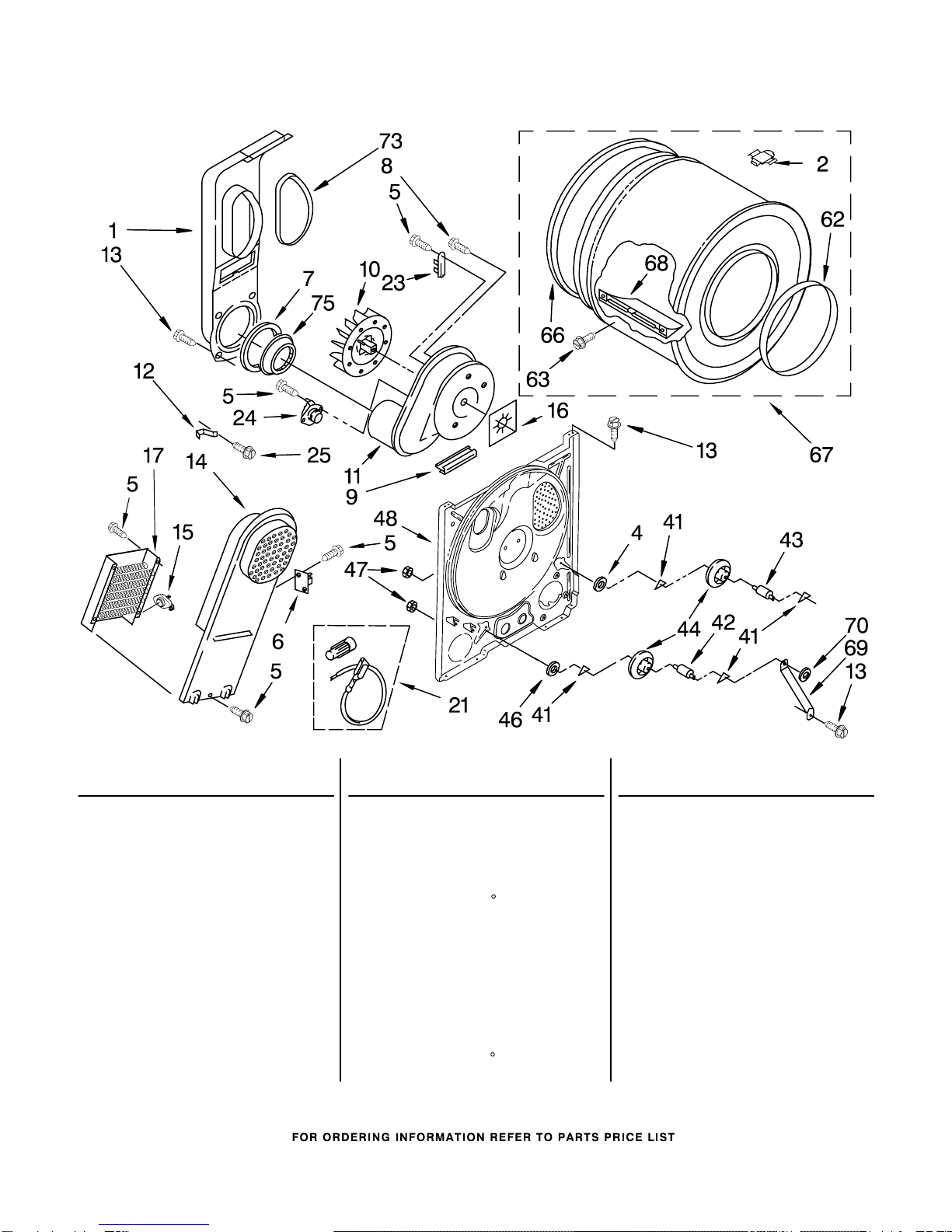

BULKHEAD PARTS

For Model: REX3514PQ0

(Designer White)

8180381

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute Assembly

2 8066086 Drum Hole

Plug

4 3388703 Washer, Support

5 90767 Screw, 8−18 x 3/8

6 3977393 Thermal Cut−Off

(Includes

Illus. 15)

7 347139 Seal, Lint

Chute

8 3390647 Screw, 8−18 x 1/2

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

(Includes

Illus. 16)

11 8557384 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8541818 Box, Heater

15 3977767 Thermostat,

221 F (105C)

16 3394196 Seal, Blower

Shaft

17 3403585 Element, Heater

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

23 3392519 Fuse, Thermal

24 660039 Thermostat,

150 F (66C)

25 489463 Screw, 8−18 x 5/8

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 8529955 Bulkhead

62 3394508 Ring, Bearing

63 97787 Screw, 11−16 x 3/4

66 8066085 Seal, Rear Drum

67 3396775 Drum Assembly

68 342847 Baffle, Drum

69 3976435 Bracket, Support

70 90296 Clip

73 339956 Seal

75 696302 Shield, Exhaust
