METAL GEARBOX IMPACT DRILL
2290
USER MANUAL 3

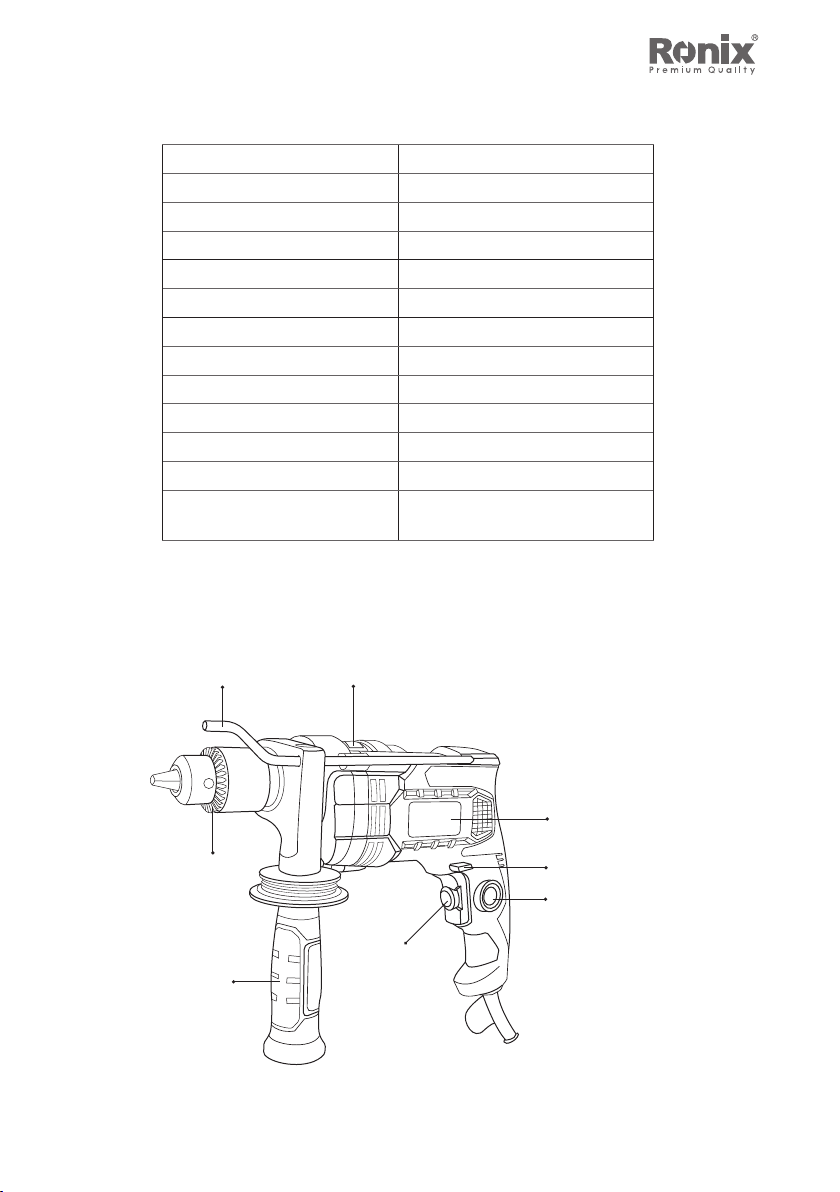

TECHNICAL SPECIFICATIONS
Model 2290
Power 900W
Voltage 220-240V
Frequency 50-60Hz
No-Load Speed 0-2800 RPM
Max Capacity in Concrete 16mm
Max Capacity in Wood 30mm
Max Capacity In Steel 13mm
Chuck Type keyed
Chuck Size 13mm
Weight 2kg
Supplied in Ronix color box
Includes Auxiliary Ronix-design handle,
Depth gauge, Chuck key
PART LIST
Lock-on Button
switch
Keyed Chuck
Forward/reverse
Switch
Hammer/Drilling
Selection Switch
Auxiliary
handle
Depth guage
Motor
Variable speed
control switch
METAL GEARBOX IMPACT DRILL
4
SAVE THESE INSTRUCTIONS
this manual contains important safety and operating instructions
read all instructions and follow them with use of this product.
SAFETY GUIDELINES
.SAFETY GUIDELINES:
safety symbols in this instruction manual are used to flag possible
dangers. the safety symbols and their explanations require your
full understanding. the safety warnings do not, by themselves,
eliminate any danger, nor are they substitutes for proper accident
prevention measures.
this safety alert symbol indicates caution, warning, or danger.
Failure to obey a safety warning can result in serious injury to
yourself or others. to reduce the risk of injury, fire, or electric
shock, always follow the safety precautions.
WARNING!
read all safety warnings and instructions. failure to follow the
warnings and instructions may result in electric shock, fire and/or
serious injury.
save all warnings and instructions for future reference.
the term “power tool” refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
GENERAL POWER TOOL SAFETY WARNINGS
- Do not overreach. keep proper footing and balance at all times.
this enables better control of the power tool in unexpected
situations.
USER MANUAL 5
- Dress properly. do not wear loose clothing or jewelry. keep your
hair, clothing and gloves away from moving parts. loose clothes,
jewelry or long hair can be caught in moving parts.
- if devices are provided for the connection of dust extraction and
collection facilities, ensure that these are connected and properly
used. use of these devices can reduce dust-related hazards.
POWER TOOL USE AND CARE
- Do not force the power tool. use the correct power tool for your
application. the correct power tool will do the job better and more
safely at the rate for which it was designed.
- Do not use the power tool if the switch does not turn it on and
off. any power tool that cannot be controlled with the switch is
dangerous and must be repaired in ronix service center.
- Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustment, changing
accessories, or storing power tools. such preventive safety
measures reduce the risk of starting the power tool accidentally.
- Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions
to operate the power tool. power tools are dangerous in the hands
of untrained users.
- Maintain power tools. check for misalignment or binding of
moving parts, breakage of parts and any other condition that
may affect the power tool’s operation. if damaged, have the
power tool repaired before use. many accidents are caused by
poorly maintained power tools.
keep cutting tools sharp and clean. properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
to control.
use the power tool, accessories, tool bits, etc. in accordance
with these instructions, taking into account the working conditions
METAL GEARBOX IMPACT DRILL
6
and the work to be performed. use of the power tool for operations
different from those intended could result in a hazardous situation.
SERVICE
- have your power tool serviced by a qualified repair person using
only identical replacement parts. this will ensure that the safety of
the power tool is maintained.
WORK AREA SAFETY
- keep the work area clean and well lit. cluttered or dark areas
invite accidents.
- do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. power tools
create sparks, which may ignite the dust of fumes.
- keep children and bystanders away while operating a power tool.
distraction can cause you to lose control.
ELECTRICAL SAFETY
- power tool plugs must match the outlet. never modify the plug in
any way. do not use any adapter plugs with earthed (grounded)
power tools. unmodified plugs and matching outlets will reduce
risk of electric shock.
- avoid body contact with earthed or ground surfaces, such as
pipes, radiators, ranges and refrigerators. these is an increased
risk of electric shock if your body is earthed or grounded.
- do not expose power tools to rain or wet condition. water entering
a power tool will increase the risk of electric shock.
- do not abuse the cord. never use the cord for carrying, pulling or
unplugging the power tool. keep cord away from heat, oil, sharp
edges or moving parts. damaged or entangled cords increase the
USER MANUAL 7
risk of electric shock.
- when operating a power tool outdoors, use an extension cord
suitable for outdoor use. use of a cord suitable for outdoor use
reduces the risk of electric shock.
- if operating a power tool in a damp location is unavoidable use
a ground-fault circuit interrupter (GFCI) protected supply. use of a
gfci reduces the risk of electric shock.
PERSONAL SAFETY
- stay alert, watch what you are doing and use common sense
when operating a power tool. do not use a power tool while you
are tired or under the influence of drugs, alcohol or medication. a
moment of inattention while operating power tools may result in
serious personal injury.
- use personal protective equipment. always wear eye protection.
protective equipment such as dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions will
reduce physical injuries.
- prevent unintentional starting. ensure the switches in the
off-position before connecting to power source and/or battery
pack, picking up or carrying the tool. carrying power tools with
your finger on the switch or energizing power tools that have
the switch on invites accidents.
- remove any adjusting key or wrench before turning the power
tool on. a wrench or a key left
- wear ear protectors when impact drilling. exposure to noise can
cause hearing loss.
use the auxiliary handles if supplied with tool. loss of control can
cause personal injury.
METAL GEARBOX IMPACT DRILL
8
OPERATING INSTRUCTIONS
.VARIABLE-SPEED TRIGGER SWITCH
the variable-speed trigger switch delivers higher speed with increased
trigger pressure and lower speed with decreased trigger pressure.
1) connect the power cord of your hammer drill to a standard
household power outlet.
2) to turn the hammer drill on, press the trigger switch.
3) to turn the hammer drill off, release the trigger switch.
Variable speed
control switch
OPERATION INSTRUCTION
.LOCK-ON BUTTON
this hammer drill is equipped with a lock-on-button, which is
convenient for continuous drilling for extended periods of time.
1) to drill continuously, press and hold the trigger switch and then
press the lock-on button. release the trigger switch.
2) to unlock the lock-on button and stop continuous drilling, press
the trigger and the lock on button will release automatically.
Lock-on Button
switch
USER MANUAL 9
WARNING!
never connect the hammer drill to the power source when you
are assembling parts, making adjustments, installing or removing
bits, cleaning, or when it is not in use, disconnecting the hammer
drill will prevent accidental starting, which could cause serious
personal injury.
.DIRECTION-OF-ROTATION SELECTOR
the direction of bit rotation is reversible and is controlled by a selector
located above the trigger switch. with the drill held toward you:
1) position the direction-of-rotation selector to the right of the tool
for forward rotation.
2) Position the direction-of-rotation selector to the left of the tool
for reverse rotation.
Forward/reverse
Switch
WARNING!
to prevent gear damage, always allow the hammer drill to come to
a complete stop before changing the direction of rotation
OPERATION INSTRUCTION
.AUXILIARY HANDLE
the tool must be supported with auxiliary handle, which can be
swiveled 360° around the collar mount.
to reposition and/or swivel the handle, rotate lower portion of hand
grip counter-clockwise, push handle forward until it disengages
from locking teeth in the collar mount, move handle to the desired
METAL GEARBOX IMPACT DRILL
10
position and push handle inward it engages, then securely tighten
hand grip clockwise
Drilling Depth
Depth Gauge
Locking Teeth Collar Mount
Hard Grip
ClockWiseCounter-ClockWise
.DEPTH GAUGE
your drilling depth can be pre-set and/or repeated by using the
depth gauge.
setting depth: after the auxiliary handle is installed, make sure the
accessory has been fully inserted into the chuck before setting
the depth gauge. to adjust depth, rotate lower portion of handgrip
counter-clockwise to loosen depth gauge, slide depth gauge to
desired position and securely tighten hand grip clockwise.
.INSTALLING BITS
1) unplug the hammer drill from the power source.
2) open the chuck jaws by turning the sleeve in a counterclockwise
direction until the opening is slightly larger than the bit you intend
to use, and raise the front of the drill slightly to keep the bit from
falling out of the chuck jaws.
3) insert the drill bit into the chuck.
USER MANUAL 11
4) tighten the sleeve by hand.
5) place the chuck key in one of the three chuck key holes and
tighten in clockwise direction. repeat with the remaining two chuck
key holes.
6) Remove the chuck key.
OPERATION INSTRUCTION
.REMOVING BITS
1) unplug the hammer drill from the power source.
2) place the chuck key in one of the three chuck key holes and
loosen the chuck by turning in a counterclockwise direction.
3) remove the chuck key.
4) loosen the sleeve by hand.
5) remove the drill bit.
