F.393-F
JUNE 2003
MODEL JO
PAPER DRILLING
MACHINE
Sold and Serviced by
The Challenge Machinery Company
6125 Norton Center Drive
Norton Shores, MI 49441-6081 USA
ChallengeMachinery.com
Serial Numbers 74046 & Up
INSTRUCTION AND
PARTS MANUAL
1.0 Introduction
2
1.0 Introduction
THIS MANUAL is designed to help you get the most from your Challenge equipment. Keep this
manual in a safe, convenient place for quick reference by operators and service personnel.
SAFETY ALERT! This symbol means CAUTION: Personal safety
instructions! Pay special attention to the instructions in bold type. Personal injury may result if the
precautions are not read and followed.
READ THIS MANUAL BEFORE OPERATING! Follow precautions and instructions given and you
should have years of trouble-free operation. If after reading the manual questions still remain, contact
your Authorized Challenge Dealer.
FOR PARTS AND SERVICE, contact the Authorized Challenge Dealer from whom you purchased
your machine. Use the illustrations and parts lists at the back of this manual to identify the correct
parts needed. Always give the SERIAL NUMBER and MODEL of your machine to insure the correct
parts are sent as soon as possible.
Take a few minutes right now to RECORD YOUR MACHINE SERIAL NUMBER in the space
provided on the front cover of this manual. Also be sure to fill out the warranty card accompanying
your machine and return it DIRECTLY TO CHALLENGE.
If you bought a used machine, it is important to have the following information on record at Challenge.
Copy this page, fill in the information and send it care of The Challenge Service Department, 6125
Norton Center Drive •Norton Shores •MI 49441-6081.
CHALLENGE MODEL SERIAL NUMBER
ATTN COMPANY
ADDRESS
CITY STATE/PROVINCE ZIP
PHONE DATE INSTALLED
DEALER NAME & CITY
* WARRANTY INFORMATION *
It is very important that you read and understand the conditions outlined in the Warranty Information
Sheet attached to the outside of the shipping container of your machine.
The Warranty Information Sheet must be filled out completely and returned to THE CHALLENGE
MACHINERY COMPANY in order for the warranty to be issued for this machine.
Challenge® is a registered trademark of
The Challenge Machinery Company•6125 Norton center Drive•Norton Shores, MI 49441-6081
Copyright© 1999-2003 by The Challenge Machinery Company. All rights reserved. Printed in the U.S.A
1.0 Introduction
3
TABLE OF CONTENTS
1.0 Introduction .................................................................................................................................2
2.0 Safety..........................................................................................................................................4
2.1 Precautions.............................................................................................................................4
2.2 Power Lockout Procedure .......................................................................................................4
2.3 Warning Label Definitions........................................................................................................5
3.0 Packing List.................................................................................................................................6
4.0 Specifications..............................................................................................................................7
5.0 Installation Guide.........................................................................................................................8
5.1 Inspecting Shipment................................................................................................................8
5.2 Uncrating the Paper Drill .........................................................................................................8
5.3 Assembly Instructions..............................................................................................................8
5.4 Power Hook Up.....................................................................................................................10
6.0 Operating Instructions................................................................................................................11
6.1 Starting the Machine .............................................................................................................11
6.2 Operating the Drill .................................................................................................................11
6.3 Setting the Side Guide Stops.................................................................................................11
6.4 Using the Side Guide ............................................................................................................11
7.0 Routine Adjustments/Maintenance.............................................................................................12
7.1 Adjusting the Vertical Stroke..................................................................................................12
7.2 Removing the Cutting Block ..................................................................................................12
7.3 Removing Drills From the Chuck ...........................................................................................12
7.4 Service Checklist...................................................................................................................12
7.4.1 Daily ..............................................................................................................................12
7.4.2 Weekly...........................................................................................................................12
8.0 Troubleshooting.........................................................................................................................13
9.0 Drilling Tips ...............................................................................................................................14
10.0 Parts List.................................................................................................................................16
10.1 Main Assembly – 46000, Rev. D..........................................................................................16
10.2 Backgauge Assembly – 10456, Rev. J.................................................................................18
10.3 Slitting and Slotting Attachments .........................................................................................19
10.3.1 V-Slotting.....................................................................................................................19
10.3.2 Slitting..........................................................................................................................21
10.4 Light Duty Cornering Machine – A-6401 ..............................................................................22
11.0 Accessories for Challenge Paper Drilling Machine ...................................................................25
11.1 Genuine Challenge Hollow Drills..........................................................................................25
11.2 Challenge Drill-Ease Lubricant Stick....................................................................................26
11.3 Challenge Drilling Blocks.....................................................................................................26
11.4 Challenge Fiber Blocks........................................................................................................26
11.5 Challenge Power Sharpener................................................................................................26
11.6 Hollow Drill Sharpener.........................................................................................................27
11.7 Fixed Gages and Extra Stops..............................................................................................28
11.7.1 Challenge Standard Fixed Gages.................................................................................28
11.7.2 Extra Stops ..................................................................................................................28
2.0 Safety
4
2.0 Safety
2.1 Precautions
•This machine is designed for one-person operation. Never operate the machine with more
than one person.
•Safe use of this machine is the responsibility of the operator. Use good judgment and
common sense when working with and around this machine.
•Read and understand all instructions thoroughly before using the machine. If questions
remain, contact the dealer from which you purchased this machine. Failure to understand the
operating instructions may result in personal injury.
•Only trained and authorized people should operate this machine.
•Do not alter safety guards or devices. They are for your protection. Severe personal injury
may result.
•Disconnect power before cleaning or performing maintenance. See Section 2.2 Power
Lockout Procedure.
•Observe all caution labels on this machine.
•High Speed Drill - Keep rags, loose clothing and long hair away form rotating drill. Personal
injury could result from items being caught on drill.
•Keep foreign objects off table and away from drill.
•Be extremely careful when handling and changing the drills. Severe lacerations or
dismemberment could result from careless handling procedure.
•Keep the floor around the machine free of trim, debris, oil and grease.
•If the machine sounds or operates abnormally, turn it off and consult the Trouble Shooting
section of this manual. If the problem cannot be corrected, have it checked by a qualified
service person or your Authorized Challenge Dealer.
•CRUSH HAZARD, keep feet off the pedal when handling paper under the clamp. DO NOT
REST FOOT ON PEDAL at any time!
•DO NOT REACH UNDER THE DRILL AND CLAMP AREA!
•DO NOT OPERATE WITH ANY GUARDS REMOVED! Replace all guards after adjusting,
lubricating or servicing the machine.
•Severe Lacerations - Contact with high-speed drill could cause severe injury. Always turn
machine off and wait for drill to stop before removing drill bits. Keep hands away from drill(s)
when operating.
2.2 Power Lockout Procedure
For maximum safety while making adjustments or repairs to your machine, be sure to disconnect
power to the machine. Disconnect the power plug from its socket.
Figure 1- Main Power Disconnect
2.0 Safety
5
2.3 Warning Label Definitions
The following warning labels are found at various locations on your machine. Read and understand
the meaning of each symbol. If a label is lost from the machine, it should be replaced. The item
number and location of each label can be found in Section 10.0 Parts List.
HAZARDOUS AREA
Disconnect power before cleaning, servicing, or making adjustments not requiring
power. Do not alter safety guards or devices; they are for your protection. Replace
all guards; do not operate with any guards removed.
SHOCK HAZARD
Disconnect power before removing cover. Replace cover before operation.
3.0 Packing List
6
3.0 Packing List
Part No. Description
Qty.
Basic Machine 1
14056 Backgauge Assembly 1
46022 Table Assembly 1
46018 Tool Kit 1
CD-4 Hollow Drill, ¼” 1
H-6913-512 5/16-18 x 1/12” Hex Bolt 4
H-6938-506 5/16-18 x 3/8” Socket Setscrew 2
H-7321-5 5/16 Flat Washers 4
K-85 Cover, Drill Drift Hole 1
MFG-007 Drill Set-up Guide 1
3949 Shim, Drill Block 2
4681 Drill Block 2
4688 Lubrication Stick 1
4687 Drill Drift 1
6448 Shim Plate 1
W-154 3/32” Allen Wrench 1
W-137 5/32” Allen Wrench 1
W-170 ½-9/16” Hex Wrench 1
4.0 Specifications
7
4.0 Specifications
Description Inch Units Metric Units
Drill Head Operation, Hand Lever
Drill Diameters 13 sizes from 1/8” to ½” 3-13mm
Lift Capacity 2” for drills ¼” or larger 51mm
Minimum Distance Btw. Holes 3/8” center to center 10mm
With Fixed Gages ¼” center to center 6mm
Maximum Distance Drill to Side
Guide 12” 30cm
Maximum Margin Hole Center to
Sheet Edge 2-3/4” 7cm
Cornering Attachments ½” capacity light duty
Slitting/Slotting ½” capacity light duty
Side Guide Trip Manual
Dimensions
Net Weight 50 lbs. 31kg
Table Space 18” x 27” 46 x 69cm
Height Overall 27” 68.6cm
Electrical
115 Volts, 5.4 Amps, 60Hz, 1 phase, AC.
Challenge reserves the right to make changes to any product or specification without notice and
without incurring responsibility to existing units.
5.0 Installation Guide
8
5.0 Installation Guide
Refer to the parts lists and drawings in the back of this manual for part identification and orientation,
as necessary.
All guards and instruction plates are installed for your safety and information and must remain on the
machine as shipped from the factory.
5.1 Inspecting Shipment
This machine has been carefully packed to prevent damage during shipment. However, claims for
damage or loss are the responsibility of the recipient. Inspect all shipments as soon as they are
received. If there is any noticeable damage, note it on the freight bill. Visual and/or hidden damage
must be reported to the claims department of the carrier within 15 days. Contact your dealer if you
need any assistance. Check the contents of the box against the packing list on page 6. Make sure
there are no missing items.
5.2 Uncrating the Paper Drill
Unless otherwise specified, this machine is shipped in a cardboard carton with the table, back-gauge
and handle removed. These items are packed separately in the box. The machine should be
unpacked by carefully removing the carton so as not to damage any of the machine parts.
Clean all parts with a commercial cleaning solvent (such as CRC) before installing or using the
machine.
5.3 Assembly Instructions
You will need the following tools to assemble your JO Drill:
5/32" Allen wrench (supplied)
1/2" hex wrench (supplied)
Check contents against the Packing List (page 6).
Figure 2
Contents consists of:
1 - Table Asm., 1 – Handle, 1 – Back-gauge Asm., 1 - Tool kit, 1 - Drill Head Asm.
5.0 Installation Guide
9
Please refer to the manual if any of these parts are damaged or missing.
1. Unpack the drill carefully. Locate parts listed above.

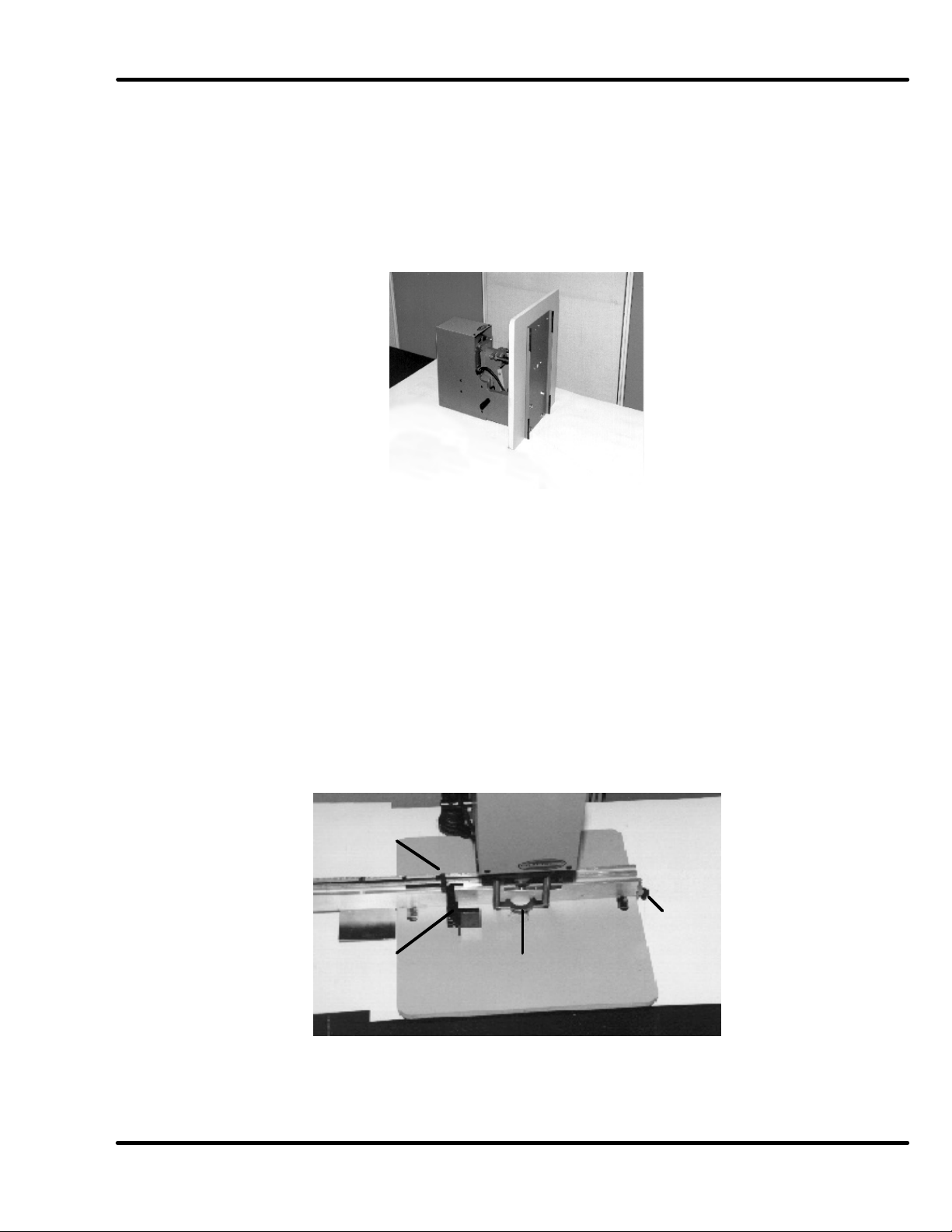

2. Lay drill head so the backside is on a flat surface (Figure 3). Place the sheet metal table
shim between the tabletop and the bottom of the drill base. Locate the four mounting bolts
and washers in the tool kit. Place the washers under the bolt heads and insert bolts through
the table into the drill base, finger tighten only.
Figure 3
3. Lift the drill so it is now standing upright, resting on the table support. Insert the two 5/16-
18x3/8 socket set screws found in the tool kit into the ends of the cross shaft. Place the two
ends of the handle into the holes in the cross shaft. With the bottom edges of the handle flush
with the bottom of the shaft, tighten the setscrews.
4. Next, install the backgauge. While holding the thumbscrew of the backgauge to the right side,
slide the backgauge onto the table. Lift the pressure foot up and slide the backgauge
underneath. Position the backgauge at the 1" marks on the table scales. Tighten the
thumbscrew.
5. Position a side guide stop at the 3" mark on the backgauge. Align the side guide to this
position. Place the drift hole cover on the spindle; insert the hollow drill into the spindle and
the drill block into the table (Figure 4).
Figure 4
Position
stop at 3”
Align side
guide to stop Insert drill and
drill block
Install
backgauge from
front with
thumbscrew on
backside
Table des matières
Autres manuels Challenge Percer
Challenge
Challenge MS-5 Mode d’emploi
Challenge
Challenge JF Manuel de référence technique
Challenge
Challenge MS-10B Mode d’emploi
Challenge
Challenge SS20CHAMD Guide de l'utilisateur
Challenge
Challenge EH-3C Manuel utilisateur
Challenge
Challenge CDT16180 Manuel utilisateur
Challenge
Challenge MS-5 Manuel de référence technique
Challenge
Challenge JF Manuel utilisateur
Challenge
Challenge Handy-Drill Manuel de référence technique
Challenge
Challenge EH-3C Manuel utilisateur
