Rollplay W463 Instructions de montage

Read and understand the entire manual before assembly and operation. The vehicle must be

assembled by an adult who has read and understood the instructions.

Made in China.

Styles and colors may vary. Before returning your product to the store, please contact our

Customer Service team.

Call 1-888-982-9309 for assistance and replacement parts.

IMPORTANT:

Save this manual with your sales receipt.

Owner’s Manual and Assembly Instructions

Model #: W463 W463-G

POWERSPORT TRAIL

THUNDER

Introduction

Speciﬁcations:

BATTERY

MOTOR

AGE

MAX WEIGHT

PRODUCT SIZE

SPEED

RECHARGE TIME

TYPICAL RUN TIME

CHARGER OUTPUT

12 V 7 AH

12V

3 and up

77 lb (35 kg)

48 x 29.53 x 33.86 in (122 x 75 x 86 cm)

Up to 4 mph (6.5 km/h)

8-12 Hours

1 Hours

DC 12.0 V 1.0 A

Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys

it for miles to come. Please read this instruction guide carefully before

assembling and operating the vehicle.

Please keep your sales receipt and register your product at

www.rollplay.com.

Please contact Rollplay Customer Service with any questions. Have your

model number and serial number ready before calling. Please have proof

of purchase.

Hours: 9 AM - 5 PM (CST), Monday - Friday

Phone:

Email: customerservice@rollplay.com

For inquiries in French, please email only at [email protected] and

we will respond within 48 hours.

IMPORTANT!

YOU MUST CHARGE THE BATTERY

FOR 24 HOURS BEFORE FIRST USE!

Charge the battery after each use.

Charge the battery at least once a month, even if the vehicle is not in use.

BEFORE YOU RETURN YOUR

PRODUCT TO THE STORE,

CONTACT ROLLPLAY WITH

QUESTIONS

Call Customer Service if you need assistance or replacement parts. Please

have your model number and serial number ready before calling. Please

www.rollplay.com as we require proof of purchase.

Email customerservice@rollplay.com or

call customer service 1-888-982-9309

Read this entire manual to ensure

proper assembly and safe operation

of the vehicle.

have proof of purchase. Keep your sales receipt and register your product at

Table of Contents

Safety......................................................... 5

Parts ......................................................... 7

Charging Instructions.............................. 8

Attach the Steering Rod ......................... 9

Attach the Front Bumper ........................ 10

Assemble the Front Rear Wheel............. 11

Attach the Steering Wheel ...................... 12

Attach the Windshield ............................. 13

Install the Storage Compartment ........... 15

Attach the Seat ........................................ 14

Remote Control Instructions ................. 17

Product Features...................................... 19

Maintenance ............................................ 20

General Care ............................................ 21

Attach the Light Bar ................................ 16

Troubleshooting Guide............................ 22

FCC Information ...................................... 24

Service and Repairs ............................... 25

Warranty ................................................... 26

Product Registration ............................... 27

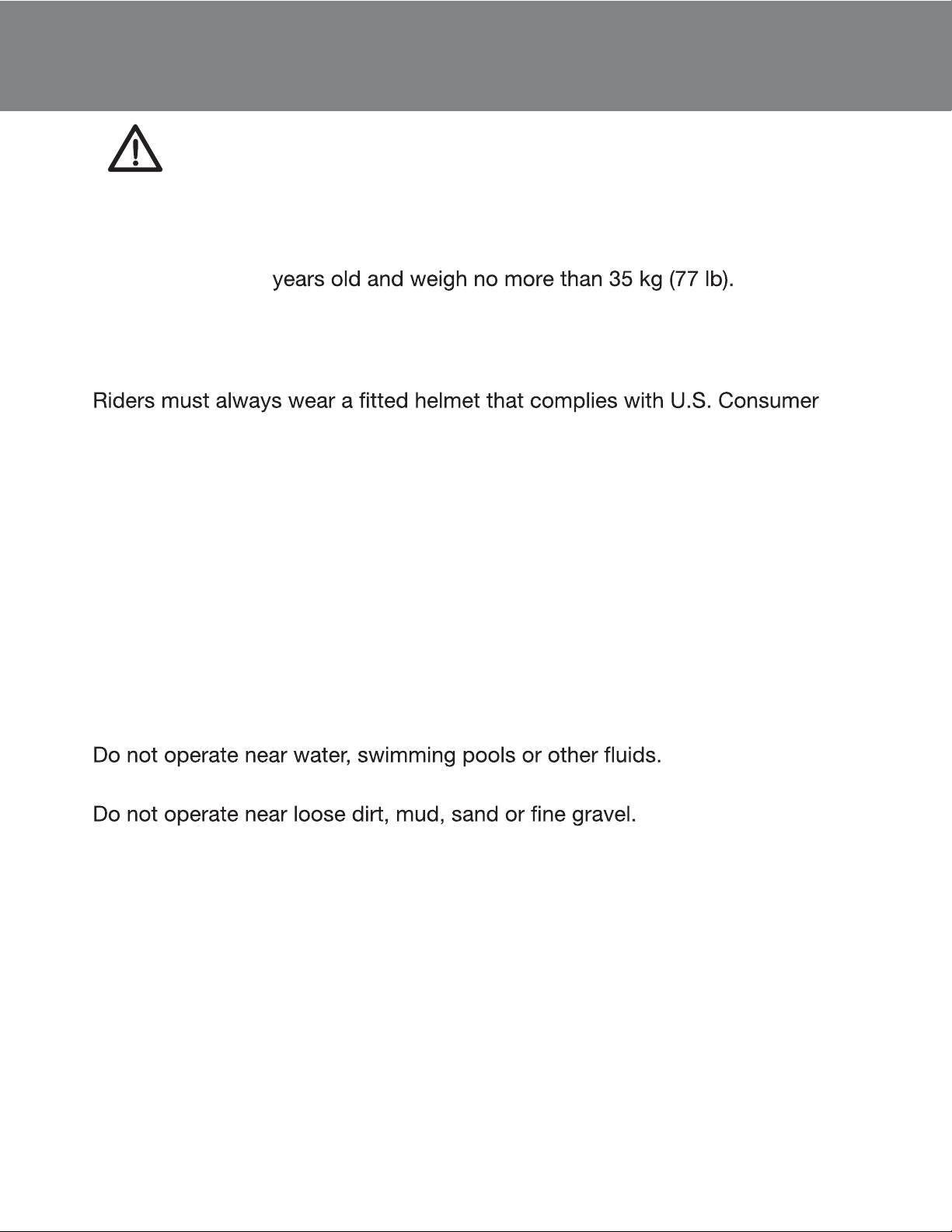

5Safety

WARNING: SAFETY RIDING RULES

The user must follow all safety rules and guidelines, or serious injury or death may

occur to the user.

• Always use common sense and safe practices when using the vehicle. The user

must be at least 3

• This product contains small parts that are for adult assembly only. Keep small

children away when assembling. Remove and dispose of all protective material

and plastic bags before assembly.

•

Product Safety Commission (CPSC) Standard 16 CFR 1203.

• Only sit on the seat in the vehicle.

• Do not allow more than one rider.

• Do not overload the vehicle. Do not remove the weight restriction decals.

• Do not pull the vehicle with another vehicle or similar device.

• Keep body parts such as hands, legs, hair and clothing away from moving parts.

Moving parts can cause serious injury.

• Always wear shoes in the vehicle.

• Do not operate near streets or motor vehicles.

• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on

relatively level ground.

•

• Do not operate in dangerous weather conditions such as rain or snow.

•

• Always use the vehicle in a safe, secure environment with adult supervision.

PREVENT INJURIES AND DEATHS:

NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in

vehicle. Direct adult supervision is REQUIRED.

NEVER use in roadways, near cars, on or near steep inclines or steps, swimming

pools or other bodies of water.

ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.

Remove batteries if product is to be left unsed for a long time; Always replace the

whole set of batteries at one time, taking care not to mix old and new ones, or

batteries of different types.

Do not operate near ammable vapours (gasoline, paint thinner, acetone, etc.).

Safety

(Continued)

WARNING: BATTERY SAFETY

• Battery posts, terminals and related accessories contain lead and lead components.

DO NOT open the battery.

• Contact exposure to battery leakage (lead acid) may cause serious injury.

Immediately contact your doctor if exposure occurs. If the chemical is on the skin,

immediately give the person water or milk. Do not give water or milk if the person

is vomiting or has decreased alertness. Do not induce vomiting.

•

explosion. It could permanently damage the system. Keep the charger housing

closed to prevent exposed wiring, which may cause electric shock.

IMPORTANT:

charged for a full 24 hours (no more than 30 hours).

WARNING: ADULT SUPERVISION

REQUIRED

• Before using the vehicle, the rider must understand the vehicle controls and safety

issues.

• It is the responsibility of the adult to educate the child and to determine if the child

is capable of understanding the vehicle controls.

• An adult must ALWAYS directly supervise the use of this vehicle.

• NEVER leave a child unsupervised in the vehicle.

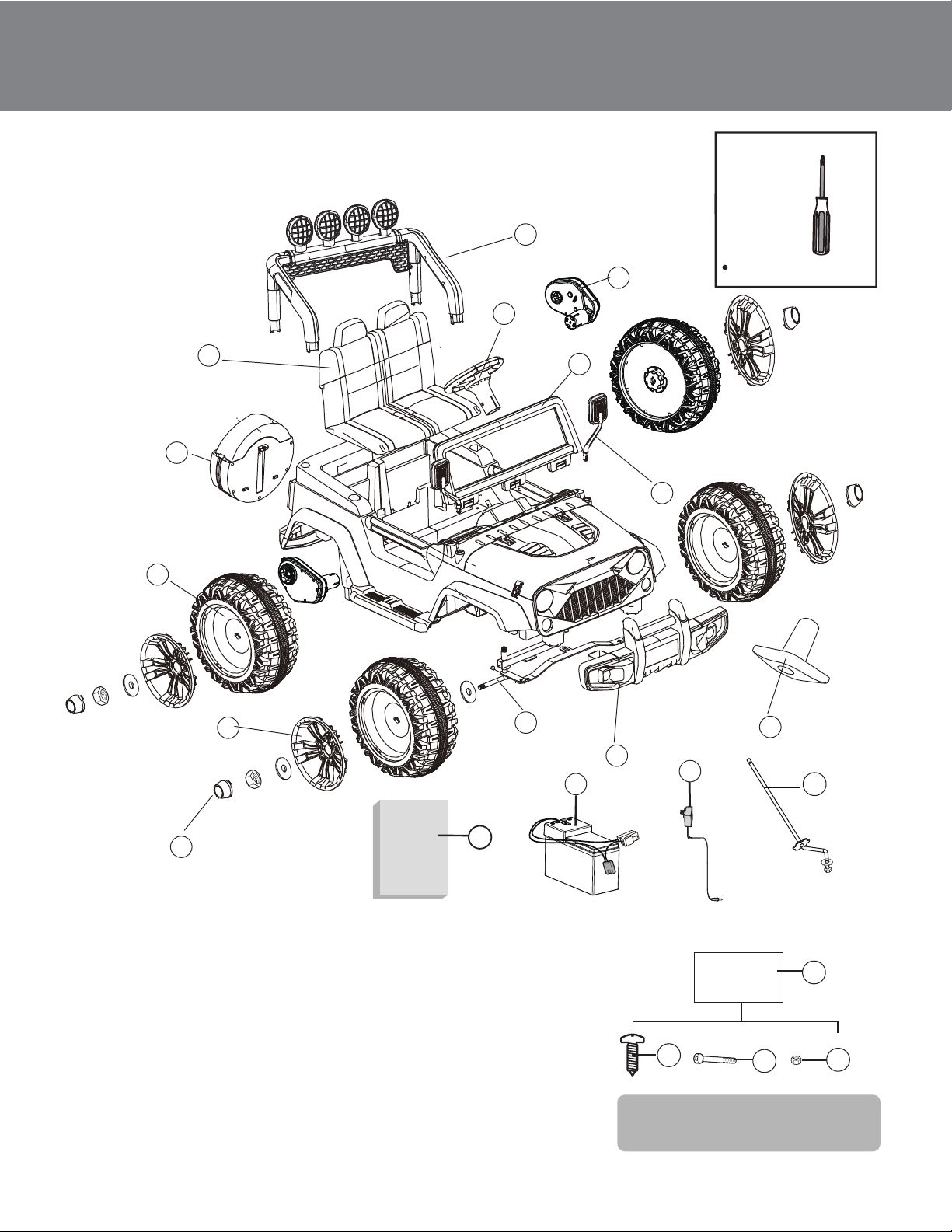

Parts

1. Seat

2. Storage Compartment

3. Wheels (x4)

4. Wheel Covers (x4)

5. Wheel Cap (x4)

6. Front Axle Frame

7. Front Bumper

8. Gear Box (x2)

9. Light Bar

10. Steering Wheel

11. Windshield

12. Side Mirrors (x2)

13. Hex Wrench

14. Battery

15. Charger

16. Steering Rod

17. Manual

18. Screws (x29)

19. Steering Rod Screw

20. Nuts (x4)

21. Blister Pack

Phillips screwdriver

Not Included:

18 19 20

Note:

Parts 18-20 ship in the Blister Pack (21)

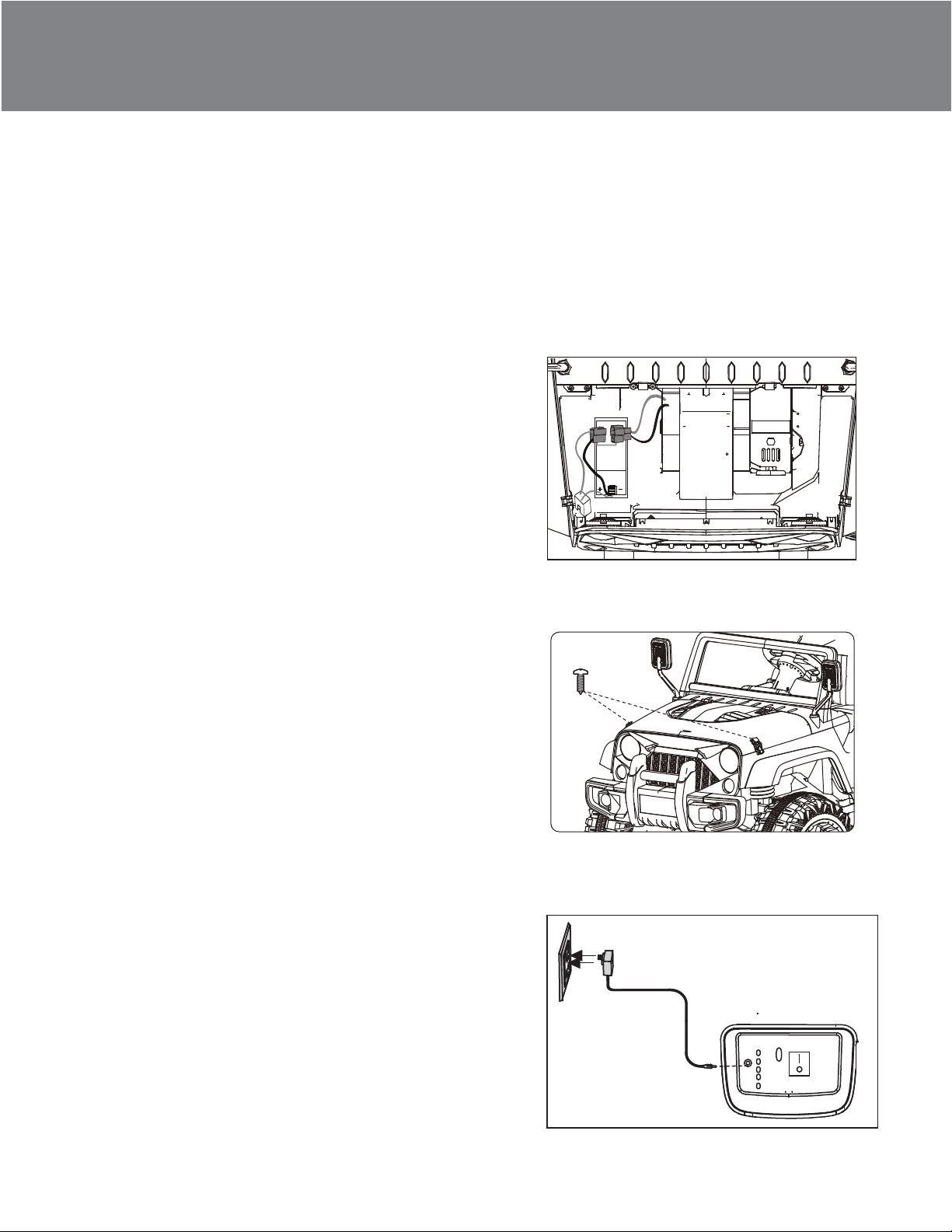

Charging Instructions

ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

To Charge the Battery:

YOU MUST CHARGE THE BATTERY FOR 24

HOURS BEFORE THE FIRST USE!

1. Ensure the car is stopped and the power

is turned off.

2. Open the engine cover by unlocking the

clasps on each side and lifting the hood.

Then, connect the battery (wires A and

B in Figure 1).

3. Close the hood and secure it with four

short Screws (16) on the clasps (Figure 2).

4. To charge the vehicle, plug the included

charger (15) into the port on

the dashboard and plug the charger into

a 120 V outlet (Figure 3). Do not use the

vehicle while it is charging.

Figure 1

Figure 2

Figure 3

9Attach the Steering Rod

1. Gently flip the vehicle upside down and lay on a smooth surface.

2. Remove the locknut and washer from Steering Rod (16), insert the Steering

Rod into the hole near the front of the vehicle.

3. Slide the Axle Frame onto the Steering Rod through the slot on the Axle Frame,

then secure the frame with the locknut and washer.

4. Secure the frame with four Screws (17) using a Phillips screwdriver.
