Rockford Fosgate IPod Interface Module Mode d’emploi

Serial Number: Date of Purchase:

Installation & Operation

Interface Module

for selected BMW/Mini Cooper vehicles

Contents

Introduction and Precautions................................... 2

Supported iPod Models ............................................. 3

Pre-System Setup ...................................................... 4

Installation...............................................................5-6

Operation ................................................................6-8

Auxiliary Audio Source ............................................. 9

Troubleshooting ....................................................... 10

Warranty .................................................................. 11

Introduction and Precautions

Thank you for purchasing the Rockford Fosgate Interface Module for iPod.The Interface

Module was designed and manufactured to seamlessly integrate with your vehicle’s factory

system.To get the best performance from this device, read this manual before doing any

type of installation.

Practice Safe Sound™

Continuous exposure to sound pressure levels over 100dB may cause permanent

hearing loss. High powered auto sound systems may produce sound pressure levels

well over 130dB. Use common sense and practice safe sound.

This symbol with “CAUTION” is intended to alert the user to the

presence of important instructions. Failure to heed the instructions can

result in injury, damage to the vehicle or unit damage.

CAUTION:To prevent injury and damage to the unit, please read and

follow the instructions in this manual.We want you to enjoy

this system, not get a headache.

CAUTION:If you feel unsure about installing this system yourself, have it

installed by a qualiﬁed Rockford Fosgate technician.

CAUTION:Before installation, disconnect the vehicle battery, both

positive (+) and negative (-) terminals, to prevent damage to

the unit, ﬁre and/or possible injury.

CAUTION:For your safety, ensure the iPod interface module is mounted

in a location that will not interfere with the proper and safe

operation of the vehicle.

Rockford Fosgate and the Rockford Fosgate logo, are either registered trademarks

or trademarks of Rockford Corporation.

iPod is a trademark of Apple, Inc.

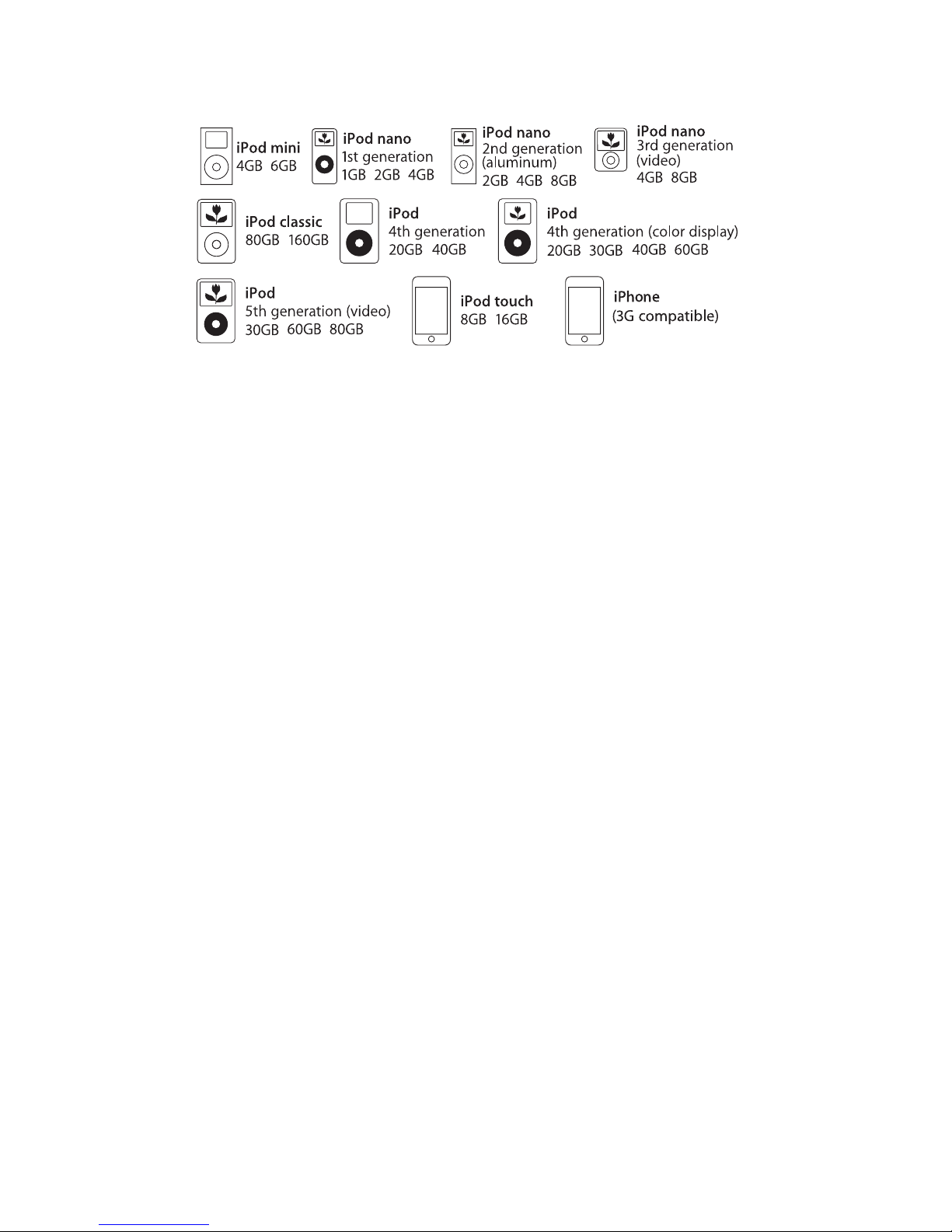

Supported iPod Models

iPod Firmware

For proper operation of the interface module, ensure your iPod is updated with the

latest ﬁrmware. Free updates can be downloaded from http:/www.apple.com/ipod/

download/.The directions on the site will guide you through the update process.

Pre-System Setup

Interface Module DIP Switch Settings

Proper identiﬁcation of your system and correct setting of the DIP switches will ensure the

interface module operates properly when installed.

NOTE: If you change the positions of the DIP switches after the module is installed, turn

off the vehicle ignition, disconnect the ‘Vehicle Harness’ from the interface module, then

wait one (1) minute before reconnecting the harness and turning the vehicle ignition on.

ON 12

Interface Module

DIP Switch Positions

12 ON 12

OFF

Car

Switch

iPod

Switch

This setting provides slower text refreshing to allow

flawless operation of these radios.

Interface Module

Car Switch iPod Switch

Switch 1

Switch 2

OFF

Set Car Switches to;

Interface Module

CDC–1(CD Changer–1) setting

CDC–2(CD Changer–2) setting

Car Switch

iPod Switch

Both

Switches

OFF

(Default)

Set Car Switches to;

Both

Switches

OFF

(Default)

Recommended for use when Text Display is

NOT supported by the radio.

Recommended for late model Business CD and

Navigation radio systems.

Recommended for early model Business CD and

Business cassette radio systems.

NOTE: The first button press only clears the text from the radio,

the second button press executes the command.

Recommended

for use

when

Text Display is

supported by the radio

˝Radio˝

Both

Switches

˝iPod˝

Use this mode to browse within the contents of

the iPod by category as shown in the ‘Operation’ section.

Set iPod Switches to;

Content is selected on the iPod.

Content is only selected from

the radio and the iPod is locked.

Track numbers and times are not synchronized between the

iPod and radio. This mode has the fastest response time.

Interface Module

Car Switch iPod Switch

Set iPod Switches to; Interface Module

2ON

Car Switch iPod Switch

DIP Switch Setting for iPod Switch on the Interface Module

DIP Switch Setting for Car Switch on the Interface Module

Installation

It is recommended that installation only be performed by a qualiﬁed professional. Beware

of sharp edges to avoid injury and exercise caution when removing trims as they may

break.The module should be placed at an accessible location to allow an AUX cable to

be connected, such as in the glove box, the center console or under the front seat. Ensure

the mounting location does not interfere with the safe operation of the vehicle (i.e.. near

steering, foot pedal controls, parking brake or shifter).

1. Be sure to carefully read and understand the instructions before attempting to install

the unit.

2. Disconnect both battery terminals.These cables must be disconnected during

installation to ensure proper initialization of the interface module when it is connected.

NOTE: On some vehicles you will need to access the trunk area.

Locate your CD Changer harness as follows;

In most vehicles this will be located in the trunk on the left hand side (driver’s).

BMW X3 – Harness is located underneath carpeting under the center console.

BMW Z4 – Harness is located between the seats, underneath subwoofer.

Mini Cooper/Cooper S – Harness is located on the right hand side (passenger)

of the trunk area.

4. DSP Integration – To see if your vehicle

has DSP look for a bare metal coax cable

and a 3-pin connector. If you don’t ﬁnd

a coax cable and ﬁnd a 6-pin connector

along with a 3-pin connector, your vehicle

doesn’t need this DSP kit.

NOTE: If your vehicle has Digital Signal

Processing (DSP), the purchase

of a RFIPOD-BMW-DSP kit may

be necessary..

5. Remove carpet and side cover to gain

access to CD Changer BUS harness.

If CD Changer is present, it will need

to be disconnected and/or removed.

IMPORTANT: Before connecting the interface harness, ensure that the 3 pin connector

on the vehicle harness does not have a brown wire in the middle

(pre-wire for phone). Proper connection is to a 3 pin connector with

the brown wire to the side (pre-wire for CD). Incorrect connection will

result in damage to the interface and not covered by warranty.

6. Locate both the 3-pin & 6-pin connectors in the trunk area. If the CD Changer is

present, disconnect the cables and set aside. If no CD Changer is present, the cables will

be bundled and tucked away in the rear trunk area.

IMPORTANT: Some vehicles will have the CD Changer harness in a protective sheath

which may make it more difﬁcult to ﬁnd.Vehicles sold outside the USA

may not be pre-wired.

7. Connect both 3-pin and 6-pin harnesses from the vehicle to the interface harness.

8. Fold down rear seats (if applicable) and route the interface harness to the rear seat

bottom cushion.

9. Remove bottom seat cushion by lifting up and route harness underneath.

Installation

10. Route the remainder of the interface harness in the best possible manner (e.g. under

the door sill or under the drivers seat) and connect it to the Vehicle connector on the

interface module.

NOTE: When routing harnesses or cables, ensure they are secured away from sharp

edges and moving parts by the use of cable ties.

11. Connect the iPod cable to the interface module and carefully route it to the location

where the iPod will be mounted (such as the glove box or center console).

12. Verify that all connections have been properly made.

13. Reconnect the vehicle battery, turn the ignition on and test the unit. Use the ‘Text

Display Settings’ proceedure below to make ﬁnal adjustments before reinstalling any

panels/trim.

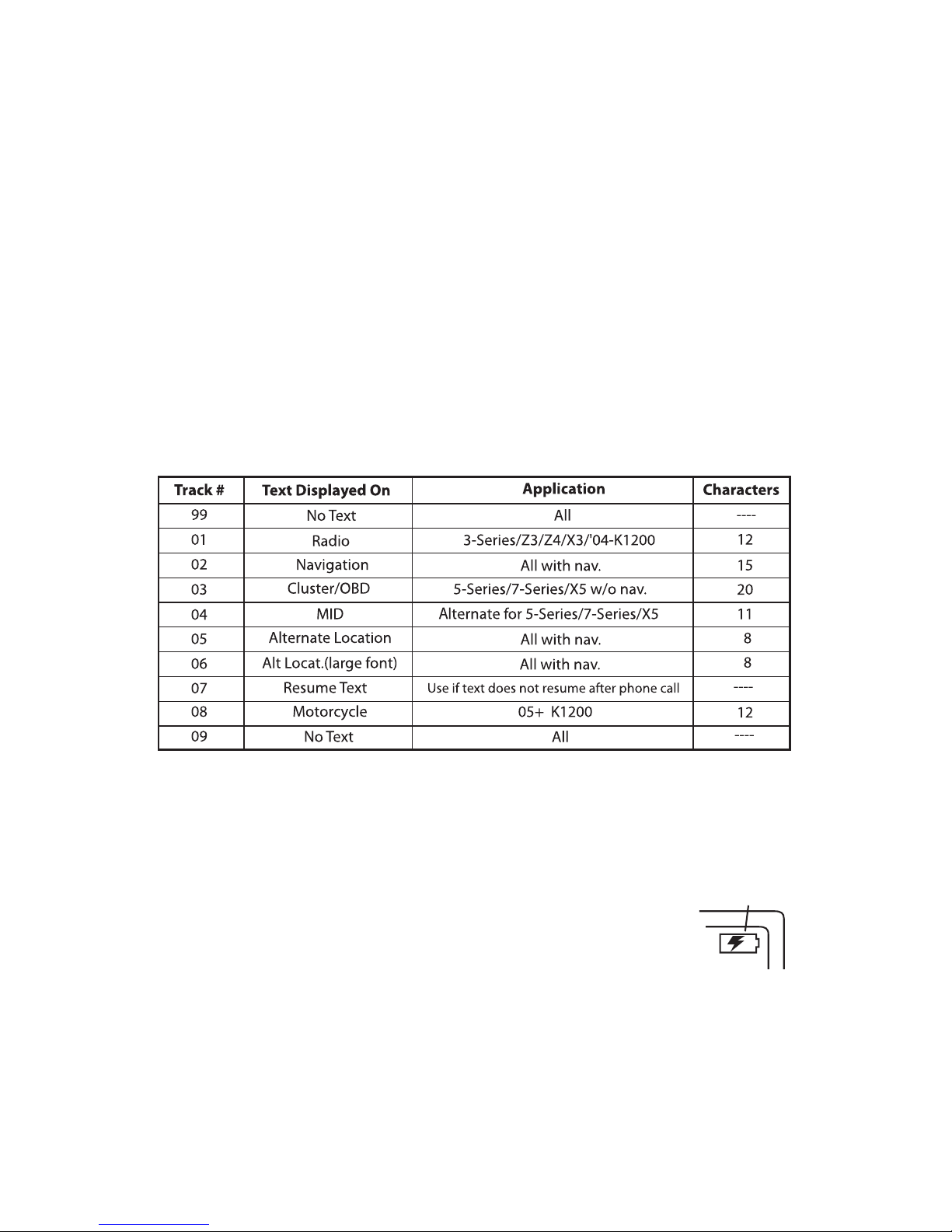

Text Display Settings

Make sure to select the appropriate text display setting during the initial setup of this kit.

To conﬁgure text display on BMW radios, press DISC 6 then select a Track number that

corresponds to the designated display from the chart below.

Operation

ConnectingYour iPod

Simply connect your iPod to the interface cable coming from the interface

module.The interface automatically charges the battery of the iPod when

connected and the key is in the ACC/ON position.The charging icon will

appear on the upper right corner of the iPod screen to indicate charging.

NOTE: We recommend disconnecting your iPod when not in use or when the vehicle is

turned off.

Charging Icon

Operation

iPod Hierarchy

By default, the interface creates a Playlist having a name that is the same

as the name of the iPod.This Playlist is the very ﬁrst on the list of

Playlists shown while browsing in Playlist mode.This Playlist contains all

the songs on the iPod. Once a Playlist is active an Artist may be selected

within that Playlist using the Artist Mode. Albums by the selected Artist

and within the selected Playlist may be selected in Album Mode.

“ALL ARTIST” and “ALL ALBUM” designate all available content in

those categories.

Operating Controls

Press the MODE button to access the interface and its features. Pressing this button

repeatedly will cycle through sources present (internal CD if present, followed by external)

in your vehicle.When the iPod audio source is active (displayed as DISC 5,Track 1), use the

TRACK button to select next/previous song.

(Actual radio appearance may differ from that shown)

BMW business CD radio

(Actual radio appearance may differ from that shown)

BMW radio with Navigation

MODE

Source

Selector

MODE

Source

Selector

Buttons 1– 6

Press to

change DISC

Buttons 1– 6

Press to

change DISC

Source indicator TRACK

Press to change Track

Press and hold to RW (rewind)

or FFW (fast-forward)

NOTE: On some older BMW radios

the `m´ button must be pressed to

perform the same action.

TRACK

Press to change Track

Press and hold to

RW (rewind) or

FFW (fast-forward)

RND

Press to enable

Shuffle Song

Turn to

change Track

Jog Dial

NOTE: A 9 second timeout is engaged once any of the alternate display

buttons are pressed. If exiting from any of these sub-screens without

waiting for the normal timeout, you must wait 9 seconds before being

able to use the Jog Dial again to navigate content.

Playlist

Artist

Album

Song

More browsable content

Less browsable content

Operation

Mode Selection – Browsing

Interface Module set to ˝Radio˝

Once the iPod is connected and selected as the audio source, you can browse through

the modes by selecting the appropriate DISC button. Change Tracks within that mode

by pressing the TRACK button (depending on model, the Jog Dial can be rotated for this

function). One (1) second after releasing the button, your selection is executed. Browse

through the modes as shown;

NOTE: In DISC 5, you can select the audio source (iPod/AUX1) and in DISC 6, you can

set Text display (refer to Text Display Settings in ‘Installation’), and view ﬁrmware

version information.

Press TRACK

button

Rotate Jog Dial

select within

the modes

Auxiliary Audio Source

Connecting

The interface is equipped with a 1/8” AUX jack input to connect an auxiliary device, such as

an MP3 player, DVD player or other audio source.

NOTE: We recommend to only connect to the interface module when the vehicle ignition

is turned off.

Connect into the interface module from

your auxiliary device with a cable that

has a 1/8” mini stereo jack (not included).

Selecting AUX Input

To access the AUX audio source, select DISC 5, Track 2 or Preset 5, Channel 2 (depending

on the radio model).

AUX audio source settings

The auxiliary input has settings for Gain (volume), Bass, Mid and Treble for optimizing sound.

Gain (Volume) should be adjusted if the audio level from the auxiliary device is too low or

too high. If you hear distorted audio while playing the auxiliary device, you need to reduce (-)

the gain. If you notice that the audio is too quiet then the gain setting should be increased (+).

The default setting for gain is “68” and may be adjusted in increments between 01-99.

Bass, Mid and Treble default settings are “50” and can be adjusted between 01-99 to

compensate for the acoustic presets of the radio.

Making the adjustments

While listening to the auxiliary device, use the DISC or PRESET buttons (depending on the

radio model) to move between the settings as follows;

DISC (PRESET)-1 for Gain (Volume) DISC (PRESET)-2 for Bass EQ

DISC (PRESET)-3 for Mid EQ DISC (PRESET)-4 for Treble EQ

Then use the TUNE or SEEK button to adjust the setting (depending on the radio model

the TUNE knob can be rotated for this function).

NOTE: If you are using an auxiliary device that is using the vehicle’s power source and not its

own battery, you may have to use a GROUND-LOOP isolator to avoid engine and

grounding

noise.

1/8” AUX

connector Interface Module

Troubleshooting

Problem

Cannot select the interface.

Radio/NAV display only shows DISC

and Track number, but there is no iPod

control.

No audio from iPod source.

Radio/steering wheel controls do not

operate iPod.

Music is distorted or sound level is

too low.

No text displayed.

Correct DIP switch setting, but still no

text displayed.

iPod does not charge.

Solution

Check DIP switch settings (refer to

Pre-System Setup). With the ignition

OFF disconnect vehicle harness from

module for one (1) minute and reconnect.

Verify that the correct button is used to

access the interface.

Select DISC 5 and ensure it is set

to Track 01.

Reset the iPod.Verify proper connection

to iPod/interface.

Reset iPod and make sure most recent

iPod ﬁrmware is installed. Check vehicle

user manual on how steering wheel

controls work.

Check and make sure all EQ and BASS

boost options are turned off on your iPod

(refer to Auxiliary Audio Source).

Make sure DIP switch settings are

correctly set for text display (refer to

Pre-System Setup). Note: Early model

Mini Cooper vehicles do not support

text display.

Select DISC 6 to set text output to the

correct location (refer to Text Display

Settings in ‘Installation’).

Check all connections. Reset iPod and

make sure iPod charges while connected

to computer or wall charger.

Autres manuels pour iPod Interface Module

Table des matières

Autres manuels Rockford Fosgate Unité de contrôle

Rockford Fosgate

Rockford Fosgate iPod Interface Module Mode d’emploi

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
