RF-TVMFM02
TV Wall Mount
Assembly Guide
Safety information and specifications .................................2
Tools needed.................................................................................3
Parts..................................................................................................4
Assembly instructions................................................................6
For wood-stud or
solid concrete/concrete block
installation
2Need help? Call 800-620-2790
RF-TVMFM02 TV Wall Mount
Safety information and specifications
IMPORTANT SAFETY INSTRUCTIONS -
SAVE THESE INSTRUCTIONS
CAUTION: Do not use this product for
any purpose not explicitly specified by
Rocketfish.
Improper installation may cause
property damage or personal injury. If
you do not understand these directions, or have doubts
about the safety of the installation, contact Customer
Service or call a qualified contractor. Rocketfish is not
responsible for damage or injury caused by incorrect
installation or use.
The weight of your TV must not exceed 60 lbs. (27.2 kg).
The wall must be capable of supporting five times the
weight of the TV and wall mount combined.
This product contains small items that could be a choking
hazard if swallowed. Keep these items away from young
children!
Maximum weight: 60 lbs. (27.2 kg)
Screen size: 26" to 40" diagonal
Overall dimensions (W × H × D):
18.12 × 13.45 × 9.7 inches
(460.25 × 341.63 × 246.38 mm)
Wall-mount weight: 12.45 lb (5.6 kg)
We’re here for you
www.rocketfishproducts.com
For customer service, call:
800-620-2790 (U.S./Canada markets)
01 800-926-3010 (Mexico market)
13.45" (341.6 mm)
18.12" (460.3 mm)
3
Need help? Call 800-620-2790
RF-TVMFM02 TV Wall Mount
Tools needed
You will need the following tools to assemble your new TV wall mount:
Stud finder Awl Pencil Level
Phillips screwdriver Hammer (concrete only) Socket wrench with
1/2" (13 mm) socket or
adjustable wrench
Measuring tape Drill
OR
3/8" (10 mm) masonry
drill bit for concrete
wall
7/32" (5.5 mm) wood
drill bit for wood stud
wall
OR
4Need help? Call 800-620-2790
RF-TVMFM02 TV Wall Mount
Part s
Package contents: parts
Make sure you have all the parts necessary to assemble your new TV wall mount:
ATV Bracket (1) BArm assembly (1)
5
Need help? Call 800-620-2790
RF-TVMFM02 TV Wall Mount
Hard ware
Package contents: hardware
Make sure you have all the hardware necessary to assemble your new TV wall mount:
Label Hardware Qty.
C2
D2
E2
F4
G4
H8
I4
J4
K4
L4
Concrete
anchor
Lag bolt washer
5/16" × 2 3/4"
(7.9 × 69.8 mm) lag bolt
M4 × 12 mm screw
M4 × 30 mm
screw
M4/M5 washer
M4/M5 spacer
M5 × 12 mm screw
M5 × 30 mm
screw
M6 × 12 mm screw
Label Hardware Qty.
M4
N4
O4
P4
Q4
R1
S1
T1
U5
M6 × 20 mm
screw
M6 × 35 mm
screw
M6/M8 washers
M6/M8 spacers
M8 × 40 mm screw
3/16" hex key
5/32" hex key
Cap screw
Cable ties (8"/20.5 cm
nylon)
10 20 30 40 50 60 70 80 90 100mm
1234in
6Need help? Call 800-620-2790
RF-TVMFM02 TV Wall Mount
Assembly instructions
Step 1 Install the TV bracket
Option 1: Installing for a flat mounting surface
1Align the TV bracket (A) with the screw holes on the back of the TV.
2Place an M4/M5 washer (H) or an M6/M8 washer (O) over each of the four screw holes in the TV bracket, then
insert an M4 screw (F), M5 screw (J), or M6 screw (Lor M) through each washer.
3Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need
H(4) O(4) F(4) J(4) L(4) M(4)
Phillips screwdriver
OR
OR
OR
OR
7
Need help? Call 800-620-2790
RF-TVMFM02 TV Wall Mount
Step 1 Install the TV bracket (continued)
Option 2: Installing for an obstructed mounting surface
Note: Use additional washers (H) with M4/M5 hardware only.
1Align the TV bracket (A) with the screw holes on the back of the TV.
2Place an M4/M5 spacer (I) or M6/M8 spacer (P) into each of the four recessed screw holes on the back of your
TV. If you are using M4 or M5 screws, place M4/M5 washers (H) over the spacers.
3Place an M4/M5 washer (H) or M6/M8 washer (O) over each of the four screw holes in the TV bracket, then
insert an M4 screw (G), M5 screw (K), M6 screw (N) or M8 screw (Q) through each washer.
4Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need
H(8) O(4)
G(4) K(4) N (4) Q(4)
Phillips screwdriver
OR OR OR
OROR
I (4) P(4)
8Need help? Call 800-620-2790
RF-TVMFM02 TV Wall Mount
Step 2 Install the arm assembly
Note: Any material covering the wall must not exceed 5/8 in. (16 mm).
Option 1: Installing on a wood stud wall
1Locate the stud. Verify the center of the stud with an awl or use an edge-to-edge stud finder.
2Level the arm assembly (B) and mark the two hole locations. Drill pilot holes to a depth of 3" (75 mm) using a
7/32" (5.5 mm) diameter wood drill bit.
3Align the arm assembly (B) with the pilot holes.
4Place a lag bolt washer (D) over each screw hole in the arm assembly, insert a lag bolt (E) through each
washer, then tighten the lag bolts only until the washers are pulled firmly against the arm assembly.
Warning: Avoid potential injuries or property damage. DO NOT over-tighten the lag bolts (E).
You’ll need
7 in.
9 7/10 in. Wall
TV
7" (177.8 mm)
9-7/10"
(246.38 mm)
<5/8"
16 mm
3" (75 mm)
Stud
finder
Awl Pencil Drill Socket wrench
with 1/2" (13 mm)
socket or
adjustable wrench
D(2) E(2)
Level
OR
7/32"
(5.5 mm)
wood drill
bit
9
Need help? Call 800-620-2790
RF-TVMFM02 TV Wall Mount
Step 2 Install the arm assembly (continued)

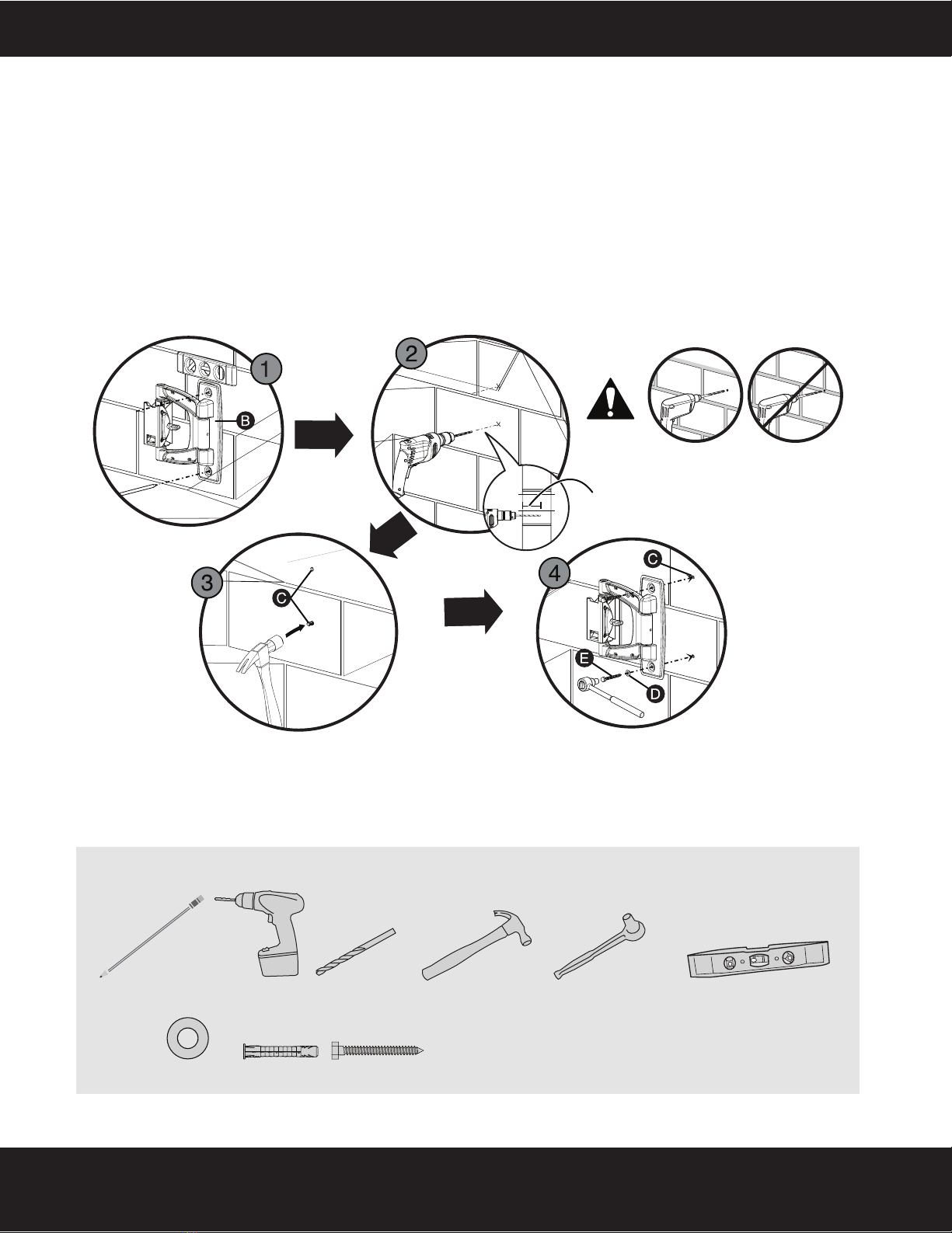

Option 2: Installing to a solid concrete or concrete block wall
1Level the arm assembly (B) and mark the two hole locations.
2Drill pilot holes to a depth of 3" (75 mm) using a 3/8 in. (10 mm) diameter masonry drill bit.
3Insert a concrete wall anchor (C) into each pilot hole and make sure that the anchors are seated flush with
the concrete surface.
4Align the arm assembly (B) with the anchors.
5Place a washer (D) over each screw hole in the arm assembly, insert a lag bolt (E) through each washer, then
tighten the lag bolts only until the washers (D) are pulled firmly against the arm assembly.
Warning: Avoid potential injuries or property damage. DO NOT over-tighten the lag bolts (E).
You’ll need
3" (75 mm)
Pencil Drill Socket wrench
with 1/2" (13 mm)
socket or
adjustable wrench
D(2) E(2)
Level
Hammer
C(2)
3/8" (10 mm)
masonry drill
bit
10 Need help? Call 800-620-2790
RF-TVMFM02 TV Wall Mount
Step 3 Mount the TV to the wall
1Slide the top and bottom edges of the arm assembly under the metal tabs on the TV bracket.
2Secure the arm assembly to the TV bracket with the cap screw (T) using the 3/16" hex key (R).
You’ll need
The TV is heavy. You will need
assistance with this step.
R(1) T(1)
