R S 8110

Installation Manual

Thermostat System Types

Thank you for purchasing a Robertshaw®thermostat.

This manual will describe how to install and test the Robertshaw RS8110 thermostat.

Battery Power

Hardwire (Common Wire)

Gas, Oil, or Electric Heat with Air Conditioning

Heat Pumps (without auxiliary or emergency heat)

Heat-Only, including for Floor and Wall-Furnace

Cool-Only

750 Millivolt Heating Systems

Table of Contents Page

Power Options

Installation Location 2

Thermostat Quick Reference 3

Wallplate Installation 4

Wiring 5-12

Installer Setup Menu 13-14

Mounting and Battery Installation 15

Specications 16

IMPORTANT SAFETY INFORMATION WARNING:

• Always turn off power at the main power source by

unscrewing fuse or switching circuit breaker to the

off position before installing, removing, cleaning, or

servicing thermostat.

• Read all of the information in this manual before

installing or programming this thermostat.

• This is a 24V AC low voltage thermostat. Do not

install on voltages higher than 30V AC.

• All wiring must conform to local and national

building and electrical codes and ordinances.

• Do not short (jumper) across terminals on the gas

valve or at the system control to test installation.

This will damage the thermostat and void the warranty.

INSTALLATION MANUAL

Install the thermostat 4 to 5 feet above the oor in an area with good air circulation and average temperature.

For new installations, mount thermostat on an inside wall, 4-5 feet above the oor.

Do not install the thermostat in the following locations:

• Behind a Door

• In a Corner

• Near Air Vents

• In Direct Sunlight

• With an Outside Wall Behind the Thermostat

• Near any Heat or Steam Generating Fixtures

• Near any Concealed Pipes or Chimneys

Installation at these locations will affect thermostat operation.

INSTALLATION LOCATION

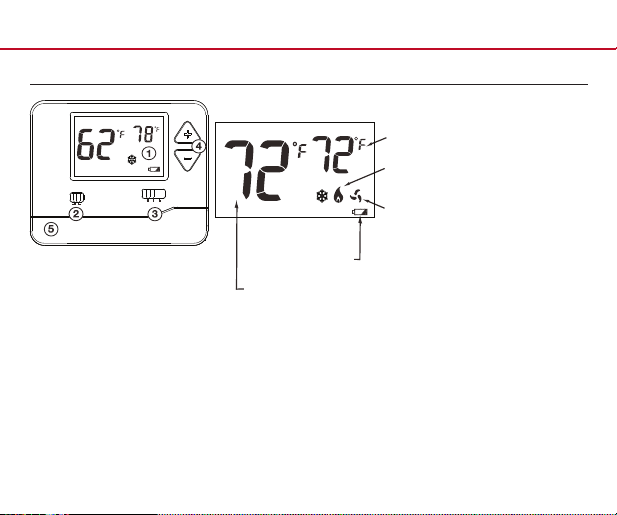

Getting to know your thermostat

1LCD Display

2Fan Switch

3System Switch

4Temperature Set-Point Buttons

5Easy change battery door

Displays the user selected

set-point temperature.

NOTE: If these icons are ashing,

there is a 5-minute delay for

compressor protection.

System operation indicators: The

COOL, HEAT or FAN icon will

display when the COOL, HEAT or

FAN is on.

Low Battery Indicator:

Replace batteries when

Indicator is shown.

a LCD

Indicates the current

room temperature.

Cool

HEAT

SYSTEM

FAN

AUTO

Room Set At

COOL OFF

Room Set At

THERMOSTAT QUICK REFERENCE

Caution:

Electrical Hazard.

Disconnect power before installing this

product. Failure to do so can cause

electric shock or equipment damage.

For a vertical mount, put screws

on the top and bottom.

For a horizontal mount, put

screws on the left and the right.

Mercury Notice:

This product is mercury-free. However,

if this product is replacing a control

which contains mercury, it needs to be

disposed of properly. Contact your

local waste management authority for

instructions regarding recycling and

proper disposal of the control.

Vertical mount

Horizontal mount

Vertical mount

Horizontal mount

WALLPLATE INSTALLATION

1 Turn Off Power to Heating/Cooling System

2 Remove Old Thermostat

Remove old thermostat but leave wallplate with wires attached.

Do not remove wallplate yet

Terminal

designation

Circuit breaker

box

Heating/cooling system

power switch

WIRING

Terminal designation

Wire Labels

3 Label Wires with Tags

Label the wires using the supplied wire labels as

you disconnect them.

4 Separate Wallplate from New Thermostat

Remove wallplate from the new thermostat and

mount onto wall.

Wiring Labels

Apply these wiring labels to each wire with the

appropriate terminal designation as you remove it from

the existing thermostat.

B B Y2 Y2 C C E E F F

G G H H L L O O P P

R R RC RC RH RH T T U U

VNR VNR W W W1 W1 W2 W2 W3 W3

X X X1 X1 X2 X2 Y Y Y1 Y1

AUX AUX

Wallplate

ELEC

GAS

WIRING

Drill 3/16-in. holes for drywall

Drill 3/16-in. holes for plaster

5 Separate Wallplate from New Thermostat

Mount the new wallplate using the included screws and anchors.

RH/R

WIRING

6 Connect Wires

Simply match wire labels.

If labels do not match letters on the thermostat, check “Alternate Wiring (Conventional Systems)” on page

9 and connect to terminal as shown (see notes, below).

Remove metal jumper

if you haveboth R and

RC wires

Screw

Insert wires and tighten

screws

WIRING
