Thank you for purchasing a Robertshaw RS5000 Series programmable

thermostat. This user’s manual will guide you through the setup of the

RS5110 single stage and the RS5220 two stage thermostats. The

thermostat should already be mounted and correctly wired. The default

settings will enable the thermostat to operate efficiently. Before making

any changes to the schedule read the section on Default Settings.

Features

• Pop-Up Wizard

• Automatic changeover

• Circulating fan

• Worry-Free memory retention

• Easy change battery

• Large back lit display

• Filter change reminder

• Low battery indicator

• Fahrenheit and Celsius displays

• EnergyStar™ compliant

• Dual power

• Adjustable 1st stage temperature differential: 0.5 F degrees to

3.0 F degrees (0.5 C degrees to 1.5 C degrees)

• Accuracy within ±1 F degree

• Universal staging on multi-stage units

• Automatic heating shutdown if temperature exceeds 99°F (37°C)

• Keypad security lockout

• 4 events per day for heating and cooling

• 5-2 day scheduling

• User settable Hi and Lo temperature limits

• Vacation setpoint override

RS4110

RS5110

RS6110

RS4220

RS5220

RS6220

352-00056-001

USERS MANUAL

Application

The Robertshaw 5000 family of thermostats is designed to control gas,

electric, oil, heat pump, and millivolt heating and electric cooling systems.

The RS5110 is a single stage thermostat while the RS5220 is a two-stage

thermostat.

The RS5000 thermostats use 5-2 programming. This means the 5 weekdays

will operate on one schedule and the 2 weekend days will operate on a

second schedule.

IMPORTANT SAFETY INFORMATION WARNING:

• Always turn off power at main fuse or circuit breaker panel before

installing, removing, cleaning, or servicing thermostat.

• Read all the information in this manual before installing this

thermostat.

• This is a 24V AC low-voltage thermostat. Do not install on voltages

higher than 30V AC.

• All wiring must conform to local and national building and electrical

codes and ordinances.

• Do not short (jumper) across terminals on the gas valve or at the

system control to test installation. This will damage the thermostat

and void the warranty.

• Do not connect ground to any terminal in this unit.

• This thermostat is configured with automatic compressor protection

to prevent damage because of short cycling or extended power

outages. Short cycle protection provides a delay between heating

and cooling cycles on heat pumps.

Detailed mounting and wiring instructions are explained in the Installation

Manual

Refer to the Pop-Up Wizard section in the Installation Manual for a

complete list of factory defaults and contractor settings.

Providing Power to the Thermostat

For wiring diagrams refer to the Installation Manual.

The thermostats will operate using 24V AC or two AA batteries. When

the two AA batteries are installed the thermostat will continue to run if the

24V AC fails.

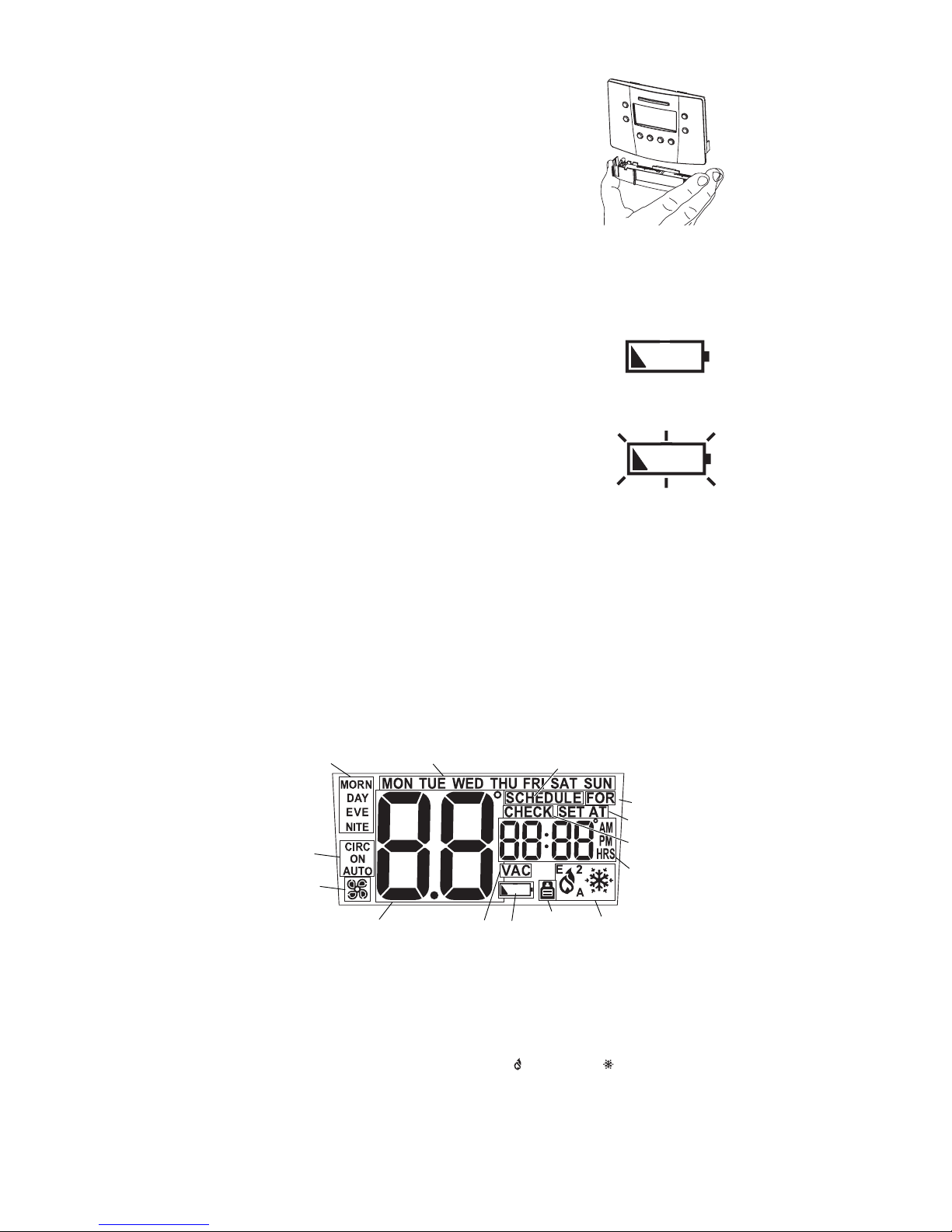

Installing or Changing the Batteries

To remove the battery compartment gently

squeeze the ribbed edges on both sides.

The battery compartment will pull down from the

thermostat body and will detach. Install two AA

batteries following the polarity as shown inside

the compartment. Place the compartment back

into the thermostat.

When the batteries are low the thermostat will enter a low battery mode.

Low battery mode has two levels.

• LEVEL 1: The low battery icon will be displayed.

The thermostat will continue to operate. Replace

the batteries as soon as possible

• LEVEL 2: The low battery icon will flash. If 24V AC

is present the thermostat will continue to operate

if the batteries are discharged or removed. If 24V

AC is not present the thermostat runs on

batteries only and THE SYSTEM WILL NOT OPERATE.

Replace batteries immediately.

The clock will continue to run for 10 minutes when the batteries are

removed.

Replace batteries if leaving thermostat unattended for more than 30 days.

Display Map

The thermostat display will show information that is being used during

operation or programming. This illustration shows all of the display’s

possibilities with an explanation.

1. Event names (used for editing schedule).

2. Day is displayed on IDLE screen. Also used to display day ranges

when editing the schedule (e.g., SAT SUN for weekend).

3. Used with clock to display hold duration (e.g., FOR 2h).

4. Displayed when running a schedule.

5. Used with setpoint.

6. Used along with clock for service reminders (e.g., CHECK HP).

7. Used for time, current setpoint, and some configuration data (e.g.,

filter hours).

8. HVAC mode and status. Icons blink when active. A is for Auto, 2 is

for second stage, E is for emergency, is for heating, and is for

cooling.

9. Indicates when security is active.

10. Low battery indicator.

11. Displayed when in vacation hold.

12. Used for ambient temperature and configuration data (e.g., first

stage differential, F or C, etc.).

13. Fan status (rotates when active).

14. Fan use (selected by pressing FAN button).

12 11

Set Time and Day

To adjust the time and day settings press the SET TIME button. The hour

will flash. If a button is not pushed within 10 seconds the thermostat

returns to operation. To change the settings:

1. Use the and buttons to change the flashing number.

2. Press the SET TIME button to move through hour, minutes, and day

of week.

3. Make changes as needed. They will be saved automatically.

NOTE: THE THERMOSTAT WILL NOT CORRECT FOR

DAYLIGHT SAVING TIME.

The thermostat will now function properly using the default schedule.

Default Settings

This thermostat is preprogrammed with a schedule that is recommended

by EnergyStar™. The schedule is designed to lower energy costs

year-round.

The default schedule settings are:

User Programmable Settings (Default)

During any program changes the display returns back to the operating

display if a button has not been pushed within 10 seconds.

The temperature scale is set to Fahrenheit.

The night light is off.

The first stage differential is 1F degree.

The second stage differential (RS5220) is 2F degrees.

The auto changeover deadband is 3F degrees.

The filter reminder length is off.

The temperature offset is 0 degrees.

The HI heat limit is 90°F (32°C).

The LO cool limit is 45°F (7°C)

The vacation temperature settings are set at: heating 62°F, cooling 85°F.

The operation mode will be one of the following:

TTiimmeeCCoooolliinngg°°FFHHeeaattiinngg°°FF

Morn 6:00 am 78 70

Day 8:00 am 85 62

Eve 6:00 pm 78 70

Nite 10:00 pm 82 62

The fan setting is Auto.

The keypad has no password protection.

Refer to the Pop-Up Wizard section in the Installation Manual for a

complete list of factory defaults and contractor settings.

Emergency Heat

Your system may include Emergency Heat. The RS5220 thermostats have

an emergency heat capability for multi-stage heat pump systems. To

determine if your system is capable of using emergency heat contact your

contractor. Use the button to enter the EMER mode. An E will be

displayed with the Heat symbol. This mode is used to bypass the heat

pump when it needs servicing or when it cannot keep up with the heat

demand.

Auto Changeover

Auto changeover is the ability of the thermostat to switch automatically

between heating settings and cooling settings. This is useful in spring and

fall when the days are warm and the nights are cool. In heat mode if the

room continues to warm beyond a set threshold the thermostat switches

to the cool mode and the associated cooling settings. The reverse is also

true.

As the room temperature changes, the thermostat will call for heating or

cooling as needed. To prevent the heating and cooling systems from

overriding each other, an automatic changeover deadband is used.

The deadband is the number of degrees that the room temperature can

move away from the active setpoint until heating or cooling is called for.

The larger the deadband the more the room temperature will vary.

Making Changes to the Programmed Settings

Any setting can be changed when it is flashing by pushing or

If a button is not pushed within 10 seconds the thermostat returns to

operation.

The following buttons can be accessed from the front panel.

Off

Heat

Cool

Emergency Heat E

Automatic Changeover A

START/STOP SCHEDULE: Switches between running a schedule and

manual (permanent override). Cancels a temporary or vacation override.

EDIT SCHEDULE: Use this button to start editing the schedule. Push

repeatedly to move through the selections.

VACATION: Used to set a temporary setpoint for a number of days.

SET TIME: Sequences through the hour, minute and day.

LIGHT BAR: Turns on the display back light for 10 seconds.

FAN: Turns fan to AUTOMATIC, CIRCULATE or ON.

UP ARROW: Used during programming to increase the flashing item.

DOWN ARROW: Used during programming to decrease the flashing item.

HEAT/COOL: Sequences through OFF, HEATING, COOLING, and AUTO. If

you are using an RS5220 and it is configured as HP, emergency heat is

also displayed.

To Make Changes in the Schedule:

This thermostat can operate using a single setpoint by overriding the

schedules. If you will be using this thermostat for single setpoint operation

skip to

Overriding the Schedule.

Use the following table to document your schedule settings before editing

the schedule on the thermostat.

Press START/STOP SCHEDULE at any time to exit and save your settings.

Push EDIT SCHEDULE. The start time of the setpoint will be flashing.

TTiimmeeCCoooollHHeeaatt

MMoorrnniinngg

DDaayy

EEvveenniinngg

NNiittee

If a button is not pushed within 30 seconds the thermostat returns to

operation.

Use the or to change the hour of the start time if desired.

Push EDIT SCHEDULE to move to minutes.

Use the or to change the minutes of the start time if desired.

Push EDIT SCHEDULE to move to the heat or cool temperature setting.

Use the or to change the temperature setpoint.

Pressing will switch between cooling and heating. Use and

to change the setpoint.

- OR -

Push EDIT SCHEDULE to move from heat to cool or cool to heat

temperature setting. Use the or to change the temperature

setpoint.

NOTE: THE HEATING AND COOLING SETPOINTS

CANNOT BE ENTERED AS CROSSED. THAT IS, THE

COOLING SETPOINT CANNOT BE LOWER THAN THE

HEATING SETPOINT.

Push EDIT SCHEDULE and repeat this process for the remaining three

weekday settings. All of the week days will use this schedule.

After the weekday schedule is complete the display will show the

weekend schedule.

Continue the same steps to program the four weekend settings.

When you are finished, the thermostat will be in operation after 30

seconds.

To Make Changes to the Settings

When and are pressed at the same time the thermostat will

display the current settings in order.

To change any setting:

When the setting is visible and flashing press the or

arrows to adjust the number on the screen.

To exit the changes and save:

press START/STOP SCHEDULE. The thermostat will return to

operation.

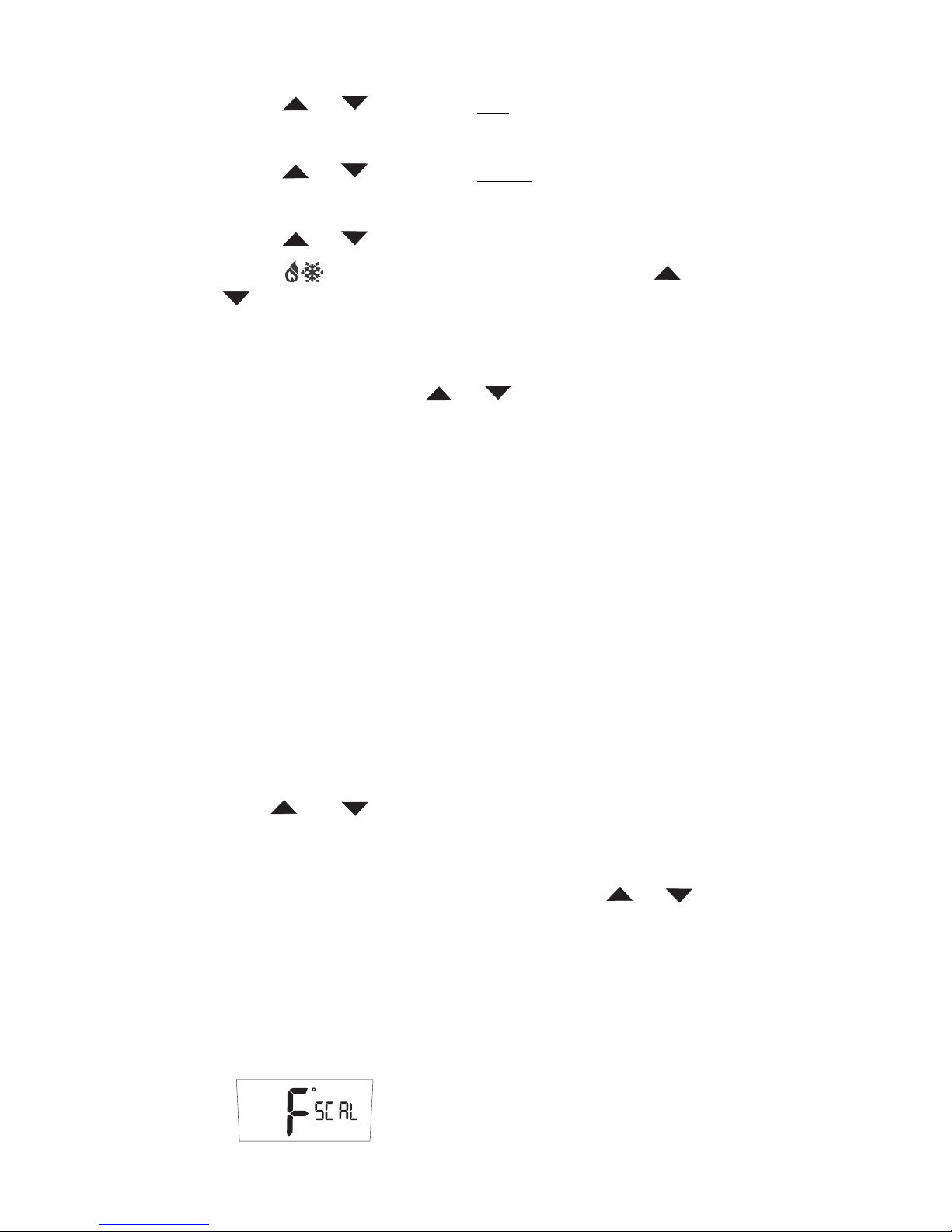

SCAL = Scale in °F (Fahrenheit) or °C (Celsius)

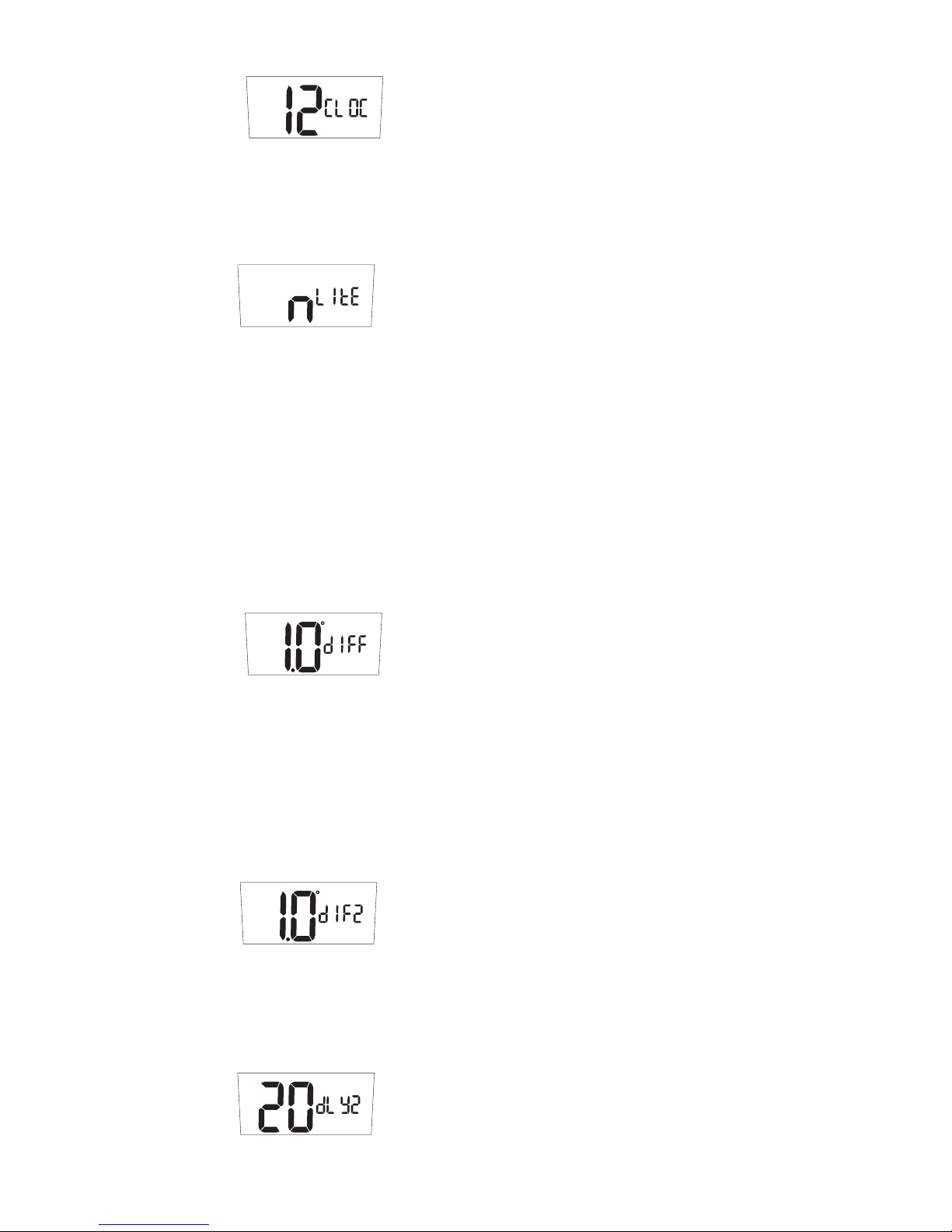

CLOC = Clock setting in 12 or 24 hour readings

light = Display backlight always on ”Y” or off ”n”. Also called the

nightlight feature. If the thermostat has been wired to enable this

feature it will be displayed and the setting can be changed.

DIFF = The differential keeps the thermostat from turning on for small

changes in temperature. When in Fahrenheit the range is 0.5 to 3.0

degrees. In Celsius the range is 0.5 to 1.5 degrees. The differential is

factory set to 1.0 F degree (0.5 C degree). This means that whenever

the room temperature is more than 1 F degree (0.5 C degree)

different from the set temperature the system will turn on. If the

system is turning on too often, increase the differential setting. Note

that a larger differential will mean the room temperature changes

more before the system turns on.

DIF2 = SECOND STAGE DIFFERENTIAL = Operates with the first stage to

control a second heating/cooling system. This number will be added

to the first stage differential (See: Two Stage Systems). If the first

stage is running too often lower the settings. This will turn the

second stage on to help the first stage. If both stages are turning on

too often, increase this setting to delay the second stage.

DLY2 = SECOND STAGE DELAY = This timer starts when the first stage

turns on. It resets when the first stage turns off. If this timer expires,

the second stage will turn on (See Two Stage Systems).

DEDB = Deadband for auto changeover = the number of degrees that the

room temperature can move away from the active setpoint until

heating or cooling is called for. The larger the deadband the more

the room temperature will vary. This can be from heat to cool or cool

to heat.

HI = High Heat Limit = This is the highest allowed heating setpoint. The

user will not be allowed to set a schedule setpoint or override

temperature higher than this value.

LO = Low Cool Limit = This is the lowest allowed cooling setpoint. The

user will not be allowed to set a schedule setpoint or override

temperature lower than this value.

VAC HEAT = Vacation Heat Setpoint = This is the temperature setpoint for

the heating system when a vacation override has been made active.

VAC COOL = Vacation Cool Setpoint = This is the temperature setpoint for

the cooling system when a vacation override has been made active.

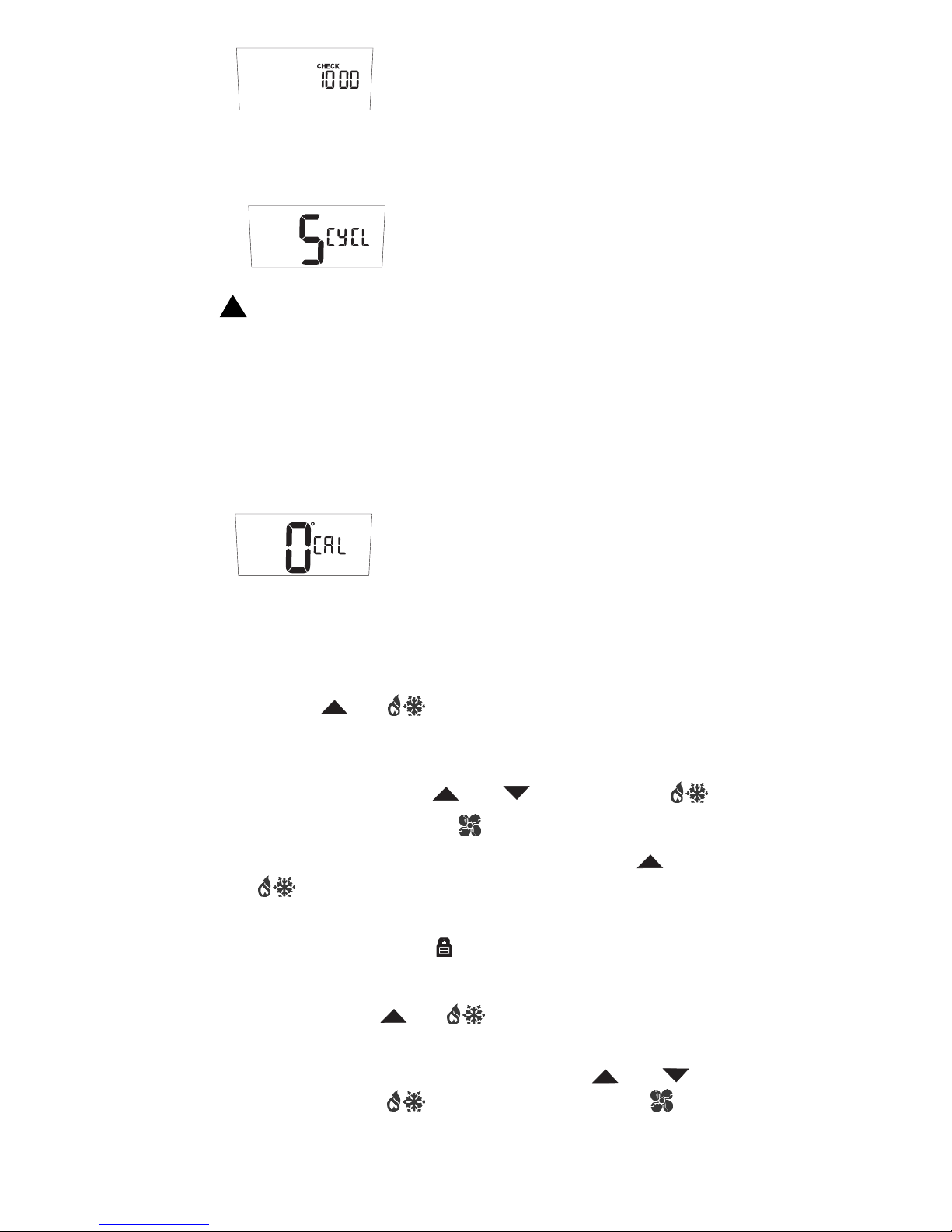

CHECK = Timer to remind the home owner to maintain the filter. Default

setting is off. The timer runs when the system is on and can be set at

0 (OFF) or up to 9900 hours. When the timer expires, CHECK FLTR is

displayed. Press any button to reset and return to the normal display.

CYCL = Cycle Timer allows a compressor to rest between cycles. Can be

set from 0 to 5 minutes in 1 minute increments.

WARNING: A wrong short cycle setting can damage your

equipment. This should only be changed by a trained HVAC professional.

CAL = Calibration offset. Changes the displayed temperature from the

actual temperature by +3 to -3 degrees in one degree increments.

Increasing the offset by +2 will cause the thermostat to display a

temperature that is 2 degrees higher than the actual room

temperature.

Security Lockout to Protect the Settings

The buttons on the front of the thermostat can be locked with a password.

To create a password:

1. Press the and buttons at the same time and hold them in

for 5 seconds.

You will be asked for a 4 digit password.

2. Each digit is set using the and buttons. Press the to

move to the next digit. Press to move back.

3. The password is saved after 10 seconds or by pressing and

at the same time.

All of the front buttons are now locked out until the password is entered.

Pressing any button will cause to flash.

To unlock the buttons:

1. Push and hold the and buttons for 5 seconds until the

request for password is displayed.

2. Enter the digits for the password by pressing the and

buttons. Press the to move to the next digit. Press to

move back.

Autres manuels pour RS4110

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Robertshaw Thermostat

Robertshaw

Robertshaw 300-202 Manuel utilisateur

Robertshaw

Robertshaw 9851i Manuel utilisateur

Robertshaw

Robertshaw 9801i2 Manuel utilisateur

Robertshaw

Robertshaw C9701i2 Manuel utilisateur

Robertshaw

Robertshaw 9500 Manuel utilisateur

Robertshaw

Robertshaw 9405 Manuel utilisateur

Robertshaw

Robertshaw 8625 Manuel utilisateur

Robertshaw

Robertshaw 9615 Manuel utilisateur

Robertshaw

Robertshaw 300-224 Caractéristiques techniques

Robertshaw

Robertshaw RS8210 Manuel utilisateur

Robertshaw

Robertshaw 9901i Manuel utilisateur

Robertshaw

Robertshaw RS6110 Manuel utilisateur

Robertshaw

Robertshaw 8601 Manuel utilisateur

Robertshaw

Robertshaw 8625 Manuel utilisateur

Robertshaw

Robertshaw RS8210 Manuel utilisateur

Robertshaw

Robertshaw RS3110 Manuel utilisateur

Robertshaw

Robertshaw 300-202 Manuel utilisateur

Robertshaw

Robertshaw 5300 Series Guide d'installation et d'utilisation

Robertshaw

Robertshaw 8600 Manuel utilisateur

Robertshaw

Robertshaw RS8210 Manuel utilisateur

Robertshaw

Robertshaw 9801I Manuel utilisateur

Robertshaw

Robertshaw 9915i Manuel utilisateur

Robertshaw

Robertshaw 9851i Manuel utilisateur

Robertshaw

Robertshaw 9851i Manuel utilisateur

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
