Robe ROBIN iPointe65 Manuel utilisateur
1
Version 1.7
2
Table of contents
1. Safety instructions ......................................................................................................... 3
2. Fixture exterior view ...................................................................................................... 5
3. Installation....................................................................................................................... 6
3.1 Connection to the mains ............................................................................................ 6
3.2 Changing the lamp ..................................................................................................... 7
3.3 Aligning the lamp ....................................................................................................... 8
3.4 Rigging the xture ...................................................................................................... 9
3.5 DMX-512 connection................................................................................................ 12
3.6 Ethernet connection ................................................................................................. 13
3.7 Wireless DMX operation .......................................................................................... 15
4. Remotely controllable functions................................................................................. 16
5. Control menu map........................................................................................................ 17
6. Control menu ............................................................................................................... 21
6.1 Tab " Address" .......................................................................................................... 23
6.2 Tab "Information" ...................................................................................................... 23
6.3 Tab "Personality" ...................................................................................................... 25
6.4 Tab "Manual Control"................................................................................................ 26
6.5 Tab "Stand-alone" .................................................................................................... 27
6.6 Tab "Service" ............................................................................................................ 28
6.7 Icon "Lamp menu".................................................................................................... 31
7. RDM ............................................................................................................................... 31
8. NFC ................................................................................................................................ 32
9. Error and information messages ................................................................................ 33
10. Technical Specications............................................................................................ 36
11. Cleaning....................................................................................................................... 41
12 Maintenance................................................................................................................. 41
12.1 Fixture covers and torques of cover crews ........................................................... 43
12.2 Replacing rotating gobos ...................................................................................... 49
12.3 Disposing of the product ........................................................................................ 51
13. Photometric diagrams................................................................................................ 51
14. ChangeLog ................................................................................................................. 55
Robin iPointe65
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOU INITIAL START - UP
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en-
sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings in
this manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modication to the device.
Please consider that damages caused by manual modications to the device are not subject to warranty.
The Robin iPointe65 was designed for outdoor use and it is intended for
professional application only. It is not for household use.
1. Safety instructions
CAUTION!
Disconnect the xture from mains before you remove any cover of the xture.
With a high voltage you can suer a dangerous electric shock when touching
alive wires and electrical parts under covers!
Make sure that the available voltage is not higher than stated on the rear panel of the xture.
This xture should be operated only from the type of power source indicated on the marking label. If you are
not sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the xture from AC power before cleaning, removing or servicing any part of the xture.
The power plug has to be accessible after installing the xture. Do not overload wall outlets and extension cords
as this can result in re or electric shock.
Do not allow anything to rest on the power cord. Do not locate this xture where the cord may be damaged by
persons walking on it.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture and the power
cord from time to time.
Refer servicing to qualied service personnel.
This xture falls under protection class I. Therefore this xture has to be connected to
a mains socket outlet with a protective earthing connection.
Do not connect this xture to a dimmer pack.
During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily
mean that the device is defective.
The housing of the xture becomes hot during its operation.
For replacement use lamps and fuses of same type and rating only.
Risk group 2, RG-2: CAUTION.
Do not stare at exposed lamp in operation. May be harmful to the eyes.
Avoid looking directly into the light source.
4
Before switching the xture o, turn its lamp o and allow the xture to cool for a while.
WARNING! This unit does not contain an ON/OFF switch. Always disconnect the power input cable
from mains to completely remove power from unit when not in use or before cleaning or servicing the unit.
When choosing the installation spot, please make sure that the xture is not exposed to extreme heat or dust.
Do not block the front objective lens with any object when the xture is under operation.
The xture becomes very hot during operation. Allow the xture to cool approximately 20 minutes prior to ma-
nipulate with it.
Only operate the xture after having checked that the housing is rmly closed and all screws are tightly fastened.
Always use a safety wire for overhead installation.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the xture.
Warning
Minimum distance between the moving head and a surface of illuminated object
must be 15 meters or more ( lamp in Standard Mode).
The maximum ambient temperature must never be exceeded.
CAUTION!
The front glass cover has to be replaced when it is obviously damaged,
e. g. due to cracks or deep scratches!
Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualied for operating the device. Most damages are the result of unprofessional operation!
CAUTION!
The lamp has to be replaced when is damaged
or deformed due to the heat!
CAUTION!
Fast on-o-cycles (e.g. 10 min. on / 10 min. o) will reduce lamp life.
CAUTION!
To avoid damage of the internal parts of the xture head, never let the sunlight
(or other light source) lights directly to the front glass cover, even when the xture is
not in operation !
Please use only an original ROBE packaging (paper box, loader case or foam shell) for
transporting the device, otherwise potential damage of the device during its transport
will not
subject to warranty
.
5
2. Fixture exterior view
7 - Front glass cover
8- Pan lock
9 - Power In (Neutrik TrueOne)
10 - Fuse holder
11 - Ethernet (RJ45)
12 - DMX In (3-pin XLR)
13 - DMX In (5-pin XLR)
14 - Gore valve
15 - DMX Out (5-pin XLR)
16 - DMX Out (3-pin XLR)
17 - Tilt lock
18 - Battery holder cover
The moving head should be locked for transportation - both pan lock (8) and tilt lock (17) have to be in locked
positions. Before operating the xture, unlock the pan/tilt locks.
1 - Head covers
2 - Lamp cover
3 - Front control panel
4- Base
5- Handles
6 - Arm
6
3. Installation
Fixtures must be installed by a qualied electrician in accordance with all
national and local electrical and construction codes and regulations.
The Robin iPointe65´s panel connectors are dust and water protected according to IP
65 by mating with related cable connectors. They cannot stay disconnected outdoor.
All unused panel connectors have to be sealed by the rubber caps.
Visually check panel connectors on accidental water leaks before connecting related
cable connectors.
If some water will appear in panel connectors, do not connect cable connectors,
especially power!
3.1 Connection to the mains
To apply power, rst check that the head pan and tilt locks are released.
For protection from electric shock, the xture must be earthed!
The xture has to be connected to an electric outlet which is equiped with
a residual-current device (residual-current circuit breaker)!
Wiring and connection work must be carried out by a qualied electrician.
The Robin iPointe65 is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz
AC power source from 100-240 Volts.
Power cable is enclosed to the xture. If you need to install a power plug on the power cable to allow connection
to power outlets, install a grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you
have any doubts about proper installation, consult a qualied electrician.
Core (EU) Core (US) Connection Plug Terminal Marking
Brown Black Live L
Light blue White Neutral N
Green /Yellow Green Earth PE/GND
This device falls under class one and must be earthed (grounded).
Ensure all connections and the power plug on the cable are properly sealed.
The rubber caps have to be placed on unused connectors.
7

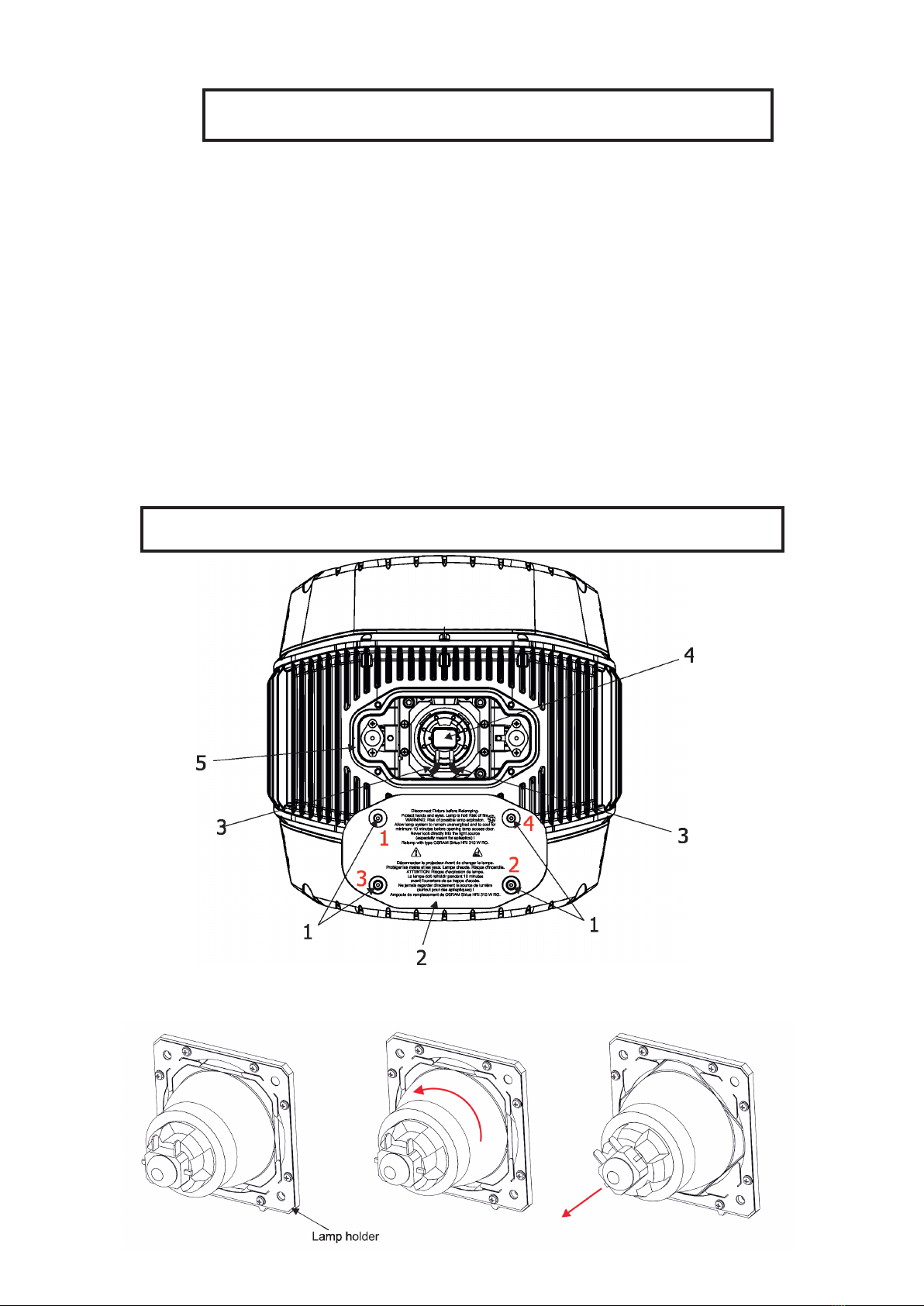

3.2 Changing the lamp
DANGER !
Install the lamp with the xture unplug from mains !
1. Disconnect the xture from mains and allow it to cool approximately 60 minutes. Lock the head in a suitable
position (by means of the pan and tilt locks).
2. Unscrew the four hex socket head screws (1) (with washers and spring washers) on the lamp cover using
an Alen key 2.5 and remove the lamp cover (2).
3. Gently remove both fastons (3) from at terminals of the lamp.
4. Holding the lamp by its ceramic base (4), carefully turn the lamp counter-clockwise by a quarter turn to release
the lamp from a lamp holder.
5 Holding the new lamp by its ceramics base (4), carefully insert the lamp into the lamp holder and turn it clockwise
by a quarter turn until you it reach a stop. Do not touch the lamp with bare hands. If necessary,
lamp can be cleaned with lint free towel before operation.
Do not install a lamp with a higher wattage! A lamp like this generates temperatures the device is
not de signed for. Please follow the lamp manufacturer‘s notes.
6. Slide both fastons (3) on the lamp terminals and check that fastons are fastened properly.
7. Carefully check the gasket (5) for signs of deformities or hardening and if it is correctly placed in the groove of
the head housing.
8
. Re-insert the lamp cover (2) and tighten the four
hex socket head screws (1) using a tightening torque of 2-2.3Nm.
9. Connect the xture to the mains.
10. Reset the "Lamp On Time” and "Lamp Strikes” counters
in the menu "Information”.
This lamp emits ultra violet (UV) radiation and operates at high pressure!
Do not operate this xture without properly fastened the lamp cover !
Unlocking and removing the lamp
Lamp in locked position Turn the lamp left Lamp in unlocked position
Screws(1) must be
tightened in
the order
1-->2-->3-->4
with a tightening
torque of 2-2.3Nm
8

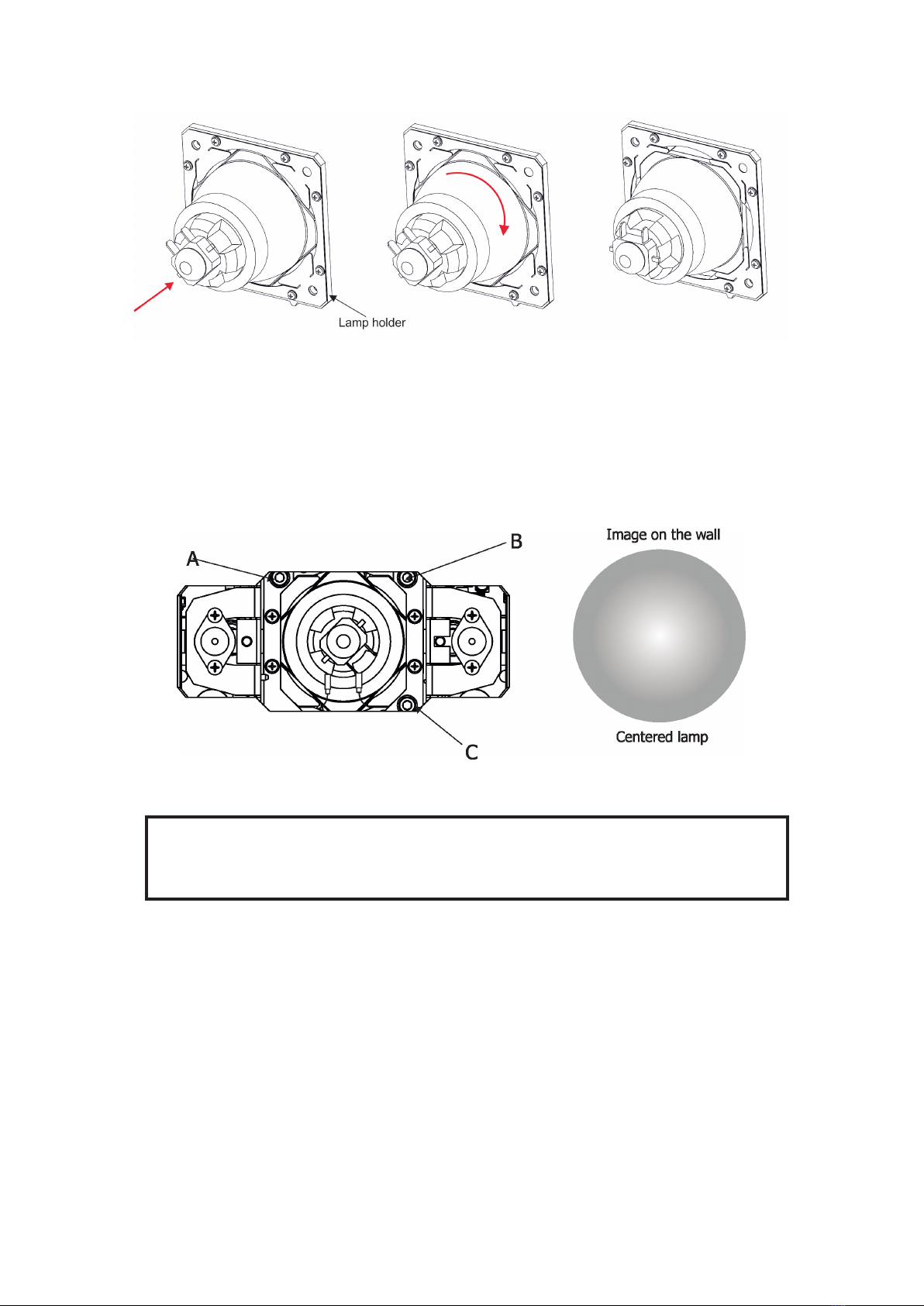

Inserting and locking the lamp
Lamp in unlocked position Turn the lamp right Lamp in locked position
3.3 Aligning the lamp
The lamp holder is aligned at the factory. Due to dierences between lamps, a ne adjustment of the lamp
holder may improve light performance of the xture.
The three screws (A,B, C) serve for ne aligning of the lamp´s hot spot in a light image.
Warning
Wear proper eye and skin protection prior to remove the lamp cover.
High voltage present at lamp fastons.
To adjust the lamp in the xture.
1.
Connect the xture to mains, switch on the lamp, open shutter and dimmer, set zoom on suitable size, aim
and focus the image on the wall (both static gobo wheel a rotating gobo wheel have to be set at 0 DMX).
2. Loosen the four hex socket head screws (1) ( use an Alen key 2.5) on a lamp cover and remove
the lamp cover (2).
3. Ajust the lamp holder into desired position by using the three screws A,B,C (by means of an Allen key 4).
4. Carefully check the gasket (5) for signs of deformities or hardening and if it is correctly placed in the groove of
the head housing.
5
. Re-insert the lamp cover (2) and tighten the four
hex socket head screws (1) using a tightening torque
of 2-2.3Nm. The screws(1) must be tighten in the order 1-->2-->3-->4.
9

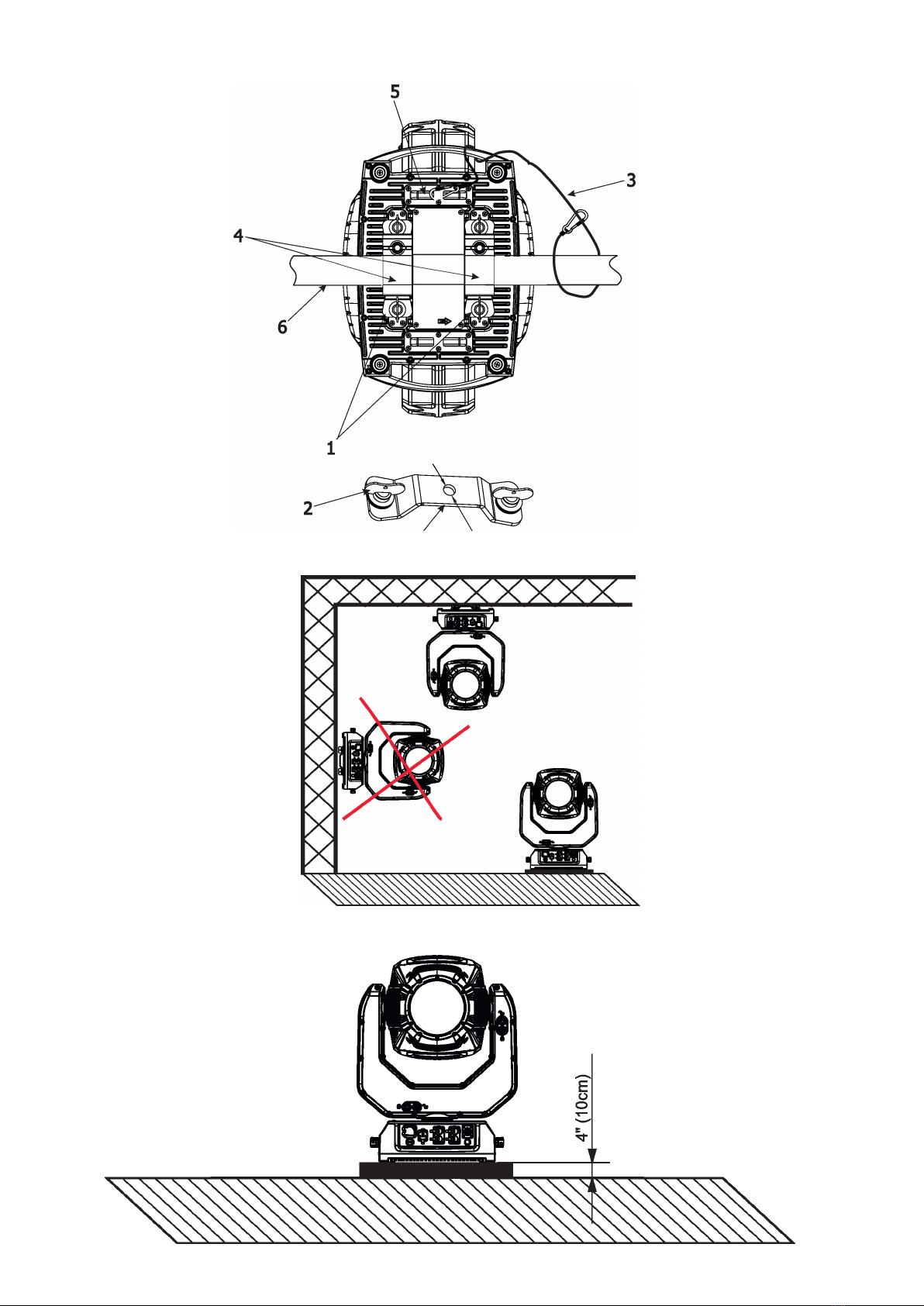

3.4 Rigging the xture
A structure intended for installation of the xture (s) must safely hold weight of the xture(s) placed on it. The
structure has to be certicated to the purpose.
The xture (xtures) must be installed in accordance with national and local electrical and construction codes
and regulations.
For overhead installation, the xture must be always secured with a safety wire.
When rigging, derigging or servicing the xture staying in the area below the installation place, on bridges,
under high working places and other endangered areas is forbidden.
Allow the xture to cool for ten minutes before handling.
Fixture should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized
personnel might reach the xture by hand.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating working
load limits, installation material being used, and periodic safety inspection of all installation material and the
projector. If you lack these qualications, do not attempt the installation yourself, but use a help of professional
companies.
CAUTION: Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety
of a possible installation, do not install the xture!
The xture has to be installed out of the reach of public.
The xture must never be xed swinging freely on the truss.
Danger of re !
When installing the device, make sure there is no highly inammable
material (decoration articles, etc.) in a distance of min. 1 m.
Minimum distance of 15 m between the moving head and
illuminated
objects must be
kept!
(If the xture is operated in Eco mode, this distance can be redused to 12 m).
CAUTION!
Use 2 appropriate clamps to rig the xture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is xed properly! Ensure that the
structure (truss) to which you are attaching the xtures is secure.
For securing the xture to the truss, install a safety wire which can hold at least 10 times the weight of the xture.
Truss installation
1.Bolt clamps (4) to the brackets Omega CL (1) with M12 bolts and lock nuts through the hole in the bracket
Omega CL.
2.Fasten the brackets Omega CL on the bottom of the base by means of the quick-lock fasteners (2) and tighten
them fully clockwise.
3. Install the xture on the truss.
4. Pull a safety wire (3) through the carrying handle and the truss (6) as hown on the picture below in a suitable
position so that the maximum fall of the xture will be 20 cm. Fasten a snap hook in the attachment point (5).
Use only the safety wire with a snap hooks with screw lock gates.
10
Allowed installation positions of the iPointe65:
Note for open-air installation: if the xture is standing on the ground, min. distance of 4" (10cm) between the
xture base and the ground has to be kept.
1-Mounting brackets Omega CL
2-Quick-lock fasteners
3-Safety wire
4-Clamps
5-Attachment point
6-Truss
Table des matières
Autres manuels Robe Équipement d'éclairage
Robe
Robe Digital Spot 7000 DT Manuel utilisateur
Robe
Robe Robin 300 plasma spot Manuel utilisateur
Robe
Robe Robin MMX Blade Manuel utilisateur
Robe
Robe Color Mix 250 AT Series Manuel utilisateur
Robe
Robe Color mix 575 AT Manuel utilisateur
Robe
Robe CitySource 96 Manuel utilisateur
Robe
Robe Anolis ArcSource Outdoor 24 MC Integral RGBW Manuel utilisateur
Robe
Robe Color Wash 700E AT Manuel utilisateur
Robe
Robe XT Series Manuel utilisateur
Robe
Robe Anolis ArcDot-US Manuel utilisateur
Robe
Robe Anolis Eminere Classic 12 Manuel utilisateur
Robe
Robe PATT 2013 Manuel utilisateur
Robe
Robe Image Spot 250 AT Manuel utilisateur
Robe
Robe Anolis Eminere Inground 2 Wireless DMX Manuel utilisateur
Robe
Robe Anolis Calumma XS MC Manuel utilisateur
Robe
Robe Color Wash 575E AT Manuel utilisateur
Robe
Robe CitySource 96 Manuel utilisateur
Robe
Robe ArcSource Outdoor 16 MC Integral RGBW US Manuel utilisateur
Robe
Robe DMX Control 1024 Manuel utilisateur
Robe
Robe DigitalSpot 7000 DT Manuel utilisateur
Manuels Équipement d'éclairage populaires d'autres marques
Qazqa
Qazqa Suplux SL 3 Black 103062 Manuel utilisateur
Commercial Electric
Commercial Electric 54568141 Manuel utilisateur
CREE LIGHTING
CREE LIGHTING 304 Series Manuel utilisateur
Goobay
Goobay 49867 Manuel utilisateur
ECOMAN ITALIA
ECOMAN ITALIA LED T8 Manuel utilisateur
Alkalite
Alkalite Krypton KT-81 Manuel utilisateur
