1 Safety Requirement
1.1 General Safety Summary
Please review the following safety precautions carefully before putting the instrument
into operation so as to avoid any personal injury or damage to the instrument and
any product connected to it. To prevent potential hazards, please follow the
instructions specified in this manual to use the instrument properly.
1 Only the exclusive power cord
designed for the instrument and
authorized for use within the
destination country could be
used.
9 Do not operate the instrument
with suspected failures.
2 Ensure that the instrument is
safely grounded.
10 Provide adequate ventilation.
3 Observe all terminal ratings. 11 Do not operate in wet conditions.
4 Use proper overvoltage
protection.
12 Do not operate in an explosive
atmosphere.
5 Do not operate without covers. 13 Keep instrument surfaces clean
and dry.
6 Do not insert objects into the air
outlet.
14 Prevent electrostatic impact.
7 Use the proper fuse. 15 Handle with caution.
8 Avoid circuit or wire exposure.
1.2 Safety Notices and Symbols
Safety Notices in this Manual:
Warning
Indicates a potentially hazardous situation or practice which, if not avoided, will result in
serious injury or death.
Caution
Indicates a potentially hazardous situation or practice which, if not avoided, could result
in damage to the product or loss of important data.
Safety Terms on the Product:
•DANGER
It calls attention to an operation, if not correctly performed, could result in injury
or hazard immediately.
Safety Requirement
Copyright ©RIGOL TECHNOLOGIES CO., LTD.
All rights reserved.
1
•WARNING
It calls attention to an operation, if not correctly performed, could result in
potential injury or hazard.
•CAUTION
It calls attention to an operation, if not correctly performed, could result in
damage to the product or other devices connected to the product.

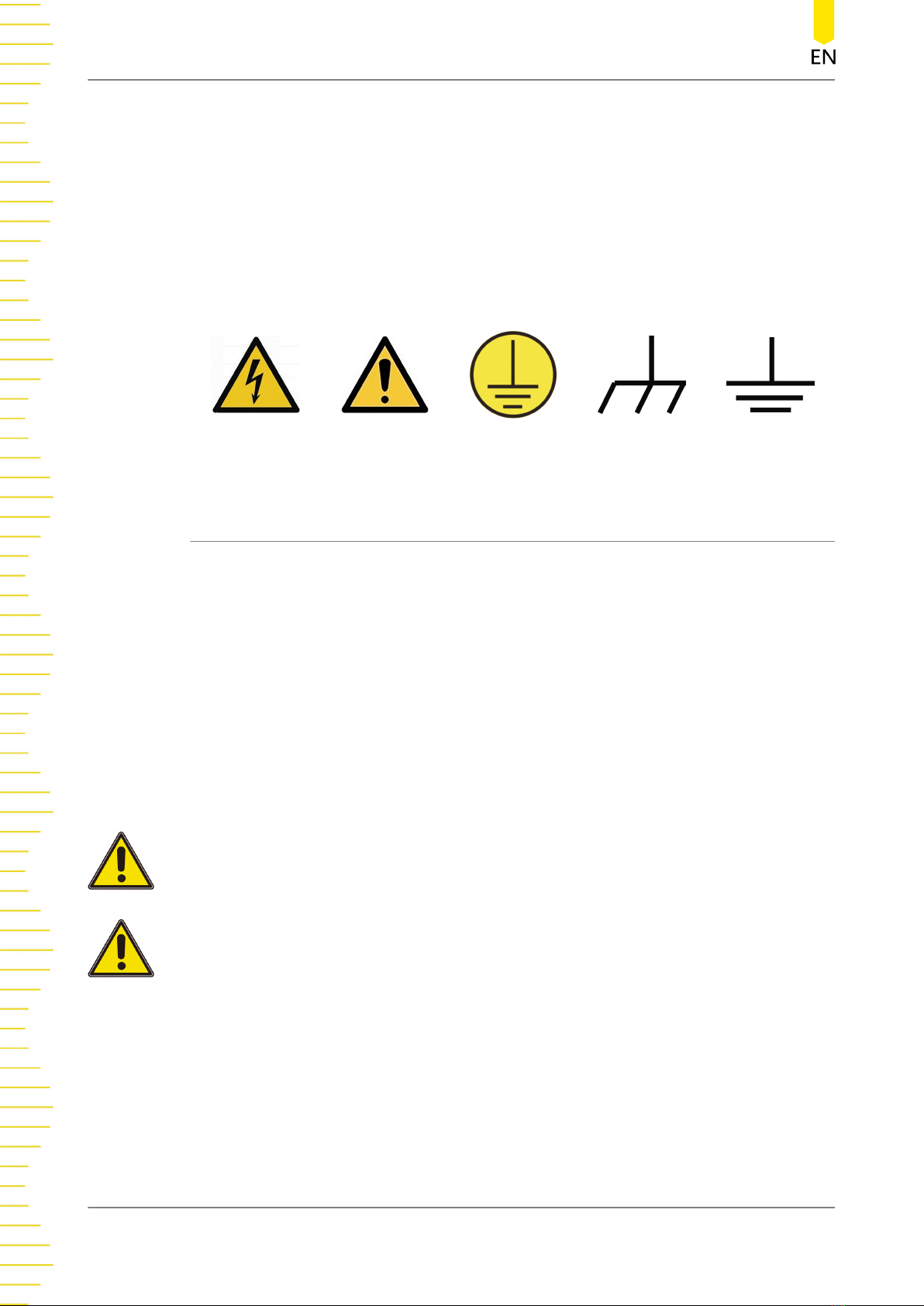

Safety Symbols on the Product:
Hazardous
Voltage
Safety Warning Protective Earth
Terminal
Chassis Ground Test Ground
1.3 Care and Cleaning
Care
Do not store or leave the instrument where it may be exposed to direct sunlight for
long periods of time.
Cleaning
Clean the instrument regularly according to its operating conditions.
1Disconnect the instrument from all power sources.
2Clean the external surfaces of the instrument with a soft cloth dampened with mild
detergent or water. Avoid having any water or other objects into the chassis via the
heat dissipation hole. When cleaning the LCD, take care to avoid scarifying it.
Caution
To avoid damage to the instrument, do not expose it to caustic liquids.
Warning
To avoid short-circuit resulting from moisture or personal injuries, ensure that the
instrument is completely dry before connecting it to the power supply.
Safety Requirement
2Copyright ©RIGOL TECHNOLOGIES CO., LTD.
All rights reserved.
2 Document Overview
This manual gives you a quick review about the front and rear panel of DS70000
series, the user interface, and the basic operation method.
Tip
For the latest version of this manual, download it from the official website of RIGOL (
http://
www.rigol.com
).
Publication Number
QGA28100-1110
Format Conventions in this Manual
1 Key
The front panel key is denoted by the menu key icon. For example,
indicates the “Default” key.
2 Menu
The menu softkey is denoted by the format of "Menu Name (Bold) + Character
Shading" in the manual. For example, Setup.
3 Operation Procedures
The next step of the operation is denoted by ">" in the manual. For example,
> Storage indicates that first clicking or tapping the icon , then clicking or
tapping Storage.
Content Conventions in this Manual
DS70000 series includes the following models. Unless otherwise specified, this manual
takes DS70504 as an example to introduce DS70000 series and its basic operations.
Model Max. Analog Bandwidth No. of Analog Channels
DS70504 5 GHz 4
DS70304 3 GHz 4
Document Overview
Copyright ©RIGOL TECHNOLOGIES CO., LTD.
All rights reserved.
3
3 General Inspection
1 Inspect the packaging
If the packaging has been damaged, do not dispose the damaged packaging or
cushioning materials until the shipment has been checked for completeness and
has passed both electrical and mechanical tests.
The consigner or carrier shall be liable for the damage to the instrument resulting
from shipment. RIGOL would not be responsible for free maintenance/rework or
replacement of the instrument.
2 Inspect the instrument
In case of any mechanical damage,missing parts, or failure in passing the electrical
and mechanical tests, contact your RIGOL sales representative.
3 Check the accessories
Please check the accessories according to the packing lists. If the accessories are
damaged or incomplete, please contact your RIGOL sales representative.
General Inspection
4Copyright ©RIGOL TECHNOLOGIES CO., LTD.
All rights reserved.
4 Product Overview
DS70000 series is RIGOL's 7th generation of the digital oscilloscope. It adopts RIGOL's
chipset "Phoenix", delivering excellent performance with a maximum sample rate of
20 GSa/s, 5 GHz real-time bandwidth. In addition to the improvement of hardware
specification, DS70000 series also has many user-friendly designs to ensure high-
quality user experience.
4.1 Front Panel Overview

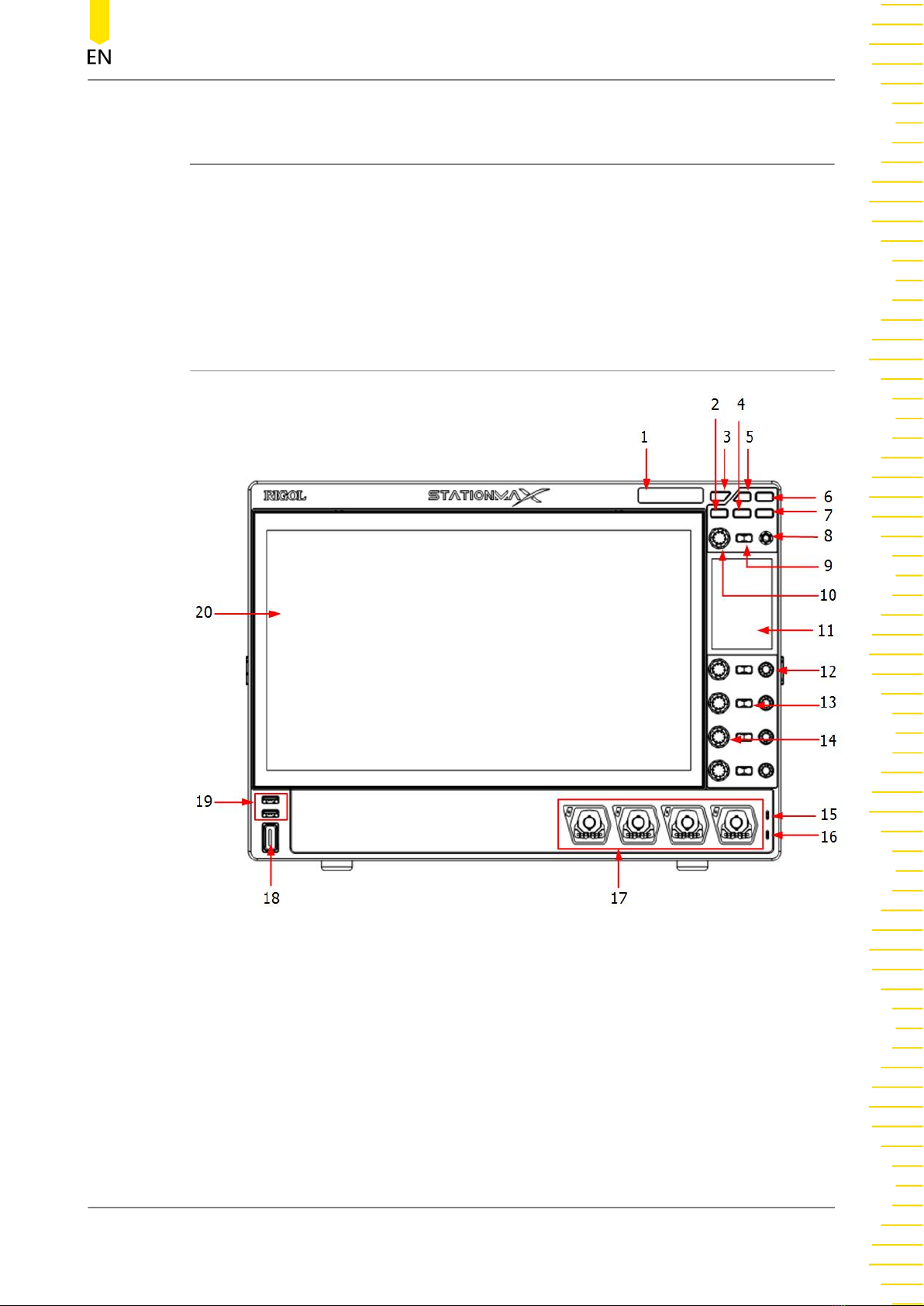

Figure 4.1 Front Panel
1Electronic Label 11 High-Definition Smart and Quick-
responsive Keyboard
2 Screen Inclination Adjustment Key 12 Channel Vertical Position Knob
3 Run/Stop Key 13 Channel On/Off Key
4 Default Key 14 Channel Vertical Scale Knob
5 Working Mode Switchover Key 15 Probe Compensation Signal
Output Terminal
Product Overview
Copyright ©RIGOL TECHNOLOGIES CO., LTD.
All rights reserved.
5
6 Quick Operation Key (related to
quick operation setting)
16 Probe Compensation Signal
Ground Terminal
7
Key
17 Analog Channel Input Terminals
8 Multi-function Knob 1 18 Power Key
9 Multi-function Key 19 USB HOST Interface
10 Multi-function Knob 2 20 Inclination Electronically
Adjustable High-Definition Large
Touch Screen
4.2 Rear Panel Overview

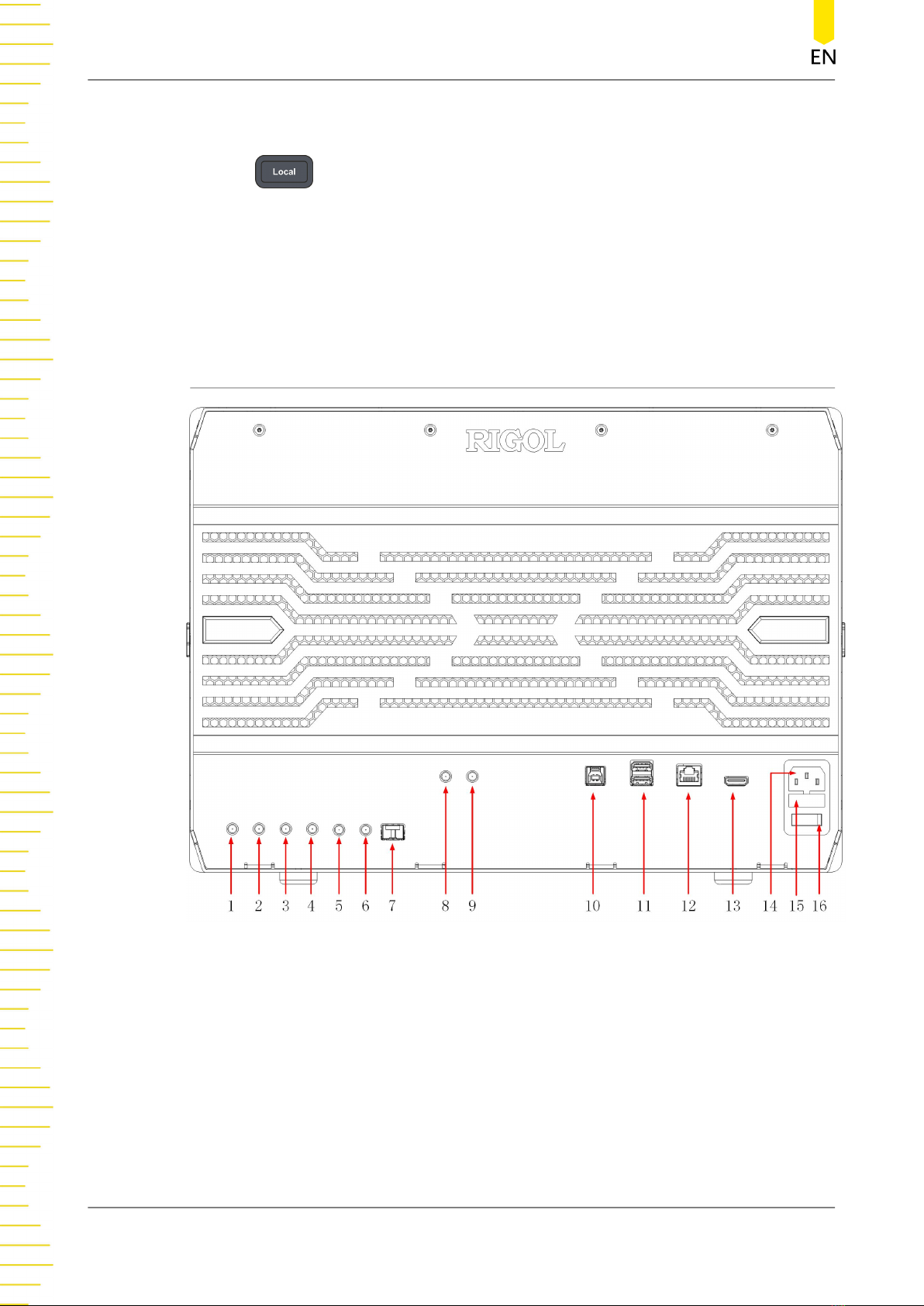

Figure 4.2 Rear Panel
1Pulse Source Input (temporally
unavailable)
9 10 MHz IN Reference Clock Input
2 Pulse Source Output (temporally
unavailable)
10 USB DEVICE Interface
3 Pulse Source Reverse Output
(temporally unavailable)
11 USB HOST Interface
4 Pulse Source Reverse Input
(temporally unavailable)
12 LAN Interface
Product Overview
6Copyright ©RIGOL TECHNOLOGIES CO., LTD.
All rights reserved.
5 AUX OUT Trigger Output 13 HDMI Video Output
6 EXT (1MΩ/18pF) Trigger Input
Terminal
14 AC Power Cord Connector
7 SFP+ Interface (10 Gbps) 15 Fuse
8 10 MHz OUT Reference Clock
Output
16 Power Switch
4.3 User Interface

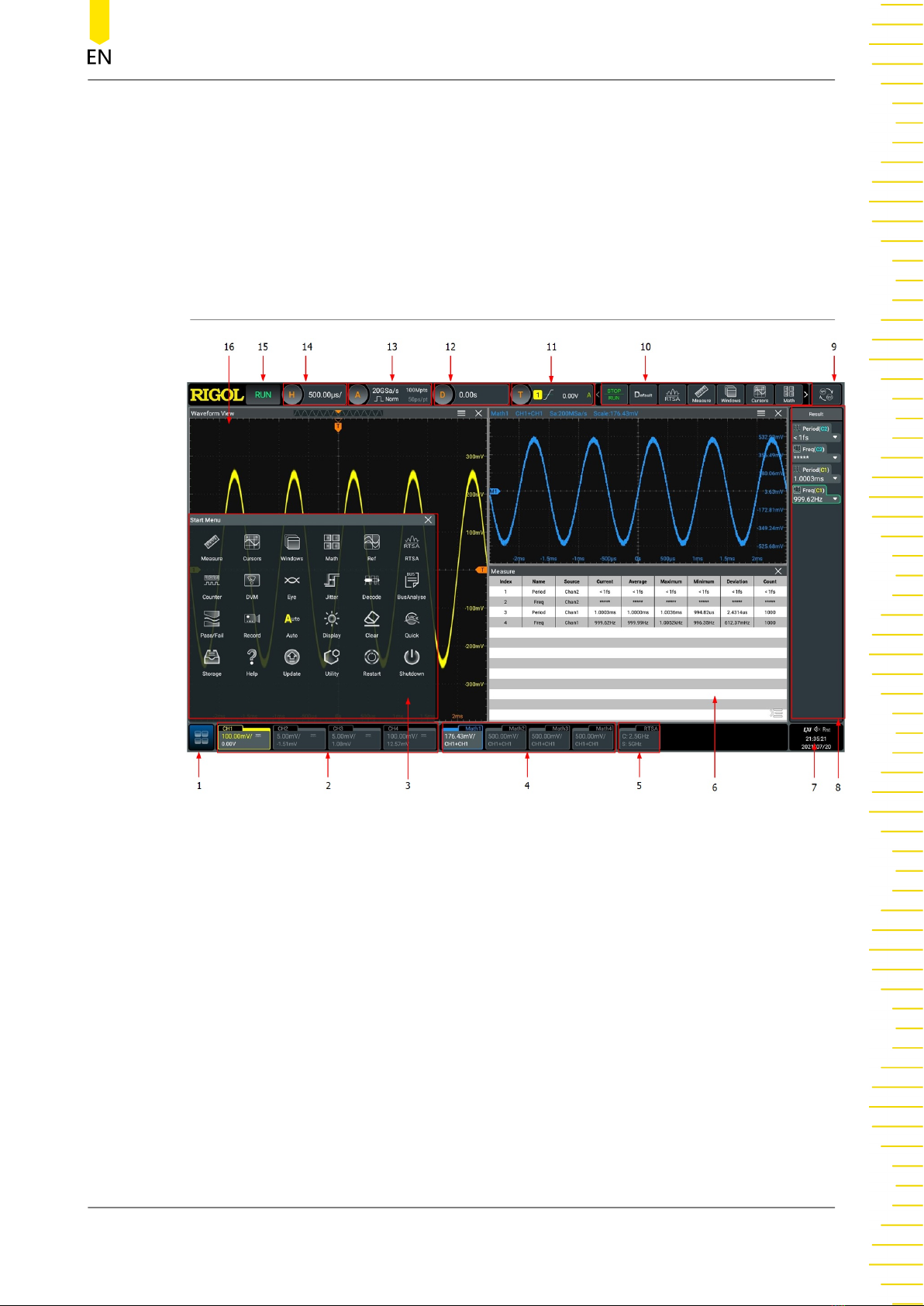

Figure 4.3 User Interface
1Function Navigation Icon 9 Mode Switchover Icon
2 Channel Label 10 Function Icon Bar
3 Function Navigation Menu 11 Trigger Label
4 Channel Operation Label 12 Horizontal Position Label
5 RTSA Label 13 Sample Rate and Memory Depth
Label
6 Multi-window Display Area 14 Horizontal Time Base Label
7 Notification Area 15 Operating Status
8 Result Display Window 16 Waveform Display Area
Product Overview
Copyright ©RIGOL TECHNOLOGIES CO., LTD.
All rights reserved.
7
5 To Prepare for Use
5.1 To Connect to AC Power
The power requirements of the oscilloscope are 100-240 V, 45-440 Hz. Please use the
power cord provided in the accessories to connect the oscilloscope to the AC power
source, as shown in
Figure 5.1
.

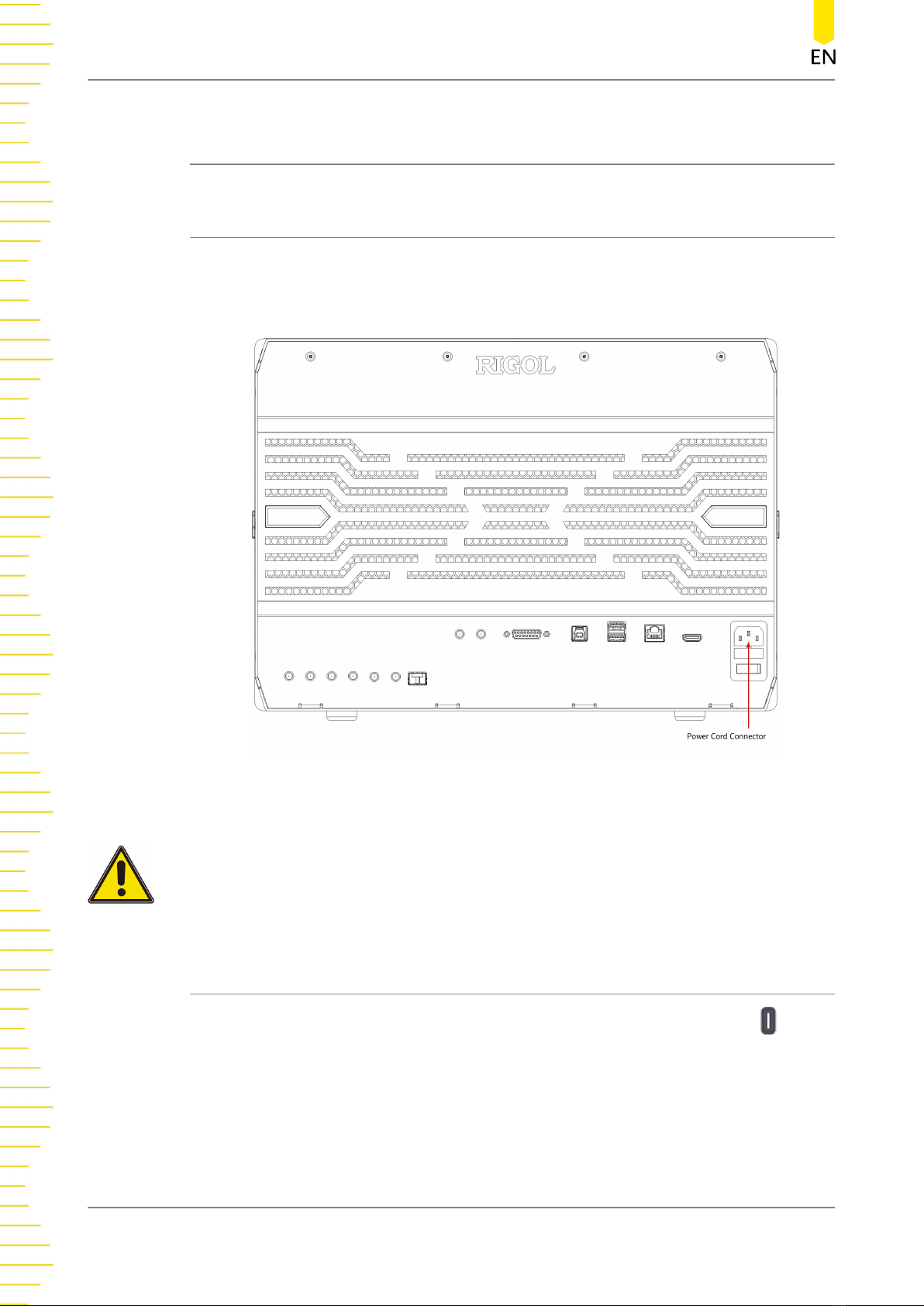

Figure 5.1 To Connect to AC Power
Warning
To avoid electric shock, ensure that the instrument is correctly grounded.
5.2 Turn-on Checkout
After the instrument is connected to the power source, press the power key at the
lower-left corner of the front panel to power on the instrument. During the start-up
process, the instrument performs a series of self-tests. After the self-test, the splash
screen is displayed.
To Prepare for Use
8Copyright ©RIGOL TECHNOLOGIES CO., LTD.
All rights reserved.
