RIGOL

Quick Guide

RSA3000 Series Real-time

Spectrum Analyzer

Jan. 2019

RIGOL (SUZHOU) TECHNOLOGIES INC.

RIGOL

RSA3000 Quick Guide 1

English

Guaranty and Declaration

Trademark Information

RIGOL is a registered trademark of RIGOL TECHNOLOGIES, INC.

Publication Number

QGD21101-1110

Notices

RIGOL products are covered by P.R.C. and foreign patents, issued and

pending.

RIGOL reserves the right to modify or change parts of or all the

specifications and pricing policies at the company’s sole decision.

Information in this publication replaces all previously released materials.

Information in this publication is subject to change without notice.

RIGOL shall not be liable for either incidental or consequential losses in

connection with the furnishing, use, or performance of this manual, as

well as any information contained.

Any part of this document is forbidden to be copied, photocopied, or

rearranged without prior written approval of RIGOL.

Product Certification

RIGOL guarantees that this product conforms to the national and industrial

standards in China as well as the ISO9001:2015 standard and the

ISO14001:2015 standard. Other international standard conformance

certifications are in progress.

If you have any problem or requirement when using our products or this

manual, please contact RIGOL.

E-mail: service@rigol.com

Website: www.rigol.com

RIGOL

2 RSA3000 Quick Guide

English

General Safety Summary

1. Only the exclusive power cord

designed for the instrument

and authorized for use within

the local country could be

used.

2. Ensure that the instrument is

safely grounded.

3. Observe all terminal ratings.

4. Use proper overvoltage

protection.

5. Do not operate without

covers.

6. Do not insert objects into the

air outlet.

7. Use the proper fuse.

8. Avoid circuit or wire exposure.

9. Do not operate the instrument with

suspected failures.

10. Provide adequate ventilation.

11. Do not operate in wet conditions.

12. Do not operate in an explosive

atmosphere.

13. Keep instrument surfaces clean

and dry.

14. Prevent electrostatic impact.

15. Handle with caution.

Safety Notices and Symbols

Safety Notices in this Manual:

WARNING

Indicates a potentially hazardous situation or practice which, if not

avoided, will result in serious injury or death.

CAUTION

Indicates a potentially hazardous situation or practice which, if not

avoided, could result in damage to the product or loss of

important data.

Safety Terms on the Product:

DANGER

It calls attention to an operation, if not correctly performed,

could result in injury or hazard immediately.

WARNING

It calls attention to an operation, if not correctly performed,

could result in potential injury or hazard.

CAUTION

It calls attention to an operation, if not correctly performed,

could result in damage to the product or other devices

connected to the product.

RIGOL

RSA3000 Quick Guide 3

English

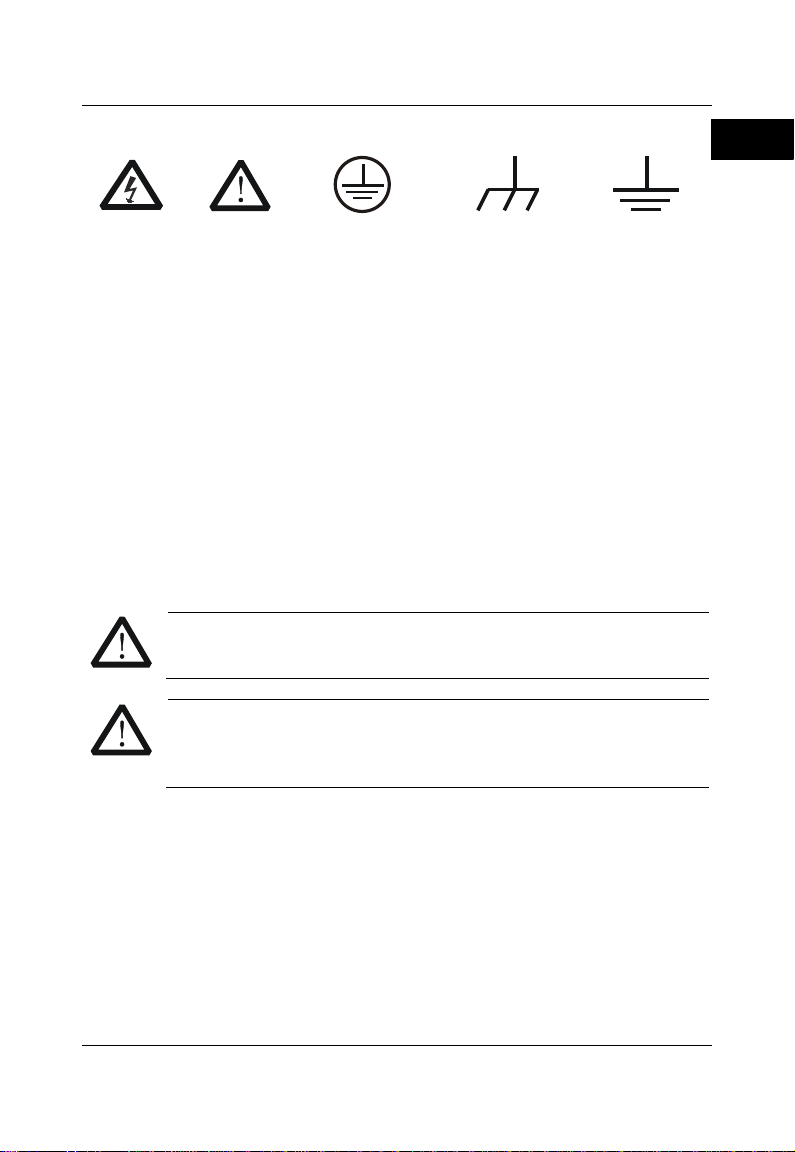

Safety Symbols on the Product:

Hazardous

Voltage

Safety

Warning

Protective Earth

Terminal

Chassis Ground

Test Ground

Care and Cleaning

Care

Do not store or leave the instrument where it may be exposed to direct sunlight

for long periods of time.

Cleaning

Clean the instrument regularly according to its operating conditions.

1. Disconnect the instrument from all power sources.

2. Clean the external surfaces of the instrument with a soft cloth dampened

with mild detergent or water. When cleaning the LCD, take care to avoid

scarifying it.

CAUTION

To avoid damage to the instrument, do not expose it to caustic

liquids.

WARNING

To avoid short-circuit resulting from moisture or personal injuries,

ensure that the instrument is completely dry before connecting it

to the power supply.

RIGOL

4 RSA3000 Quick Guide

English

Document Overview

This manual introduces some basic information that you should know when you

use the RSA3000 series spectrum analyzer for the first time. It contains the

following contents: out-of-box inspection method, product overview, how to

connect the instrument to the AC power, turn-on checkout, and remote control

overview.

Tip

For the latest version of this manual, download it from the official website

of RIGOL (www.rigol.com).

Format Conventions in this Manual

1. Keys:

The keys on the front panel are usually denoted by the format of "Key

Name (Bold) + Text Box". For example, FREQ denotes the FREQkey.

2. Menu Keys:

The menu softkeys are usually denoted by the format of "Menu Word

(Bold) + Character Shading". For example, Center Freq denotes the

center frequency menu under the FREQ function key.

3. Connectors:

The connectors on the front or rear panel are usually denoted by the

format of "Connector Name (Bold) + Square Brackets (Bold)". For

example, [Gen Output 50Ω].

4. Operation Procedures:

"" represents the next step of operation. For example, FREQ Center

Freq indicates pressing FREQ on the front panel and then pressing the

menu softkey Center Freq.

RIGOL

RSA3000 Quick Guide 5

English

Content Conventions in this Manual

The RSA3000 series spectrum analyzer includes the following models. Unless

otherwise specified, this manual takes RSA3045-TG as an example to illustrate

the functions and operation methods of RSA3000 series spectrum analyzer.

Model

Frequency Range

Tracking Generator

RSA3045

9 kHz to 4.5 GHz

None

RSA3030

9 kHz to 3 GHz

None

RSA3045-TG

9 kHz to 4.5 GHz

4.5 GHz

RSA3030-TG

9 kHz to 3 GHz

3 GHz

RIGOL

6 RSA3000 Quick Guide

English

General Inspection

1．Inspect the packaging

If the packaging has been damaged, do not dispose the damaged

packaging or cushioning materials until the shipment has been checked

for completeness and has passed both electrical and mechanical tests.

The consigner or carrier shall be liable for the damage to the instrument

resulting from shipment. RIGOL would not be responsible for free

maintenance/rework or replacement of the instrument.

2．Inspect the instrument

In case of any mechanical damage, missing parts, or failure in passing the

electrical and mechanical tests, contact your RIGOL sales

representative.

3．Check the accessories

Please check the accessories according to the packing lists. If the

accessories are damaged or incomplete, please contact your RIGOL

sales representative.

Product Overview

RSA3000 series is a new generation of cost-efficient real-time spectrum

analyzer with high performance. With superb performance specifications, as

well as the clear user interface, the RSA3000 series allows you to operate it

through various ways, such as pressing keys on the front panel, using the touch

screen, connecting the mouse and the keyboard. Remote communication

interfaces are also available. The instrument can be widely used in education

science, corporate R&D, industrial production, and other fields.

For descriptions of the front panel, refer to Figure 1; for descriptions of the rear

panel, refer to Figure 2; and for descriptions of the main interface (LCD), refer

to Figure 3.

RIGOL

RSA3000 Quick Guide 7

English

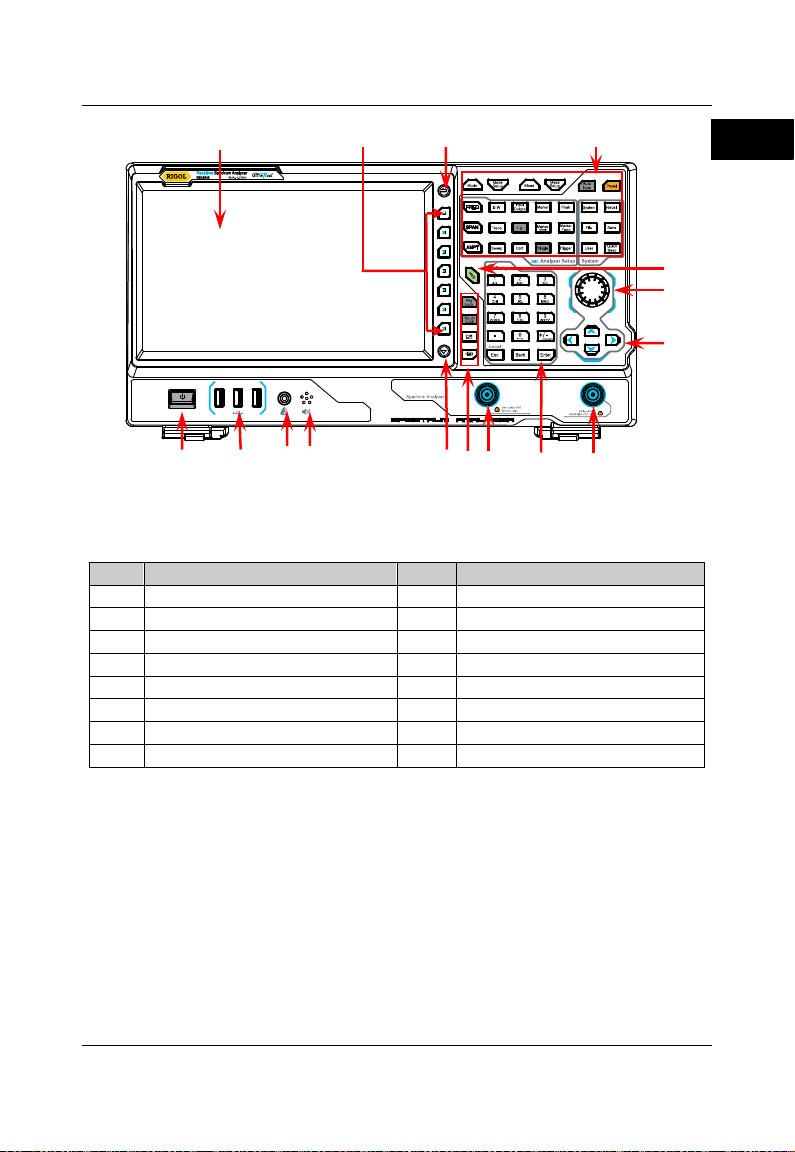

Figure 1 Front Panel

Table 1 Front Panel Description

No.

Description

No.

Description

LCD

Numeric keyboard

Menu softkeys

TG output[1]

Back to previous menu page

Utility function key area

Function key area

Page up/down key

Help key

Speaker

Knob

Earphone jack

Arrow keys

USB HOST

RF input

Power key

Note[1]:This function is only available for RSA3045-TG/RSA3030-TG.

1 2 3 4

16 15 14 13 12 11 10 9 8

RIGOL

8 RSA3000 Quick Guide

English

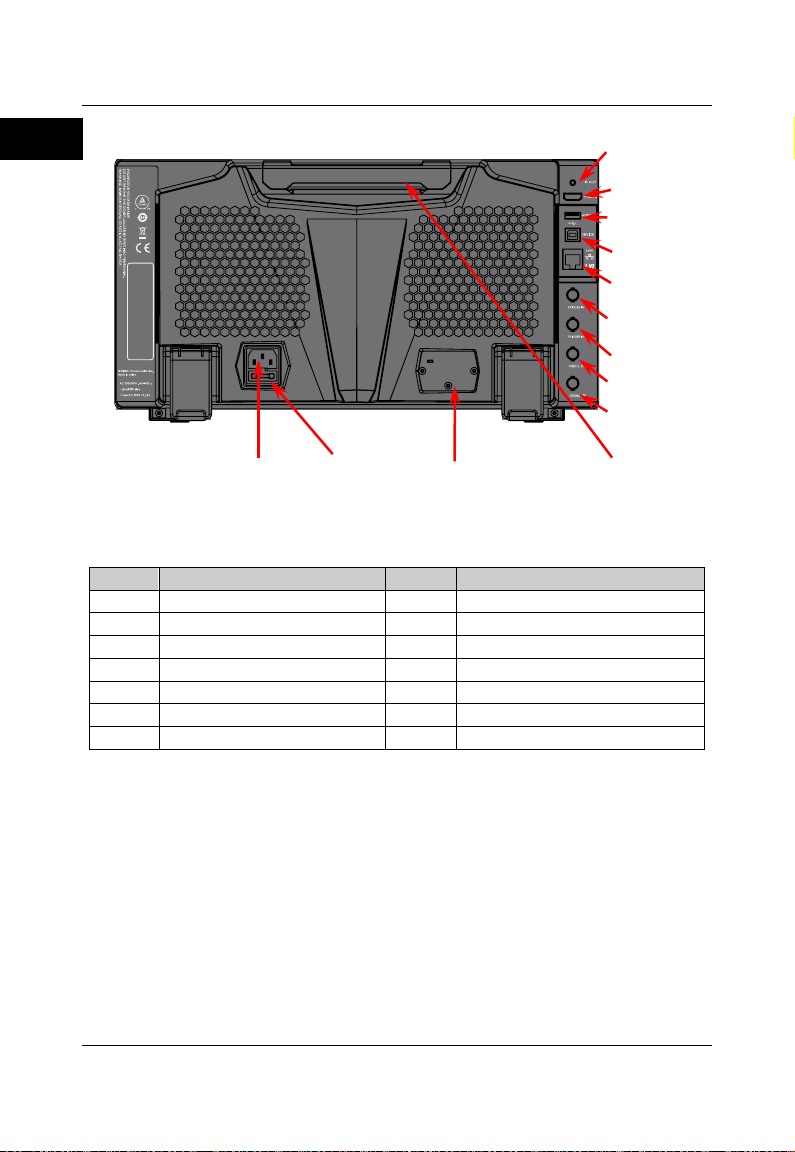

Figure 2 Rear Panel

Table 2 Rear Panel Description

No.

Description

No.

Description

AC power cord connector

TRIGGER IN

Fuse holder

LAN

OCXO (option)

USB DEVICE

Handle

USB HOST

10MHz IN

HDMI

10MHz OUT

IF OUT

TRIGGER IN/OUT

——

1 2 3 4
