Tools Required for Assembly:
Power Driver W/Adjustable Torque
5/32" Hex Head Driver Bit or
Allen Wrench
10mm Wrench or Socket
Hardware Pack# 53577
Is Drawn Actual Size
Instruction # 53578
ITEM # PART # DESCRIPTION QTY.
1 801507 Monitor/TV Ho er Mounting Plate 1
2 801508 Monitor/TV Ho er Side Wing 2
3 52721 M6-1.0x8mm Truss Head Machine Screw 8
4 53252 M6-1 Hex Jam Nut 3mm Thick 4
5 801510 Monitor/TV Ho er Mount Pole Joint 1
6 52743 Ho er 27.6" Pole 1
52721 53252
3 4

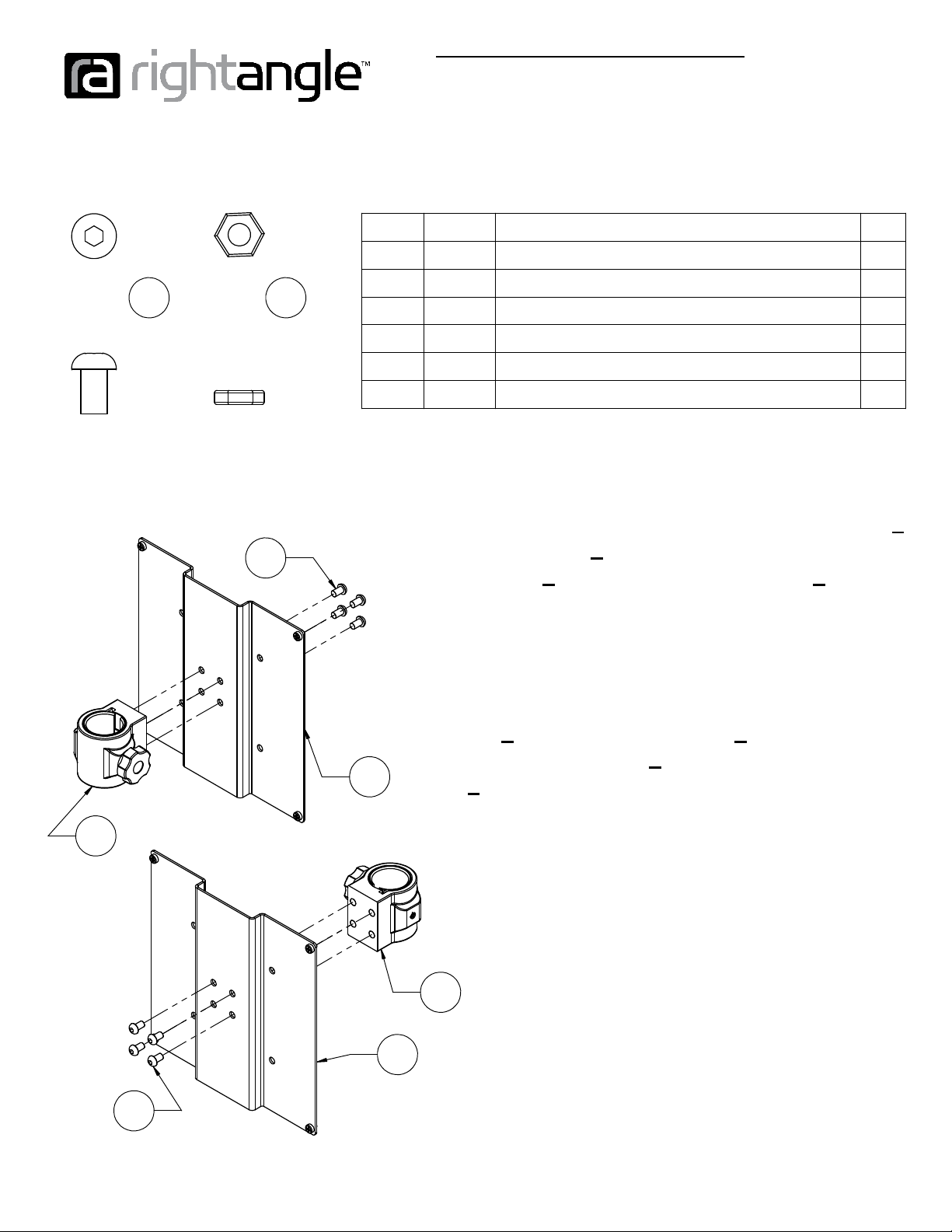

Step 1a: If you are mounting a small TV or monitor
with 100mm distance between the mounting holes,
use Step 1a. This setup will not use the side wings 2.
Attach the pole joint 5to the raised side of the
mounting plate 1using (4) machine screws 3. Fully
tighten.

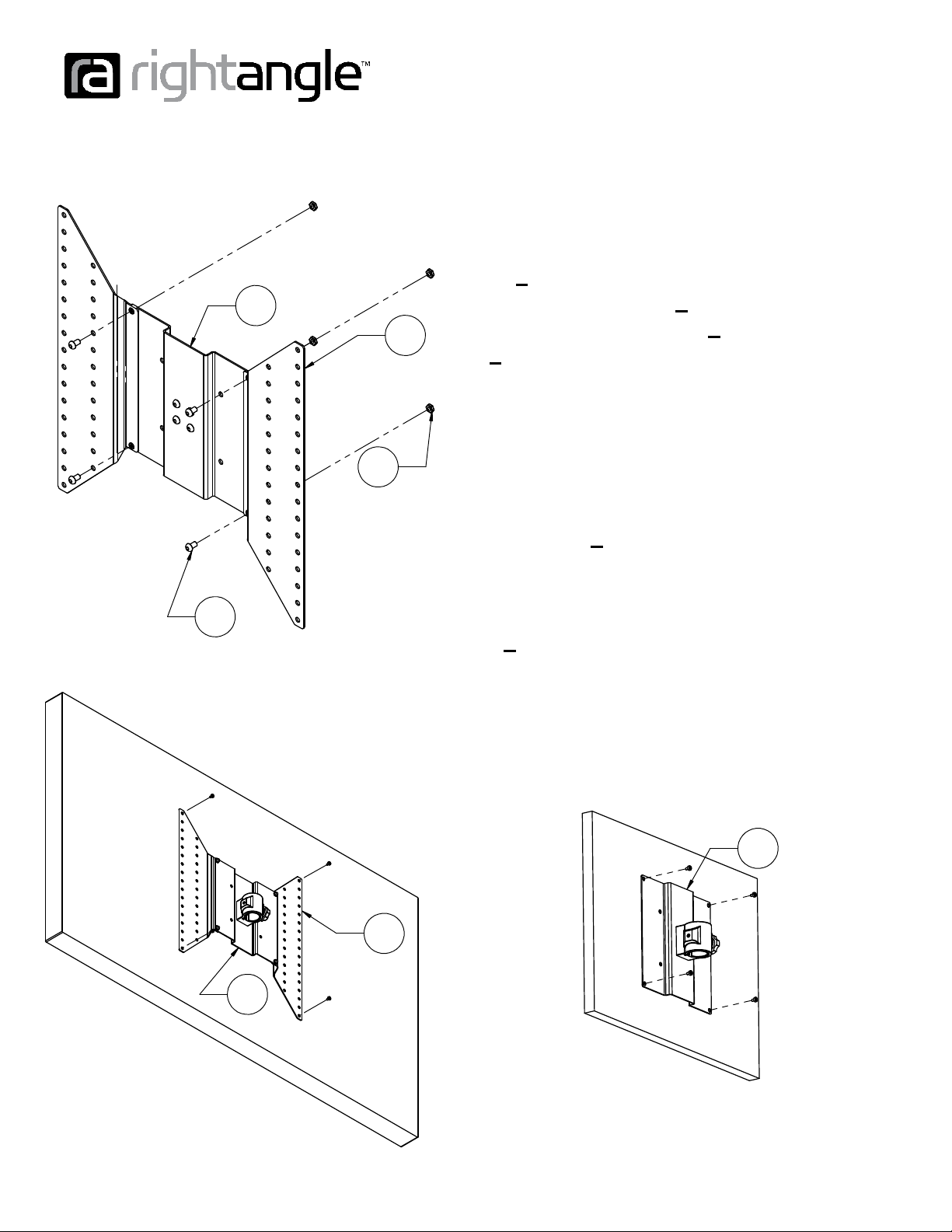

Step 1b: If you are mounting a large TV or monitor
with 200mm or 400mm distance between the
mounting holes, use Step 1b. This setup will use the
side wings 2. Attach the pole joint 5to the recessed
side of the mounting plate 1using (4) machine
screws 3. Fully tighten
