Riello MCT 10 Mode d’emploi

NTRODUCTION

Thank you for choosing our product.

Our company is specialised in designing, developing and manufacturing uninterruptible power supplies (UPS).

The UPS described in this manual is a high quality product which has been carefully designed and built in order to guarantee

the highest levels of performance.

This manual contains detailed instructions for using and installing the product.

For information about using and getting the most out of your appliance, this manual must be stored with care in the

vicinity of the UPS and CONSULTED BEFORE OPERATING ON IT.

NOTE: Some images contained within this document are for indication purposes only and therefore may not identically match

the products in use.

NVIRONMENTAL PROTECTION

During the development of its products, the company uses extensive resources with regards to all environmental aspects.

All our products pursue the objective defined in the environmental management system developed by the company in

compliance with standards in force.

No hazardous materials such as CFC, HCFC or asbestos are used in this product.

When evaluating packaging, the choice of material has been made favouring recyclable materials.

For correct disposal, please separate and identify the type of material of which the packaging is made in the table below.

Dispose of all material in compliance with standards in force in the country in which the product is used.

ESCRIPTION

ATERIAL

Pallet Heat-treated pine

Packaging corner Stratocell/cardboard

Box Cardboard

Adhesive pad Stratocell

Protective bag HD Polyethylene

ISPOSING OF THE PRODUCT

The UPS contains internal material that (in case of dismiss / disposal) are considered TOXIC and HAZARDOUS WASTE, such

as electronic circuit boards and batteries. Treat these materials according to the laws applicable referring to qualified service

personnel. Their proper disposal contributes to respect the environment and human health.

In order to make improvements, the manufacturer reserves the right to modify the product described at any moment and without notice.

ONTENTS

OVERVIEW 5

ULTI

ENTRY

MCT

VIEWS

MST

VIEWS

IEW OF THE

UPS

ONNECTIONS

IEW OF THE

ONTROL

ANEL

ATTERY

(

OPTIONAL

) 10

EPARATE

YPASS

NPUT

(

OPTIONAL

) 11

NTERNAL

RANSFORMER

DDITIONAL

NTERNAL

ATTERY

HARGERS

INSTALLATION 12

TORING THE

UPS

AND THE

ATTERY

REPARING FOR INSTALLATION

RELIMINARY

NFORMATION

LECTROMAGNETIC

OMPATIBILITY

NSTALLATION

NVIRONMENT

EMOVING THE

UPS

AND THE

ATTERY

OX FROM THE

ALLET

RELIMINARY

HECK OF

ONTENTS

NSTALLING THE

UPS

AND THE

ATTERY

TEPS TO BE

AKEN TO

AIN

CCESS TO THE

ERMINALS OF THE

UPS

ATTERY

LECTRICAL

ONNECTIONS

IRING DIAGRAMS FOR

ONNECTING TO THE

LECTRICAL

YSTEM

NTERNAL

ROTECTIVE

EVICES OF THE

UPS 20

XTERNAL

ROTECTIVE

EVICES

ROSS

ECTION OF THE

ABLES

ONNECTIONS

ONNECTIONS OF THE MODEL WITH SEPARATE BYPASS

R.E.P.O. 23

XTERNAL

YNC

ONNECTING THE

EMOTE

AINTENANCE

YPASS

ONNECTING THE

ATTERY

OX TO THE

UPS 26

ULTIPLE

XPANSIONS

ETTING THE

ATED

ATTERY

APACITY

–

OFTWARE

ONFIGURATION

XTERNAL

EMPERATURE

ROBE

EMOTE PANEL

(

OPTIONAL

) 28

USE 29

ESCRIPTION

RELIMINARY

PERATIONS

OWERING ON FOR THE

IRST

IME

OWERING ON FROM THE

AINS

OWERING ON FROM THE

ATTERY

OWERING OFF THE

UPS 32

RAPHIC

ISPLAY

ENUS

PERATING

ODES

AINTENANCE

YPASS

(SWMB) 35

EDUNDANT

UXILIARY

OWER

UPPLY FOR

UTOMATIC

YPASS

ROGRAMMABLE

UXILIARY

OCKET

(

POWER SHARE

) 36

OWER WALK

EDUCING THE

OAD

(

200V

AND

208V) 36

ONFIGURING THE

UPS 37

OMMUNICATION

ORTS

RS232

AND

USB

ONNECTORS

OMMUNICATION

LOTS

AS400

ORT

UZZER

OFTWARE

ONITORING AND

ONTROL

OFTWARE

ONFIGURATION

OFTWARE

TROUBLESHOOTING GUIDE 43

TATUS

ALARM

ODES

TECHNICAL DATA 51

OVERVIEW

ULTI

ENTRY

The UPS units of the Multi Sentry 10 – 12 – 15 – 20 kVA range (VFI-SS-111 type) have been designed using the latest

technology available today so as to guarantee users maximum performance. The use of the new control PCBs based on

multiprocessor architecture (DSP + µP inside) together with high frequency IGBT technology offers excellent performance both

in the input stage (absorbed current harmonic distortion ≤3%) and in output (output voltage distortion ≤1%).

Thanks to these and many other features plus the easy-to-use design, the Multi Sentry represents a new reference standard in

the three-phase UPS sector.

Depending on user requirements, there are two different versions available:

MCT

The Multi Sentry MCT version stands out by its

compact size and new, modern design. These

features make it suitable for any environment.

MST

The Multi Sentry MST version, offers longer

autonomy than the MCT version, thanks to the

possibility to double the number of batteries inside the

cabinet.

10 kVA 12 kVA 15 kVA 20 kVA

Nominal power 10000 VA

9000 W

12000 VA

10800 W

15000 VA

13500 W

20000 VA

18000 W

Output power factor 0.9 0.9 0.9 0.9

Weight (with

batteries)

MCT 180 Kg 182 Kg 190 Kg 195 Kg

MST 305 Kg 310 Kg 315 Kg 320 Kg

W x D x H

MCT 320 x 840 x 930 mm

MST 440 x 850 x 1320 mm

Accessories Battery cabinets – Communication boards – Remote mimic panel

MCT

VIEWS

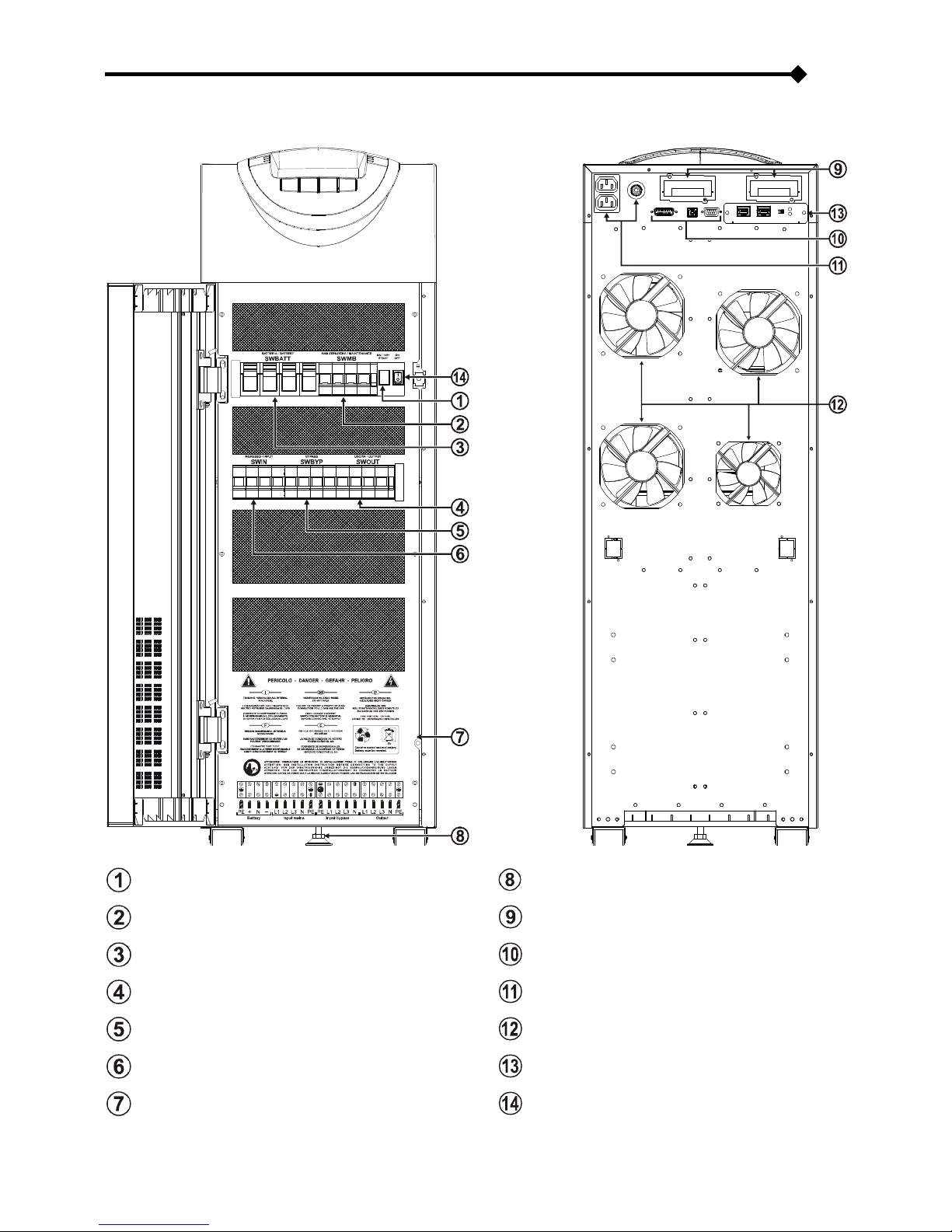

Battery start button (COLD START)

Brake rod

Manual bypass switch Slots for accessory communication cards

Battery fuse holder isolator Communication ports (AS400, USB, RS232)

Output switch

Powershare sockets (10A max. total on the two

sockets) and relative protection

Separate bypass switch (optional) Ventilation fans

Input switch Parallel PCB (optional)

Terminal cover panel 1/0 main power switch

MST

VIEWS

Battery start button (COLD START)

Brake rod

Manual bypass switch Slots for accessory communication cards

Battery fuse holder isolator Communication ports (AS400, USB, RS232)

Output switch

Powershare sockets (10A max. total on the two

sockets) and relative protection

Separate bypass switch (optional) Ventilation fans

Input switch Parallel PCB (optional)

Terminal cover panel Remote Emergency Power Off (R.E.P.O.)

IEW OF THE

UPS

ONNECTIONS

Connection for the R.E.P.O command (Remote Emergency Power Off)

(see previous page for the MST version)

Power connections: BATTERY, INPUT, SEPARATE BYPASS (optional), OUTPUT

Connection for remote maintenance bypass command

Connection for external Battery Box temperature probe

Connection for external synchronization signal

Slot for power relay board

IEW OF THE

ONTROL

ANEL

Graphic display Function keys *

Left-hand LEDs area: Right-hand LEDs area:

Mains power LED Stand-by / alarm LED

Battery power LED Battery low LED

Load on bypass LED ECO mode LED

* The function of each key is indicated at the bottom of the display and varies according to the menu used.

ATTERY

(

OPTIONAL

)

THE BATTERY BOX IS AN OPTIONAL ACCESSORY.

The Battery Box contains batteries that increase the operating time of the UPS during prolonged black-outs. The number of

batteries contained in it will vary according to the type of UPS to which the Battery Box is to be installed. The utmost attention

must be paid to ensure that the battery voltage of the Battery Box corresponds to that supported by the UPS.

Additional Battery Boxes may be connected in a chain to obtain the desired autonomy time during a power failure.

This series of Battery Box contains two separate strings of batteries, one with a positive voltage and the other with a negative

voltage with respect to the neutral terminal (N).

The basic diagram for the Battery Box is shown here below.

BBX 1320 480V

BB NP T4 3F

BBX 1320 480V

BB NP T2 3F

BBX 1320 480V

BB NP T8 3F

BBX 1320 480V

BB NP T5 3F

Rated voltage 240 + 240 Vdc 240 + 240 Vdc 240 + 240 Vdc 240 + 240 Vdc

Weight 300 Kg 390 Kg 395 Kg 400 Kg

W x D x H 400 x 815 x 1320 mm
