Riello RS 190 Guide de démarrage rapide

2916007 (14) - 01/2017

Installation, use and maintenance instructions

Instrucciones de instalación, montaje y funcionamiento

Instruções de instalação, uso e manutenção

Forced draught gas burners

Quemadores de gas con aire soplado

Queimadores a gás com ar insuflado

Two-stage progressive operation

Funcionamiento a dos llamas progresivas

Funcionamento a duas chamas progressivas

CODE - CÓDIGO MODEL - MODELO TYPE - TIPO

3785814 - 20011705 RS 190 835 T1

Translation of the original instructions

Traducción de las instrucciones originales

Tradução das instruções originais

CONTENTS

TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 2

Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Burner description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Packaging - Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Max. dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Standard equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Firing rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Test boiler. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Commercial boilers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Gas pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Boiler plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Blast tube length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Securing the burner to the boiler . . . . . . . . . . . . . . . . . . . . . . . . . 6

Setting the combustion head . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Gas line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Electrical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Adjustments before firing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Servomotor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Burner starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Burner firing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Burner calibration: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1 - Firing output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2 - 2nd stage output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3 - 1st stage output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4 - Intermediates outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5 - Air pressure switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

6 - Minimum gas pressure switch. . . . . . . . . . . . . . . . . . . . . . . . 15

Flame present check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Burner operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Final checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Burner start-up cycle diagnostics. . . . . . . . . . . . . . . . . . . . . . . 18

Resetting the control box and using diagnostics. . . . . . . . . . . 18

Fault - Probable cause - Suggested remedy . . . . . . . . . . . . . . . 19

Normal operation / flame detection time. . . . . . . . . . . . . . . . . . . 20

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

N.B.

Figures mentioned in the text are identified as follows:

1)(A) =part 1 of figure A, same page as text;

1)(A)p.3 =part 1 of figure A, page number 3.

TECHNICAL DATA

(1) Reference conditions: Ambient temperature 20°C - Gas temperature 15°C - Barometric pressure 1013 mbar - Altitude 0 m s.l.m.

(2) Pressure at test point 17)(A)p.3, with zero pressure in the combustion chambre, with open gas ring 2)(B)p.7 an maximum burner output

(3) Sound pressure measured in manufacturer's combustion laboratory, with burner operating on test boiler and at maximum rated output. The

sound power is measured with the “Free Field” method, as per EN 15036, and according to an “Accuracy: Category 3” measuring accuracy,

as set out in EN ISO 3746.

ELECTRICAL DATA

GAS CATEGORY

VARIANTS

MODEL RS 190

OUTPUT (1) 2nd stage kW

Mcal/h 1279 - 2290

1100 - 1970

min. 1st stage kW

Mcal/h 470

405

FUEL NATURAL GAS: G20 - G21 - G22 - G23 - G25

G20 G25

- pressure at max. delivery (2) mbar 15 22

OPERATION • On-Off (1 stop min each 24 hours).

• Two-stage (high and low flame) and single stage (all - nothing)

STANDARD APPLICATIONS Boilers: water, steam, diathermic oil

AMBIENT TEMPERATUR °C 0 - 40

COMBUSTION AIR TEMPERATURE °C max 60

IN CONFORMITY WITH DIRECTIVES 2009/142 - 2006/42 - 2014/35 - 2014/30

NOISE LEVELS (3) SOUND PRESSURE

SOUND POWER dB(A) 83,1

94,1

APPROVAL CE 0085AT0042

MODEL RS 190

ELECTRICAL SUPPLY V

Hz 400 with neutral ~ +/-10%

50 - three-phaes 230 with neutral ~ +/-10%

50 - three-phaes

ELECTRIC MOTOR IE2 rpm

2900

4500

400

2900

4500

230

Running current A 9,1 15,8

Start-up current A 81 141

IGNITION TRANSFORMER V1 - V2

I1 - I2 230 V - 1 x 8 kV

1 A - 20 mA

ELECTRICAL POWER CONSUMPTION W max 5500

ELECTRICAL PROTECTION IP 44

COUNTRY CATEGORY

IT - AT - GR - DK - FI - SE

ES - GB - IE - PT

LU - PL

II2H3B / P

II2H3P

I2L - I2E - I2(43,46 ÷ 45,3 MJ/m3(0°C))

II2Er3P

II2ELL3B /P

I2E(R)B, I3P

II2E 3B/P

Model Code Power supply

electrical

RS 190 3785814 400 V

RS 190 20011705 230 V

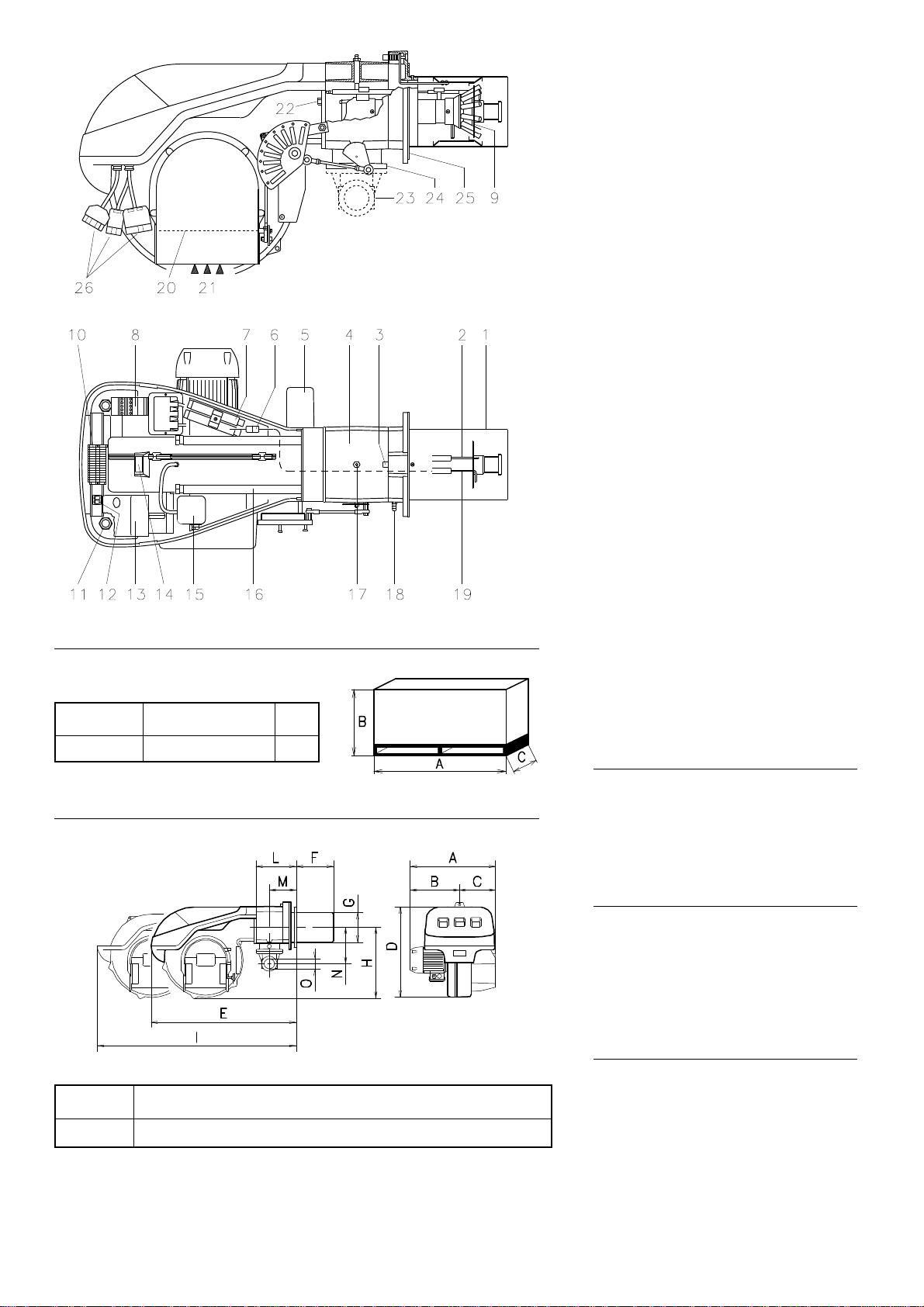

BURNER DESCRIPTION (A)

1 Combustion head

2 Ignition electrode

3 Screw for combustion head adjustment

4Sleeve

5 Servomotor controlling the gas butterfly

valve and of air gate valve (by means of a

variable profile cam mechanism).

When the burner is stopped the air gate

valve will be completely closed to reduce

heat loss due to the flue draught, which

tends to draw air from the fan air inlet.

6 Plug-socket on ionisation probe cable

7 Extension for slide bars 16)

8 Motor contactor and thermal cut-out reset

button

9 Flame stability disk

10 Terminal strip

11 Fairleads for electrical connections by installer

12 Two switches:

- one “burner off-on”

- one for “1st - 2nd stage operation”

13 Control box with lock-out pilot light and lock-

out reset button

14 Flame inspection window

15 Minimum air pressure switch

(differential operating type)

16 Slide bars for opening the burner and

inspecting the combustion head

17 Gas pressure test point and head fixing screw

18 Air pressure test point

19 Flame sensor probe

20 Air gate valve

21 Air inlet to fan

22 Screws securing fan to sleeve

23 Gas input pipework

24 Gas butterfly valve

25 Boiler mounting flange

26 Socket for electrical connections

Two types of burner failure may occur:

•Control box lock-out: if the control box

13)(A) pushbutton (red led) lights up, it indi-

cates that the burner is in lock-out.

To reset, hold the pushbutton down for

between 1 and 3 seconds.

•Motor trip: release by pressing the pushbut-

ton on thermal cutout 8)(A).

PACKAGING - WEIGHT (B)

Approximate measurements

• The burner stands on a wooden base which

can be lifted by fork-lifts.

Outer dimensions of packaging are indicated

in (B).

• The weight of the burner complete with pack-

aging is indicated in Table (B).

MAX. DIMENSIONS (C)

Approximate measurements

The maximum dimensions of the burner are

given in (C).

Bear in mind that inspection of the combustion

head requires the burner to be opened by with-

drawing the rear part on the slide bars.

The maximum dimension of the burner when

open is give by measurement I.

STANDARD EQUIPMENT

1 - Gas train flange

1 - Flange gasket

6 - Flange fixing screws M 10 x 30

1 - Thermal insulation screen

4 - Screws to secure the burner flange to the

boiler: M 12 x 35

3 - Plugs for electrical connections

1 - Instruction booklet

1 - Spare parts list

(A)

(B)

(C)

D36

D731

mm A B C kg

RS 190 1250 725 785 82

mm ABCDEFGH I LMN O

RS 190 681 366 315 555 872 372 222 430 1328 246 150 186 2”

D7860

FIRING RATES (A)

The RS 190 model burner can work in two way:

one-stage and two-stage.

MAXIMUM OUTPUT must be selected in area

MINIMUM OUTPUT must not be lower than the

minimum limit shown in the diagram.

RS 190 = 470 kW

Important

The FIRING RATE area values have

been obtained considering a surround-

ing temperature of 20 °C, and an at-

mospheric pressure of 1013 mbar

(approx. 0 m above sea level) and with

the combustion head adjusted as

shown on page 7.

TEST BOILER (B)

The firing rates were set in relation to special

test boilers, according to EN 676 regulations.

Figure (B) indicates the diameter and length of

the test combustion chamber.

Example:

Output 756 kW:

diameter = 60 cm; length = 2 m.

COMMERCIAL BOILERS

The burner/boiler combination does not pose

any problems if the boiler is CE type-approved

and its combustion chamber dimensions are

similar to those indicated in diagram (B).

If the burner must be combined with a commer-

cial boiler that has not been CE type-approved

and/or its combustion chamber dimensions are

clearly smaller than those indicated in diagram

(B), consult the manufacturer.

(A)

(B) D715

D1262

RS 190

pressure mbar

Combustion chamber

length m

Combustion chamber

GAS PRESSURE

The adjacent table shows minimum pressure

losses along the gas supply line depending on

the burner output in 2nd stage operation.

Column 1

Pressure loss at combustion head.

Gas pressure measured at test point 1)(B), with:

• Combustion chamber at 0 mbar

• Burner operating in 2nd stage

• Combustion head adjusted as indicated in

diagram (C)p. 7.

Column 2

Pressure loss at gas butterfly valve 2)(B) with

maximum opening: 90°.

The values shown in the various tables refer to:

– natural gas G 20 PCI 9,45 kWh/Sm3(8,2

Mcal/Sm3)

– natural gas G 25 PCI 8,13 kWh/Sm3(7,0

Mcal/Sm3)

Calculate the approximate 2nd stage output of

the burner thus:

- Subtract the combustion chamber pressure

from the gas pressure measured at test point

1)(B).

- Find the nearest pressure value to your result

in column 1 of the table (A).

- Read off the corresponding output on the left.

Example:

• 2nd stage operation

• Gas pressure at test point 1)(B) =12.9 mbar

• Pressure in combustion chamber = 3 mbar

12,9 - 3=9,9 mbar

A 2nd stage output of 1800 kW shown in Table

(A) corresponds to 9.9 mbar pressure, column

This value serves as a rough guide, the effective

delivery must be measured at the gas meter.

To calculate the required gas pressure at test

point 1)(B), set the output required from the

burner in 2nd stage operation:

- Find the nearest output value in the table (A).

- Read off the pressure at test point 1)(B) on

the right in column 1.

- Add this value to the estimated pressure in

the combustion chamber.

Example:

• Required burner output in 2nd stage opera-

tion: 1800 kW

• Gas pressure at burner output of 1800 kW,

taken from table (A), column 1 =9.9 mbar

• Pressure in combustion chamber = 3 mbar

9.9 + 3 =12.9 mbar

pressure required at test point 1)(B).

(A)

(B)

kW 1 p (mbar) 2 p (mbar)

G 20 G 25 G 20 G 25

1280 9.6 14.3 1.3 2.0

1500 9.7 14.5 1.8 2.7

1800 9.9 14.8 2.7 4.0

2100 12.6 18.8 3.6 5.4

2290 14.9 22.2 4.3 6.4

S8883

INSTALLATION

BOILER PLATE (A)

Drill the combustion chamber locking plate as

shown in (A). The position of the threaded holes

can be marked using the thermal screen sup-

plied with the burner.

BLAST TUBE LENGTH (B)

The length of the blast tube must be selected

according to the indications provided by the

manufacturer of the boiler, and in any case it

must be greater than the thickness of the boiler

door complete with its fettling. The length avail-

able, L (mm), is 372 mm.

For boilers with front flue passes 15) or flame

inversion chambers, protective fettling in refrac-

tory material 13) must be inserted between the

boiler fettling 14) and the blast tube 12).

This protective fettling must not compromise the

extraction of the blast tube.

For boilers having a water-cooled front the

refractory fettling 13)-14)(B) is not required

unless it is expressly requested by the boiler

manufacturer.

SECURING THE BURNER TO THE BOILER

(B)

Before securing the burner to the boiler, check

through the blast tube opening to make sure

that the flame sensor probe and the ignition

electrode are correctly set in position, as shown

in (C).

Now detach the combustion head from the

burner, fig.(B):

- Loosen the 4 screws 3) and remove the cover 1)

- Disengage the articulated coupling 7) from

the graduated sector 8).

- Remove the screws 2) from the slide bars 5).

- Remove the two screws 4) and pull the burner

back on slide bars 5) by about 100 mm.

Disconnect the wires from the probe and the

electrode and then pull the burner completely

off the slide bars.

Secure the flange 11)(B) to the boiler plate, inter-

posing the thermal insulating screen 9)(B) sup-

plied with the burner. Use the 4 screws, also

supplied with the unit, after first protecting the

thread with an anti-locking product.

The seal between burner and boiler must be air-

tight.

If you noticed any irregularities in positions of

the probe or ignition electrode during the check

mentioned above, remove screw 1)(D), extract

the internal part 2)(D) of the head and proceed

to set up the two components correctly.

Do not attempt to turn the probe. Leave it in the

position shown in (C) since if it is located too

close to the ignition electrode the control box

amplifier may be damaged.

(A)

(B)

(C)

(D)

D455

D3036

D1265

D1266

mm A B C

RS 190 230 325-368 M 16

PROBE ELECTRODE

SETTING THE COMBUSTION HEAD

Installation operations are now at the stage

where the blast tube and sleeve are secured to

the boiler as shown in fig. (B). It is now a very

simple matter to set up the combustion head, as

this depends solely on the output developed by

the burner in 2nd stage operation.

It is therefore essential to establish this value

before proceeding to set up the combustion

head.

There are two adjustments to make on the

head.

Air adjustment (B) See diagram (C).

Turn screw 4)(B) until the notch identified is

aligned with the front surface 5)(B) of the flange.

Gas adjustment (A)

When the burner is installed for an output in 2nd

stage 1300 Mcal/h (about 1500 kW) assemble

the supplied disks 1)-2)(A) removing the inner

pipe 3)(A). If there is little gas in the network, the

head may be left in standard configuration, limit-

ing the minimum modulation to 450 Mcal/h

(circa 520 kW).

Example

Burner output = 1593 kW (1370 Mcal/h).

If we consult diagram (C) we find that for this

output, air must be adjusted using notch 3, as

shown in fig. (B).

Continuing with the previous example, page 5

indicates that for burner with output of 1593 kW

(1370 Mcal/h) a pressure of approximately 8

mbar is necessary at test point 6)(B).

Once you have finished setting up the head, refit

the burner to the slide bars 3)(D) at approxi-

mately 100 mm from the sleeve 4)(D) - burner

positioned as shown in fig. (B)p. 6 - insert the

flame detection probe cable and the ignition

electrode cable and then slide the burner up to

the sleeve so that it is positioned as shown in

fig. (D).

Refit screws 2) on slide bars 3).

Secure the burner to the sleeve by tightening

screw 1).

Reconnect the articulation 7) to the graduated

sector 6).

Important

When fitting the burner on the two slide

bars, it is advisable to gently draw out

the high tension cable and flame detec-

tion probe cable until they are slightly

stretched.

(A)

(C)

(B)

(D)

Burner output in 2nd stage operation

Nr. Notches

D1267

D1268

D3037

GAS LINE

• The gas train must be connected to the gas

attachment 1)(A), using flange 2), gasket 3)

and screws 4) supplied with the burner.

• The gas train can enter the burner from the

right or left side, depending on which is the

most convenient, see fig.(A).

• Gas solenoids 8)-9)(B) must be as close as

possible to the burner to ensure gas reaches

the combustion head within the safety time

range of 3 s.

• Make sure that the pressure governor calibra-

tion range (colour of the spring) comprises the

pressure required by the burner.

GAS TRAIN (B)

Type-approved in accordance with EN 676 and

supplied separately from the burner.

To select the correct model of the gas train, refer

to the “burner-gas train combination” manual

supplied.

KEY (B)

1 Gas input pipe

2 Manual valve

3 Vibration damping joint

4 Pressure gauge with pushbutton cock

5Filter

6A Includes:

–Filter

– working valve

– safety valve

– pressure adjuster

6C Includes

– safety valve

– working valve

6D Includes:

– safety valve

– working valve

7 Minimum gas pressure switch

8 Leak detection device, supplied as an ac-

cessory or incorporated, based on the gas

train code. In compliance with the EN 676

standard, the leak detection control is com-

pulsory for burners with maximum outputs

over 1200 kW.

9 Gasket, for “flanged” versions only

10 Pressure adjuster

11 Train-burner adaptor, supplied separately

P2 Upstream pressure of valves/adjuster

P3 Upstream pressure of the filter

L Gas train supplied separately

L1 The responsibility of the installer

Note

See the accompanying instructions for the

adjustment of the gas train.

(A) D722

20057264

20062223

MBC

20062227

DMV

20062228

(B)

Autres manuels pour RS 190

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Riello Brûleur

Riello

Riello 40 FS20 Manuel utilisateur

Riello

Riello RS 300/M BLU Guide de démarrage rapide

Riello

Riello RDB1 50-90 Guide de démarrage rapide

Riello

Riello BS4DF Guide de démarrage rapide

Riello

Riello 40BF Instructions d'installation

Riello

Riello RDB2.2 15-21 Instructions d'installation et d'utilisation

Riello

Riello G3 Guide de démarrage rapide

Riello

Riello Gulliver RG3 Guide de démarrage rapide

Riello

Riello GULLIVER RG1 Guide de démarrage rapide

Riello

Riello RS 50/M Guide de démarrage rapide

Riello

Riello RDB2.2R BG1 BLU 21 Guide de démarrage rapide

Riello

Riello DB 12 LSE C13 A0 FS1 FR Guide de démarrage rapide

Riello

Riello 663 M Guide de démarrage rapide

Riello

Riello DB9 LSE C13 TC FS1 A0 Guide de démarrage rapide

Riello

Riello G10 Guide de démarrage rapide

Riello

Riello RN 28 Guide de démarrage rapide

Riello

Riello RL 28 Guide de démarrage rapide

Riello

Riello RG2D Guide de démarrage rapide

Riello

Riello DB 16 SM C01 TC A0 FS1 T250 Guide de démarrage rapide

Riello

Riello 3479365 Guide de démarrage rapide

Riello

Riello RS 1300/E C01 Guide de démarrage rapide

Riello

Riello RLS 70 Manuel utilisateur

Riello

Riello RDB 3.2 BT 50/70 Guide de démarrage rapide

Riello

Riello DB 12 LSE FGR Guide de démarrage rapide

Manuels Brûleur populaires d'autres marques

True Induction

True Induction TI4B Manuel utilisateur

Weishaupt

Weishaupt WG20 Series Manuel utilisateur

Carolina Cooker

Carolina Cooker M116672 Manuel utilisateur

Unigas

Unigas HTP2000 Manuel utilisateur

baltur

baltur BT 250 DSG 4T Manuel utilisateur

muenkel design

muenkel design round burner Manuel utilisateur

Ecoflam

Ecoflam Multicalor 170.1 Manuel utilisateur

baltur

baltur BT 14 DSGW Manuel utilisateur

artisan

artisan Art-SB1 Mode d’emploi

AESYS

AESYS TurboFire II Manuel utilisateur

IKEA

IKEA GRILLSKÄR Manuel utilisateur

RUSTA

RUSTA SAREK Manuel utilisateur

PROPOINT

PROPOINT 8933657 Manuel utilisateur

baltur

baltur TBL 1000 ME Manuel de référence

Riello Burners

Riello Burners P 200 P/G Guide de démarrage rapide

WLD-TEC

WLD-TEC powerjet Manuel utilisateur

MSR

MSR DRAGONFLY Manuel utilisateur

baltur

baltur COMIST 23SP Manuel utilisateur
