Condensing generators

Condexa Pro

Wall-hung gas condensing modules

Stand alone installation

In conformity with Directive 2009/125/EC

Condensing thermal modules for indoor applications

Modular design to ensure an easy and fast installation

Low polluting emissions, Class 6 (DIN EN 15502)

CONDENSING GENERATORS

Wall-hung gas condensing modules

Condexa Pro

PRODUCT OVERVIEW

Condexa PRO is the new Riello proposal as a modular condensing wall-hung system, capable to ensure extremely high

performance levels and to cover a wide range of applications for indoor installation, with sealed combustion; stand alone or

cascade configurations are possible with heat outputs up to 970 kW.

The range consists of 3 models with thermal modules from 45 up to 97 kW. 70 P and 100 P models are equipped with the innovative

heat exchanger with patented geometries, consisting of two smooth concentric stainless steel pipes, each having a pentagonal

inner section and a circular outer section, designed to maximize the exchange surface and offer maximum corrosion resistance.

The 50 P model is equipped with an helical, single principle exchanger, with a “P” shaped cross section.

The primary circuit pump with modulating regulation allows working with a settable constant DT, reducing set-up plant

regime times and maximizing condensation. The basic electronics include climate control, module cascade management, with

integrated master / slave functions, automatic summer / winter switching and the possibility of managing both a direct zone

and a DHW tank.

The electronics also offers the possibility of remote management via 0-10V input or with the Modbus protocol. Standard

equipment includes: boiler drain tap, safety valves, LPG conversion kit, wall support and the condensate drain syphon. Through

appropriate accessories there is also the possibility of managing the distribution of the secondary circuit, up to 16 mixed zones.

The optimal combustion management and the high modulation ratios from 1 up to 50 for the cascade installations with 10

thermal modules allow high efficiencies and low pollutant emissions (Class 6, UNI EN 15502-1).

– Service continuity is guaranteed by the system modularity: even in the case of a module failure, the overall operation it is

not prejudiced;

– The anti-freeze and anti-seize functions ensure operation in all weather conditions

– Maximum operating pressure: 3 bar

– A wide range of accessories is available to ensure a simple, fast and complete cascade installation.

Condexa Pro

CONDEXA PRO 50 P - 70 P - 100 P

TECHNICAL DATA

MODEL CONDEXA PRO

50 P

CONDEXA PRO

70 P

CONDEXA PRO

100 P

Material Steel Steel Steel

Efficiency class > 93 + 2 log Pn > 93 + 2 log Pn > 93 + 2 log Pn

Fuel NG-LPG NG-LPG NG-LPG

Test room temperature °C 20 20 20

Max. rated heat input at furnace (LCV) kW 45,0 68,0 97,0

Min. rated heat input at furnace (LCV) kW 9,0 14,0 19,4

Max. rated heat output (80-60°C) kW 44,2 67,0 95,2

Min. rated heat output (80-60°C) kW 8,9 13,5 19,2

Max. rated heat output (50-30°C) kW 48,8 72,9 105,1

Min. rated heat output (50-30°C) kW 9,9 14,9 21,1

Efficiency at max. rated heat output (80-60°C) %98,3 97,9 98,1

Efficiency at min. rated heat output (80-60°C) %98,9 98,9 98,8

Efficiency at max. rated heat output (50-30°C) %108,6 108,1 108,2

Efficiency at min. rated heat output (50-30°C) %109,7 109,3 109,2

Useful efficiency at 30% %109,2 108,8 109,0

Heat loss in standby mode %0,1 0,1 0,1

Chimney losses with burner on at P.max %2,3 2,3 2,6

Chimney losses with burner on at P.min %0,1 0,1 0,2

Blanket losses with burner on with 70°C average

Temperature %1,1 0,9 0,9

Blanket losses with burner off with 70°C average

Temperature %1,1 0,9 0,9

Flue gas temperature at max. and min. power 80-60°C °C 67,5 / 61,0 72,0 / 61,0 78,0 / 62,0

Flue gas temperature at max. and min. power 50-30°C °C 45,0 / 32,0 46,0 / 33,0 49,0 / 35,0

Excess air at max.power 1,27 1,27 1,27

Excess air at min.power 1,27 1,27 1,27

Max-min flue gas mass flow rate kg / s 0,0200-0,0050 0,0300-0,0070 0,0460-0,0072

Available useful discharge head P.max Pa 480 630 610

Available useful discharge head P.min Pa 45 35 32

Flue side pressure drop mbar --- --- ---

NOx mg/kWh 43,9 36,4 38,7

Water-side resistance (DT 20°C) mbar --- --- ---

Available useful discharge head (DT 20°C) mbar 250 390 350

Water-side resistence (DT 10°C) mbar --- --- ---

Available useful discharge head (DT 10°C) mbar --- --- ---

Water content l 5 15 17

Maximum working pressure bar 333

Expansion tank capacity l--- --- ---

Power supply V/Hz 230-50 230-50 230-50

Electrical protection level IP IPX4D IPX4D IPX4D

Electrical consumption with boiler at max. power W200 175 345

Electrical consumption with boiler at min. power W34 30 31

Electrical consumption with pumps at max. power W--- --- ---

Electrical consumption with pumps at min. power W--- --- ---

Flue gas discharge diameter mm 80 80 110

Empty weight kg 66 78 81

Category according to UNI 10642 II 2H3P appliance II 2H3P appliance II 2H3P appliance

Boiler water content l--- --- ---

Boiler losses W / K --- --- ---

Boiler material --- --- ---

Insulation thickness mm --- --- ---

Boiler circulator absorption W--- --- ---

Sanitary expansion vessel l--- --- ---

Noise dB(A) 52 54 56

Nominal/min natural gas pressure supply (G20) mbar 20 / 17 20 / 17 20 / 17

Nominal/min natural gas pressure supply (G31) mbar 37 / 25 37 / 25 37 / 25

CONDENSING GENERATORS

Wall-hung gas condensing modules

ErP TECHNICAL DATA

MODEL CONDEXA PRO

50 P

CONDEXA PRO

70 P

CONDEXA PRO

100 P

Seasonal efficiency class in

central heating mode A A ---

Seasonal efficiency class in water heating --- --- ---

Useful (rated) heat output Pn kW 44,2 68 95

Seasonal efficiency class in room heating mode ηs%94 94 94

USEFUL THERMAL POWER

At useful heat output and at high temperature capacity

(*) P4 kW 44,2 67 95,3

At 30% of useful heat output and at low temperature

capacity (**) P1 kW 14,7 22,3 31,7

EFFICIENCY

At useful heat output and at high temperature capacity

(*) η4%88,4 88,2 88,2

At 30% of useful heat output and at low temperature

capacity (**) η1%98,2 98,0 98,0

AUXILIARY ELECTRICAL CONSUMPTION

At full load elmax W105 77 203

At partial load elmin W34 30 31

In standby mode PSB W 9 13 6

OTHER PARAMETERS

Thermal losses in Stand-by mode Pstby W57,0 87,0 124,0

Pilot flame energy consumption Pign W--- --- ---

Yearly energy consumption QHE GJ 91 141 ---

Noise level, indoor (sound power) LWA dB 52 54 56

Nitrogen oxide emissions (NOx) NOx mg/kWh 43,9 36,4 38,7

FOR COMBINED HEATING EQUIPMENT

Declared load profile

Energy efficiency class in water heating ηwh %--- --- ---

Daily electrical energy consumption Qelec kWh --- --- ---

Daily fuel consumption Qfuel kWh --- --- ---

Annual electrical energy consumption AEC kWh --- --- ---

Annual fuel consumption AFC GJ --- --- ---

Condexa Pro

BOILER MODELS CONDEXA

PRO 50 P

CONDEXA

PRO 70 P

Condexa

PRO 100 P

MAXIMUM THERMAL POWER

Useful (80/60°C) kW 44,2 67 95,2

Useful (50/30°C) kW 48,8 73,9 105,1

Furnace kW 45,0 68 97

MINIMUM THERMAL POWER

Useful (80/60°C) kW 8,9 13,5 19,2

Useful (50/30°C) kW 9,9 14,9 21,1

Furnace kW 9,0 14 19,4

EFFICIENCY

Useful (80/60°C) %98,34-

98,9 98,1-98,9 98,1-98,8

Useful (50/30°C) %108,6-119,7 108,1-109,3 108,2-109,2

With reduced load 30% (return 30°C) % 109,2 109 109

COMBUSTION

Chimney and blanket losses with

burner on %2,3-1,1 2,3-0,9 2,6-0,9

Chimney losses with burner off %0,1 0,1 0,1

Flue flow rate kg / s 0,020 0,03 0,046

GAS EMISSION VALUES AT MAX AND MIN FLOW RATES G20 (**)

MAXIMUM

CO s.a. less than (***) ppm 73 90 92

CO2% 9 9 9

NOx (EN 677) (***) ppm 30 30 30

Flue temperature °C 67,5 72 78

DT flue - return water K 7,50 12 18

MINIMUM

CO s.a. less than (***) ppm 2,3 6,5 7,5

CO2% 9 9 9

NOx (EN 677) (***) ppm 30 30 30

Flue temperature °C 61 61 62

DT flue - return water K 1 1 2

NOx class 6 6 6

Electric power: circulator, total 105 77 203

(**) Verification carried out with concentric pipe Ø 60-100 mm length 0.85 m; water temperatures 80-60 °C.

(***)Graphs for intermediate power values are also available. The expressed data must not be used to certify the plant; for certification the data

indicated in the "installation manual" measured at the time of the first ignition must be used.

LAW TABLE 10

CONDENSING GENERATORS

Wall-hung gas condensing modules

OVERALL DIMENSIONS

Fumi Aria (opz)

Ritorno

G 1” 1/2

Gas

G 1”

Mandata

G 1” 1/2

Scarico condensa

Ø 24 mm

Ø Ø

96 92

SYSTEM LAYOUT

Condexa PRO 50 P

Commercial

description

Ø fumes/

air

Net

weight

CONDEXA PRO 50 P 1000 600 435 80 66

CONDEXA PRO 70 P 1000 600 435 80 78

CONDEXA PRO 100 P 1000 600 435 110 81

Fumes Air (acc)

13 14 1512

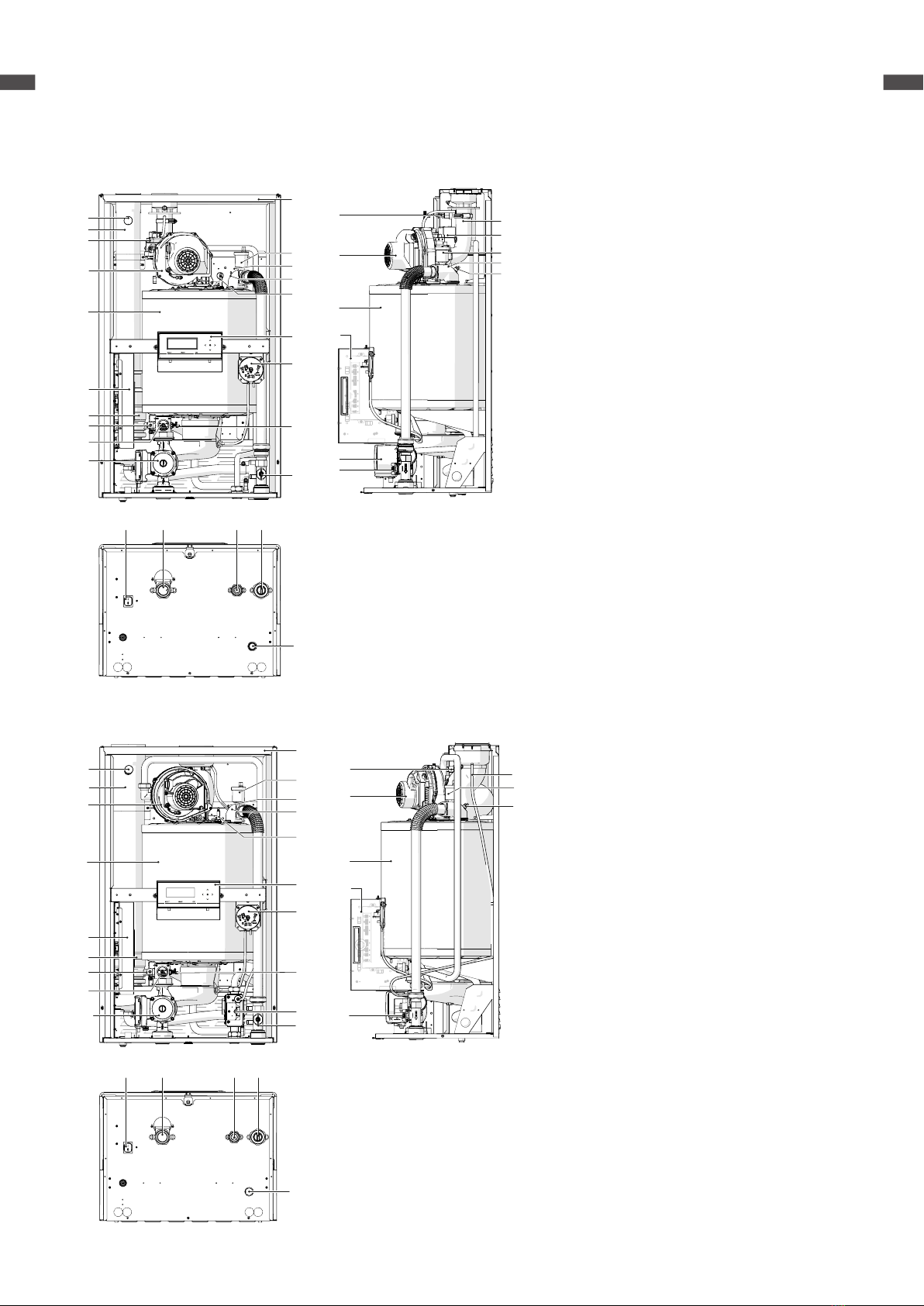

1 烟气分析检测口

2 烟气排气管

3 燃气阀

4 风机

5 烟气压差开关

6 燃烧室

7 主控板

8 最小压力开关(0.7 bar)

9 烟气温度传感器

10 冷凝水收集器

11 排水阀

12 电源开关

13 采暖回水口

14 燃气供气管

15 采暖供水管

16 冷凝水排放管

17 流量传感器

18 循环泵

19 回水温度传感器

20 控制面板

21 过热保护（需手动复位）

22 流量传感器

23 自动排气阀

24 点火/火焰检测电极

25 外壳

Condexa Pro

Condexa PRO 70 P

Condexa PRO 100 P

1211 13 14

1 烟气分析检测口

2 烟气排气管

3 燃气阀

4 风机

5 燃烧室

6 主控板

7 烟气止回阀

8 排水阀

9 最小压力开关（0.7bar）

10 循环泵

11 电源开关

12 供暖回水管

13 燃气供气管

14 采暖供水管

15 冷凝水排放管

16 流量传感器

17 烟气温度传感器

18 回水温度传感器

19 控制面板

20 点火/火焰检测电极

21 过热保护（需手动复位）

22 流量传感器

23 自动排气阀

24 外壳

109 11 12

1 烟气分析检测口

2 烟气排气管

3 风机

4 燃烧室

5 主控板

6 烟气止回阀

7 排水阀

8 最小压力开关（0.7−bar）

9 电源开关

10 供暖回水管

11 燃气供气管

12 采暖供水管

13 冷凝水排放管

14 流量传感器

15 燃气阀

16 烟气温度传感器

17 回水温度传感器

18 控制面板

19 点火/火焰检测电极

20 过热保护（需手动复位）

21 流量传感器

22 自动排气阀

23 外壳

24 循环泵

CONDENSING GENERATORS

Wall-hung gas condensing modules

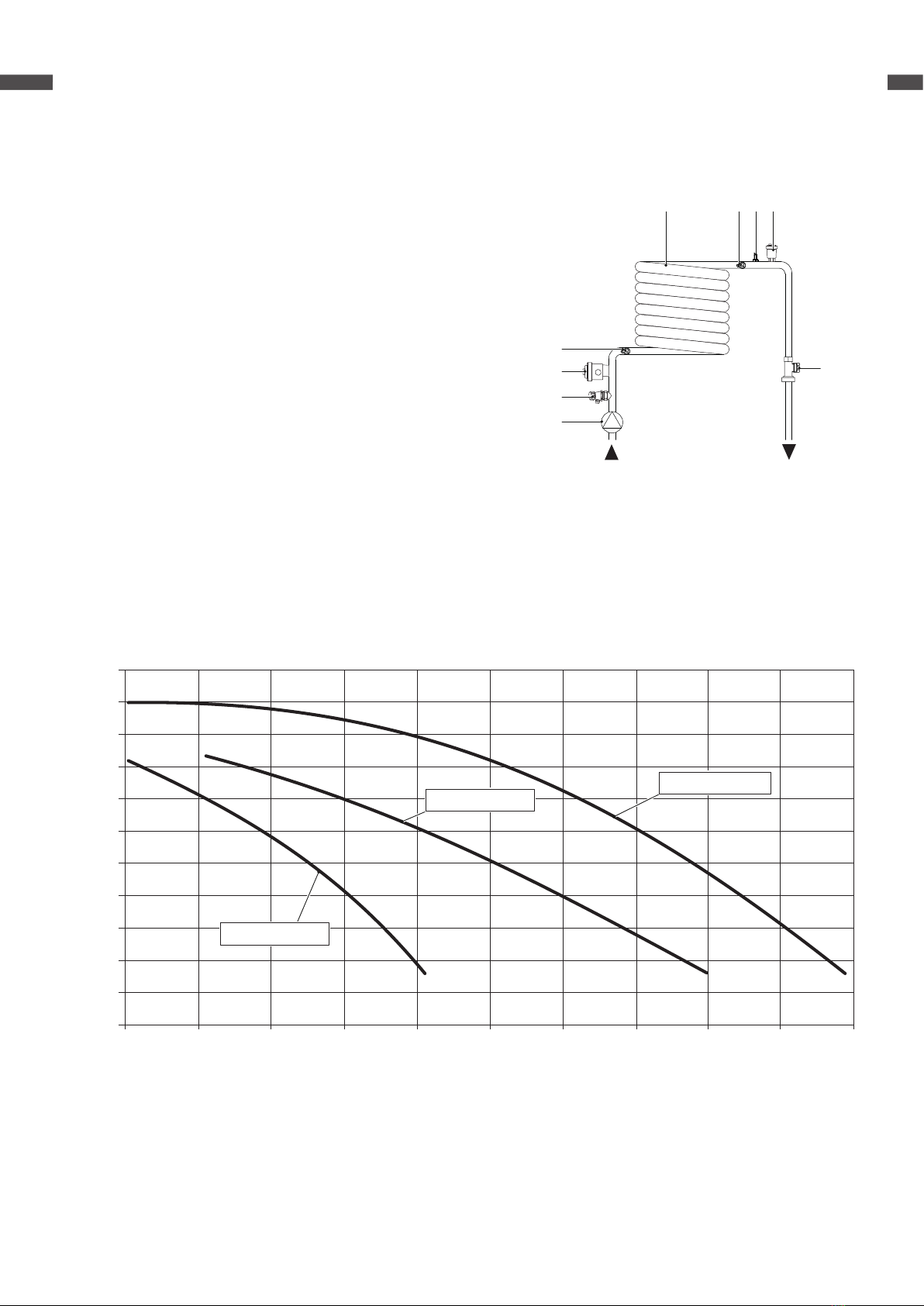

HYDRAULIC CIRCUIT
