Ricoh Ri 100 Manuel utilisateur

Names of Components

Printing on Fabric

If Errors Occur

If Print Results Are Not Satisfactory

Machine Maintenance

Replacing Consumables

CONTENTS

Printing on Fabric

Whole View●P. 4

Optional Cassettes●P.5

Control Panel●P.6

Troubleshooting for●

Each Error P. 3 7

Replacing an Ink Cartridge●P. 5 5

Error Messages and●

Troubleshooting P. 3 3

Creation Flow●P.7

Removing Dust and●

Flattening Fibers P.11

Loading a Fabric in the●

A4 Standard Tray P.12

Loading a Fabric in the Multi Tray●

P.17

Loading a Fabric in the●

Sleeve Attachment P. 2 0

Printing●P. 2 3

Removing the Fabric●P. 2 7

Fixing Ink●P. 3 0

Handling Printed Goods●P. 31

Nozzle Check●P. 4 4

Head-cleaning●P. 4 6

No-fuss Head Cleaning●P. 47

Head-flushing●P. 4 8

Head Position●P. 49

Registration●P.5 2

Regular Maintenance/Cleaning●

the Internal Compartments

P. 5 4

Machine

Maintenance

If Errors Occur

Replacing Consumables

If Print Results Are

Not Satisfactory

Names of

Components

Notice●P. 3

Read this manual carefully before you use the product and

keep it handy for future reference.

For safe and correct use, be sure to read Safety Information

before using the machine.

Notice

Names of Components

Machine Body

DSB006

Rear Cover

Right Front Cover

Cassette Stand

Indentations for

Lifting

Indentations for

Lifting

Top Cover

Cassette (A4 Standard Tray)

You can print within an A4 size (210 × 297 mm) (8.3 × 11.7 inches) area on

a garment using this cassette.

DSB014

Cover

Unlock Button

Cassette Positioning Line

Table

Whole View

Names of Components

Optional Cassettes

Cassette (A5 Tray)

You can print within an A5 size (148 × 210 mm) (5.9 × 8.3 inches) area on a

garment using this cassette.

DSB015

Cover

Unlock Button

Table

Cassette Positioning Line

Cassette (Multi Tray)

DSB016

Detection Lever

Sleeve Attachment

Table

Cassette Stand Up-and-down Knob

Cassette Positioning Line

Names of Components

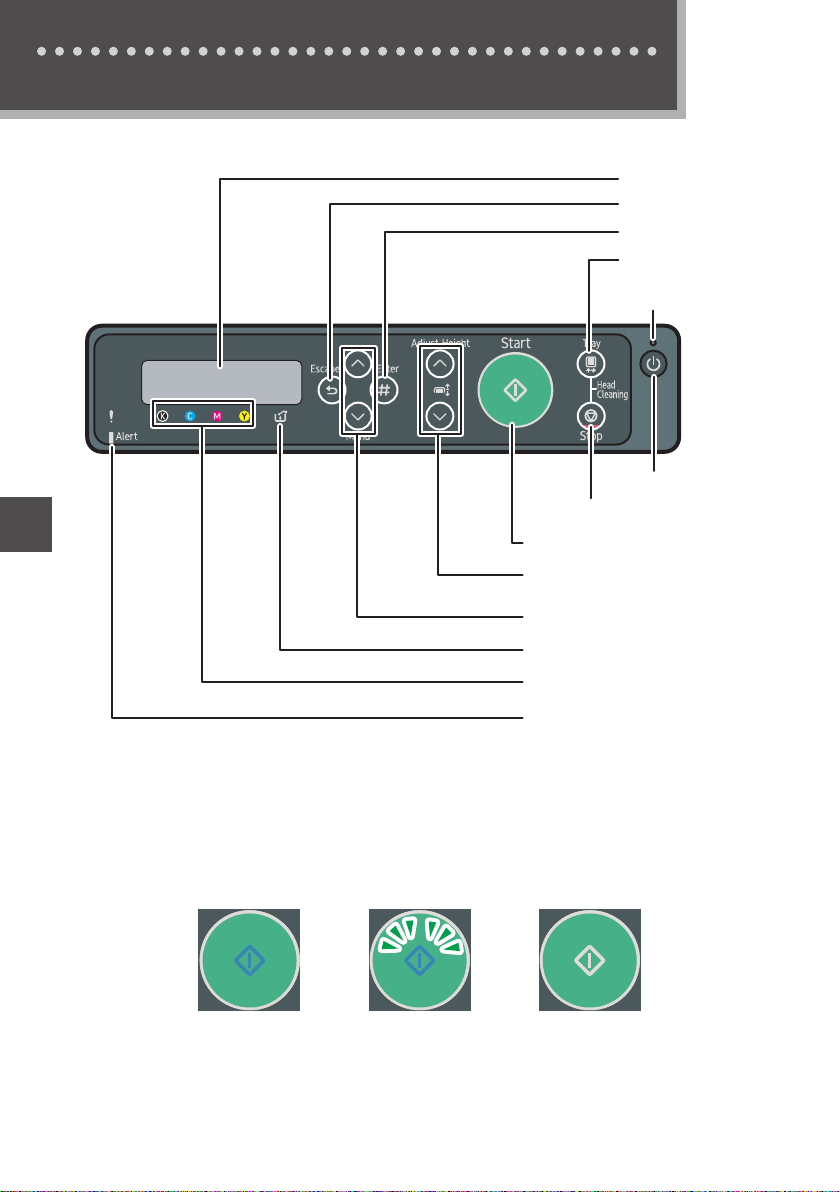

DSB001

Display

[Escape] key

[#Enter] key

[Tray] key

(Cassette key)

[Start] key

Power lamp

[Stop] key

[▲], [▼/Menu] keys

[Adjust Height ▲],

[Adjust Height ▼] keys

Waste ink full indicator

Cartridge replacement indicator

Alert indicator

[Power] key

[Start] key's display

After receiving

the print job:

Lit in blue

While printing:

Flashing in blue

After printing

(in standby mode):

Off

DSA004

DSA005

DSA006

Control Panel

Printing on Fabric

Creation Flow

This section explains the operation flow when printing is per-

formed on fabric using the "Easy Designer" mode of the dedi-

cated "Design Software" application. This guide uses Windows

procedures for its examples.

Removing dust and flattening fibers of the fabric.

See page 11 "Removing Dust and Flattening Fibers".

Load the fabric in the cassette.

See page 12 "Loading a Fabric in the A4 Standard Tray",

page 17 "Loading a Fabric in the Multi Tray", and page 20

"Loading a Fabric in the Sleeve Attachment".

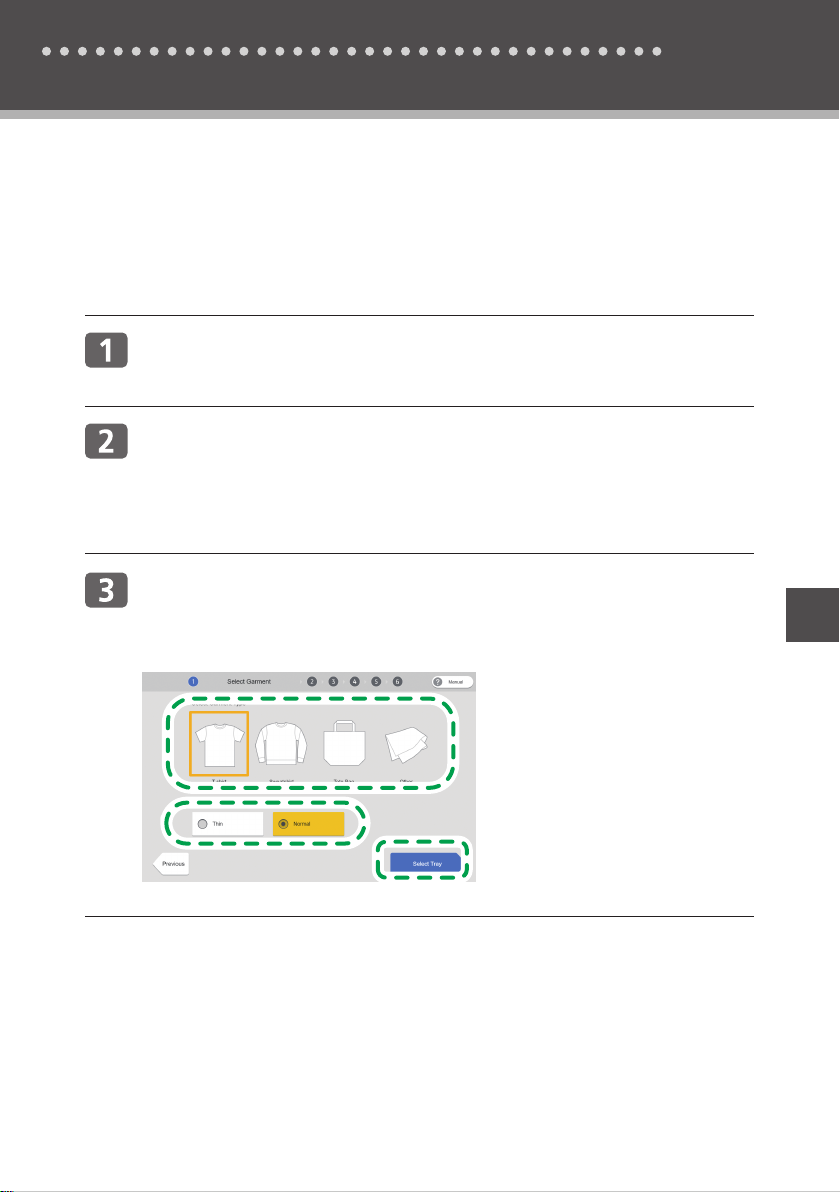

Select the type and thickness of the fabric.

Launch the Design Software and configure the settings for

the printing fabric you want to use.

DSB018

Select the cassette size and direction.

Select the cassette size to be used and printing direction in

the Design Software.

DSB019

Select the image to print.

Select the image to print, and then fetch it in the Design Soft-

ware. It is also possible to shoot an image in your computer,

tablet or smart phone using the camera on the spot.

DSB017

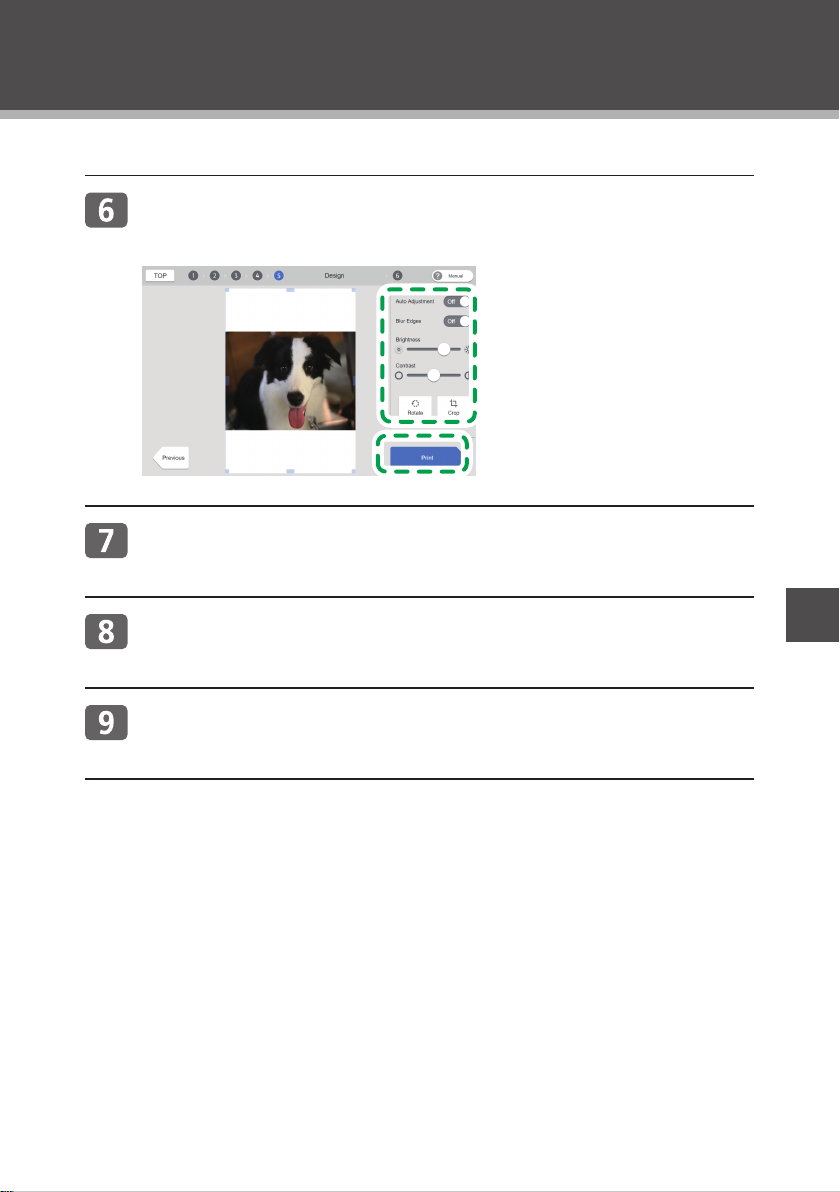

Set the layout.

Edit the image using the Design Software and lay it out.

DSB021

Print.

See page 23 "Printing".

Remove the fabric from the cassette.

See page 27 "Removing the Fabric".

Fixing ink to the fabric.

See page 30 "Fixing Ink".

For the installation method of the Design Software and detailed op-

•

eration methods, see "Printing on T-shirts", Operating Instructions.

For details about the functions of the Design Software, see the De-

•

sign Software Help.

The print direction varies depending on the application you use. Se-

•

lect the direction of image and fabric referring to the figures below.

DSB447

DSB448

Design Software

Printer Driver (Windows)
