Ricoh M022 Instructions d'installation

RICOH Americas Corporation Content ID# RFG46217

Ver.1.1 Page 1 of 54 2/1/2011

Subject to change without notice

Product Support Guide

M022 / M024 / M026 / M028

Introduction

Model Type

Color MFP

Launch Date

12/01/2010

S/N Configuration

S72YMMXXXX

S73YMMXXXX

S74YMMXXXX

S75YMMXXXX

Product Code

M022

M024

M026

M028

Brand/Model Name

Product Code

Lanier

Ricoh

Savin

M022

LD130C

Aficio MP C300

C230

M024

LD130CSR

Aficio MP C300SR

C230SR

M026

LD140C

Aficio MP C400

C240

M028

LD140CSR

Aficio MP C400SR

C240SR

Product Concept

The MFP product lineup of Ricoh Group is being

focused in DLT MFPs at this moment, and Ricoh

Group has made a great success with this lineup,

as you know well. On the other hand, when seeing

the lineup from the viewpoint of LT MFP, we have

only one copier based BW MFP (D069) at this

moment and no color one. Regarding Printer-based

LT MFP, we have M018 series, but there is no

model in mid-high segment. From the viewpoint of

competition, we are facing the necessity of LT

MFPs which can compete in the market.

Product Support Guide

M022 / M024 / M026 / M028

Ver.1.1 Page 2 of 54 2/1/2011

Subject to change without notice

Order Number

Main Frame

Item

Model Name

EDP Code

Notes

Lanier

Ricoh

Savin

LD130C

Aficio MP C300

C230

415130

Standard Mainframe

Configuration

Printer Scanner

Lanier

Ricoh

Savin

LD130CSR

Aficio MP C300SR

C230SR

415179

Finisher Mainframe

Configuration

Printer Scanner

Lanier

Ricoh

Savin

LD140C

Aficio MP C400

C240

415132

Standard Mainframe

Configuration

Printer Scanner

Lanier

Ricoh

Savin

LD140CSR

Aficio MP C400SR

C240SR

415180

Finisher Mainframe

Configuration

Printer Scanner

Options

Item

Description

Product

Code

EDP Code

Common / Unique

Paper Feed Unit

PB1010

2 Tray Paper Bank

M368-17

415122

Paper Feed Unit

PB1000

1 Tray Paper Bank

M367-17

415123

1 Bin Tray

BN1000

Inner 1 Bin Tray

M370-17

415124

Side Tray Type

C400

Side Tray

M369-17

415125

Fax Option Type

C400

Fax Unit

D483-01

415126

Cabinet

TBA

Copy Data

Security Unit

Type F

Copy Data Security Unit

B829-07

413985

Optional Counter

Interface Unit

Type A

Key Counter I/F Unit 20 pin

B870-11

413012

IEEE802.11 a/g

Interface Unit

Type J

Wireless LAN Option

D377-01

414008

Memory Unit

Type B 32MB

Fax Memory Unit

n/a

Product Support Guide

M022 / M024 / M026 / M028

Ver.1.1 Page 3 of 54 2/1/2011

Subject to change without notice

Item

Description

Product

Code

EDP Code

Common / Unique

Gigabit Ethernet

Type B

Gigabit Ethernet

D377-21

414204

Bluetooth

Interface Unit

Type 3245

Bluetooth

B826-17

412866

File Format

Converter Type E

File Format Converter

D377-04

414007

Product Support Guide

M022 / M024 / M026 / M028

Ver.1.1 Page 4 of 54 2/1/2011

Subject to change without notice

Supplies/Yields

Item

Name

Order Code

Target Yield

Ricoh / Savin / Lanier

Toner Black

Print Cartridge Black Type MP

C400/C240/LD140C

841295

10,000prints/bottle

Toner Cyan

Print Cartridge Cyan Type MP

C400/C240/LD140C

841296

10,000prints/bottle

Toner Magenta

Print Cartridge Magenta Type

MP C400/C240/LD140C

841297

10,000prints/bottle

Toner Yellow

Print Cartridge Yellow Type

MP C400/C240/LD140C

841298

10,000prints/bottle

Staple Set

Cartridge for

Internal Finisher

SR1000

Staple Type T

415009

5,000shots/staple

Staple Refill

Cartridge for

Internal Finisher

SR1000

Refill Staple Type T

415010

5,000shots/staple

Supply Yield Condition:

1) ISO/IEC19752 is used to measure the above toner yield.

2) The condition is standard temperature and humidity.

3) This yield number may change depending on the circumstances and printing conditions.

Product Support Guide

M022 / M024 / M026 / M028

Ver.1.1 Page 5 of 54 2/1/2011

Subject to change without notice

Option Compatibility

Category

Product Name

You Must Install

You Cannot Install

Original

Feeding

Paper

Feeding

ARDF comes with standard

Paper Feed Unit PB1000

Paper Feed Unit PB1010

Finishing

1 Bin Tray BN 1000

This option cannot be

attached to M022 / M024

Finisher model and

M026 / M028 Finisher

model

Side Tray Type C400

Fax

Fax Option Type C400

Memory Unit TypeB 32MB

Printer

Option

IEEE802.11 a/g Interface Unit Type J

Gigabit Ethernet TypeB

Network

Option

Data Overwrite Security Unit Type H

Security

HDD Encryption Unit Type A

Copy Data Security Unit Type F

Others

Optional Counter I/F Type A

Product Support Guide

M022 / M024 / M026 / M028

Ver.1.1 Page 6 of 54 2/1/2011

Subject to change without notice

Branding Information

Branding is required as the machines are shipped as a generic version.

Ricoh version machines: You must attach the model label (provided) to the front cover.

Savin/Lanier: You must attach the model label (provided) to the front cover and set the Plug and Play name with

SP 5-907.

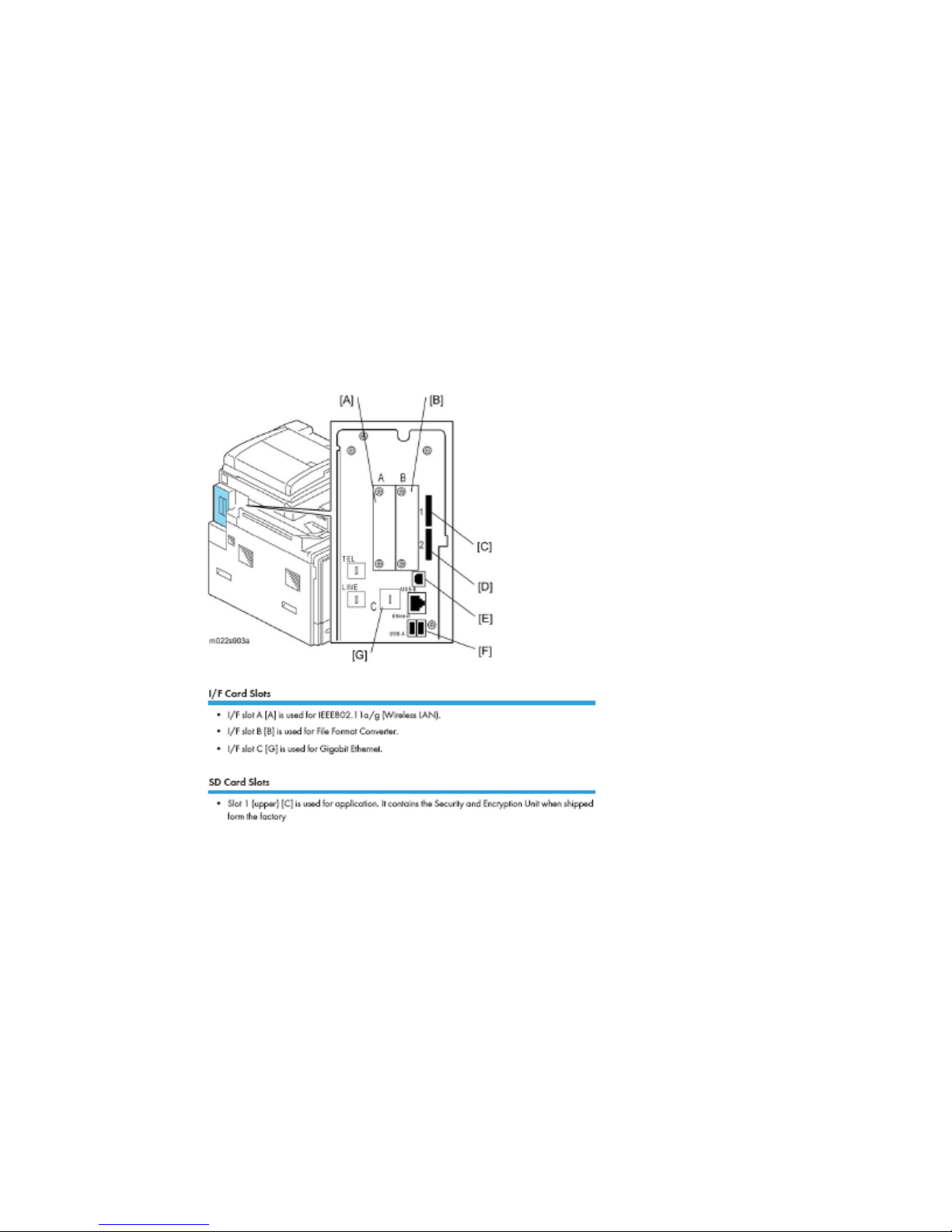

MFP Options

MFP Option Board Slot / SD Card Assignments

Product Support Guide

M022 / M024 / M026 / M028

Ver.1.1 Page 7 of 54 2/1/2011

Subject to change without notice

Installation

Installation Requirements

Temperature Range:

10 C to 32 C (50 F to 89.6 F)

Humidity Range:

15% to 80% RH

Ambient Illumination:

Less than 1,500 lux (do not expose to direct sunlight)

Ventilation:

3 times/hr/person

Ambient Dust:

Less than 0.075 mg/m3 (2.0 x 10-6oz/yd3)

Avoid areas exposed to sudden temperature changes:

Areas directly exposed to cool air from an air conditioner.

Areas directly exposed to heat from a heater.

Do not place machine where it will be exposed to corrosive gas or vapor.

Do not install the machine at any location over 2,500m(8,200 ft.) above sea level.

Place the machine on a strong and level base. Inclination on any side should be no more than 5mm (0.2”)

Do not place the machine where it may be subject to strong vibrations.

Machine level

Front to back: within 5mm (0.2”) of level

Right to left: within 5mm (0.2”) of level

Power Requirements

Input voltage level: 110 - 120 V, 60Hz:12A

Do not place anything on power cord.

The required wall outlet is a NEMA 5-15R (receptacle)

Space

Foot Print

A (Left)

Over 100 mm (3.9")

B (Rear)

Over 100 mm (3.9")

C (Right)

Over 315 mm (12.4")

D (Front)

Over 400 mm (15.7")

Dimensions (W x D x H): 21.7 x 22.4 x 28.0 (including ARDF and operation panel)

21.7 x 21.5 x 23.6 (mainframe only, height up to contact glass)

The recommended 750 mm (30”) front space is sufficient to

allow the paper tray to be pulled out. Additional the front

space is required to allow operators to stand at the front of

the machine.

Product Support Guide

M022 / M024 / M026 / M028

Ver.1.1 Page 8 of 54 2/1/2011

Subject to change without notice

Power Consumption / Noise Emission

Power Consumption

Max Power

－

Full Option Max Power

NA：1600

Operating Power

M022 / M024: 950

M026 / M028: 1100

Ready Mode

260

Panel Off

Power

260

Recovery

Panel Off Level2

Power

230

Shift time

Recovery

Low Power

Power

217

Shift time (Default)

M022 / M024: 5

M026 / M028: 5

Recovery

M022 / M024: 22

M026 / M028: 26

Sleep Mode

Power

2.5

Shift time (Default)

M022 / M024: 11

M026 / M028: 11

Recovery

M022 / M024:45

M026 / M028:NA:50

TEC (Typical Electricity

Consumption)

M022 / M024(Std)

3218(NA

Noise Emission

Sound Power Level

Stand-by

M022 / M024

Less than 40

(Mainframe Only)

M026 / M028

Less than 45

Copying

M022 / M024

Less than 66.5(B&W)

Less than 67.0(FC)

M026 / M028

Less than 70(B&W)

Less than 70(FC)

Sound Power Level

Stand-by

M022 / M024

Less than 44

(Full System)

M026 / M028

Less than 49

Copying

M022 / M024

Less than 70.5(B&W)

Less than 71(FC)

M026 / M028

Less than 74(B&W)

Less than 74(FC)

Sound Pressure Level

Stand-by

M022 / M024

Less than 34

(Mainframe Only)

M026 / M028

Less than 39

Copying

M022 / M024

Less than 60.5(B&W)

Less than 61(FC)

M026 / M028

Less than 64(B&W)

Less than 64(FC)

Sound Pressure Level

Stand-by

M022 / M024

Less than 38

Product Support Guide

M022 / M024 / M026 / M028

Ver.1.1 Page 9 of 54 2/1/2011

Subject to change without notice

(Full System)

M026 / M028

Less than 43

Copying

M022 / M024

Less than 64.5(B&W)

Less than 65(FC)

M026 / M028

Less than 68(B&W)

Less than 68(FC)

Product Support Guide

M022 / M024 / M026 / M028

Ver.1.1 Page 10 of 54 2/1/2011

Subject to change without notice

Installation Times

Mainframe: 30 min

Unit

Installation Time

(Minutes)

Paper Feed Unit PB1000

3.0

Paper Feed Unit PB1100

3.0

1 Bin Tray PM1000

9.5

Side Tray Type C400

1.0

FAX unit

12.5

Fax SAF Memory

0.5

Media Link Board

1.0

Gigabit Ethernet

8.0

Browser card

1.0

IEEE802.11a/g

2.0

Copy data security unit

9.0

Key Counter Interface unit

8.0

Storage/Transportation

Storage

Transportation

Mainframe

Temperature

-30 ~ 40C

Humidity

Less than

80% RH

Storage Period

Max: 12

months

Temperature

-30 ~ 50C

Humidity

15% ~ 95%

Conditions for Toner

Usage and Storage

Temperature

Humidity

Storage Period

Usage

15~ 32℃

15~ 80%RH

Storage

-30~ 40℃*

15~ 80%RH

2 yrs after production

(Unopened)

Remarks:

* Do not store more than 12 hours under the temperature between 41 and 50 ℃.

* Do not store more than a month under the temperature between 35 and 40 ℃.

Autres manuels pour M022

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ricoh Photocopieuse

Ricoh

Ricoh Aficio MP 1600L Manuel utilisateur

Ricoh

Ricoh Aficio MP C2051 Manuel utilisateur

Ricoh

Ricoh Pro C550EX Instructions d'installation et d'entretien

Ricoh

Ricoh Aficio C3002 Manuel utilisateur

Ricoh

Ricoh RN-MF2 Guide de démarrage rapide

Ricoh

Ricoh PS430 Manuel utilisateur

Ricoh

Ricoh FT6645 Manuel utilisateur

Ricoh

Ricoh DSc535 Instructions d'utilisation

Ricoh

Ricoh J2SS-C3 Manuel utilisateur

Ricoh

Ricoh Pro1106X Manuel utilisateur

Ricoh

Ricoh Aficio 1515 Manuel utilisateur

Ricoh

Ricoh FT3813, FT4615, FT4618 Manuel utilisateur

Ricoh

Ricoh FT5034C Manuel utilisateur

Ricoh

Ricoh Aficio DSm616 Manuel utilisateur

Ricoh

Ricoh Priport JP5800 Manuel utilisateur

Ricoh

Ricoh MP 1813L Manuel utilisateur

Ricoh

Ricoh G176 Manuel utilisateur

Ricoh

Ricoh B003 Manuel utilisateur

Ricoh

Ricoh MP C4504 series Mode d’emploi

Ricoh

Ricoh FW770 Manuel utilisateur

Ricoh

Ricoh Pro C720s Manuel utilisateur

Ricoh

Ricoh Aficio FT4027 Manuel utilisateur

Ricoh

Ricoh MP 2001L Manuel utilisateur

Ricoh

Ricoh PE-P1 Manuel utilisateur

Manuels Photocopieuse populaires d'autres marques

Canon

Canon iR1210 Manuel de référence

Minolta

Minolta CF910 Manuel utilisateur

Xerox

Xerox EC70 Manuel utilisateur

Oce

Oce 9800 Manuel utilisateur

Olivetti

Olivetti d-Copia 1800 Manuel utilisateur

Minolta

Minolta Di181 Manuel utilisateur

Canon

Canon iR5000i Manuel utilisateur

Telecrane

Telecrane F25 Manuel utilisateur

Xerox

Xerox WorkCentre Pro 40 Manuel utilisateur

Canon

Canon NP6317 Comment utiliser

Sharp

Sharp AR-5015 N Manuel utilisateur

Mita

Mita MIP-2400 Manuel

Sharp

Sharp AL-2061 Manuel utilisateur

Muratec

Muratec MFX-C2280 Manuel utilisateur

Minolta

Minolta EP4000 Manuel utilisateur

Triumph Adler

Triumph Adler DCC 2526 Manuel

Kyocera Mita

Kyocera Mita KM-2030 Manuel

Triumph Adler

Triumph Adler DC 2222 Manuel
