CAUTIONS
KEEP HANDS AWAY FROM MECHANICAL DRIVE COMPONENTS WHEN THE COPIER IS WARM-
ING UP.
This is to avoid possible injury when the copier starts idling at the end of warm up.
ALWAYS REINSTALL THE FUSING UNIT COVER AFTER SERVICING.
This is to prevent the operator from accidentally touching the hot unit, or the fusing lamp terminal.
RICOH
RICOH
FT3020/FT3050/FT3060
FIELD SERVICE MANUAL
RICOH COMPANY, LTD.
SECTION
SECTION
SECTION
SECTION
SECTION
SECTION
SECTION
SECTION
SECTION
SECTION
SECTION
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLATION
UNPACKING
INSTALLATION
REQUIREMENTS
PREPARATIONS FOR TRANSPORTING THE
COPIER
REMARKS
REPLACEMENT AND ADJUSTMENT
SERVICE TABLES
P.M. TABLE
SPECIAL TOOLS AND JIGS
TROUBLESHOOTING
ELECTRICAL DATA
SECTION 1
INSTALLATION
REQUIREMENTS
1.
INSTALLATION REQUIREMENTS
1A.
1B.
1C.
1D.
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Machine Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Minimum Space Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1A.
1.
2.
3
.
4.
5.
6.
7.
8.
9.
10.
11.
Environment
Temperature Range :
Humidity Range :
Ambient Illumination :
Ventilation
:
Ambient Dust
:
Room Size
:
10°C to 30°C (50°F to 86°F)
15% to 90% RH
Less than 1,500 Iuxs (Do not expose to direct sunlight)
Room air should turn over at least 3 times/hour.
Less than 0.15 mg/m3 (4 x 100¯³ Oz/yd³)
More than 10m³ (13.4 yd3)
If the installation place is air-conditioned or heated, place the machine:
a. Where it will not be subjected to sudden temperature changes from low to high, or vice versa.
b. Where it will not be directly exposed to cool air from an air conditioner in the summer.
c. Where it will not be directly exposed to reflected heat from a space heater in winter.
Avoid placing the copier in an area filled with corrosive gas.
Avoid any area higher than 2,000m (6,500 feet) above sea level.
Place the copier on a strong and level base.
Avoid any area where the copier may be subjected to frequent strong vibration.
1-1

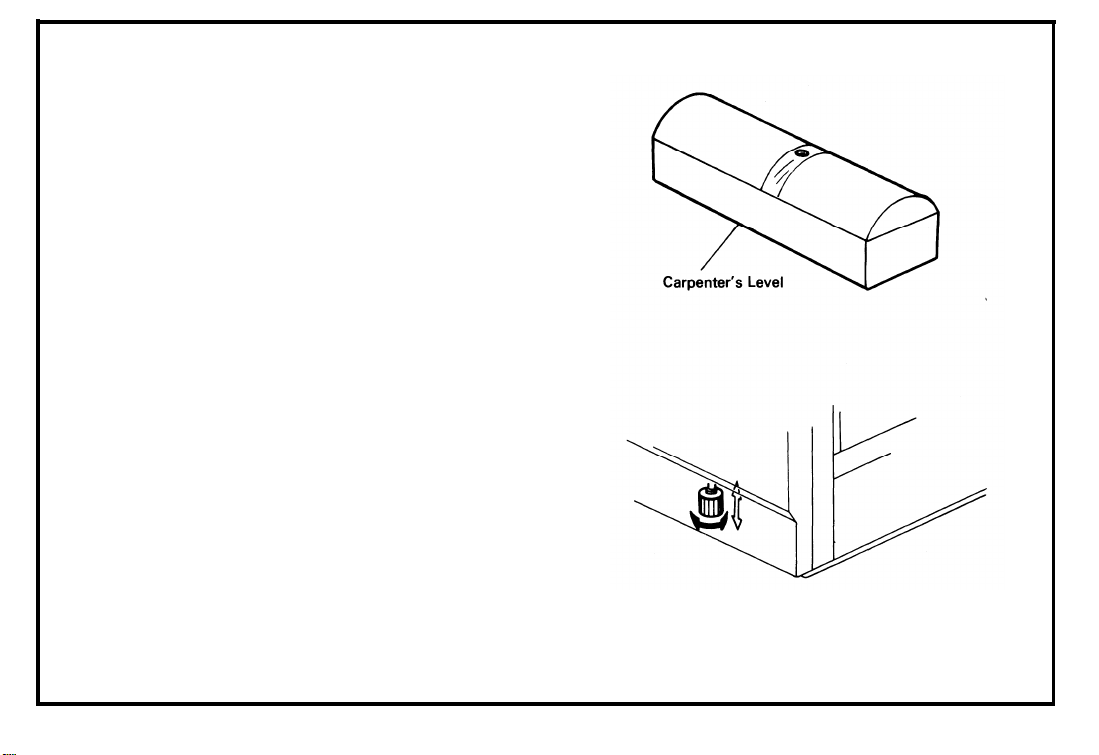

1B. Machine Level
1. Front to Back:
Within 5mm (0.2”) of level
2. Right to Left:
Within 5 mm (0.2”) of level
(Legs may be screwed up or down to level the
machine. Set a carpenter’s level on the
exposure glass.)
1-2
July 1, ’85
1C. Minimum Space Requirements
1. Front : 70 cm (27-1/2”)
2. Back : 10 cm (4“)
3. Right : 70 cm (27-1/2”)
4. Left : 70 cm (27-1/2”)
1Ocm (4”)
1-3
1 D.
1.
2.
3
.
Power Source
Input Voltage Level
110V/60Hz : More than 12A
115V/60Hz : More than 12A
220V/50Hz :More than 7A
240V/50Hz :More than 7A
Permissible Voltage Fluctuation : ± 10%
Permissible Extension Cord:
At least 300V, 30A capacity and less than 5
m (16.4”) long.
NOTE: 1.
2.
3.
4.
Be sure to ground the machine. (Do
not connect the grounding wire to a gas
pipe.)
Make sure the plug is firmly inserted in
the outlet.
Avoid multi-wiring.
Do not set anything on the power cord.
1-4
SECTION 2
UNPACKING
