Ricoh D146 Manuel utilisateur

D146/D147/D148/D149/D150

SERVICE MANUAL

It is the reader's responsibility when discussing the information contained

within this document to maintain a level of confidentiality that is in the best

interest of RicohAmericas Corporation and its member companies.

NO PART OF THIS DOCUMENT MAY BE REPRODUCED IN

ANY

FASHION AND DISTRIBUTED WITHOUT THE

PRIOR

PERMISSION OF RICOH AMERICAS

CORPORATION.

All product names, domain names or product illustrations, including

desktop images, used in this document are trademarks, registered

trademarks or the property of their respective companies.

They are used throughout this book in an informational or editorial fashion

only and for the benefit of such companies. No such use, or the use of

any trade name, or web site is intended to convey endorsement or other

affiliation with Ricoh products.

2013 RICOH Americas Corporation. All rights

reserved.

WARNING

The Service Manual contains information

regarding service techniques, procedures,

processes and spare parts of office equipment

distributed by Ricoh Americas Corporation.

Users of this manual should be either service

trained or certified by successfully completing a

Ricoh Technical Training Program.

Untrained and uncertified users utilizing

information contained in this service manual to

repair or modify Ricoh equipment risk personal

injury, damage to property or loss of warranty

protection.

Ricoh Americas Corporation

INSTALLATION

REVISION HISTORY

Page

Date

Added/Updated/New

45 ~ 46

3/11/2014

Caster Table Type M3

81 ~ 82

12/23/2014

Internal shift tray

192

∼

197

10/08/2013

Added Smart Card Reader (D379) installation instructions.

198

∼

208

04/07/2014

Added Tray Heater sections

208

05/15/2014

Revised Step 12 of Paper Feed Unit PB3150

209 ~ 220

5/26/2015

Anti-Condensation Heater

Installation Requirements

2-1

D146/D147/D148/D149/D150

Installation

2. INSTALLATION

2.1 INSTALLATION REQUIREMENTS

2.1.1 ENVIRONMENT

Temperature Range:

10°C to 32°C (50°F to 90°F)

Humidity Range:

15% to 80% RH

Ambient Illumination:

Less than 1,500 lux (do not expose to direct sunlight.)

Ventilation:

Room air should turn over at least 30 m3/hr/person

1. Avoid areas exposed to sudden temperature changes:

1) Areas directlyexposed to cool air from an air conditioner.

2) Areas directlyexposed to heat from a heater.

2. Do not place the machine where it will be exposed to corrosive gases.

3. Do not install the machine at any location over 2,000 m (6,500 ft.) above sea level.

(D135 for NA can be installed only up to 2,500m (8,202 ft.))

4. Place the main machine on a strong and level base. Inclination on any side should

be no more than 5 mm (0.2").

5. Do not place the machine where it may be subjected to strong vibrations.

Installation Requirements

D146/D147/D148/D149/D150

2-7

2.1.2 MACHINE LEVEL

Front to back: Within 5 mm (0.2")

Right to left:Within 5 mm (0.2")

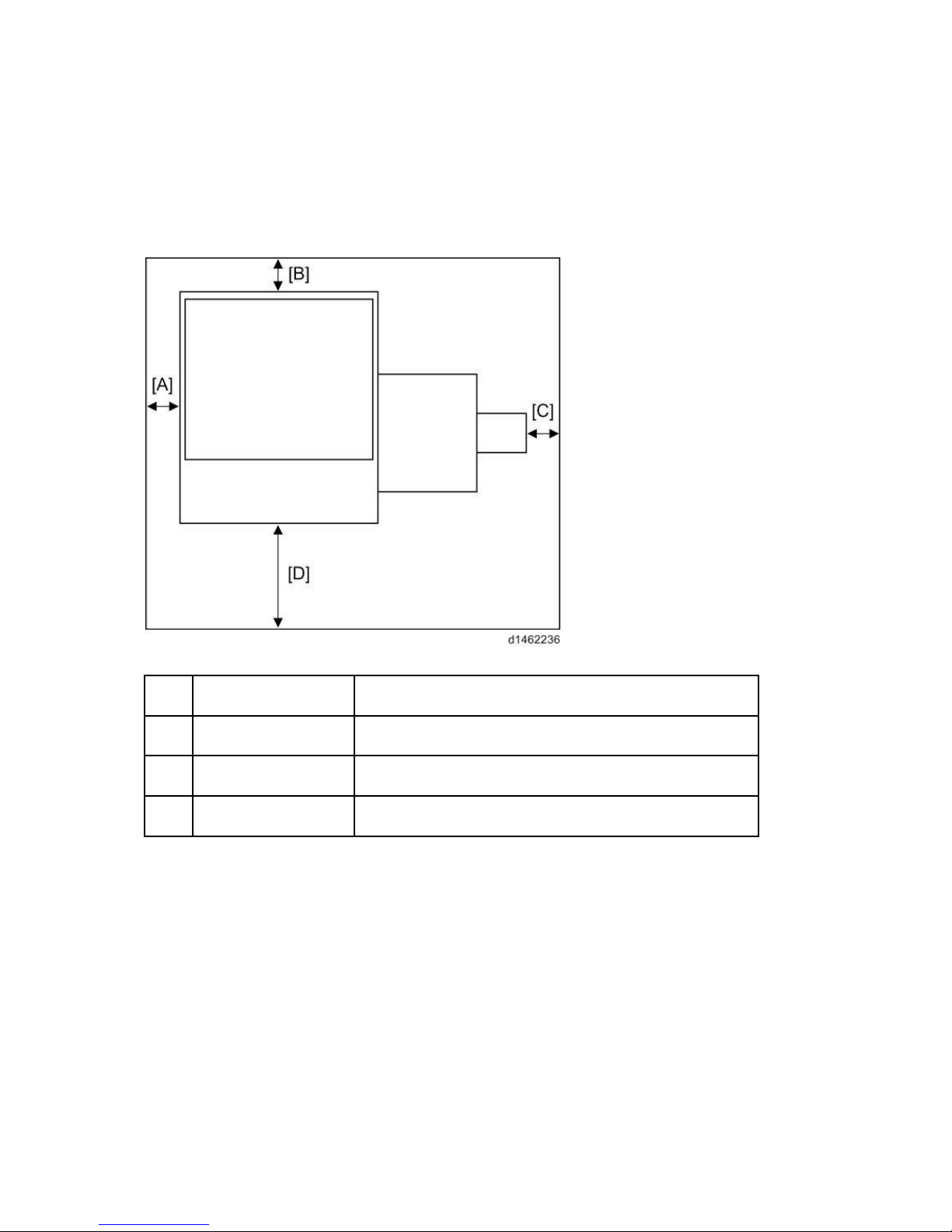

2.1.3 MACHINE SPACE REQUIREMENTS

[A]

Left

Over 100 mm (3.9")

[B]

Rear

Over 100 mm (3.9")

[C]

Right

Over 100 mm (3.9")

[D]

Front

Over 750 mm (29.5")

Put the machine near the power source with the clearance shown above.

Installation Requirements

2-3

D146/D147/D148/D149/D150

Installation

2.1.4 MACHINE DIMENSIONS

[A]

1210 mm

[F]

1589.5 mm

[B]

1030 mm

[G]

1249.5 mm

[C]

180 mm

[H]

340 mm

[D]

247 mm

[J]

662.5 mm

[E]

783 mm

[K]

587 mm

Installation Requirements

D146/D147/D148/D149/D150

2-4

2.1.5 POWER REQUIREMENTS

Insert the plug firmly in the outlet.

Do not use an outlet extension plug or cord.

Ground the machine.

Input voltage level

Destination

Power supply

voltage

Rated current consumption

Permissible voltage

fluctuation

120 to 127V

12A or more

Imaging: 108V(120V-10%)

to 138V(127V+8.66%)

Motions: 102V(120V-15%)

to 138V(127V+8.66%)

220 to 240V

10A

Imaging: ±10%

Motions: ±15%

CHN
