SERVICE BULLETIN

Date:

15/01/2015

Bulletin Nr:

Page:

1/15

Model:

Pro C5100s -

Pro C5110s

Version Nr:

2.6

Issued by:

WDS/GRY

Next Visit:

Mod. Nr:

Approved by:

PAC

At Failure:

Subject:

Installation Procedure

Technical Info:

General Info:

Installation engine and options:

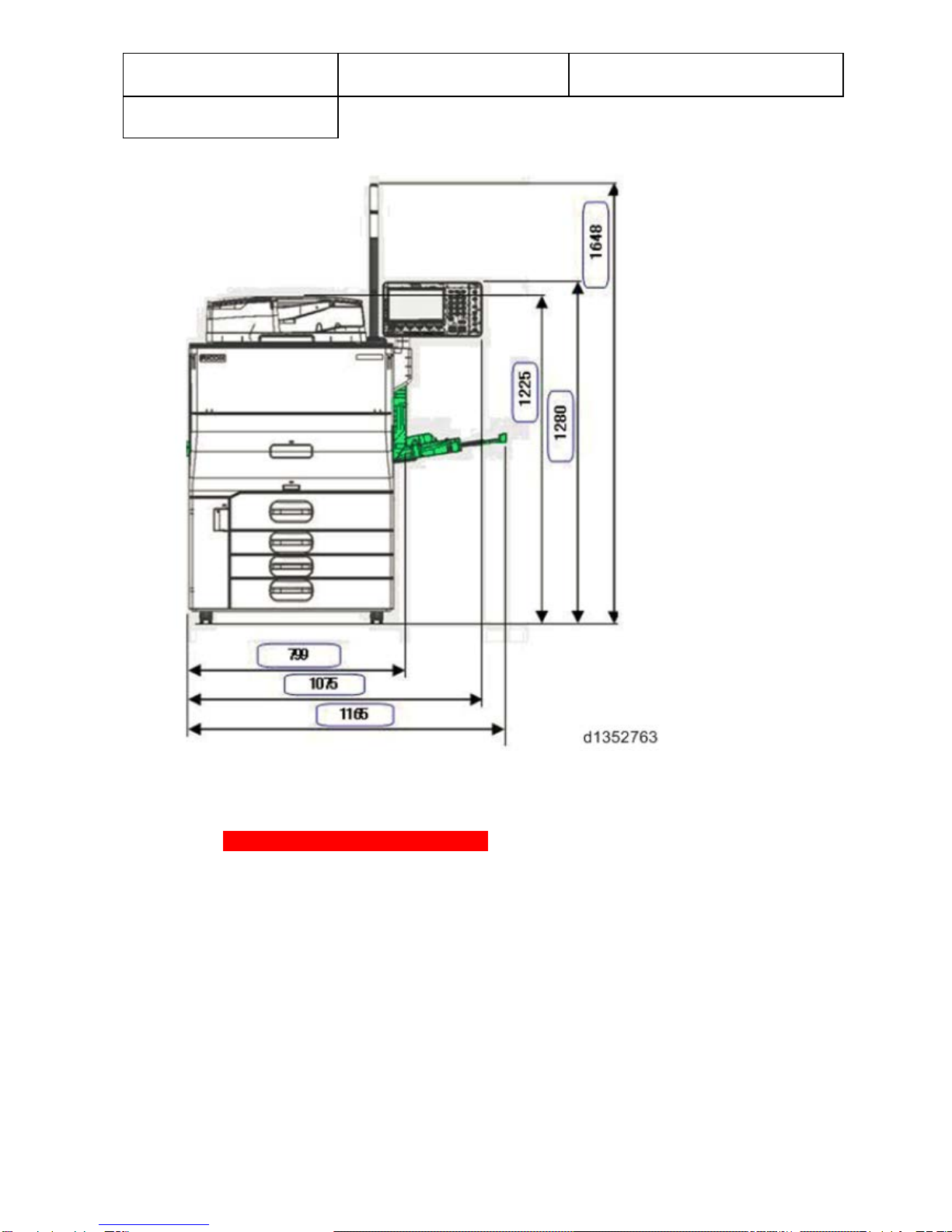

- Minimum space and dimension of the engine

Date:

15/01/2015

Bulletin Nr:

Page:

2/15

Model:

ProC5100s-

5110s

- Install device as described in de service manual.

oUse always the levelling shoes

Date:

15/01/2015

Bulletin Nr:

Page:

3/15

Model:

ProC5100s-

5110s

oConnect the tray heaters always on CN401( C ) - don’t connect CN402 ( B )

Install all options, as described in the service manual.

- Programme the following SP modes using Special SP mode:

oSP 1-131 Production Mode set to 1

oSP 5-045 Accounting Counter set to 1: Prints

oSP 5-061 to 1 toner remaining display

oSP 5-062-011 set to 1

oSP 5-062-034 set to 1

oSP 5-062-057 set to 1

oSP 5-062-080 set to 1

oSP 5-104 A3/DLT Double Count set to 1:Double count (see sales-contract)

oSP 5-104-101 set to 1 banner count on

oSP 5-104-102 set to 210 banner count threshold

oSP 5-112 Non-Std. Paper Sel set to 1: the customer will be able to input

non-standard paper size

Date:

15/01/2015

Bulletin Nr:

Page:

4/15

Model:

ProC5100s-

5110s

oSP 5-150 Bypass length set to 1

oSP 5-812-001 Telephone…ricoh.be/eservice

oSP 5-812-002 Fax………….02/5582718

oSP 5-812-003 Supply……..ricoh.be/eservice

oSP 5-841-001 for Black:……828225

oSP 5-841-002 for Cyan:……828228

oSP 5-841-003 for Yellow:…..828226

oSP 5-841-004 for Magenta:. 828227

oSP 6-6890-1 from 0 to 1 punch function enabled with Z fold

oExecute SP 5-990-001 (Print all SMC data)

- For @ remote or Cumming please check in the User Mode:

oSystem settings / administrator tools / extended security / remote

(diagnostic\service)

-For @ remote or Cumming please check in the following SP modes:

oSP 5-504-001 = 0

oSP 5-507-001 = 0

oSP 5-507-002 = 0

oSP 5-507-003 = 1

oSP 5-507-006 = 1

oSP 5-515-001 = 1

oSP 5-515-002 = 0

oSP 5-515-003 = 0

oSP 5-516-001 = 0

Program the User settings:

oSystem settings

General features

Function key allocation F1 = Copier

F2 = Document server

F3 = Fiery

F4 = Scanner

Function reset timer to 30sec

Timer settings

Sleep mode timer to 60min

Low power mode timer to 60min

Set time & date

Administrator tools

Auto delete file in document server to OFF

Select switchable languages =

1 = English

2 = French

3 = Dutch

Date:

15/01/2015

Bulletin Nr:

Page:

5/15

Model:

ProC5100s-

5110s

4 = none

5 = none

oCopier/document server settings

Edit : 1side → 2 side auto margin to 0mm

Input/output : letterhead settings to yes

oChange supervisor password according to General service Bulletin 10

(Security Features)

oProgram machine settings at customers request

Fiery Setting

oCheck language requirements of the customer via webtools (server;general), if thy

want Dutch only the Fiery program will change.

oProgram controller in consent with the customer, according with the D-Codes

Standard setting for the Fiery and color setup:

Fiery E22B

Server Info

Product: Pro C5100Sseries E-22B PS 1.1

Version: V00.90-99

Software: FS100

Memory (MB): 1984

Disk Size (GB): 443.6

Free Disk Space (GB): 442.8

Server Setup

Server Name: PROC5110

Server Language: English - International

Default Paper Sizes: Metric

Color Region: Europe

Time Zone: Amsterdam (CET)

Daylight saving: Yes

Enable SNTP: No

Password Enabled: No

Allow printing from: All users

Use Character Set: Windows

Enable Scan: Yes

Default File Format: PDF

Clear Each Scan Job: After 1 day

Date:

15/01/2015

Bulletin Nr:

Page:

6/15

Model:

ProC5100s-

5110s

Print Start Page: No

Preview While Processing: No

Enable Rip While Receive: Yes

Secure Erase: No

Auto Tray Selection: Based on Paper Catalog

Enable Printed Queue: Yes

Jobs Saved in Printed Queue: 99

Enable Mismatch Action: No

Job Log Setup

Enable auto export: No

Job Log Page Size: 11x17/A3

Secure Job Log: Yes

Enable System Updates: No

Day: Daily

Time: 03:00 AM

Enable Proxy: No

Network Setup

Port Setup

Ethernet

Enable Ethernet: Yes

Ethernet Address: 00:E0:81:E1:C4:65

Ethernet Speed: Auto (10/100/1000)

USB

Enable USB Port: Yes

USB Media Auto Print: Print All

802.1x Setup

Enable 802.1x Authentication: No

Protocol Setup

Enable AppleTalk: No

IPv4 Setup

Ethernet Setup

Enable Auto IP Configuration: No

IP Address: 10.144.74.66

Subnet mask: 255.255.255.0

Enable Gateway automatically: No

Gateway Address: 10.144.74.1

Enable DHCP: No

IP Address: 192.168.2.250

DNS Setup

Enable DNS: Yes

Get DNS setting automatically: No

Primary DNS server IP address: 10.144.74.1

Secondary DNS server IP address:

Domain name: werner.debois

Host name: PROC5110

WINS Setup

Use WINS Server: Yes

WINS IP Address:

Security Setup

Date:

15/01/2015

Bulletin Nr:

Page:

7/15

Model:

ProC5100s-

5110s

IP Filtering: No

Enable IPv6 Filter: No

Port filtering: Yes

20-21(FTP): Enabled

80(HTTP): Enabled

137-139(NETBIOS): Enabled

161-162(SNMP): Enabled

427(SLP): Enabled

443(SSL): Enabled

445(SMB/IP): Enabled

500(ISAKMP): Enabled

515(LPD): Enabled

631(IPP): Enabled

3702(WS-Discovery): Enabled

4500(IPSec): Enabled

5353(mDNS): Enabled

6310(Direct Mobile Printing): Enabled

9100-9103(Raw): Enabled

EFI Ports: Enabled

IPSec Setup: No

Enable IPv6: Yes

IP Address(es)

fe80:0000:0000:0000:02e0:81ff:fee1:c465/64

Service Setup

Enable LPD: Yes

Default LPD queue: Print Queue

Timeout(sec): 120

Enable Windows Printing: Yes

Server Name: PROC5110

Server Comments:

Domain or Workgroup: WORKGROUP

Enable Web Services: Yes

Enable IPP: Yes

Enable Direct Mobile Printing: Yes

Enable Port 9100: Yes

9100 Queue: Print

Timeout(sec): 120

Enable Email Services: No

Scan to Email: Yes

Scan to Internet FAX: Yes

Scan to Windows SMB: Yes

Enable Scan to FTP: Yes

Enable FTP Printing: Yes

Require Password for Printing: No

Timeout(sec): 30

Default FTP queue: Print Queue

Use FTP Passive mode: No

Enable SNMP: Yes

Security Level: Medium

Date:

15/01/2015

Bulletin Nr:

Page:

8/15

Model:

ProC5100s-

5110s

Enable LDAP: No

Enable SLP: Yes

Scope Name: Default

Enable Proxy: No

Enable Bonjour: Yes

Bonjour Service Name: RICOH Pro C5110Sseries E-42B PS US1.1

Preferred Printing Protocol: LPD

Enable WSD: Yes

WSD Queue: print

PrintMe Setup

Enable PrintMe: No

Printer Setup

Calibration Info

Measurement Method: Default

Calibration page layout: 21 Sorted Patches

Prepare scanner for ColorCal calibration: Off

Printer

Personality: Auto

Publish Direct Connection: Yes

Publish Print Queue: Yes

Publish Hold Queue: Yes

Published Virtual Printers

E-22B hold

E-22B print

E-22B direct

E-22B sequential

PS Setup

Allow courier substitution: Yes

Print to PS error: No

Default paper sizes: Metric

Media weight: Paper weight 3 (81.0 - 100.9 gsm)

Cover page: Disable

Convert paper sizes: Letter/Tabloid->A4/A3

Halftone mode: 200 dot + fine text

Shift mode: Sets and jobs

Output delivery: Face up - normal order

Print master: No

Cache PDF and PS objects: On

PCL Setup

Output delivery: Face up - normal order

Default orientation: Portrait

Form length: 64.00

Font size (pt): 12.00

Font pitch (char/in): 10.00

Symbol set: PC-8

Font source: Internal

Font number: 0

Date:

15/01/2015

Bulletin Nr:

Page:

9/15

Model:

ProC5100s-

5110s

Append CR to LF: No

Paper size for system pages: Metric

Color Setup

RGB Source Profile: sRGB (PC)

Rendering Intent: Photographic

CMYK Source Profile: ISO Coated FOGRA39L (EFI)

CMYK Processing Method: Full (Output GCR)

Separate RGB/Lab to CMYK source: Off

Use Media Defined Profile: On

Output Profile: Fiery Pro C5100S-C5110S Plain v1RT

Black Text and Graphics: Pure Black On

Black Overprint (for pure black): Text/Graphics

Spot Color Matching: On

RGB Gray Processing: Off

CMYK Gray Processing: Text/Graphics/Images

Use embedded profile when present (RGB): Off

Use embedded profile when present (CMYK): Off

VDP Setup

FreeForm 1 Record Length: FreeForm Master

Native Document Setup

Enable Native Document Conversion: No

BIOS Setup

BIOS Version: 1.10 15/11/2012

ID: 000086048A6300

OS Version: 2.3.1.05

Installed Options

Printer Info

Model: Pro C5110S

Manufacturer: RICOH

Serial Number: E263C430004

Installed Options

Finishers

Finisher SR4110

Finishing Units

Input Trays

Tray 1

Tray 2

Tray 3

Wide Large Capacity Tray

Bypass Tray

Output Trays

Finisher Upper Tray

Finisher Shift Tray

Date:

15/01/2015

Bulletin Nr:

Page:

10/15

Model:

ProC5100s-

5110s

Fiery E42B

Server Info

Product: Pro C5100Sseries E-42B PS 1.0

Version: 1.0

Software: FS100 Pro

Memory (MB): 4096

Disk Size (GB): 865.3

Free Disk Space (GB): 857.6

Server Setup

Server Name: CHARIS-PRO

Server Language: English - International

Date Format: dd/mm/yyyy

Number Format: 1000 = 1,000.00

Measurement Units: Metric

Default Paper Sizes: Metric

Color Region: Europe

Time Zone: (UTC+01:00) Amsterdam (CET)

Daylight saving: Yes

Enable SNTP: No

Password Enabled: Yes

Allow printing from: Authorized users

Use Character Set: Macintosh

Enable Scan: Yes

Default File Format: PDF

Clear Each Scan Job: After 1 day

Print Start Page: No

Preview While Processing: No

Enable Rip While Receive: Yes

Secure Erase: No

Auto Tray Selection: Based on Paper Catalog

Enable Printed Queue: Yes

Jobs Saved in Printed Queue: 99

Enable Mismatch Action: No

Enable Hot Folders: Yes

Enable Remote Desktop: Yes

Job Log Setup

Enable auto export: No

Job Log Page Size: 11x17/A3

Secure Job Log: Yes

Enable System Updates: No

Fiery OS: Windows 7 Professional

Installed Fiery Utilities

Autres manuels pour Pro C5100S

Ce manuel convient aux modèles suivants

Autres manuels Ricoh Contrôleurs

Ricoh

Ricoh Interactive Whiteboard Controller Type 2 Manuel utilisateur

Ricoh

Ricoh Interactive Whiteboard Controller Type 1 Manuel utilisateur

Ricoh

Ricoh E-7100 Mode d’emploi

Ricoh

Ricoh Interactive Whiteboard Controller Type 1 Manuel

Ricoh

Ricoh 700 Series Manuel utilisateur

Ricoh

Ricoh RV5VH Instructions d'utilisation

Ricoh

Ricoh Y406 Guide de démarrage rapide

Ricoh

Ricoh Pro 1107 Mode d’emploi

Ricoh

Ricoh E-7000 Manuel utilisateur

Ricoh

Ricoh AFICIO 1055 Manuel utilisateur

Ricoh

Ricoh Prinect DFE Guide de démarrage rapide

Ricoh

Ricoh Stinger-C1 B305 Manuel utilisateur

Ricoh

Ricoh Fiery E-820 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
