Richmat HJC56 Ble Manuel utilisateur

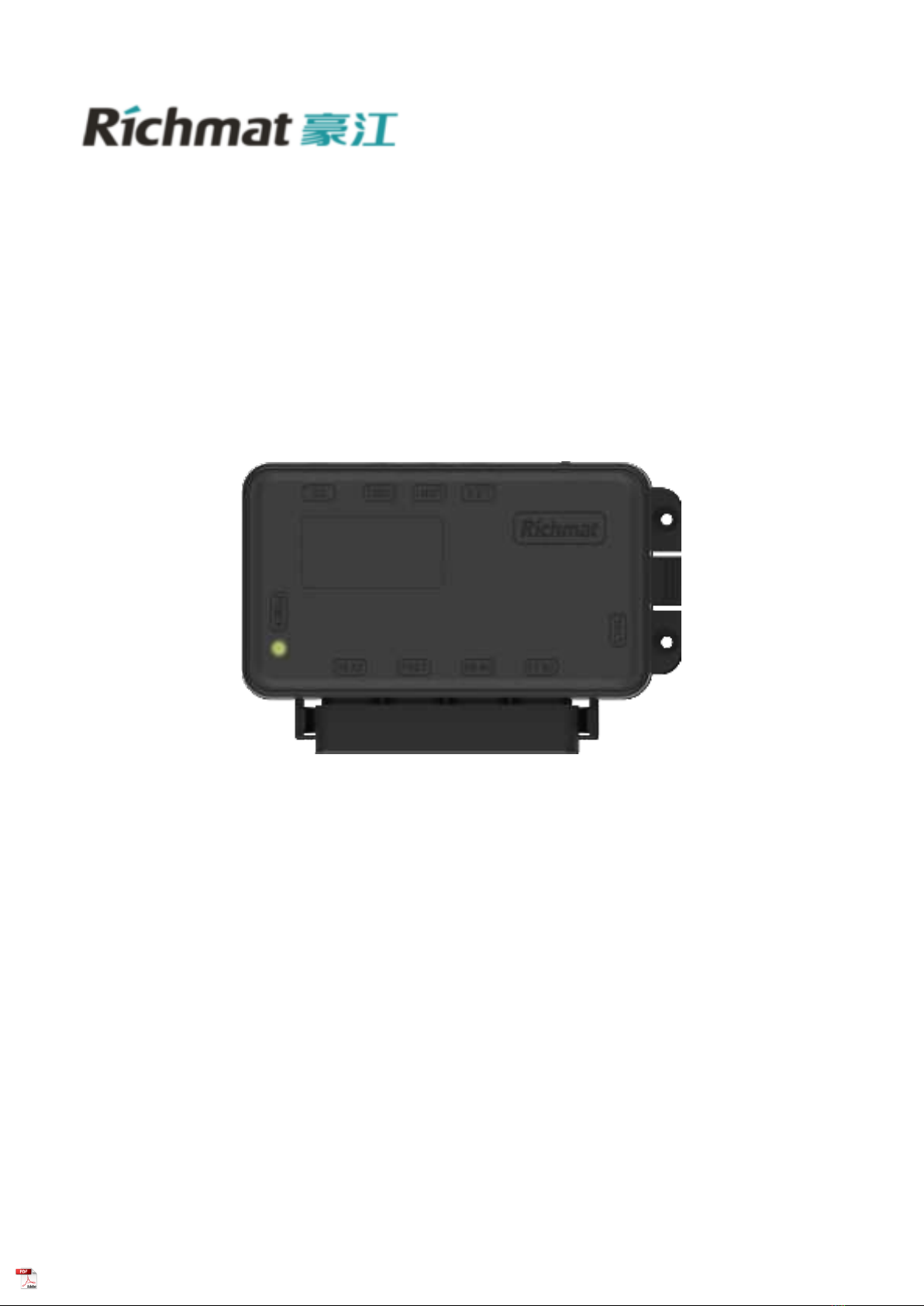

Control box

HJC56 Ble

1. Remark:

Up to 4 motors

BLE control available

Memory function

Color: black

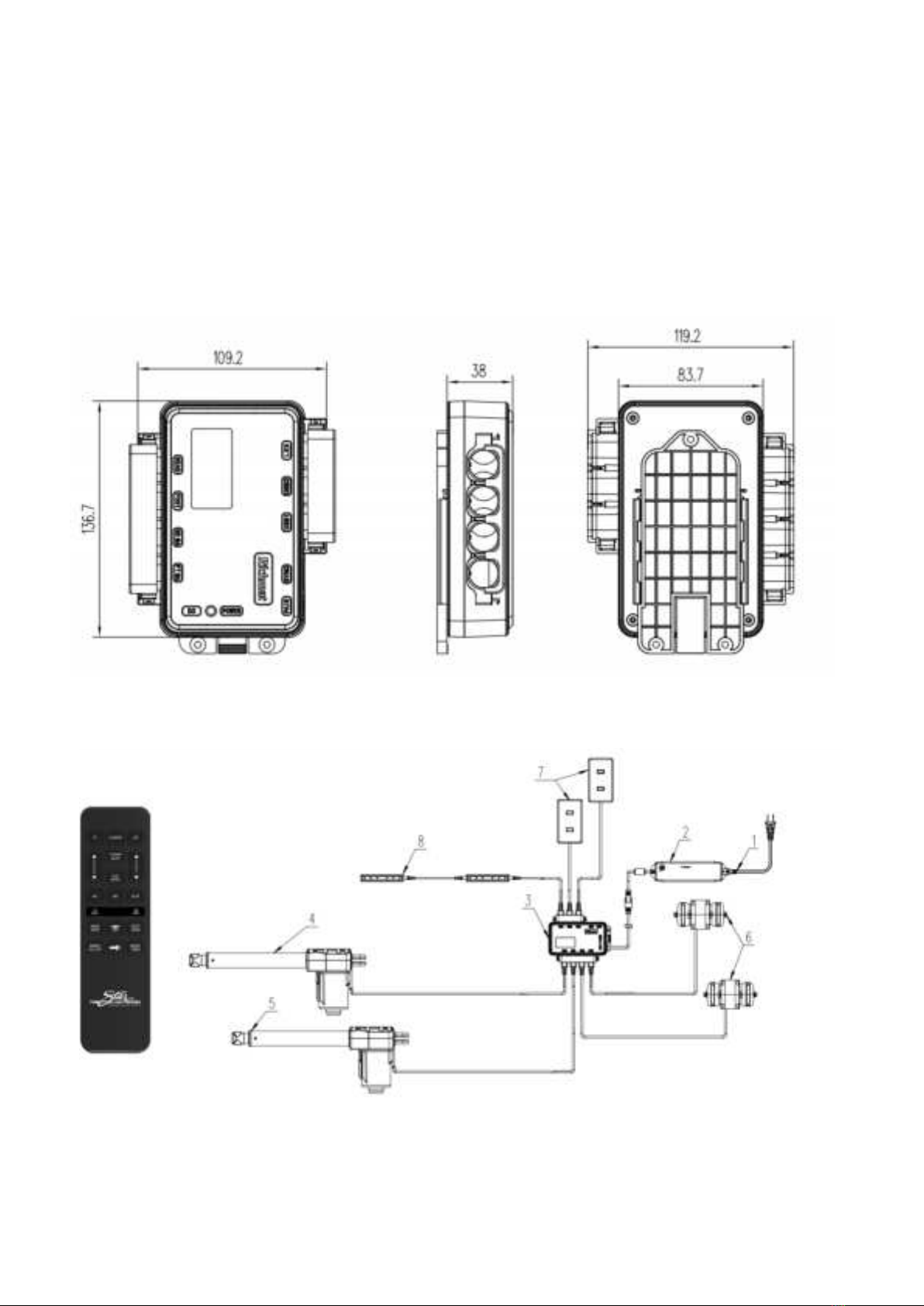

2. Dimension:(mm)

3.System configuration diagram

Before powering on, please install the accessories in place according to

the system configuration diagram

4.Remote control button silicone diagram

5.Fixed position size

LOUNGE

SNORE

Head（mm）

127

149

Foot（mm）

125

6.Remote control function description

Button

label

Function

Press the button, the motor will run to the TV position

with one button (there is an initial position)

Multiplexing function: Press and hold the FLAT button

while pressing the TV button, the buzzer sounds, the

backlight flashes, and the current motor status is

recorded to the TV position. (Power-off memory clear)

Press the button, the motor will run to the LOUNGE

position with one button (there is an initial position)

Alternate function: Press and hold the FLAT button while

pressing the LOUNGE button, the buzzer sounds, the

backlight flashes, and the current motor status is

recorded to the LOUNGE position. (Power-off memory clear)

Press the button, the motor will run to the ZG position

with one button (there is an initial position) Alternate

function: Press and hold the FLAT button while pressing

the ZG button, the buzzer sounds, the backlight flashes,

and the current motor status is recorded to the ZG

position. (Power-off memory clear)

Press the button to extend the back motor, and the back

motor extends to the position of maximum stroke to stop.

Release the button in the middle to stop the motor.

Press the button to retract the back motor, and the back

motor retracts to the 0mm position to stop. Release the

button in the middle, and the motor stops.

The Partner Control key has three options: ①Press the

Partner Control key, the -10min light on the left side

of the decorative strip will light up, and you can control

bed A at this time; ②Press the Partner Control button

again, the -20min light on the right side of the

decorative strip will light up, and the B bed can be

controlled; ③Press the Partner Control button again,

the left side + right side of the decorative strip

-10min+20min lights at the same time, you can control the

AB bed at the same time.

Press the button, the motor will run to the SNORE position

with one button (there is an initial position) Alternate

function: Press and hold the FLAT button while pressing

the SNORE button, the buzzer sounds, the backlight

flashes, and the current motor status is recorded to the

SNORE position. (Power-off memory clear)

Press the button to extend the leg motor, and the leg motor

extends to the maximum stroke position to stop. Release

the button in the middle to stop the motor.

Press the button to retract the leg motor, and the leg

motor retracts to the 0mm position to stop. Release the

button in the middle, and the motor stops.

Press the button, the motor will run to memory position

1 with one button (no initial value) Alternate function:

Press and hold the FLAT button while pressing the M1

button, the buzzer sounds, the backlight flashes, and the

current motor status is recorded to the memory position

1. (Not cleared after power failure)

Press the button, the motor will run to memory position

2 with one button (no initial value) Alternate function:

Press and hold the FLAT button while pressing the M2

button, the buzzer sounds, the backlight flashes, and the

current motor status is recorded to the memory position

2. (Not cleared after power failure)

One key to restore the motor reset position, the control

box will automatically perform a reset operation after

power on.

Multiplexing function: press the button, if the head

massage motor is not activated, it will start the head

massage motor and enter the "CONSTANT" mode, if the head

massage motor is activated, the vibration intensity of

the head massage motor will be enhanced, a total of 3

intensities, When the intensity increases to the maximum,

press the button to turn off the massager. (Default 30min

is off)

Bed bottom lamp on/off (default 5min off)

Multiplexing function: Press the button, if the foot

massage motor is not activated, the foot massage motor

will be activated and enter the "CONSTANT" mode. If the

foot massage motor has been activated, the vibration

intensity of the foot massage motor will be increased,

with a total of 3 intensities. When the intensity

increases to the maximum, press the button to turn off

the massager. (Default 30min is off)

Reuse function button: Before pressing the button, if the

massager is in working state, after pressing the button,

all massagers will be turned off, and the working time

of the next massage motor will be set to 10min, 20min and

30min respectively. The timing time is displayed by two

indicator lights, and the maximum timing time is 30min.

If the massager is not in working state, it will directly

time the next massage motor working time.

Press the button to turn on the flashlight, release the

button to turn off the flashlight.

Adjust the massage motor mode. After the massager has been

turned on, press this button, the working massage motor

enters the "PULSE" mode, press the button again, the

massage motor enters the "WAVE" mode, press the button

again, the massage motor enters In "CONSTANT" mode, after

pressing the button again, the massage motor enters the

"PULSE" mode and cycles in sequence.

Coding method: 1. First press the light on the left side of the Partner

Control decorative strip for -10 minutes to light up, then press

[remote control head up + foot up (4, 8) + control box code key] the

buzzer will sound, indicating that it is paired with control box A

The code is successful; press the light on the right side of the Partner

Control decorative strip again for -20 minutes, and then press the

[remote control head up + foot up (4, 8) + control box code key] buzzer

sounds, indicating that it is with control box B The code pairing is

successful. 2. The remote control is powered off, and the default mode

is A+B. 3. The control box has a reset function for the code key.

Caution:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

—Consult the dealer or an experienced radio/TV technician for help.
