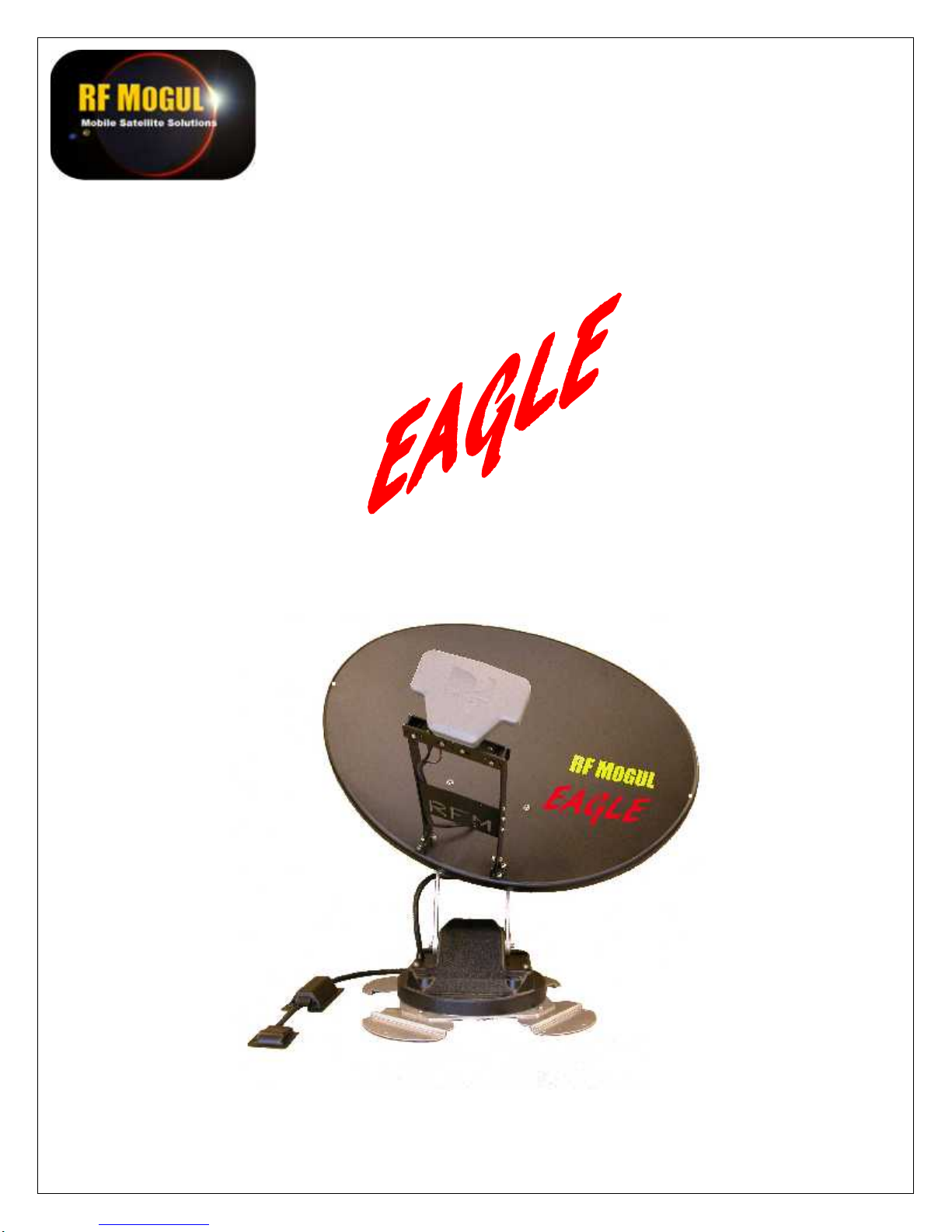

RF Mogul Eagle Manuel utilisateur

SATELLITE TV

MANUAL

4 December 2013

The Eagle Manual

Index

Warning ....................... 4

Mount Definitions ........................ 5

Controller View ....................... 6

Configuration and Software Versions ....................... 8

Menu Options ....................... 9

Connector Wiring Diagram ....................... 10

Raising the ODU Using a 12 VDC Source ....................... 10

vGPS (DirecTV) Block Diagram ....................... 11

Foot Print and Clearances ....................... 12

Operation ....................... 13

LCD Display ....................... 14

Service Messages ....................... 15

Returning Parts to the Factory ....................... 16

The Eagle Manual

WARNING

Make all electrical and coax connections from the controller to the mount

and LNB's BEFORE applying power to, or connecting the satellite

receiver to the controller.

Note: When the controller is turned OFF it will still pass voltage from the receiver to the

LNB if the receiver is plugged in to 110 AC. Shorting of the coax at any time during

installation may cause damage to either the Controller or the DiSEqC Switch (if installed).

Failure to follow this procedure can result in voiding of warranty replacement, not to

mention time spent trying to troubleshoot a system that does not perform.

REMEMBER

90% of all problems are a result of CONNECTIVITY or CONFIGURATION.

The Eagle Manual

Mount definitions

A system consists of several components

Connector Weather Cover

Mounting Feet

Mount or Azimuth Base

LNB Arm Assembly

Note: Your LNB

may vary from the

one pictured

depending upon your

system configuration.

Reflector/Parabola

MOUNT (ODU)

Items included with the system and

not shown.

1 ea LNB Landing Plate

15' Control Cable, 25'

1 ea Connector, green, 12 pin

1 ea Power Supply, 12 VDC 7 amp

1 ea RE-1000 User Guide

1 ea EAGLE Controller

Clam Shell

The Eagle Manual

Controller Views

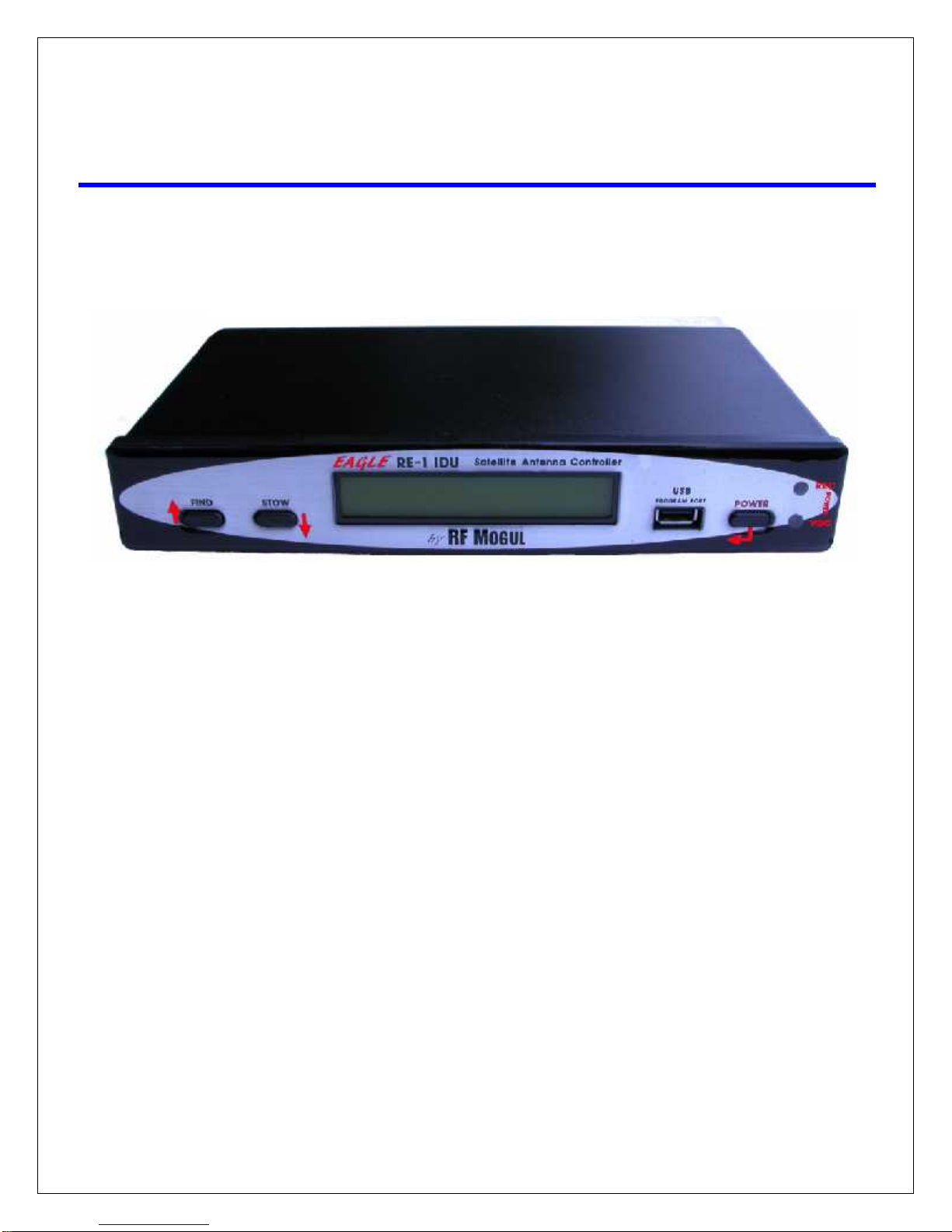

FRONTAL VIEW Definitions and Usage

FIND

Directs the system to "FIND" Satellites

Navigates through the menu and selects a particular function

STOW

Directs the system to "STOW" the mount and prepare it for travel

Navigates through the menu and selects a particular function

LCD Display

Displays the actions of the system

USB Programming Port

Used for changing software

POWER

Turns controller ON and OFF

Navigates through the Menu options

LEDLNB indicates the receiver coax is attached to the controller

SYSTEM indicates power is being supplied to the controller

CONTROLLER (IDU)

The Eagle Manual

REAR VIEWDefinitions and Usage

CONNECTIONS

POWER

12 VDC 7 amp (power supply provided)

CONTROL CABLE CONNECTION:

Termination of the 12 wires of the control cable to the controller takes place here.

TO SATELLITE RECEIVER

This is a coax pass-through connection to your satellite receiver (Satellite IN). It is

optional except for DirecTV SWM.

TO LNB:

This is a coax connection to the Antenna's LNB. The connection is made at the base of the mount to

any one of 4 coax cables that run through the mount and is secured to the LNB.

If you have DirecTV SWM, then the cable attached to the DiSEqC switch must be routed

directly to the controller uninterrupted to the connection marked "TO LNB". (see configuration to

determine which coax at the base of the mount goes to the controller).

Label on the bottom of the controller

CONTROLLER (IDU)

To REC To LNB

The Eagle Manual

Configurations and Software Version

Each of the Program Providers will require different software

EAGLE -1 SHAW Direct = 107.3, 107.3, 111.1 Satellites (For Canadian Use Only)

EAGLE -2 DirecTV SWM = 99, 101, 103 or 99,101,103,110 and 119 Satellites

EAGLE -3 Dish Network = 110, 119, 129 Satellites

EAGLE -4 Bell Express = 81, 92 Satellites (For Canadian Use Only)

TO CONFIGURE

Configuration of your system is done through software. There are different

versions of software for each Program Provider.

Go to www.rfmogul.com web site and download to your USB drive the

appropriate software for your program provider.

Place the USB drive into the appropriate slot in the front of the controller and

turn the power ON.

The controller will download the file into memory. This process will take

approximately 8-10 seconds.

SOFTWARE VERSION UPGRADES

When should you think about downloading new software or changing configurations?

1. To take advantage of new innovative features offered by the latest revision of

software.

2. If you have called your installer and he recommends it.

3. If you read the History of the new software and you determine that you could

benefit from its features.

The Eagle Manual

Menu Options

Select menu options by

Pressing the POWER or RETURN button once to turn ON the controller. At that time you may press

SEARCH (UP arrow) to begin the search routine or STOW (DOWN arrow) to return the mount to its

stowed or travel position. If you press POWER or RETURN again this will to enter you into the menu

options.

Press the UP ARROW to step through the menu.

When desired function is displayed press the Power or Return Arrow to select that function.

SHUT DOWN

Press the Return Arrow select the SHUT DOWN option and press Return. The power will

turn OFF.

Pressing and holding the Return Arrow for 3 seconds will turn the power OFF.

Press the UP Arrow after turning power ON to begin the satellite search for satellites.

STOW

Press the DOWN Arrow or STOW button after turning power ON to return your mount to

its stowed or travel position.

MANUAL MOTOR MOVEMENT

MOVE AZ

When moving through the menu options and MOVE AZ appears, pressing the RETURN

button will allow you to move or rotate the mount in Azimuth in a clockwise motion by

pressing and holding the UP Arrow and counterclockwise by pressing and holding the

DOWN Arrow.

MOVE EL

When moving through the menu options and MOVE EL appears, pressing the RETURN

button will allow you to elevate the mount by pressing and holding the UP Arrow or by

holding the DOWN Arrow.

MOVE SK

When moving through the menu options and MOVE SK appears, pressing the RETURN

button will allow you to rotate the dish by pressing and holding the UP Arrow to move the

left side of the dish down by holding the DOWN Arrow it will move the right side of the

dish down.

The Eagle Manual

Connector Wiring Diagram

Wiring the

12 Pin Controller Connector

Pin Color How Used Where

Used

1 = BLACK Motor -Azimuth

2 = BROWN Motor +Azimuth

3 = RED Motor -Elevation

4 = ORANGE Motor +Elevation

5 = YELLOW Motor - Skew

6 = GREEN Motor +Skew

7 = BLUE Count Azimuth

8 = VIOLET Count Elevation

9 = GRAY Count Skew

10 = WHITE Ground

11 = PINK 12 Volts DC

12 = TAN GPS TXD

RAISING THE ODU

USING A 12 VDC SOURCE

TO RAISE THE MOUNT WITH

A BATTERY

Touch the following wires from the control cable directly to a

drill battery or any 12 VDC source and it will result in movement

of the ODU. To reverse the direction, reverse the wires to your

battery.

ELEVATION Red and Orange will raise and lower

the mount

AZIMUTH Black and Brown will rotate the dish

SKEW Yellow and Green will tilt dish.

Wire Color Wire Function

BLACK +AZ

BROWN -AZ

RED +EL

ORANGE -EL

YELLOW - SKEW

GREEN +SKEW
