RetroSound Motor 6 Manuel utilisateur

MODERN SOUND FOR YOUR CLASSIC

www.retromanufacturing.com

USER’S MANUAL

Version 2

TABLE OF CONTENTS

WELCOME 3

WHAT’S IN THE BOX 4

PRECAUTIONS 5

INSTALLATION INSTRUCTIONS 8

WIRING DIAGRAM 11

OPERATING YOUR RADIO

BASIC OPERATION 14

TONE CONTROLS 18

SYSTEM SETTINGS 20

USB/APPLE®DEVICE INSTRUCTIONS 25

BLUETOOTH®INSTRUCTIONS 28

TROUBLESHOOTING 30

FREQUENTLY ASKED QUESTIONS 31

SPECIFICATIONS 34

LIMITED WARRANTY 35

REPLACEMENT PARTS 36

INSTALLATION NOTES 37

Declaration of Conformity for San Diego/Motor 6

Manufacturer:

Retro Manufacturing, LLC

7470 Commercial Way

Henderson, NV 89011

www.retromanufacturing.com

U.S.A.

For more information visit www.retromanufacturing.com/pages/declaration-of-conformity

LICENSING

For clarity in identifying your model of iPod, please see Apple’s document

“Identifying iPod®models” at http://support.apple.com/kb/HT1353.

“Made for iPod®” and “Made for iPhone®” mean that an electronics accessory has been

designed to connect specically to iPod®or iPhone® respectively, and has been certied by the

developer to meet Apple performance standards. Apple is not responsible the operation of this

device or its compliance with safety and regulatory standards. Please note that the use of this

accessory with iPod®or iPhone®may affect wireless performance. Apple is not responsible for the

operation of the device or its compliance with safety and regulatory standards.

iPod®and iPhone®are trademarks of Apple Inc., registered in the U.S. and other countries.

Sirius, XM, SiriusXM and all related marks and logos are trademarks of Sirius XM Radio Inc.

Windows Media®and the windows logo are trademarks, or registered trademarks of Microsoft

Corporation in the United States and/or other countries.

The Bluetooth®word mark and logos are owned by the Bluetooth®SIG, Inc., and any use of such

marks by Retro Manufacturing, LLC are under license. Other trademarks and trade names are

those of their respective owners.

Made for iPod®

(Correct function of earlier versions

cannot be guaranteed.)

• iPod Touch (5th generation): Ver. 9.3.5

• iPod Touch (4th generation): Ver. 6.1.2

• iPod Touch (3rd generation): Ver. 5.1

• iPod Touch (2nd generation): Ver. 4.2.1

• iPod Nano (6th generation): Ver. 1.1

• iPod Nano (5th generation): Ver. 1.0.2

• iPod Nano (4th generation): Ver. 1.0.4

• iPod Nano (3rd generation): Ver. 1.1.3

• iPod Classic (160 GB) (Late 2009): Ver. 2.0.4

• iPod Classic (120 GB): Ver. 2.0.1

• iPod Classic (80 GB, 160 GB): Ver. 1.1.2

Made for iPhone®

(Correct function of earlier versions

cannot be guaranteed.)

• iPhone SE: Ver. 10.1.1

• iPhone 6s Plus: Ver. 10.1.1

• iPhone 6s: Ver. 10.1.1

• iPhone 6 Plus: Ver 10.1.1

• iPhone 6: Ver. 10.1.1

• iPhone 5s: Ver. 10.1.1

• iPhone 5: Ver. 10.1.1

• iPhone 4s: Ver. 9.3.5

• iPhone 4: Ver. 7.1.2

• iPhone 3Gs: Ver. 6.1.6

• iPhone 3G: Ver. 4.2.1

WELCOME

Thank you for purchasing a RetroSound® Retro Radio™. Motor 6 has

the advanced features you expect from a modern car stereo. Your

RetroSound®Retro Radio™ consists of two main parts: the radio face

and the Motor 6 body.

General Features

• Built-in DAB/DAB+ Tuner

• Made for iPod®/iPhone®/iPad®

• Charges Android devices

• Built-in Bluetooth®for hands-free calling and audio streaming

• Wireless Audio Browsing from your iPhone

or Android device

• Plays MP3, FLAC and WMA les via USB input

• Selectable 32,000 color LCD illumination with user presets

• AM/FM tuner with 30 presets and RDS

• Selectable international tuner frequencies

• Built-in amplier (25 watts RMS/45 watts peak x 4 channels)

• 3 EQ presets plus user-controlled bass, mid-range,

treble, fader, and balance adjustment

• InniMount shaft/bracket system for maximum installation exibility

• Available with period-correct knobs and bezel

• Inputs: 2 rear-mounted standard USB ports and 2 rear auxiliary inputs

• Outputs: 6-channel pre-amp outputs (front, rear, subwoofer)

• Separate power antenna and amplier turn-on lead(s)

• 2 year warranty

The information enclosed in this user’s manual is to be used as a guide to assist

you with installation and operation of your radio. This guide does not cover

every installation possibility, vehicle, or every aspect of the installation process.

Retro Manufacturing, LLC, RetroSound®, or its subsidiaries, assume no

responsibility for any installation. This manual may be updated from time to time.

Visit our website for the latest updates: www.retromanufacturing.com.

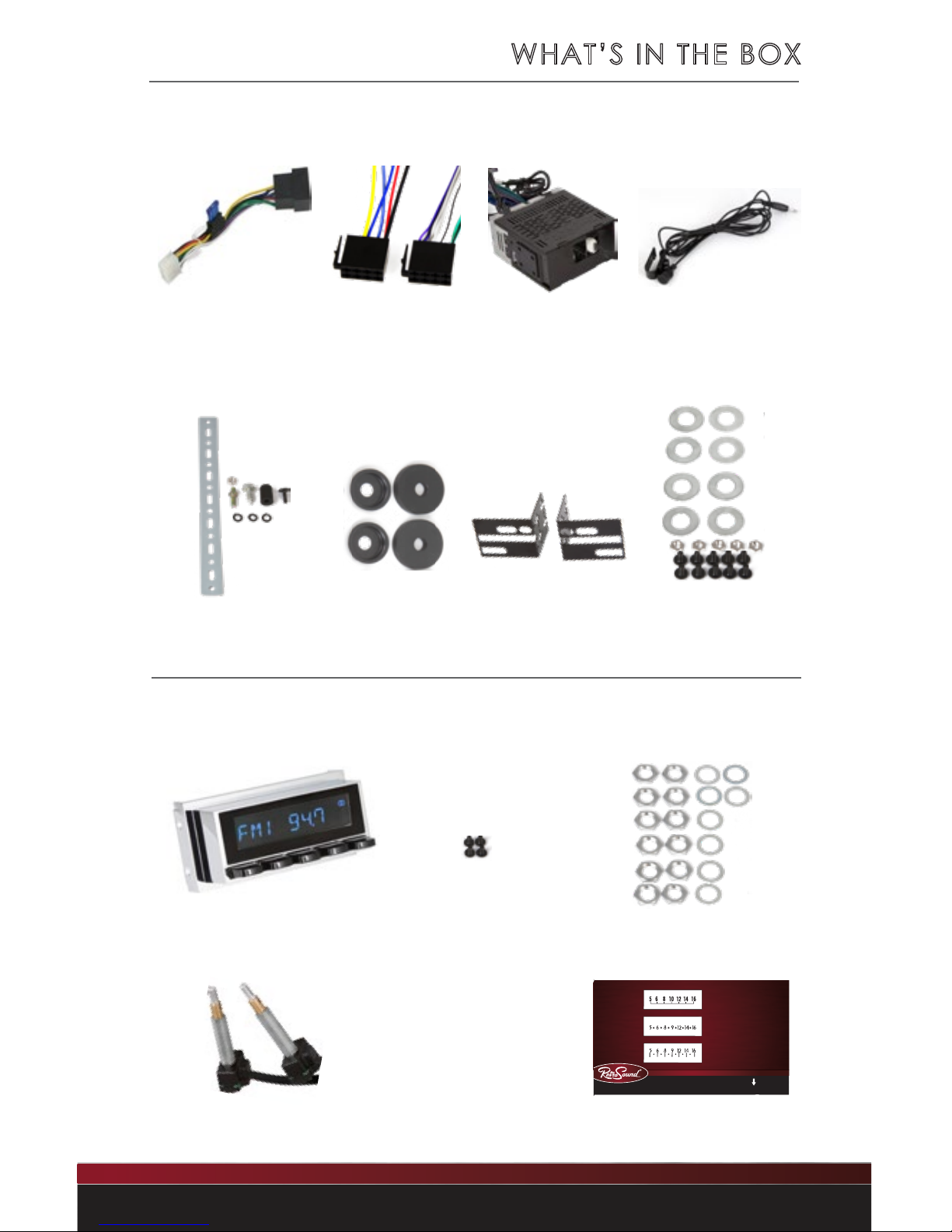

WHAT’S IN THE BOX

The items shown below are packaged with your Motor 6 box.

The items shown below are packaged with your radio face box.

Main Wiring Harness

(plugs into back of radio)

InniMount Brackets

Radio Face

Power and Speaker

Wiring Harnesses

(both plug into Main

Wiring Harness)

Motor 6 Radio Body Bluetooth®Microphone

Metal Mounting Back Strap

and Hardware

Plastic Washer Kit

Shaft Mounting Hardware

Bracket Mounting

Hardware

Radio Face

Mounting Screws

Shafts Vintage Radio Dial Screen Protectors

(select models only)

MODERN SOUND FOR YOUR CLASSIC

www.retromanufacturing.com

Package contains (3)

radio screen protectors

and application instructions

RADIO SCREEN

PROTECTORS

Made in China

Item# SCP

Radio Screen Protectors

Radio Display Schutzfolien

Protections d’écran Radio

Protectores Radio Screen

SCP01

SCP02

SCP03

PRECAUTIONS

PLEASE OBSERVE THESE PRECAUTIONS WHEN INSTALLING

AND USING THIS UNIT:

This user’s manual does not cover all possible installation scenarios. If

you feel you can’t install this unit yourself, take it to a local car audio

professional. Feel free to contact us at [email protected]

if you have questions about installing your radio.

• Do not disassemble or modify the unit or attempt to

repair the unit yourself. If the unit needs to be repaired,

consult your dealer or Retro Manufacturing, LLC.

• Do not use the unit when it is out of order. If the unit is out of

order or is in an abnormal state (has foreign objects in it, is

exposed to water, is smoking or smells), turn it off immediately

and consult your dealer or Retro Manufacturing, LLC.

• Refer fuse replacement to qualied service personnel.

When the fuse blows, eliminate the cause and have it

replaced by a qualied service technician with the fuse

prescribed for this unit. Incorrect replacement of the fuse

may lead to smoke, re and damage to the unit.

• If the unit does not turn on, check the connections rst. Then

check the fuse in your vehicle’s fuse box and the fuse at

the unit’s wiring harness. Do not expose the unit to direct

sunlight or excessive heat. Excessive heat will raise the

interior temperature of the unit, which may damage it.

• Do not use the unit where it is exposed to moisture or dust.

Exposure of the unit to moisture or dust may lead to smoke, re

or other damage to the unit and will void your warranty. Make

sure the unit does not get wet in car washes or on rainy days.

PRECAUTIONS

• Refer wiring and installation to qualied service personnel.

Installation of this unit requires special skills and experience.

For maximum safety, have it installed by your dealer or

qualied service professional. Retro Manufacturing, LLC

is not liable for any problems resulting from improper

installation of the unit. Please be sure to follow the

instructions carefully while attempting installation.

• Follow instructions to wire the unit. Failure to follow the instructions

could cause damage to the unit, re, injury or death.

• Be careful not to damage the leads. Prevent them from

being caught in the vehicle chassis or from being damaged

by screws or moving parts such as seat rails. Do not scratch,

pull, bend or twist the leads. Do not install them near heat

sources or place heavy objects on them. If leads must

be routed around sharp metal edges, protect them by

wrapping them with vinyl tape or similar protections.

NOTE: Cutting the main wire harness, antenna lead, USB or auxiliary cables will

void the warranty of your radio.

• Use the designated parts and appropriate tools

to install this unit. The use of parts other than those

supplied may result in internal damage to the unit.

• Do not interfere with safety-related vehicle components.

Do not wire or afx this unit to the fuel tank, brakes,

suspension, steering wheel, pedals, etc. Check for electric

wiring, piping and other items before installing the unit.

• Never install the unit in a location where it

interferes with your eld of vision.

PRECAUTIONS

• Never splice into the power lead to supply

other equipment with power.

• After installation and wiring, always check the normal

operation of other electrical equipment.

• Make sure that no wires interfere with driving

or getting in and out of the vehicle.

• Insulate all exposed wires to prevent short-circuiting or electric shock.

• Do not operate the unit for prolonged periods

with the engine off. Prolonged operation with the

engine turned off will drain the battery.

• To prevent accidents, keep the volume of your radio at a level

that allows you to hear outside noises such as emergency

sirens and train crossing warnings. Prolonged exposure

to high volume levels may also result in hearing loss.

• This unit requires 12 volts to both the red and yellow power leads.

The unit will not work without power to both of these leads.

• Disconnect the negative (-) battery cable before beginning

installation. Verify the battery ground by checking that one

wire is connected to the vehicle’s starter mounting bolt or

engine block and the other to the vehicle’s chassis using at

least 8 gauge wire. Make sure the alternator or generator

connections are secure and free from corrosion, rust or dirt.

• This unit is designed for operation with a negative ground

12 volt DC battery system. Do not operate this unit with

other battery systems, especially an 18 or 24 volt DC or a

positive ground system. If you have a 6 volt system, you

need to either convert to 12 volt DC or purchase a separate

inverter that would increase the voltage to 12 volts.

NOTE: The inverter needs to be rated at 10 amps or higher in order

for the radio to operate properly.

STEP 1: Install the Radio Face

Plug the ribbon cable included with the Motor 6 body into

the radio face. After plugging in the face, attach it to

the body and tighten with the four radio face mounting

screws provided in the radio face box (the screws are very

small and are in the hardware bag with the shaft nuts).

The RetroSound®logo on the Motor 6 body should be facing

upwards. Take care to not install the face to the body upside down.

NOTE: Optionally, the radio face can be mounted remotely up to

nine feet away from the Motor 6 body using an optional Face to Body

Extension Cable (sold separately). In some installation applications, a

bracket can be used to mount the face to the body at an angle.

INSTALLATION INSTRUCTIONS

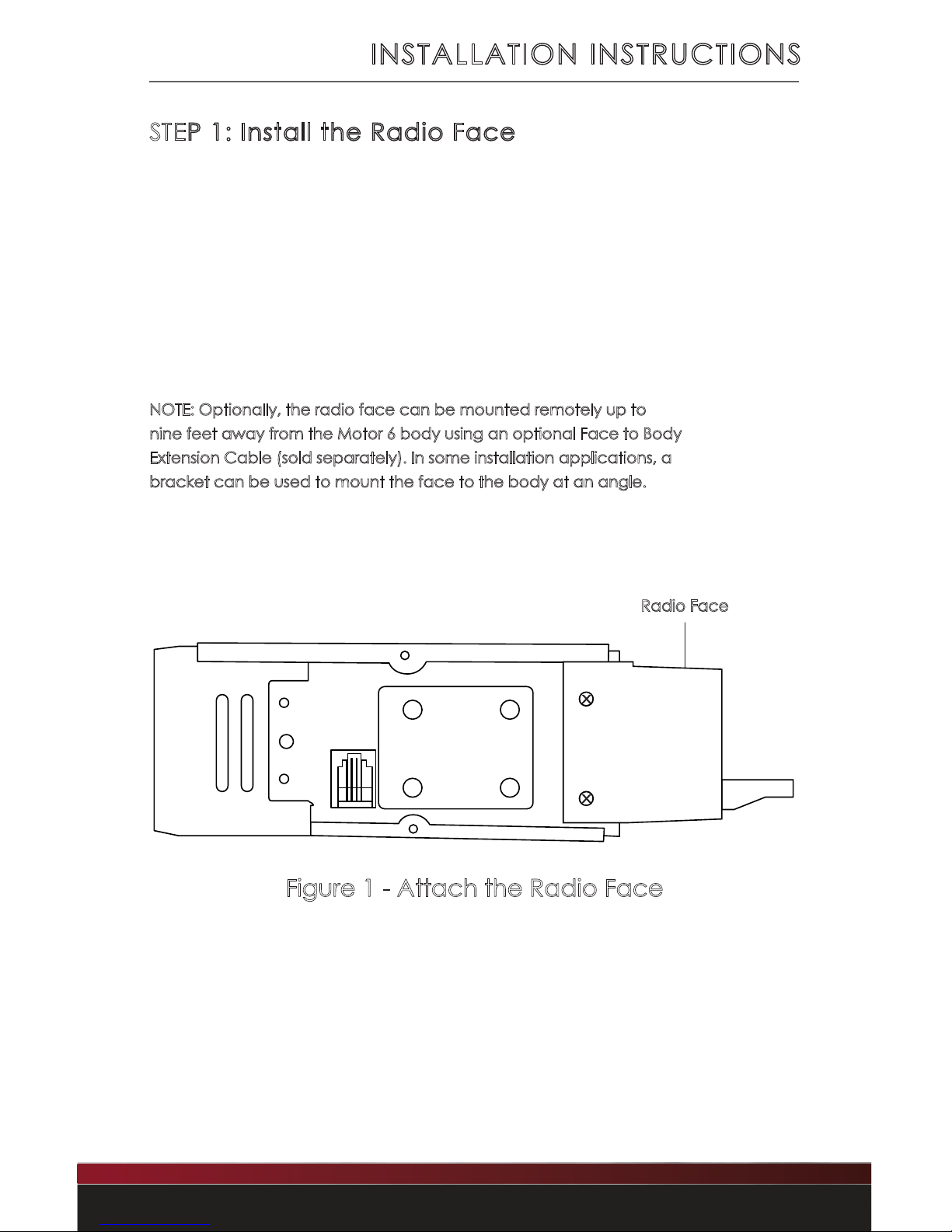

Figure 1 - Attach the Radio Face

Radio Face

INSTALLATION INSTRUCTIONS

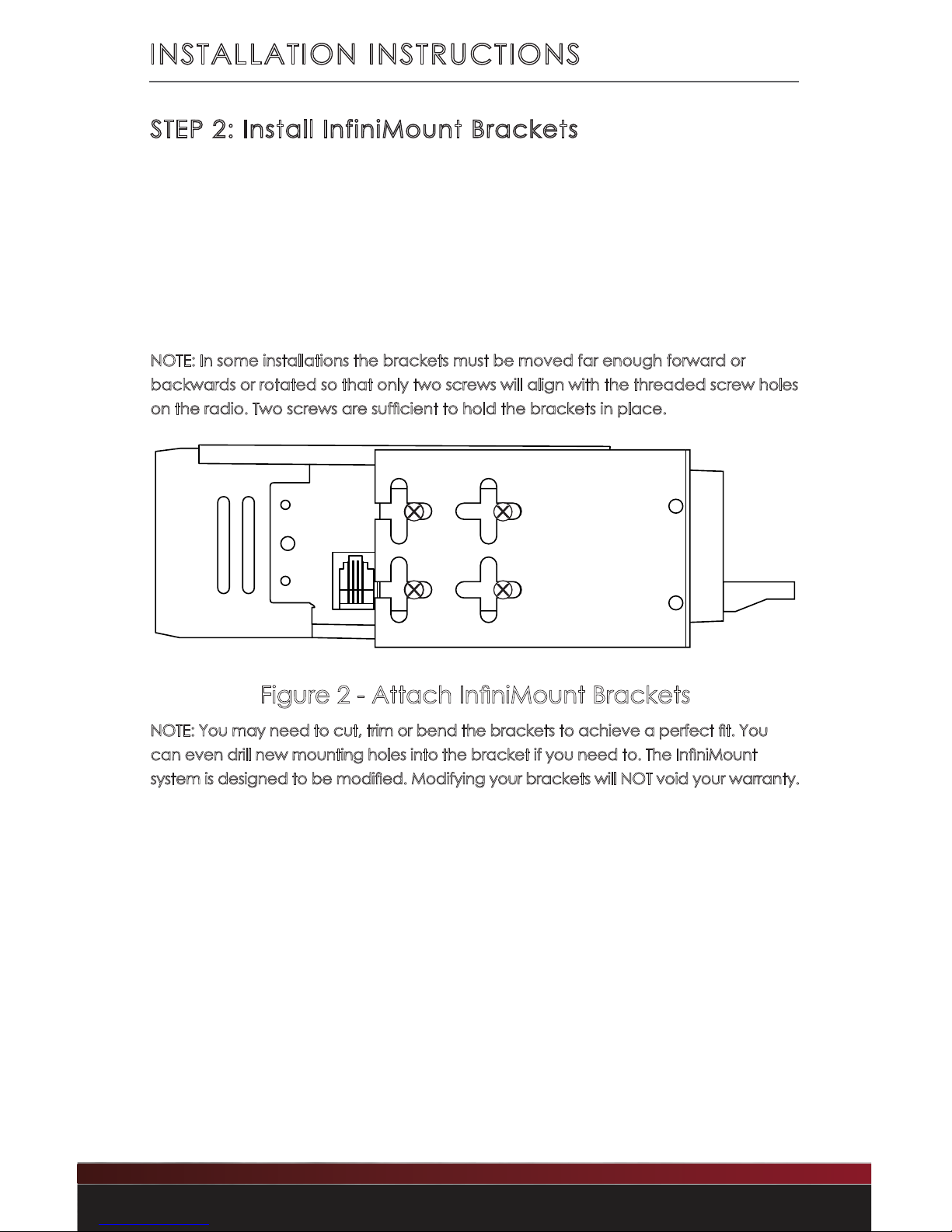

STEP 2: Install InfiniMount Brackets

Attach each InniMount bracket to the correct side of the radio

using the supplied screws. Before tightening the screws, you need

to adjust the brackets up, down, forward or backward. You may

also rotate, cut, or bend the brackets to achieve the perfect t

(See Figure 2). Complete the assembly with at least two screws

tightened on each side.

NOTE: In some installations the brackets must be moved far enough forward or

backwards or rotated so that only two screws will align with the threaded screw holes

on the radio. Two screws are sufcient to hold the brackets in place.

NOTE: You may need to cut, trim or bend the brackets to achieve a perfect t. You

can even drill new mounting holes into the bracket if you need to. The InniMount

system is designed to be modied. Modifying your brackets will NOT void your warranty.

Figure 2 - Attach InniMount Brackets

Table des matières

Autres manuels RetroSound Récepteur de voiture

RetroSound

RetroSound Model One Guide de démarrage rapide

RetroSound

RetroSound Apache Manuel utilisateur

RetroSound

RetroSound Zuma Radio Instructions d'installation

RetroSound

RetroSound Grand Prix Manuel utilisateur

RetroSound

RetroSound Zuma Radio Instructions d'installation

RetroSound

RetroSound Grand Prix Manuel utilisateur

RetroSound

RetroSound Retro Classic RC900C Guide de démarrage rapide

RetroSound

RetroSound Zuma Radio Instructions d'installation

RetroSound

RetroSound Apache Instructions d'installation

RetroSound

RetroSound SiriusXM-Ready MOTOR 4 Manuel utilisateur

RetroSound

RetroSound Model One B Guide de démarrage rapide

RetroSound

RetroSound TWO Manuel utilisateur

RetroSound

RetroSound Retro Classic RC900C Instructions d'installation

RetroSound

RetroSound TWO Manuel utilisateur

RetroSound

RetroSound Motor 1A Manuel utilisateur

RetroSound

RetroSound Retro Classic Manuel utilisateur

RetroSound

RetroSound Newport Radio Instructions d'installation

RetroSound

RetroSound MOTOR 2B Manuel utilisateur

RetroSound

RetroSound Newport Radio Manuel utilisateur

RetroSound

RetroSound Apache Instructions d'installation

RetroSound

RetroSound TWO Instructions d'installation

RetroSound

RetroSound Zuma Radio Instructions d'installation

RetroSound

RetroSound Zuma Radio Instructions d'installation

RetroSound

RetroSound CLASSIC Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
