ASSEMBLY INSTRUCTIONS
STILL NEED HELP WITH ASSEMBLY?
VISIT OUR ASSEMBLY LIBRARY HERE:
HELP.REPFITNESS.COM
REP RECOMMENDS THAT ALL RACKS BE
BOLTED TO THE GROUND
CONCRETE ANCHORS INCLUDED
NOTE: DO NOT FULLY
TIGHTEN HARDWARE
UNTIL FINAL STEP
PR-5000
2x NOT INCLUDED
All manuals and user guides at all-guides.com
1
WWW.REPFITNESS.COM 1
2
9
SEE PAGE
SEE PAGE
1.25" PULL-UP BAR
GLOBE-GRIP PULL-UP BAR
2" PULL-UP BAR
MULTI-GRIP PULL-UP BAR
1.25" PULL-UP BAR
GLOBE-GRIP PULL-UP BAR
2" PULL-UP BAR
MULTI-GRIP PULL-UP BAR
All manuals and user guides at all-guides.com
If you are missing
any parts, or
otherwise have
any warranty issues,
please file a
warranty claim
on our website:
x1
25-0256
STEP 4A
x1
25-0618
STEP 4B
x1
25-0620
STEP 4C
x1
25-0343
STEP 4D
PULL-UP BAR OPTIONS
x1
25-0129
STEP 4
30" - 25-0261
41" - 25-0262
STEPS 1 & 2
x4
x4
80" - 25-0913
93" - 25-0904
STEPS 1 & 2
10-0026
STEPS 1-4
x48
10-0030
STEPS 1-4
x24
10-0143
STEP 5
x8
10-0310
STEPS 1-4
x24
10-0315
STEPS 1-4
x24
1
WWW.REPFITNESS.COM
PARTS LIST
2
All manuals and user guides at all-guides.com
1
WWW.REPFITNESS.COM 3
LEFT SIDE
STEP
1
10-0030 10-0315
10-0026 10-0310
10-0026
25-0261 / 25-0262
25-0904 / 25-0913
25-0261 / 25-0262
25-0904 / 25-0913
80" - 25-0913
93" - 25-0904
x2
x2
30" - 25-0261
41" - 25-0262
x8
10-0030
x8
10-0310
x8
10-0315
x16
10-0026
All manuals and user guides at all-guides.com
1
WWW.REPFITNESS.COM 4
25-0261 / 25-0262
25-0904 / 25-0913
25-0261 / 25-0262
25-0904 / 25-0913
10-0030
10-0026
10-0315
10-0310
10-0026
STEP
2
RIGHT SIDE
80" - 25-0913
93" - 25-0904
x2
x2
30" - 25-0261
41" - 25-0262
x8
10-0030
x8
10-0310
x8
10-0315
x16
10-0026
All manuals and user guides at all-guides.com
1
WWW.REPFITNESS.COM 5
STEP
3A
STEP
3B
1.25” PULL-UP BAR
2” PULL-UP BAR
25-0256
10-003010-0026
10-0315
10-0310
10-0026
10-0026
x8
10-0310
x4
x4
10-0315
25-0256
x1
x4
10-0030
10-0026
x8
10-0310
x4
x4
10-0315
x4
10-0030
x1
25-0618
25-0618
10-0026 10-0030
10-0315
10-0310
10-0026
All manuals and user guides at all-guides.com
1
WWW.REPFITNESS.COM 6
MULTI-GRIP PULL-UP BAR
GLOBE-GRIP PULL-UP BAR
STEP
3C
STEP
3D
10-0026
x8
10-0310
x4
x4
10-0315
x4
10-0030
10-0026
x8
10-0310
x4
x4
10-0315
x4
10-0030
25-0620
x1
25-0343
x1
25-0343
10-0026
10-0030
10-0315
10-0310
10-0026
10-0315
10-0310
10-0026
10-0030
10-0026
25-0620
All manuals and user guides at all-guides.com
1
WWW.REPFITNESS.COM 7
STEP
4
25-1029
10-0315
10-0310
10-0030
10-0026
10-0026
x1
25-1029
10-0026
x8
10-0310
x4
10-0315
x4
10-0030
x4
All manuals and user guides at all-guides.com
1
WWW.REPFITNESS.COM 8
STEP
5
10-0143
x8
CONCRETE ANCHORS PROVIDED
BOLT DOWN RECOMMENDED
DRILL BIT SIZE = 16 MM
POSITION RACK AND FULLY TIGHTEN ALL HARDWARE
10-0143
All manuals and user guides at all-guides.com
If you are missing
any parts, or
otherwise have
any warranty issues,
please file a
warranty claim
on our website:
x1
25-0256
STEP 4A
x1
25-0618
STEP 4B
x1
25-0620
STEP 4C
x1
25-0343
STEP 4D
PULL-UP BAR OPTIONS
x1
25-0129
STEP 4
30" - 25-0261
41" - 25-0262
STEPS 1 & 2
x4
x6
80" - 25-0913
93" - 25-0904
STEPS 1 & 2
10-0026
STEPS 1-4
x112
10-0030
STEPS 1-4
x56
10-0143
STEP 5
x12
10-0310
STEPS 1-4
x56
10-0315
STEPS 1-4
x56
16" - 25-0260
x4
STEPS 1 & 2
25-0351
STEP 5
x6
25-0352
STEP 5
x6
1
WWW.REPFITNESS.COM 9

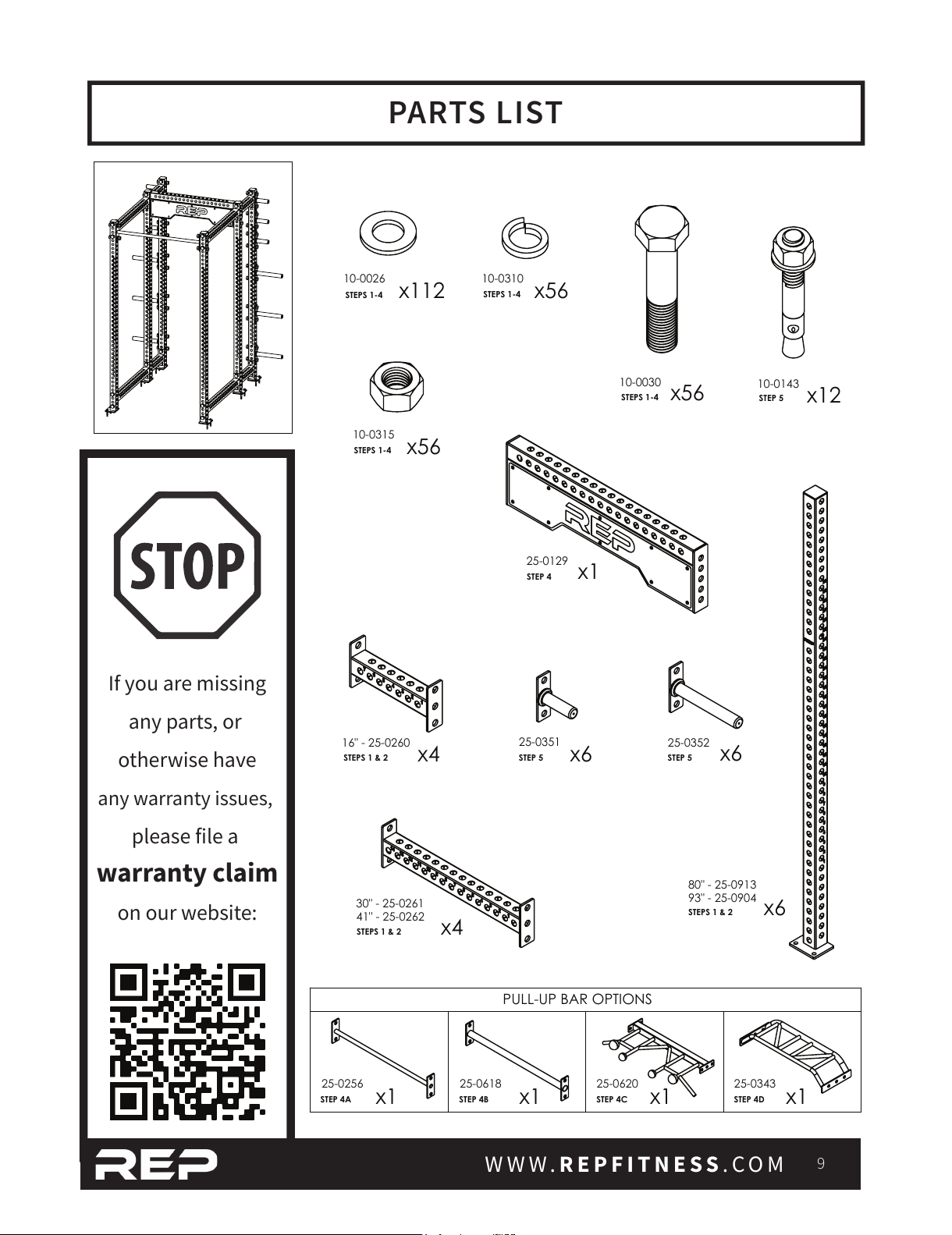

PARTS LIST
All manuals and user guides at all-guides.com
