Reference Boards of

RZ/G2H, RZ/G2M, RZ/G2N, and RZ/G2E

Start-up Guide

Introduction

This document provides a guide to prepare RZ/G2 reference boards to boot up with the Verified Linux Package v3.0.x.

Especially, procedures to write bootloader to each board are explained.

Bootloaders are written to the Flash ROM on the board using the Flash Writer or the Mini Monitor provided by

Renesas. This document explains the way to write these files using the Flash Writer.

Target

RZ/G2 Group reference boards

•Hoperun Technology HiHope RZ/G2H platform (hihope-rzg2h)

•Hoperun Technology HiHope RZ/G2M platform (hihope-rzg2m)

•Hoperun Technology HiHope RZ/G2N platform (hihope-rzg2n)

•Silicon Linux RZ/G2E evaluation kit (EK874)

Verified Linux Package version 3.0.x

Note) RZ/G2L, RZ/G2LC, and RZ/G2UL are not the target boards in this document.

R01US0555EJ0100

Rev.1.00

Mar. 31, 2022

Reference Boards of RZ/G2H, RZ/G2M, RZ/G2N, and RZ/G2E Start-up Guide
R01US0555EJ0100 Rev.1.00 Page
2
 of 13
Mar. 31, 2022

Contents
Preparing Flash Writer ..........................................................................................................3
1.1 Preparing cross compiler...........................................................................................................3
1.2 Building Flash Writer..................................................................................................................3
1. Hoperun Technology HiHope RZ/G2[HMN] platform (hihope-rzg2h, hihope-rzg2m,
hihope-rzg2n)..................................................................................................................4
1.1 Preparation ..................................................................................................................................4
1.1.1 Building files to write............................................................................................................4
1.1.2 Settings..................................................................................................................................4
1.2 Booting Flash Writer...................................................................................................................5
1.3 Writing Bootloader......................................................................................................................6
1.4 Setting U-boot..............................................................................................................................7
2. Silicon Linux RZ/G2E evaluation kit (EK874)................................................................9
2.1 Preparation ..................................................................................................................................9
2.1.1 Building files to write............................................................................................................9
2.1.2 Settings..................................................................................................................................9
2.2 Booting Flash Writer...................................................................................................................9
2.3 Writing Bootloader....................................................................................................................10
2.4 Setting U-boot............................................................................................................................10
Revision History ....................................................................................................................1


Reference Boards of RZ/G2H, RZ/G2M, RZ/G2N, and RZ/G2E Start-up Guide

R01US0555EJ0100 Rev.1.00 Page

of 13

Mar. 31, 2022

Preparing Flash Writer

Flash Writer is built automatically when building BSP by bitbake command. Please refer to the Release Note of the

Verified Linux Package to obtain a binary file of Flash Writer.

If you need latest one, please get source code from the GitHub repository and build it according to the following

instructions. In general, new revision of reference boards requires latest Flash Writer.

1.1 Preparing cross compiler

FlashWriter runs on target boards. Please get cross compiler built by Linaro or setup a Yocto SDK.

Linaro toolchain:

$ cd ~/

$ wget https://releases.linaro.org/components/toolchain/binaries/7.3-2018.05/a

arch64-elf/gcc-linaro-7.3.1-2018.05-x86_64_aarch64-elf.tar.xz

$ tar xvf gcc-linaro-7.3.1-2018.05-x86_64_aarch64-elf.tar.xz

Yocto SDK:

Build an SDK according to Release Notes and install it to a Linux Host PC. Then, enable the SDK as below.

$ source /opt/poky/3.1.14/environment-setup-aarch64-poky-linux

1.2 Building Flash Writer

Get source codes of Flash Writer from the GitHub repository and checkout the latest tag.

cd ~/

git clone https://github.com/renesas-rz/rzg2_flash_writer.git

cd rzg2_flash_writer

git checkout -b tmp 6606c4f4351f56fb3bd84d7836c01c8932a4f884

Build Flash Writer as an s-record file by the following commands. Please specify a target board by “BOARD”option.

Linaro toolchain:

$ make -f makefile.linaro clean

$ CROSS_COMPILE=~/gcc-linaro-7.3.1-2018.05-x86_64_aarch64-elf/bin/aarch64-elf-

make -f makefile.linaro BOARD=<board>

Yocto SDK:

$ make clean

$ make BOARD=<board>

Please replace <board> to a proper option according to this table.

Target board

BOARD option

<board>

Image to be generated

HiHope RZ/G2H

HIHOPE

AArch64_Flash_writer_SCIF_DUMMY_CERT_E6300400_hihope.mot

HiHope RZ/G2M

HiHope RZ/G2N

EK874

AArch64_Flash_writer_SCIF_DUMMY_CERT_E6300400_ek874.mot

Reference Boards of RZ/G2H, RZ/G2M, RZ/G2N, and RZ/G2E Start-up Guide

R01US0555EJ0100 Rev.1.00 Page

of 13

Mar. 31, 2022

1. Hoperun Technology HiHope RZ/G2[HMN] platform (hihope-rzg2h, hihope-

rzg2m, hihope-rzg2n)

1.1 Preparation

1.1.1 Building files to write

This board uses the files below as a bootloader. Please build them according to the Release Note and copy these files to

the PC which runs a serial terminal software.

•bootparam_sa0.srec

•bl2-hihope-rzg2h.srec (RZ/G2H) or bl2-hihope-rzg2m.srec (RZ/G2M) or bl2-hihope-rzg2n.srec (RZ/G2N)

•cert_header_sa6.srec

•bl31-hihope-rzg2h.srec (RZ/G2H) or bl31-hihope-rzg2m.srec (RZ/G2M) or bl31-hihope-rzg2n.srec (RZ/G2N)

•u-boot-elf-hihope-rzg2h.srec (RZ/G2H) or u-boot-elf-hihope-rzg2m.srec (RZ/G2M) or u-boot-elf-hihope-

rzg2n.srec (RZ/G2N)

1.1.2 Settings

Connect between the board and a control PC by USB serial cable according to the Release Note.

Set the settings about serial communication protocol on a terminal software as below:

•Speed: 115200 bps

•Data: 8bit

•Parity: None

•Stop bit: 1bit

•Flow control: None

To set the board to SCIF Download mode, set the SW1002 as below:

SW1002

OFF

Note) Be careful not to change the SW1001 and SW1003

Reference Boards of RZ/G2H, RZ/G2M, RZ/G2N, and RZ/G2E Start-up Guide

R01US0555EJ0100 Rev.1.00 Page

of 13

Mar. 31, 2022

1.2 Booting Flash Writer

Turn on the power of the board by changing the SW2402. Messages below are shown on the terminal.

SCIF Download mode (w/o verification)

-- Load Program to SystemRAM ---------------

please send !

Send an image of Flash Writer (AArch64_Flash_writer_SCIF_DUMMY_CERT_E6300400_hihope.mot) using terminal

software after the message “please send !” is shown.

Below is a sample procedure with Tera Term.

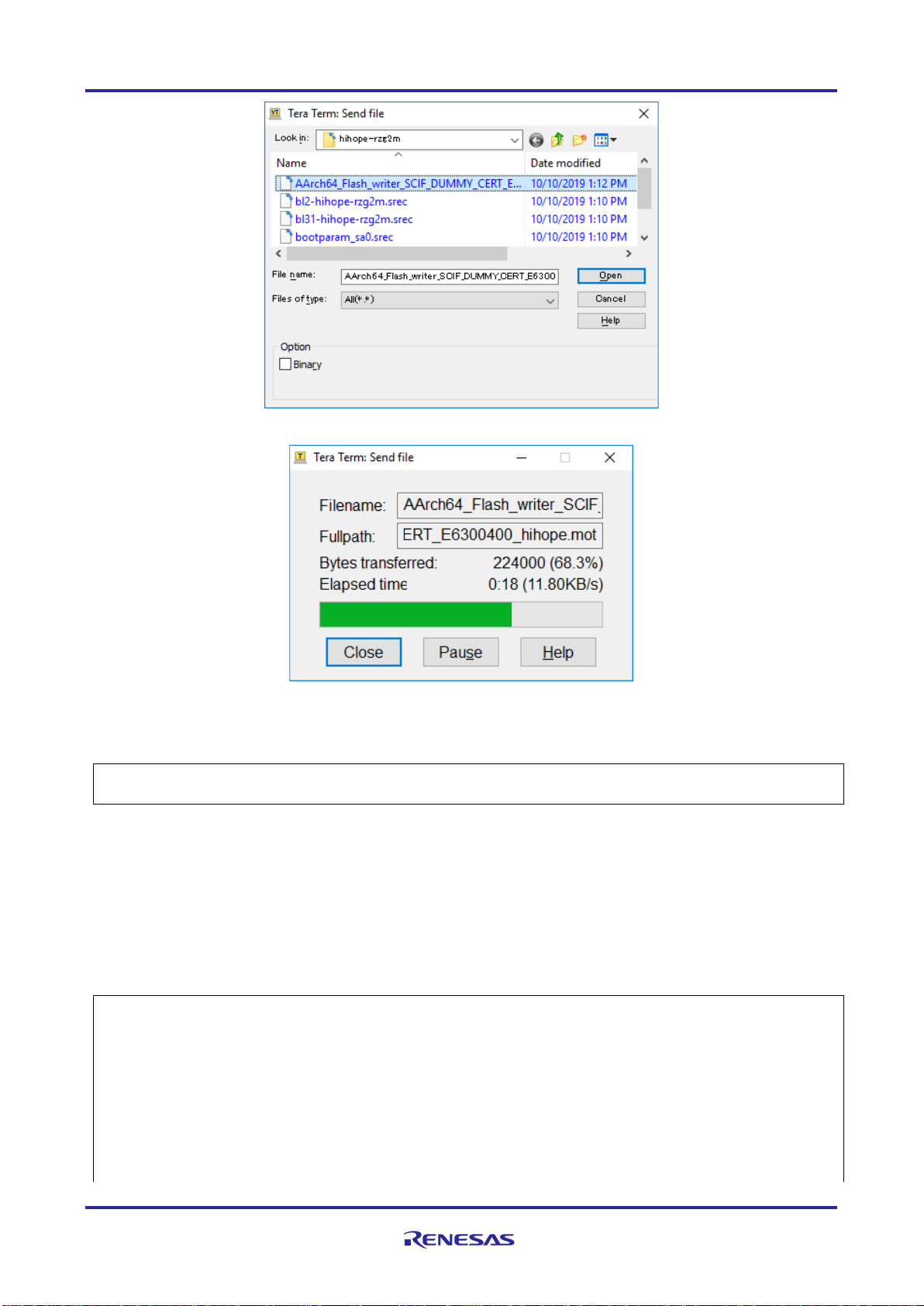

Open a “Send file” dialog by selecting “File” → “Sendfile” menu.

Then, select the image to be send and click “Open” button.

Reference Boards of RZ/G2H, RZ/G2M, RZ/G2N, and RZ/G2E Start-up Guide

R01US0555EJ0100 Rev.1.00 Page

of 13

Mar. 31, 2022

The image will be sent to the board via serial connection.

After successfully download the binary, Flash Writer starts automatically and show a message like below on the

terminal.

Flash writer for RZ/G2M V1.00 Sep.24,2019

1.3 Writing Bootloader

“xls2” command of Flash Writer is used to write binary files. This command receives binary data from the serial port

and write the data to specified address of the Flash ROM with information where the data should be loaded on the

address of the main memory.

This is an example of writing “bootparam_sa0.srec” which should be placed to E6320000h of the main memory to

000000h of the Flash ROM.

>xls2

===== Qspi writing of RZ/G2 Board Command =============

Load Program to Spiflash

Writes to any of SPI address.

Winbond : W25M512JW

Program Top Address & Qspi Save Address

===== Please Input Program Top Address ============

Please Input : H'E6320000

===== Please Input Qspi Save Address ===

Reference Boards of RZ/G2H, RZ/G2M, RZ/G2N, and RZ/G2E Start-up Guide

R01US0555EJ0100 Rev.1.00 Page

of 13

Mar. 31, 2022

Please Input : H'000000

Work RAM(H'50000000-H'53FFFFFF) Clear....

please send ! ('.' & CR stop load)

Send the data of “bootparam_sa0.srec” from terminal software after the message “please send !” is shown.

After successfully download the binary, messages like below are shown on the terminal.

SPI Data Clear(H'FF) Check :H'00000000-H'00007FFF Erasing.

........Erase Completed

SAVE SPI-FLASH.......

======= Qspi Save Information =================

SpiFlashMemory Stat Address : H'00000000

SpiFlashMemory End Address : H'00000E67

===========================================================

SPI Data Clear(H'FF) Check : H'00000000-0000FFFF,Clear OK?(y/n)

In case a message to prompt to clear data like above, please enter “y”.

Write all necessary files using the addresses listed at Table 1 and turn off the power of the board by changing the

SW2402.

Table 1. Addresses for each file

File name

Address to load to RAM

Address to save to ROM

bootparam_sa0.srec

E6320000

000000

bl2-hihope-rzg2h.srec or

bl2-hihope-rzg2m.srec or

bl2-hihope-rzg2n.srec

E6304000

040000

cert_header_sa6.srec

E6320000

180000

bl31-hihope-rzg2h.srec or

bl31-hihope-rzg2m.srec or

bl31-hihope-rzg2n.srec

44000000

1C0000

tee-hihope-rzg2h.srec or

tee-hihope-rzg2m.srec or

tee-hihope-rzg2n.srec

44100000

200000

u-boot-elf-hihope-rzg2m.srec or

u-boot-elf-hihope-rzg2n.srec

50000000

300000

1.4 Setting U-boot

To set the board to SPI Boot mode, set the SW1002 as below:

Reference Boards of RZ/G2H, RZ/G2M, RZ/G2N, and RZ/G2E Start-up Guide

R01US0555EJ0100 Rev.1.00 Page

of 13

Mar. 31, 2022

SW1002

OFF

Note) Be careful not to change the SW1001 and SW1003

Turn on the power of the board by changing the SW2402.

U-Boot 2020.10 (May 07 2021 - 13:48:35 +0000)

CPU: Renesas Electronics R8A774A1 rev 1.1/rev 1.2

Model: Hoperun Technology HiHope RZ/G2M platform (hihope-rzg2m)

DRAM: 3.9 GiB

Bank #0: 0x048000000 - 0x0bfffffff, 1.9 GiB

Bank #1: 0x600000000 - 0x67fffffff, 2 GiB

MMC: sd@ee100000: 0, sd@ee160000: 1

Loading Environment from SPI Flash... SF: Detected w25m512jw with page size 25

6 Bytes, erase size 4 KiB, total 32 MiB

*** Warning - bad CRC, using default environment

Following the messages above, many warning messages will be shown. These warnings are eliminated by setting

correct environment variables. Please set default value and save them to the Flash ROM.

=> env default -a

## Resetting to default environment

=> saveenv

Saving Environment to SPI Flash... SF: Detected w25m512jv with page size 256 B

ytes, erase size 4 KiB, total 32 MiB

Erasing SPI flash...Writing to SPI flash...done

In case booting from micro SD card, set environment variables using the commands below:

=> setenv bootargs 'root=/dev/mmcblk0p2 rootwait'

=> setenv bootcmd 'fatload mmc 0:1 0x48080000 Image-hihope-rzg2m.bin; fatload

mmc 0:1 0x48000000 r8a774a1-hihope-rzg2m.dtb; booti 0x48080000 - 0x48000000'

=> saveenv

Saving Environment to SPI Flash... SF: Detected w25m512jv with page size 256 B

ytes, erase size 4 KiB, total 32 MiB

Erasing SPI flash...Writing to SPI flash...done

Note) The setting above assumes the SD card has two partitions and stores data as below:

First partition: formatted as FAT, includes Image-hihope-rzg2m.bin and r8a774a1-hihope-rzg2m.dtb

Second partition: formatted as ext4, rootfs image is expanded

Note) Please replace the file names in “bootcmd” according to the Release Note.

Now the board can bootup normally. Please turn off and on the power again to boot up the board.

Reference Boards of RZ/G2H, RZ/G2M, RZ/G2N, and RZ/G2E Start-up Guide

R01US0555EJ0100 Rev.1.00 Page

of 13

Mar. 31, 2022

2. Silicon Linux RZ/G2E evaluation kit (EK874)

2.1 Preparation

2.1.1 Building files to write

This board uses the files below as a bootloader. Please build them according to the Release Note and copy these files to

the PC which runs a serial terminal software.

•bootparam_sa0.srec

•bl2-ek874.srec

•cert_header_sa6.srec

•bl31-ek874.srec

•u-boot-elf-ek874.srec

2.1.2 Settings

Connect between the board and a control PC by USB serial cable according to the Release Note.

Set the settings about serial communication protocol on a terminal software as below:

•Speed: 115200 bps

•Data: 8bit

•Parity: None

•Stop bit: 1bit

•Flow control: None

To set the board to SCIF Download mode, set the SW12 which is placed near the micro SD card slot as below:

OFF

2.2 Booting Flash Writer

Turn on the power of the board by changing the SW23. Messages below are shown on the terminal.

SCIF Download mode (w/o verification)

-- Load Program to SystemRAM ---------------

please send !

Send an image of Flash Writer (AArch64_Flash_writer_SCIF_DUMMY_CERT_E6300400_ek874.mot) from terminal

software after the message “please send !” is shown.

For detail of the procedure, please refer to the section 0

Reference Boards of RZ/G2H, RZ/G2M, RZ/G2N, and RZ/G2E Start-up Guide

R01US0555EJ0100 Rev.1.00 Page

of 13

Mar. 31, 2022

Booting Flash Writer.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Renesas Matériel informatique

Renesas

Renesas Converter Board M3T-F160-128NRD Manuel utilisateur

Renesas

Renesas M32170T-PTC Manuel utilisateur

Renesas

Renesas IE850A Manuel utilisateur

Renesas

Renesas QB-78K0FX2L Manuel utilisateur

Renesas

Renesas Single-Chip Microcomputer M306NKT3 Manuel utilisateur

Renesas

Renesas R8C/23 Manuel utilisateur

Renesas

Renesas Converter Board M3T-F160-100NRB Manuel utilisateur

Renesas

Renesas SH7727 Guide de configuration

Renesas

Renesas Renasas Single-Chip Microcomputer SH7086 Manuel utilisateur

Renesas

Renesas M3T-DUMMY100S Manuel utilisateur

Renesas

Renesas V850ES/JJ3 Manuel utilisateur

Renesas

Renesas F-ZTAT H8 Series Manuel utilisateur

Renesas

Renesas PROM Programming Adapter PCA7408 Manuel utilisateur

Renesas

Renesas RL78/G22 Manuel utilisateur

Renesas

Renesas Converter Board R0E5212BACFK00 Manuel utilisateur

Renesas

Renesas M34502T-MCU Manuel utilisateur

Renesas

Renesas R0E0100TNPFJ00 Manuel utilisateur

Renesas

Renesas RD74LVC04B Manuel utilisateur

Renesas

Renesas Emulator System E8 Manuel utilisateur

Renesas

Renesas M30220TF-PRB Manuel utilisateur

Renesas

Renesas R8C/11 Series Instructions d'installation et d'utilisation

Renesas

Renesas HD74LV1GT66A Manuel utilisateur

Renesas

Renesas ASSP EASY Manuel utilisateur

Renesas

Renesas RAA306012 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
