Renesas H8S/2646 Series Manuel utilisateur

H8S/2646 Series

FP-144

User System Interface Cable

(HS2646ECH61H)

for E6000 Emulator

User’s Manual

HS2646ECH61HE(B)

Cautions

1. Renesas neither warrants nor grants licenses of any rights of Renesas’s or any third party’s

patent, copyright, trademark, or other intellectual property rights for information contained in

this document. Renesas bears no responsibility for problems that may arise with third party’s

rights, including intellectual propertyrights, in connection with use of the information contained

in this document.

2. Products and product specifications may be subject to change without notice. Confirm that you

have received the latest product standards or specifications before final design, purchase or use.

3. Renesas makes every attempt to ensure that its products are of high quality and reliability.

However, contact Renesas’s sales office before using the product in an application that demands

especially high quality and reliability or where its failure or malfunction may directly threaten

human life or cause risk of bodily injury, such as aerospace, aeronautics, nuclear power,

combustion control, transportation, traffic, safety equipment or medical equipment for life

support.

4. Design your application so that the product is used within the ranges guaranteed by Renesas

particularly for maximum rating, operating supply voltage range, heat radiation characteristics,

installation conditions and other characteristics. Renesas bears no responsibility for failure or

damage when used beyond the guaranteed ranges. Even within the guaranteed ranges, consider

normally foreseeable failure rates or failure modes in semiconductor devices and employ

systemic measures such as fail-safes, so that the equipment incorporating Renesas product does

not cause bodily injury, fire or other consequential damage due to operation of the Renesas

product.

5. This product is not designed to be radiation resistant.

6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document

without written approval from Renesas.

7. Contact Renesas’s sales office for any questions regarding this document or Renesas

semiconductor products.

Preface

Thank you for purchasing this user system interface cable (HS2646ECH61H) for the Renesas’s

original microcomputer H8S/2646 series.

The HS2646ECH61H is a user system interface cable that connects an H8S/2636 and H8S/2646

series E6000 emulator (HS2646EPI61H; hereinafter referred to as the emulator) to the IC socket for

a FP-144 package for the H8S/2646 series MCU on the user system.

Contents

Section 1 Configuration......................................................................................1

Section 2 Connection Procedures .......................................................................3

2.1 Connecting User System Interface Cable to Emulator Station .........................................3

2.2 Connecting User System Interface Cable to User System................................................5

2.2.1 Installing IC Socket .............................................................................................5

2.2.2 Inserting Cable Head ...........................................................................................6

2.2.3 Fastening Cable Head..........................................................................................7

2.2.4 Fastening Cable Body..........................................................................................9

2.3 Recommended Dimensions for User System Mount Pad.................................................10

2.4 Dimensions for User System Interface Cable Head..........................................................11

2.5 Resulting Dimensions after Connecting User System Interface Cable.............................12

Section 3 Installing the MCU to the User System.............................................13

Section 4 Verifying Operation...........................................................................15

Section 5 Notice ................................................................................................16

Section 1 Configuration

CAUTION

Use an NQPACK144SD socket (manufactured by Tokyo

Eletech Corporation) for the FP-144 package IC socket

on the user system.

Figure 1 shows the configuration of the HS2646ECH61H user system interface cable for the

FP-144 package.

Figure 1 HS2646ECH61H User System Interface Cable

Table 1 lists the HS2646ECH61H components. Please make sure you have all of these components

when unpacking.

Table 1 HS2646ECH61H Components

No. Component Quantity Remarks

1 Cable body 1 Flat cable

2 Cable head 1

3 IC socket 1 For the FP-144 package

4 Socket cover 1 For installing an FP-144 packaged MCU

5 Screws (M2 x 10 mm) 4 For fastening cable head

6 Screws (M2 x 6 mm) 4 For installing an FP-144 packaged MCU

7 Guide pins (φ1 mm) 3 For determining the IC socket location

8 Screwdriver 1 For tightening screws

9 Documentation 1 User’s manual for HS2646ECH61H (this manual)

Section 2 Connection Procedures

2.1 Connecting User System Interface Cable to Emulator Station

WARNING

Observe the precautions listed below. Failure to do so

will result in a FIRE HAZARD and will damage the user

system and the emulator product or will result in

PERSONAL INJURY. The USER PROGRAM will be

LOST.

1. Always switch OFF the user system and the emulator

product before the USER SYSTEM INTERFACE CABLE

is connected to or removed from any part. Before

connecting, make sure that pin 1 on both sides are

correctly aligned.

2. The user system interface cable dedicated to the

emulator must be used.

To connect the cable body to the emulator station, follow the instructions below.

1. Make sure the user system and emulator station are turned off.

CAUTION

When connecting or removing the user system interface

cable, apply force only in the direction suitable for

connection or removal, while making sure not to bend or

twist the cable or connectors. Otherwise, the connectors

will be damaged.

2. After making sure the direction of the cable body connector is correct, firmly insert the cable

body connector into the emulator station socket (figure 2).

Emulator station

E6000

Cable body connector

User system interface cable

Figure 2 Connecting User System Interface Cable to Emulator Station

2.2 Connecting User System Interface Cable to User System

WARNING

Always switch OFF the user system and the emulator

product before the USER SYSTEM INTERFACE CABLE

is connected to or removed from any part. Before

connecting, make sure that pin 1 on both sides are correctly

aligned. Failure to do so will result in a FIRE HAZARD and

will damage the user system and the emulator product or

will result in PERSONAL INJURY. The USER PROGRAM will

be LOST.

To connect the cable head to the user system, follow the instructions below.

2.2.1 Installing IC Socket

1. Confirming the location of IC socket

CAUTION

After confirming the location of pin 1 on the IC socket,

apply epoxy resin adhesive to the end of the four projections

at the bottom of the IC socket, and fasten it to the user

system.

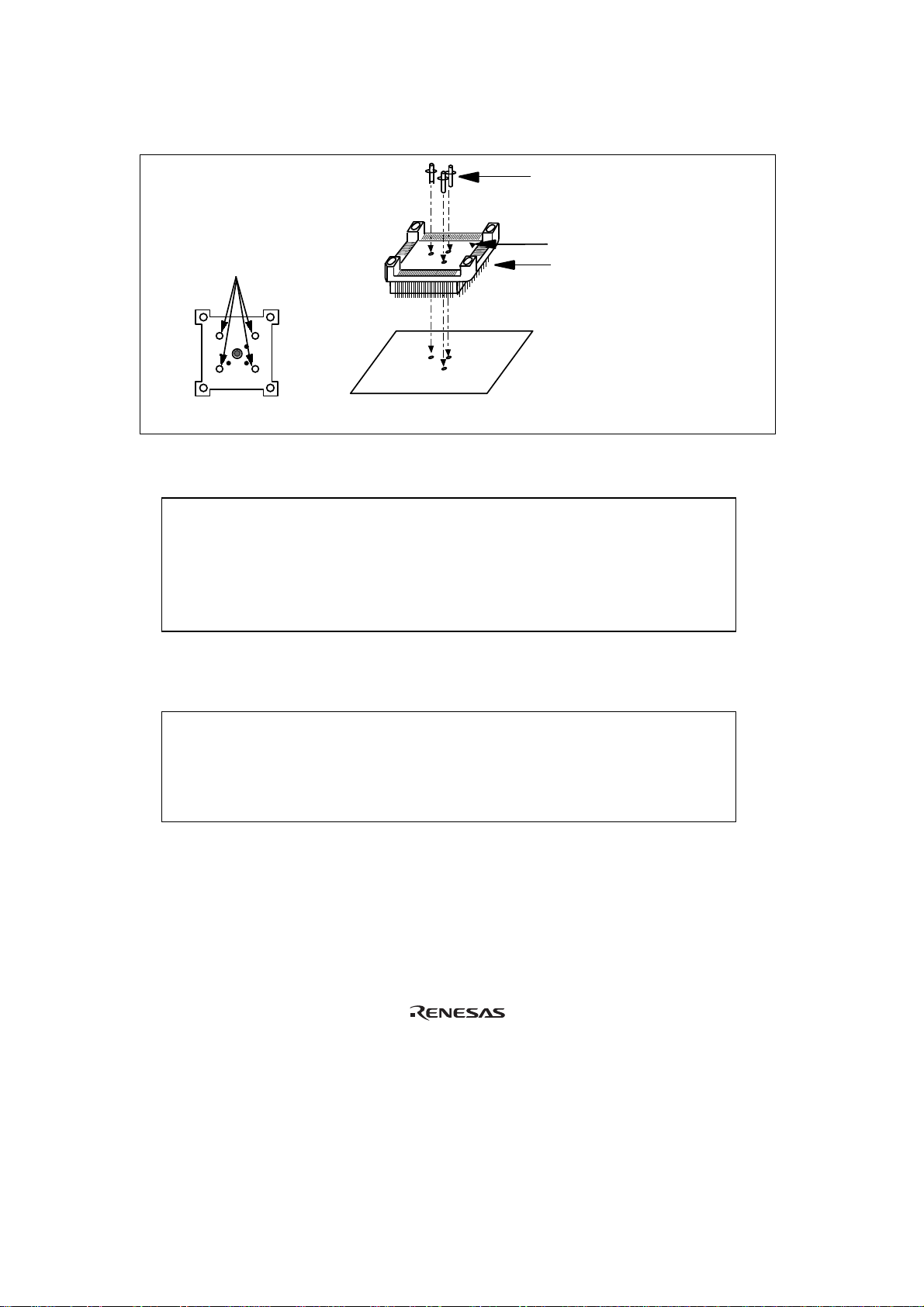

Use the guide pins provided to determine where to install the IC socket, as shown in figure 3.

IC socket

(NQPACK144SD manufactured

by Tokyo Eletech Corporation)

User system

Guide pins

4 projections to apply

epoxy resin adhesive to

Bottom view of IC soket

Pin 1

Figure 3 Location Setting of IC Socket

2. Solder the IC socket for a FP-144 package to the user system.

CAUTION

Be sure to completely solder the leads so that the solder

slops gently over the leads and forms solder fillets. (Use

slightly more solder than the MCU.)

2.2.2 Inserting Cable Head

CAUTION

Check the location of pin 1 before inserting.

Align pin 1 on the IC socket for a FP-144 system interface cable head into the IC socket on the user

system, as shown in figure 4.
