Renesas H8S/2128 Series Manuel utilisateur
H8S/2128 Series
QFP-64A
User System Interface Cable
(HS2128ECH61H)
for E6000 Emulator
User’s Manual
HS2128ECH61HE(C)
Cautions
1. Renesas neither warrants nor grants licenses of any rights of Renesas’s or any third party’s
patent, copyright, trademark, or other intellectual property rights for information contained in
this document. Renesas bears no responsibility for problems that may arise with third party’s
rights, including intellectual propertyrights, in connection with use of the information contained
in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you
have received the latest product standards or specifications before final design, purchase or use.
3. Renesas makes every attempt to ensure that its products are of high quality and reliability.
However, contact Renesas’s sales office before using the product in an application that demands
especially high quality and reliability or where its failure or malfunction may directly threaten
human life or cause risk of bodily injury, such as aerospace, aeronautics, nuclear power,
combustion control, transportation, traffic, safety equipment or medical equipment for life
support.
4. Design your application so that the product is used within the ranges guaranteed by Renesas
particularly for maximum rating, operating supply voltage range, heat radiation characteristics,
installation conditions and other characteristics. Renesas bears no responsibility for failure or
damage when used beyond the guaranteed ranges. Even within the guaranteed ranges, consider
normally foreseeable failure rates or failure modes in semiconductor devices and employ
systemic measures such as fail-safes, so that the equipment incorporating Renesas product does
not cause bodily injury, fire or other consequential damage due to operation of the Renesas
product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document
without written approval from Renesas.
7. Contact Renesas’s sales office for any questions regarding this document or Renesas
semiconductor products.
i
Preface
Thank you for purchasing this user system interface cable (HS2128ECH61H) for the Renesas’s
original microcomputer H8S/2128 series.
The HS2128ECH61H is a user system interface cable that connects an H8S/2148, H8S/2138,
H8S/2128 series E6000 emulator (HS2148EPI61H; hereinafter referred to as the emulator) to the IC
socket for a QFP-64A package (package code: FP-64A) for the H8S/2128 series MCU on the user
system.
ii
Contents
Section 1 Configuration....................................................................................................1
Section 2 Connection Procedures...................................................................................4
2.1 Connecting User System Interface Cable to Emulator Station .........................................4
2.2 Connecting User System Interface Cable to User System................................................5
2.2.1 Installing IC Socket .............................................................................................5
2.2.2 Soldering IC Socket.............................................................................................5
2.2.3 Inserting Cable Head ...........................................................................................5
2.2.4 Fastening Cable Head..........................................................................................6
2.2.5 Connecting Cable Body to Cable Head ...............................................................8
2.3 Recommended Dimensions for User System Mount Pad.................................................9
2.4 Dimensions for User System Interface Cable Head..........................................................10
2.5 Resulting Dimensions after Connecting User System Interface Cable.............................11
Section 3 Installing the MCU to the User System.....................................................12
Section 4 Verifying Operation.........................................................................................14
Section 5 Notice...................................................................................................................15
1
Section 1 Configuration
CAUTION
Use an IC149-064-008-B5 socket (manufactured by
YAMAICHI ELECTRONICS Co., Ltd.) for the FP-64A
package IC socket on the user system.
Figure 1 shows the configuration of the HS2128ECH61H user system interface cable for the
FP-64A package.
2
Screws (M2.0 x 12 mm)
IC socket
Cable head
User system
Socket cover
Screws (M2.0 x 8 mm)
and flat washers
and flat washers
(For fastening cable
head)

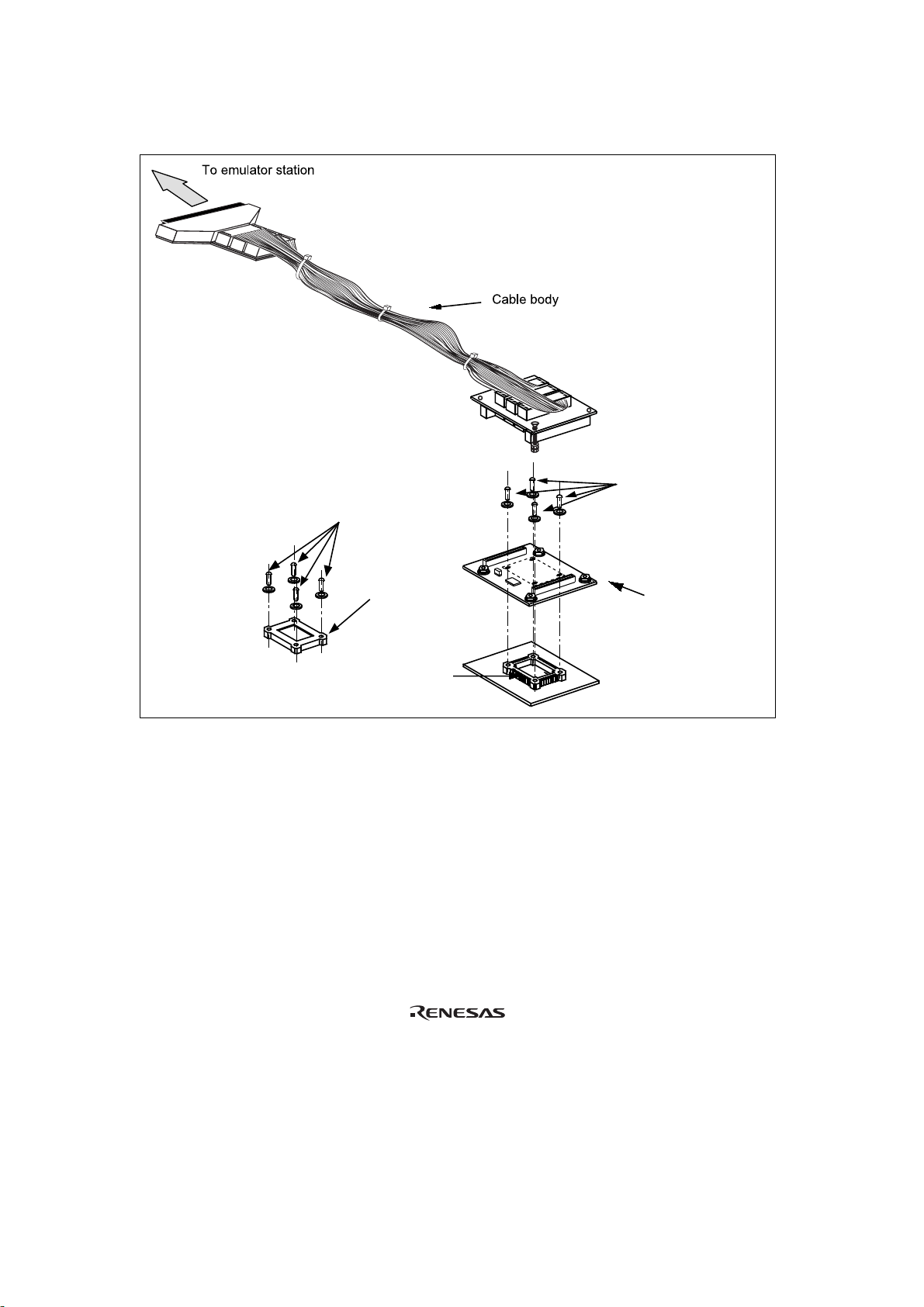

Figure 1 HS2128ECH61H User System Interface Cable
3
Table 1 lists the HS2128ECH61H components. Please make sure you have all of these components
when unpacking.
Table 1 HS2128ECH61H Components
No. Component Quantity Remarks
1 Cable body 1 Includes flat cable
2 Cable head 1
3 IC socket 1 For the FP-64A package
4 Socket cover 1 For installing an FP-64A packaged MCU
5 Screws (M2 x 12 mm) 4 For fastening cable head (with four flat washers)
6 Screws (M2 x 8 mm) 4 For installing an FP-64A packaged MCU (with four
flat washers)
7 Documentation 1 User’s manual for HS2128ECH61H (this manual)
Section 2 Connection Procedures
2.1 Connecting User System Interface Cable to Emulator Station
WARNING
Always switch OFF the user system and the emulator
product before the USER SYSTEM INTERFACE CABLE
is connected to or removed from any part. Before connecting,
make sure that pin 1 on both sides are correctly aligned. Failure to
do so will damage the user system and the emulator product or will
result in PERSONAL INJURY. The USER PROGRAM will be
LOST.
To connect the cable body to the emulator station, follow the instructions below.
1. Make sure the user system and emulator station are turned off.
2. After making sure the direction of the cable body connector is correct, firmly insert the cable
body connector into the emulator station socket (figure 2).

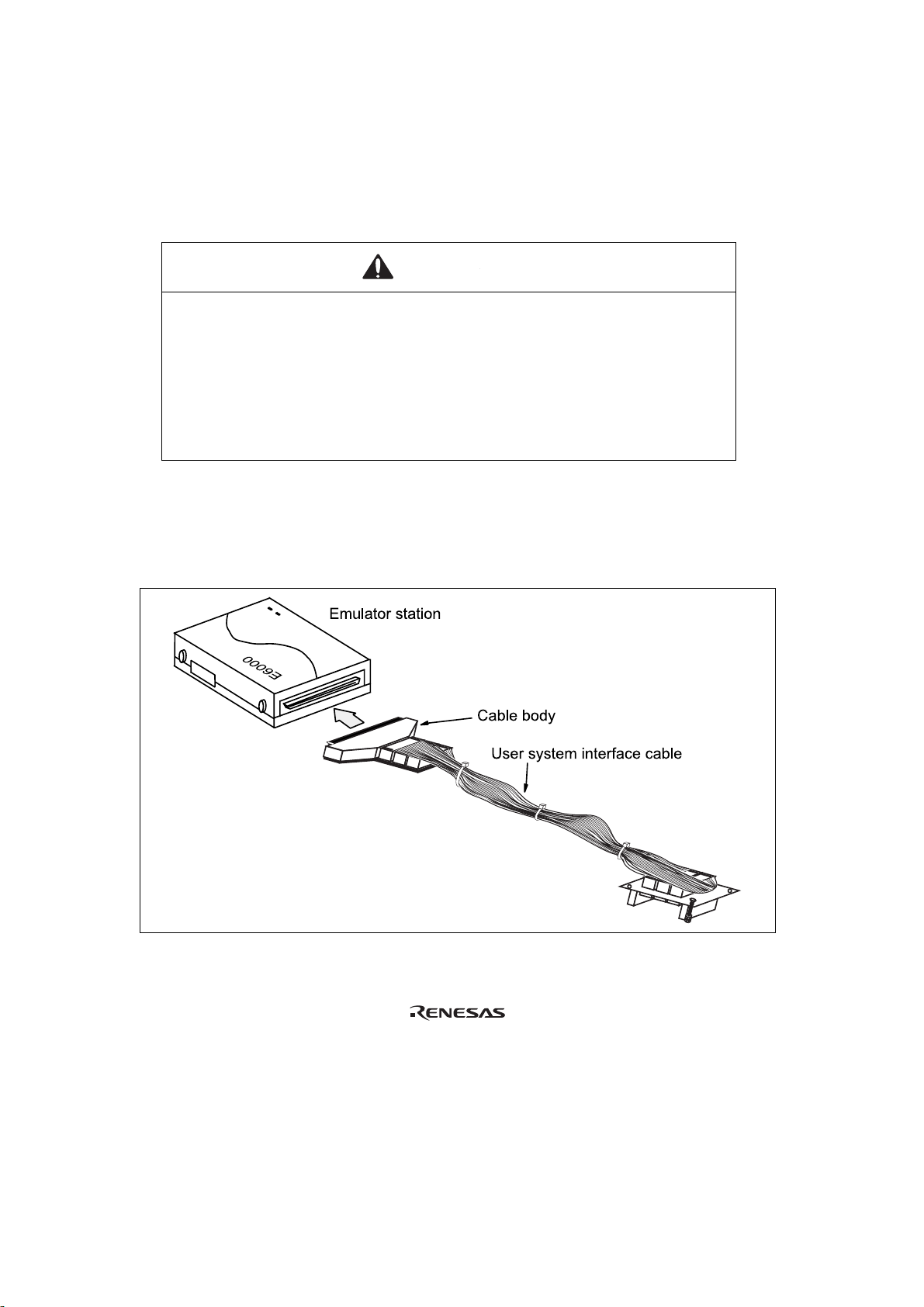

Figure 2 Connecting User System Interface Cable to Emulator Station
4
2.2 Connecting User System Interface Cable to User System
WARNING
Always switch OFF the user system and the emulator
product before the USER SYSTEM INTERFACE CABLE
is connected to or removed from any part. Before connecting,
make sure that pin 1 on both sides are correctly aligned. Failure to
do so will damage the user system and the emulator product or will
result in PERSONAL INJURY. The USER PROGRAM will be
LOST.
To connect the cable head to the user system, follow the instructions below.
2.2.1 Installing IC Socket
After checking the location of pin 1 on the IC socket, apply epoxy resin adhesive to the bottom of
the IC socket for an FP-64A package, and fasten it to the user system before soldering.
2.2.2 Soldering IC Socket
After fastening, solder the IC socket for an FP-64A package to the user system. Be sure to
completely solder the leads so that the solder slops gently over the leads and forms solder fillets.
(Use slightly more solder than the MCU.)
2.2.3 Inserting Cable Head
CAUTION
Check the location of pin 1 before inserting.
Align pin 1 on the IC socket for an FP-64A package on the user system with pin 1 on the user system
interface cable head, and insert the user system interface cable head into the IC socket on the user
system, as shown in figure 3.
5
6
2.2.4 Fastening Cable Head
CAUTION
1. Use a Phillips-type screwdriver whose head matches
the screw head.
2. The tightening torque must be 0.0785 N•m or less.
If the applied torque cannot be accurately measured,
stop tightening when the force required to turn the screw
becomes significantly greater than that needed when first
tightening. If a screw is tightened too much, the screw
head may break or an IC socket contact error may be caused
by a crack in the IC socket solder.
3. If the emulator does not operate correctly, cracks might
have occurred in the solder. Check conduction with
a tester and re-solder the IC socket if necessary.
Fasten the user system interface cable head to the IC socket for an FP-64A package on the user
system with the four screws (M2 x12 mm; with four flat washers) provided. Each screw should be
tightened a little at a time, alternating between screws on opposing corners. Take special care, such
as manually securing the IC socket soldered area, to prevent the soldered IC socket from being
damaged by overtightening the screws or twisting the components.
