M37549T-RLSS

Emulator MCU Board for 7548/7549 Group

User’s Manual

CAUTION If the requirements shown in the "CAUTION" sentences are ignored,

the equipment may cause personal injury or damage to the products.

Renesas Tools Homepage http://www.renesas.com/tools

Rev.1.00

Jul. 10, 2007

REJ10J1444-0100 (1/4)

1. Outline

The M37549T-RLSS is an emulator MCU board for the 7548/7549 Group.

2. Package Components

(1) M37549T-RLSS 1 pc.

(2) M37549T-RLSS User's Manual (This manual) 1 pc.

(3) M37549T-RLSS User's Manual (Japanese) 1 pc.

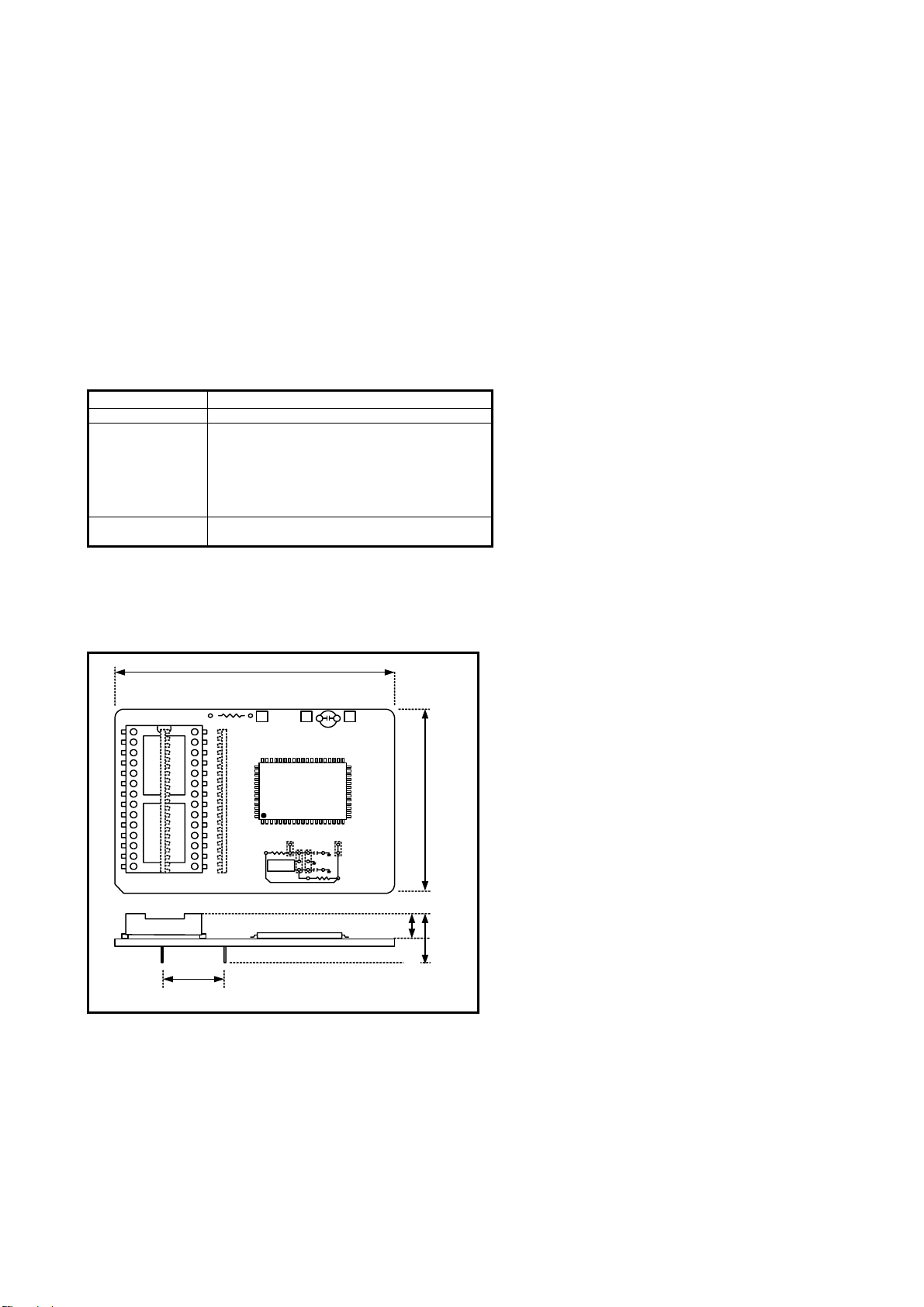

3. Specifications

Table 1Specifications

Emulator M38000T2-CPE *

Operating mode Single-chip mode

Maximum operating

frequency

Vcc = 4.5 to 5.0 V: 8.0 MHz (frequency/2mode)

Vcc = 2.4 to 5.0 V: 2.0 MHz (frequency/2mode)

Vcc = 2.2 to 5.0 V: 1.0 MHz (frequency/2mode)

Vcc = 4.0 to 5.0 V: 8.0 MHz (High-speed mode)

Vcc = 2.4 to 5.0 V: 4.0 MHz (High-speed mode)

Vcc = 1.8 to 5.0 V: 1.0 MHz (High-speed mode)

Operating power

voltage 1.8 to 5.5 V

* A combination of the PC4701 and M38000TL2-FPD is not supported.

4. External Dimensions

VCCGNDRESET +

64.0

45.0

4.2

11.0

15.24

Figure 1 External dimensions

(2/4)

(3/4)

5. Connection Procedure to the user system

Connect the emulation probe to the connector on the upper panel of the M37549T-RLSS. Connect the M37549T-RLSS to the 42-pin

SDIP socket on the user system. Table 2 shows pin allocation of the M37549T-RLSS, and Figure 2 shows connector dimensions.

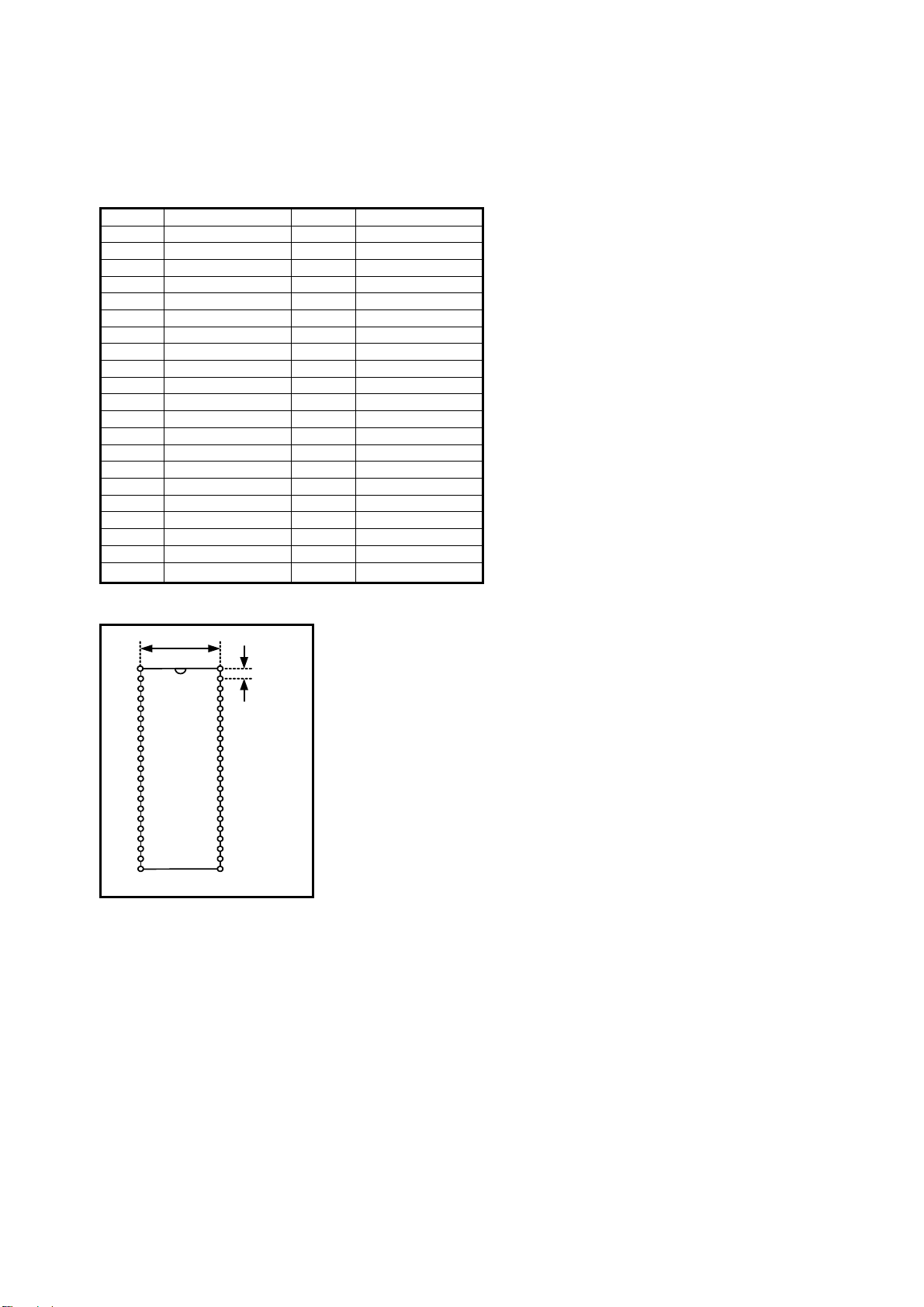

Table 2 CN1 connector pin allocation

Pin No Signal Pin No Signal

1 N.C 42 N.C

2 N.C 41 N.C

3 N.C 40 P13/AN3/KEY3

4 P14/AN4/KEY4 39 P12/AN2/CMP2

5 P15/AN5/KEY5 38 P11/AN1/CMP1

6 RESET 37 P10/AN0/CMP0

7 P16/AN6/KEY6 36 P31

8 P17/AN7/KEY7 35 P30

9 N.C 34 Reserved

10 N.C 33 Reserved

11 N.C 32 Reserved

12 P20/Xout/Xcout 31 Reserved

13 Vss 30 P07(LED7)/Srdy

14 P21/Xin/Xcin 29 P06(LED6)/Sclk

15 Vcc 28 P05(LED5)/TxD

16 CNVss 27 P04(LED4)/RxD

17 P00(LED0)/INT0 26 P03(LED3)/CAP0

18 P01(LED1)/INT1 25 P02(LED2)

19 N.C 24 N.C

20 N.C 23 N.C

21 Vss 22 N.C

* Do not connect signal to Reserved parts.

142

21 22

15.24

1.778

Figure 2 CN connector dimensions

(4/4)

6. Oscillator Circuit

This product has two oscillator circuit patterns for the main clock XIN and sub-clock XCIN. The oscillator circuit on the user system

may not work properly because the oscillator circuit pin of the emulator MCU is not close enough to the oscillator circuit of the user

system. In this case, mount the oscillator circuit on the oscillator circuit pattern of the M37549T-RLSS.

Figures 3, 4 and 5 show the M37549T-RLSS circuit pattern and diagram.

xin

xout

X2b

X2a

JP2 JP3 JP2

C1 C2

JP3

RdX2

Figure 3 When a ceramic oscillator with built-in capacitor is used for Xin/Xout

xin

xout

X2b

X2a

JP2 JP3 JP2

C1 C2

JP3

Capacitor

Figure 4 When a ceramic oscillator without built-in capacitor is used for Xin/Xout

xin

xout

X2b

X2a

JP2 JP3 JP2

C1 C2

JP3

Rf Capacitor

Figure 5 When Xcin/Xcout is used as a circuit

7. Precautions

IMPORTANT

Notes on This Product:

zWe cannot accept any request for repair.

zWhen using the oscillator circuit on the M37549T-RLSS, check output waveform of pin Xout and pin Xcout with an

oscilloscope.

zWhen mounting an oscillator circuit on the M37549T-RLSS, make sure not to short-circuit the user system.

zFor inquiries about the product or the contents of this manual, contact your local distributor.

Renesas Tools Homepage http://www.renesas.com/tools
