PREFACE

These technical instructions contain useful and important information for the correct

operation and maintenance of the Remeha HTG boiler, model Quinta 30.

Read these instructions carefully before putting the boiler into operation, familiarise

yourself with it’s control functions and operation, strictly observing the instructions

given. Failure to do so may invalidate warranty or prevent the boiler from operating.

The installation and commissioning of the boiler must be carried out by a competent

Engineer, with the relevant certification ie: CORGI, ACOPS, IEE regs. etc.

On completion a copy of the commissioning sheet should be returned to Broag Ltd for

record purposes.

If you have any questions, or if you need more information about specific subjects rela-

ting to this boiler, or it’s installation please do not hesitate to contact us.

The data published in these technical instructions is based on the latest information

(at date of publication) and may be subject to revisions.

We reserve the right to continuous development in both design and manufacture,

therefore any changes to the technology employed may not be retrospective nor may

we be obliged to adjust earlier supplies accordingly.

Remeha Quinta 30

1 GENERAL DESCRIPTION OF THE BOILER

The Remeha Quinta 30 is a wall hung condensing boiler which may be also instal-

led free standing on a suitable frame (option). The one piece cast aluminium heat

exchanger and other major components are contained within a sealed air box. This

forms the main boiler casing with a removable front section for maintenance purposes.

All electrical and electronic controls are contained within the instrument panel mounted

behind the drop down lower front panel.

The combined flue gas outlet and combustion air inlet are mounted on the top of the

boiler with the flow, return, gas and condensate connections located at the bottom.

The boiler is suitable for room sealed or open flue applications and has been designed

for central heating and indirect hot water production at working pressures not

exceeding 3 bar. It must be installed on a fully pumped system and is suitable for use

on both sealed and open vented installations (minimum operating pressure of 0.8 bar).

The pre-mix, down firing gas burner (NG or PROPANE) with its gas/air ratio control

system ensures clean, trouble free operation with higher than average efficiencies of

109.3 % (NCV) in the condensing mode combined with ultra low NOx and minimum

CO emissions. The standard control package allows actual and set values to be read

and adjusted on the built in digital display which also provides normal operating and

fault code indication.

An intelligent, advanced boiler control (‘abc’) continuously monitors the boiler condi-

tions, varying the heat output to suit the system load. The control is able to react to

external “negative” influences in the rest of the system (flow rates, air / gas supply

problems) maintaining boiler output for as long as possible without resorting to a lock

out condition. At worst the boiler will reduce it’s output and/or shut down (shut-off

mode) awaiting the “negative” conditions to return to normal before re-starting.

The ‘abc’ control cannot override the standard flame safety controls.

The boiler meets the requirements of the EC regulations and directives:

- 90/396EEC Gas appliances directive

- 92/42/EEC Efficiency directive

- 73/23/EEC Electrical low voltage directive

- 89/336/EEC E.M.C. directive

Remeha Quinta 30 - PIN: 0063BM3043

Remeha Quinta 30

2 CONSTRUCTION

2.1 Boiler layout

bar

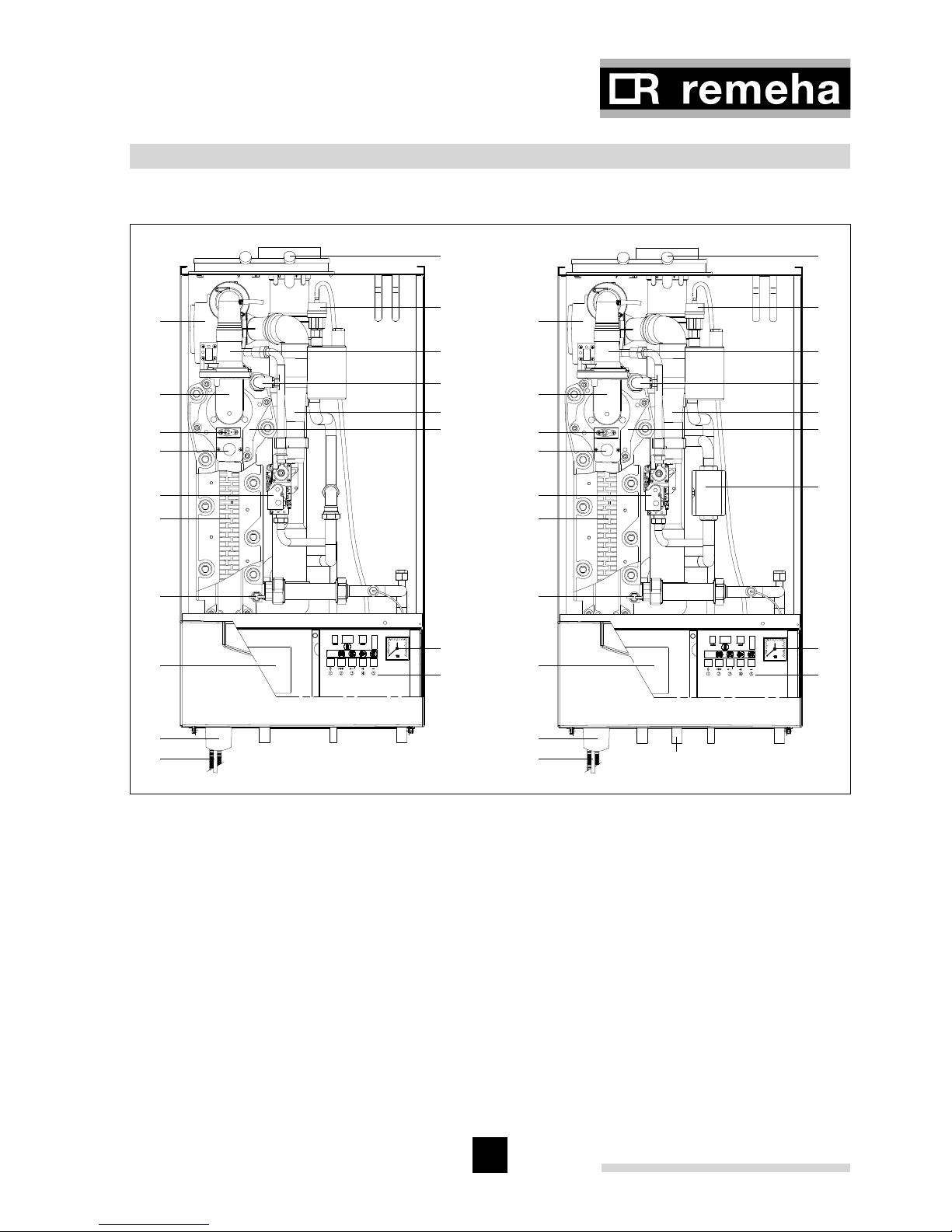

Fig. 01 Boiler layout Remeha Quinta 30 and boiler layout with optional 3-way valve

04.W3H.79.00003 + 04.W3H.79.00011

1. Air supply fan.

2. Pre-mix burner

3. Combined ignition/ionisation probe

4. Sight glass

5. Gas combi-block (with governor)

6. Cast aluminium heat exchanger

7. Temperature sensor-return

8. Facility for incorporating a rematic®

weather compensated boiler control

9. Siphon

10. Hoses automatic air vent and

condensate

11. Flue gas measure point

12. Automatic air vent

13. Gas injector/venturi

14. Temperature sensor-flow

15. Air inlet tube

16. Heat exchanger inspection cover

17. Pressure gauge

18. Control panel

19. Optional 3-way valve

20. DHW primary flow connection (when

optional 3-way valve is fitted)

bar

Remeha Quinta 30

2.2 Operating principle

Combustion air is drawn into the closed air box by a variable speed fan, through the

air inlet connection from the plant room (open flued) or from outside via the concentric

flue system (room sealed). On the inlet side of the fan is a specially designed venturi

which is connected to the outlet side of the gas combi block.

Depending on the demand (under the dictates of flow/return sensor and other external/

internal control inputs) the electronic control unit directly monitors the volume of gas

and air being delivered to the premix burner. This mixture is initially ignited by the

combined ignition/ionisation probe which then monitors the state of the flame. Should

the flame not ignite or is unstable within the pre-set safety time cycle the controls will

shut the boiler down (after 5 attempts) requiring manual intervention to reset the boiler.

The digital display will also indicate a flashing fault code confirming the reason for the

failure.

The products of combustion in the form of hot flue gases are forced through the heat

exchanger transfering their heat to the system water (the flue gas temperature is

reduced to approximately 5°C above the temperature of the system return water) then

discharged via the condensate collector, vertically through the 80/125 mm combined

flue/air connection to atmosphere.

Because of the low flue gas exit temperature there will be a vapour cloud formed at

the flue gas terminal - this is not smoke, simply water vapour formed during the com-

bustion process.

If the controls allow the flow and therefore return temperature to fall below dew point

(55°C) this water vapour will begin to condense out in the boiler, transfering it’s latent

heat into the system water, increasing the output of the boiler without increasing the

gas consumption.

Condensation formed within the boiler and flue system is discharged from the boiler to

an external drain via the drain pan / siphon supplied.

Remeha Quinta 30

3 TECHNICAL DATA AND DIMENSIONS

3.1 Dimensions

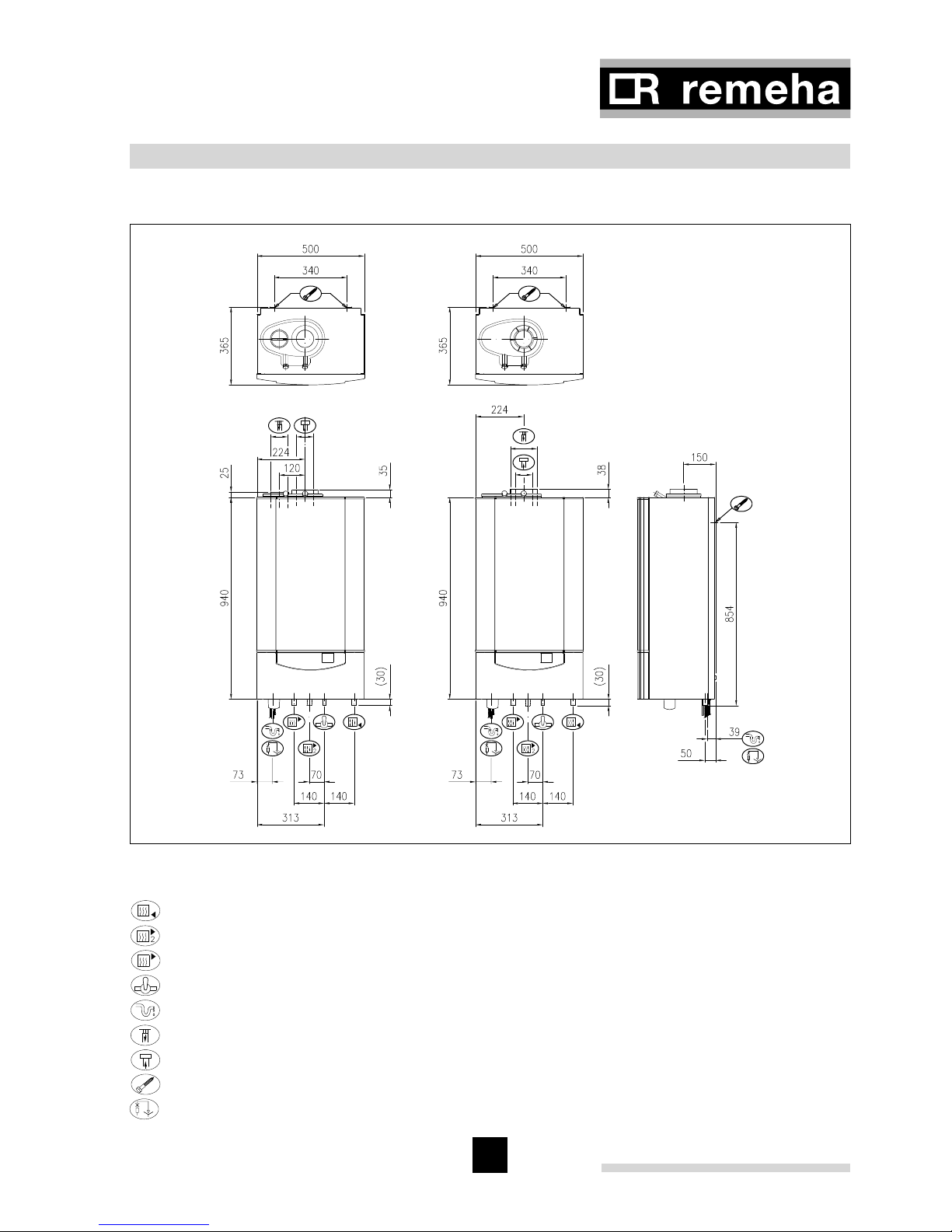

Fig. 02 Dimensions Remeha Quinta 30

04.W3H.79.00010 + 04.W3H.79.00013

Return connection 22 mm Ø (m)

DHW primary flow connection 22 mm Ø (m) (when optional 3-way valve is fitted)

Flow connection 22 mm Ø (m)

Gas connection 15 mm Ø (m)

Condensate connection 25 mm Ø o/d (plastic)

Combustion air supply connection 125 mm Ø i/d

Flue gas connection 80 mm Ø i/d

Holes for mounting bracket

Hose automatic air vent 8 mm Ø o/d (silicone)

Ø25

Mounting holes

Ø80

Ø125

Ø22 Ext.

Ø15 Ext.

Ø22 Ext.

Ø8 Hose automatic air vent

Ø22 Ext.

Ø25

Mounting holes

Ø80

Ø125

Ø22 Ext.

Ø15 Ext.

Ø22 Ext.

Ø8 Hose automatic air vent

Ø22 Ext.

Remeha Quinta 30

3.2 Technical data

Boiler type Quinta 30

General

Colour side and front casing

Colour instrument panel flap

BS RAL 9016

7036

Boiler control options (External input)

(Two wire control)

On/off, High/low, Analog 0 -10V

Communicating Modulation

Nominal output (80/60ºC) kW 5.6 – 28.0

Nominal output (40/30ºC) kW 5.9 – 29.6

Nominal input (GCV / Hs) kW 6.3 – 31.6

Nominal input (NCV / Hi) kW 5.7 – 28.5

Weight dry kg 43

Noise level at 1 m from boiler dB(A) < 44

Gas- and flue details

Category II 2H3P

Min/Max Inlet pressure natural gas mbar 15 – 50

Min/Max Inlet pressure propane mbar 37 - 50

Gas consumption (natural gas) m3/h 0.6 – 3.2

Gas consumption (propane) m3/h 0.3 - 1.2

NOx-emission mg/kWh < 36

NOx -emission (O2 = 0%, dry) ppm < 20.2

Residual fan duty Pa 100

Mass flue rate kg/h 10 - 48

Classification due to discharging flue gases B23, B33, C13, C33, C43, C53,

C63, C83

Water side

Maximum flow temperature ºC 100 (110)

Operating flow temperature ºC 20 - 90

Operating pressure min. (open vented) bar 0.3

Operating pressure min. (pressurised) bar 0.8

Operating pressure max. bar 3.0

Water contents ltr 3.1

Water resistance at 11 °C Dt mbar 460

Water resistance at 20 °C Dt mbar 140

Nominal flow at 11 °C Dt l/s 0.61

Nominal flow at 20 °C Dt l/s 0.34

Electrical

Main supply V/Hz 230 / 50

Electric rating without pump (max) W 46

Insulation class IP 20

Autres manuels pour Quinta Pro 30

Table des matières

Autres manuels REMEHA Chaudière

REMEHA

REMEHA Gas 220 Ace 220 Guide de dépannage

REMEHA

REMEHA Gas 210 Ace 80 Manuel utilisateur

REMEHA

REMEHA Gas 210 ECO Guide de dépannage

REMEHA

REMEHA Gas 210 ECO Manuel

REMEHA

REMEHA Quinta Pro 45 Manuel

REMEHA

REMEHA Quinta Ace 30 Manuel utilisateur

REMEHA

REMEHA GAS 460 S Manuel du propriétaire

REMEHA

REMEHA Quinta Ace 135 Guide de dépannage

REMEHA

REMEHA Gas 110 Eco 115 Manuel

REMEHA

REMEHA GAS 310 ECO PRO Manuel utilisateur

REMEHA

REMEHA P 520 Manuel utilisateur

REMEHA

REMEHA GAS 360 S Manuel du propriétaire

REMEHA

REMEHA Quinta Pro 30 Manuel

REMEHA

REMEHA Avanta 18v Manuel

REMEHA

REMEHA HFS 600 Manuel

REMEHA

REMEHA Avanta Exclusive 28C Mode d’emploi

REMEHA

REMEHA P 320 Manuel

REMEHA

REMEHA Avanta 18v Manuel utilisateur

REMEHA

REMEHA Quinta Pro 30 Manuel utilisateur

REMEHA

REMEHA Avanta 12v Supplément

REMEHA

REMEHA Gas 310 ECO Manuel utilisateur

REMEHA

REMEHA Quinta Ace 160 Guide de dépannage

REMEHA

REMEHA Gas 350 Manuel utilisateur

REMEHA

REMEHA Quinta Pro series Guide de dépannage

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur
