E33 Gas Insert

Model E33-NG1 E33-LP1

Fuel Type Natural Gas Propane

Minimum Supply Pressure 5” W.C. (1.25 kPa) 12” W.C. (2.99 kPa)

Manifold Pressure - High 3.8” W.C. (0.95 kPa) 11” W.C. (2.74 kPa)

Manifold Pressure - Low 1.1” W.C. (0.27 kPa) 2.9” W.C. (0.72 kPa)

Oriﬁce Size -Altitude 0-4500 ft. #31 DMS #50 DMS

Minimum Input

Altitude 0-4500 ft. (0-1372m)

20,000 BTU/h

(5.86 kW)

19,000 BTU/h

(5.57 kW)

Maximum Input

Altitude 0-4500 ft. (0-1372m)

38,000 BTU/h

(11.14 kW)

35,500 BTU/h

(10.40 kW)

Vent Sizing 3” Co-linear 3” Co-linear

Minimum Fireplace Dimensions

The minimum ﬁreplace dimensions for the FPI gas ﬁreplace insert are

shown in the following diagrams:

Dimension Description Contour Faceplate

J Height 24-3/16” (614mm)

K Width 32-1/4” (819mm)

L Depth 17” (432mm)

M Max. Lintel Bar Depth 8” (203mm)

N Rear Width 25” (635mm)

30°

Dimension Description E33

A Faceplate Width 45-9/16” (1157mm)

B Faceplate Height 31-1/8” (791mm)

C Unit Width 32-1/4” (819mm)

D Unit Height 23-13/16” (605mm)

E Unit Depth 16-3/4” (426mm)

F Faceplate to Vent Centerline 11-1/4” (286mm)

G Faceplate Depth 1-3/8” (35mm)

H Height to Vent Collar 23” (583mm)

I Optional or Standard Front Depth N/A

E33 Gas Insert

Approved Venting Systems

Flex Vent Systems: FPI AstroCap™ Flex Vent

127June 2007 Regency Product Speciﬁcations Book

Gas Inserts

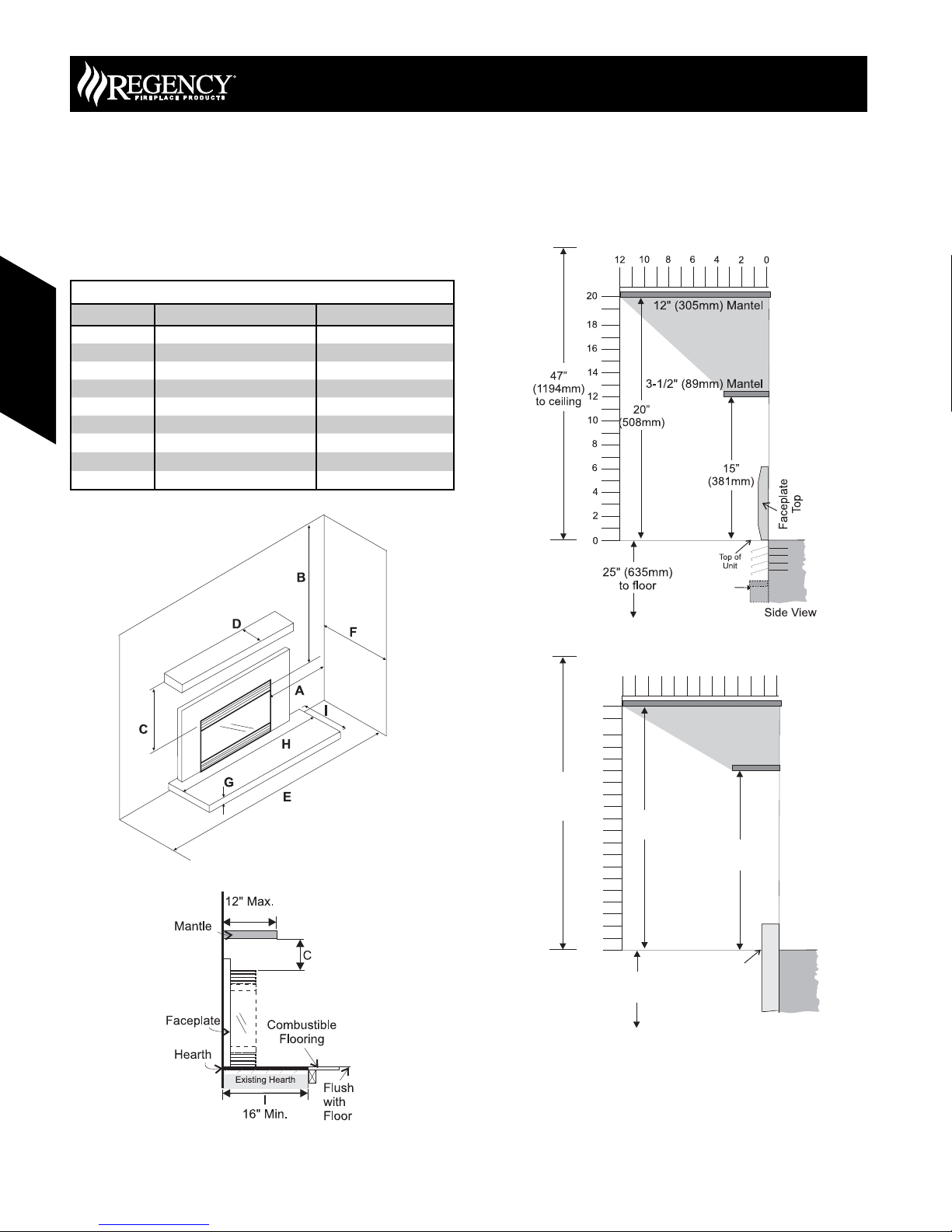

Clearances

Unless otherwise stated the clearances listed below are Minimum

distances to combustible materials. Please Note: A major cause

of chimney related ﬁres is due to a failure to maintain required

clearances (air space) to combustible materials. It is of the greatest

importance that this ﬁreplace and vent system be installed only in

accordance with these instructions.

Combustible Mantels

Because of the extreme heat this ﬁreplace emits, the mantel

clearances are critical. Combustible mantel clearances from top of

the louvers are shown in the diagram below. Mantel may be installed

anywhere in the shaded area or higher.

Note: A non-combustible mantel may be installed at a lower

height.

Note: Ensure the paint that is used on the mantel and the facing

is “heat resistant” or the paint may discolour.

Clearances to Combustibles

Dimension Description E33

A* From Unit to Side Walls 8” (203mm)

B From Unit to Ceiling 47” (1194mm)

C Minimum Mantel Height 15” (381mm)

D Maximum Mantel Depth 12” (305mm)

E Alcove Width 76” (1930mm)

F Alcove Depth 36” (914mm)

G Hearth Height 1-¼” (32mm)

H Hearth Width 45-½” (1156mm)

I Hearth Depth 13” (330mm)

* Alcove side wall must have a minimum of 8” (203mm) clearance on one side.

25" (635mm)

to floor

Side View

12" (305mm) Mantel

3-1/2" (89mm) Mantel

20”

(508mm)

47”

(1194mm)

to ceiling

15”

(381mm)

12 64

810

Top of

Unit

Flush Front Mantel Clearances

Full Screen Door Mantel Clearances

E33 Gas Insert

128 June 2007 Regency Product Speciﬁcations Book

Gas Inserts
