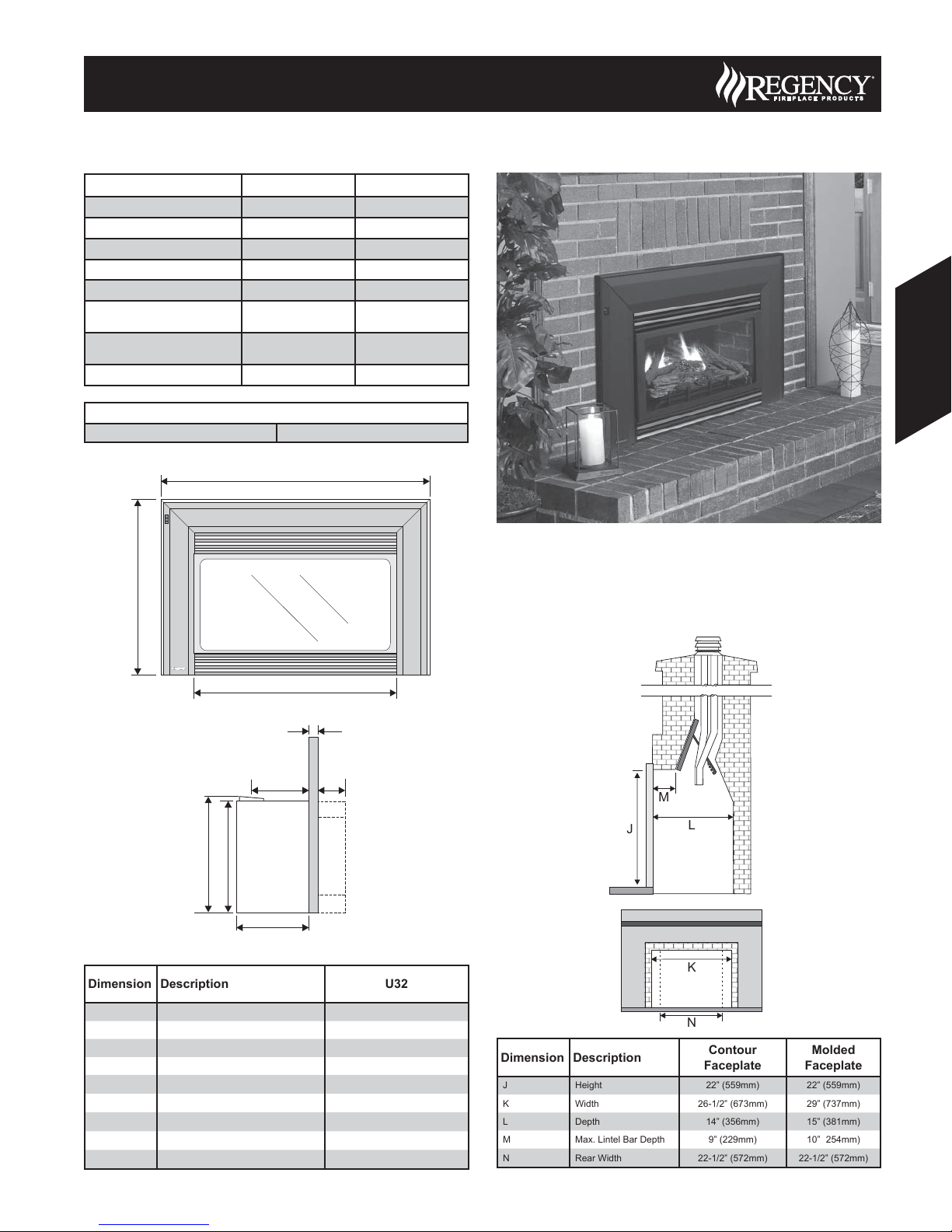

U32 Regency Gas Insert

Model U32-NG5 U32-LP5

Fuel Type Natural Gas Propane

Minimum Supply Pressure 5” W.C. (1.25 kPa) 12” W.C. (2.99 kPa)

Manifold Pressure - High 3.8” W.C. (0.95 kPa) 11” W.C. (2.74 kPa)

Manifold Pressure - Low 1.1” W.C. (0.27 kPa) 2.9” W.C. (0.72 kPa)

Oriﬁce Size -Altitude 0-4500 ft. #37 DMS #52 DMS

Minimum Input

Altitude 0-4500 ft. (0-1372m)

15,300 BTU/h

(4.48 kW)

15,000 BTU/h

(4.40 kW)

Maximum Input

Altitude 0-4500 ft. (0-1372m)

30,000 BTU/h

(8.79 kW)

30,000 BTU/h

(8.79 kW)

Vent Sizing 3” Co-linear 3” Co-linear

Minimum Fireplace Dimensions

The minimum ﬁreplace dimensions for the FPI gas ﬁreplace insert are

shown in the following diagrams:

aaaaa

aaaaaaaaaa

aaaaaaaa

aaaaaaaaaa

Dimension Description Contour

Faceplate

Molded

Faceplate

J Height 22” (559mm) 22” (559mm)

K Width 26-1/2” (673mm) 29” (737mm)

L Depth 14” (356mm) 15” (381mm)

M Max. Lintel Bar Depth 9” (229mm) 10” (254mm)

N Rear Width 22-1/2” (572mm) 22-1/2” (572mm)

Dimension Description U32

A Faceplate Width 40-1/4” (1022mm)

B Faceplate Height 26-1/4” (667mm)

C Unit Width 28” (711mm)

D Unit Height 20” (508mm)

E Unit Depth 13-3/4” (349mm)

F Faceplate to Vent Centerline 10-3/4” (273mm)

G Faceplate Depth 1-3/8” (35mm)

H Height to Vent Collar 21-1/16” (535mm)

I Optional or Standard Front Depth 3-3/4” (95mm)

U32 Regency Gas Insert

Approved Venting Systems

Flex Vent Systems: FPI AstroCap™ Flex Vent

125August 2008 Product Speciﬁcations Book

Gas Inserts

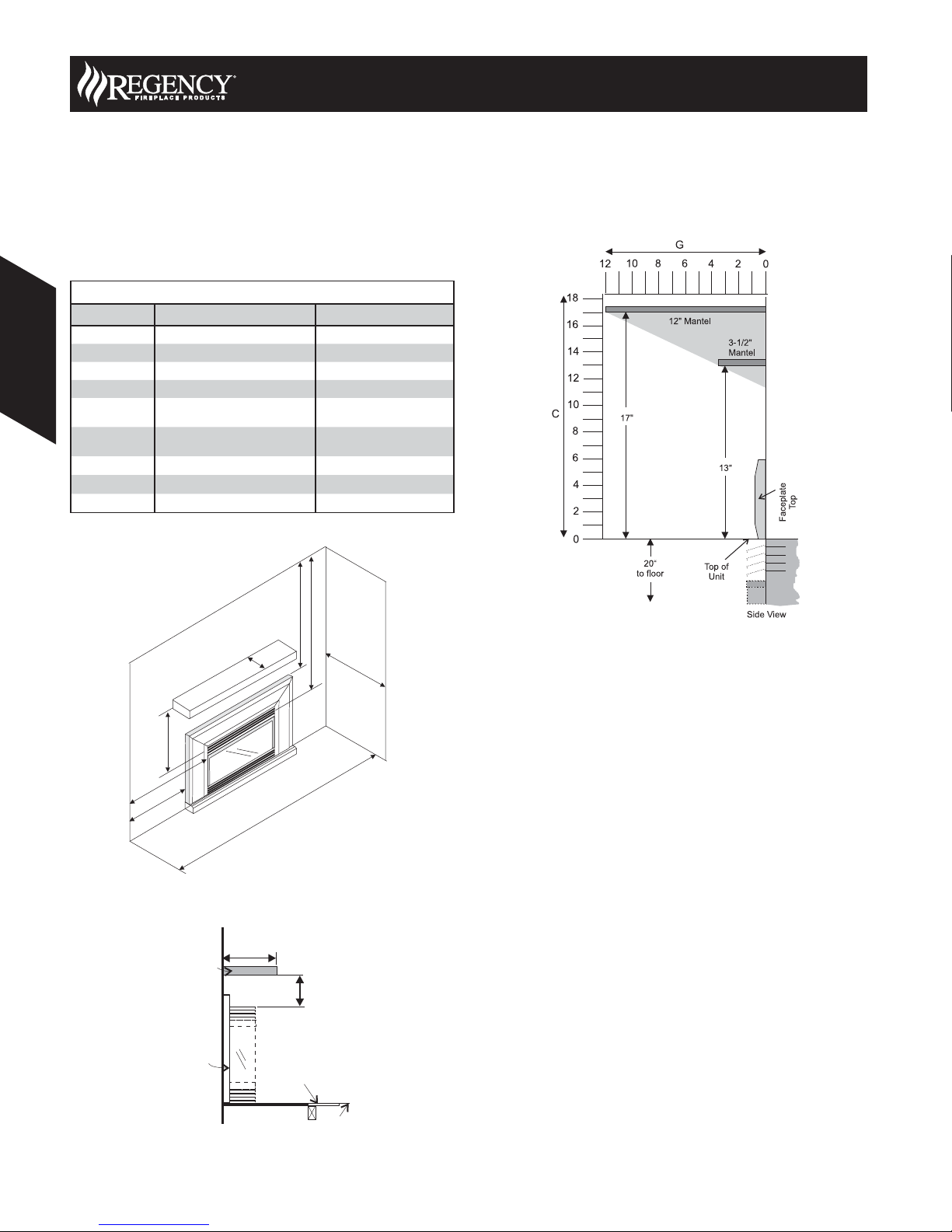

Clearances

Unless otherwise stated the clearances listed below are Minimum

distances to combustible materials. Please Note: A major cause

of chimney related ﬁres is due to a failure to maintain required

clearances (air space) to combustible materials. It is of the greatest

importance that this ﬁreplace and vent system be installed only in

accordance with these instructions.

Combustible Mantels

Because of the extreme heat this ﬁreplace emits, the mantel

clearances are critical. Combustible mantel clearances from top of

the louvers are shown in the diagram below. Mantel may be installed

anywhere in the shaded area or higher.

Note: A non-combustible mantel may be installed at a lower

height.

Note: Ensure the paint that is used on the mantel and the facing

is “heat resistant” or the paint may discolour.

Faceplate

Flush

with

Floor

Combustible

Flooring

Mantle

12" Max.

Clearances to Combustibles

Dimension Description U32

A From Unit to Sides 10” (254mm)

B From Unit to Ceiling 47.5” (1207mm)

C From Unit to Mantel see diagram 2 & 3

D From Standard Surround to Sides 4” (102mm)

E From Standard Surround to Ceiling 41.5” (1054mm)

also see diagram 2 & 3

G Maximum Mantel Depth 12” (305mm)

see diagram 2

H Minimum Alcove Width 48” (1219mm)

I Maximum Alcove Depth 36” (914mm)

* No Hearth Required

U32 Regency Gas Insert

126 August 2008 Product Speciﬁcations Book

Gas Inserts
