• NOLA •

• CEILING FAN OWNER'S MANUAL •

WARNING: Read and follow these instructions carefully and be mindful of all warnings shown throughout.

Style that revolves around you.

GENERAL INSTALLATION & OPERATION INSTRUCTIONS

IMPORTANT SAFEGUARDS:

1. To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly

To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly

before beginning.

2. To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring.

To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring.

All

electrical connections must be made in accordance with local codes, ordinances and/or the National Electric

Code. If you are unfamiliar with the methods of installing electrical wiring and products, secure the services of a

qualified and licensed electrician as well as someone who can check the strength of the supportive ceiling

members and make the proper installation(s) and connections.

3. Make sure that your installation site will not allow rotating fan blades to come in contact with any object. Blades

should be at least 7 feet from floor.

4. When mounting on a ceiling outlet box, an approved box UL listed as "suitable for fan support"

"suitable for fan support"

is required. The

box and its supporting members must be able to support the moving weight of the fan's listed weight. The box

must not be able to twist or work loose. Installation on a concrete ceiling should be performed by qualified

personnel.

5. Blades should be attached after motor housing is hung and in place. Fan motor housing should be kept in the

carton until ready to be installed to protect its finish. If you are installing more than one ceiling fan, make sure

that you do not mix fan blade sets

do not mix fan blade sets

, as each blade is part of a weighted set.

6. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into

outlet box. The wires should be spread apart with the common conductor and the grounding conductor on one

side of the outlet box, and the "HOT" wires on the other side.

7. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and

should be installed per the light kit's installation instructions.

8. After fan is completely installed, check to make sure that all connections are secure to prevent fan from falling

and/or causing damage or injury.

9. The fan can be made to work immediately after installation - the bearings are adequately charged with grease so

that, under normal conditions, further lubrication should not be necessary for the life of the fan.

10. To operate the reverse function on this fan, press the reverse button while the fan is running.

Weight of Fan: xxx lbs

IMPORTANT SAFETY PRECAUTIONS

• Disconnect power by removing fuse or turning off circuit breaker before installing the fan and/or optional lighting.

Disconnect power by removing fuse or turning off circuit breaker before installing the fan and/or optional lighting.

• Support directly from building structure.

• To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked "acceptable for fan

"acceptable for fan

support"

and use mounting screws provided with the outlet box. Most outlet boxes commonly used for the support

of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if

in doubt.

• Do not use an incandescent light dimmer. Do not use this fan with any transformer type fan speed control device.

• To reduce the risk of personal injury, do not bend the blade arms when installing them, balancing the blades or

cleaning the fan. Do not insert any object(s) between rotating fan blades.

NOTE:The important precautions, safeguards and instructions appearing in this manual are not meant to cover all

possible conditions and situations that may occur. It must be understood that common sense, caution and carefulness

are factors which cannot be built into this product. These factors must be supplied by the person(s) installing, caring

for, and operating the unit.

Thank you for choosing a Regency Ceiling Fan. You have chosen the best!

Your new ceiling fan has been designed to provide many years of service and enjoyment.

Warnings:

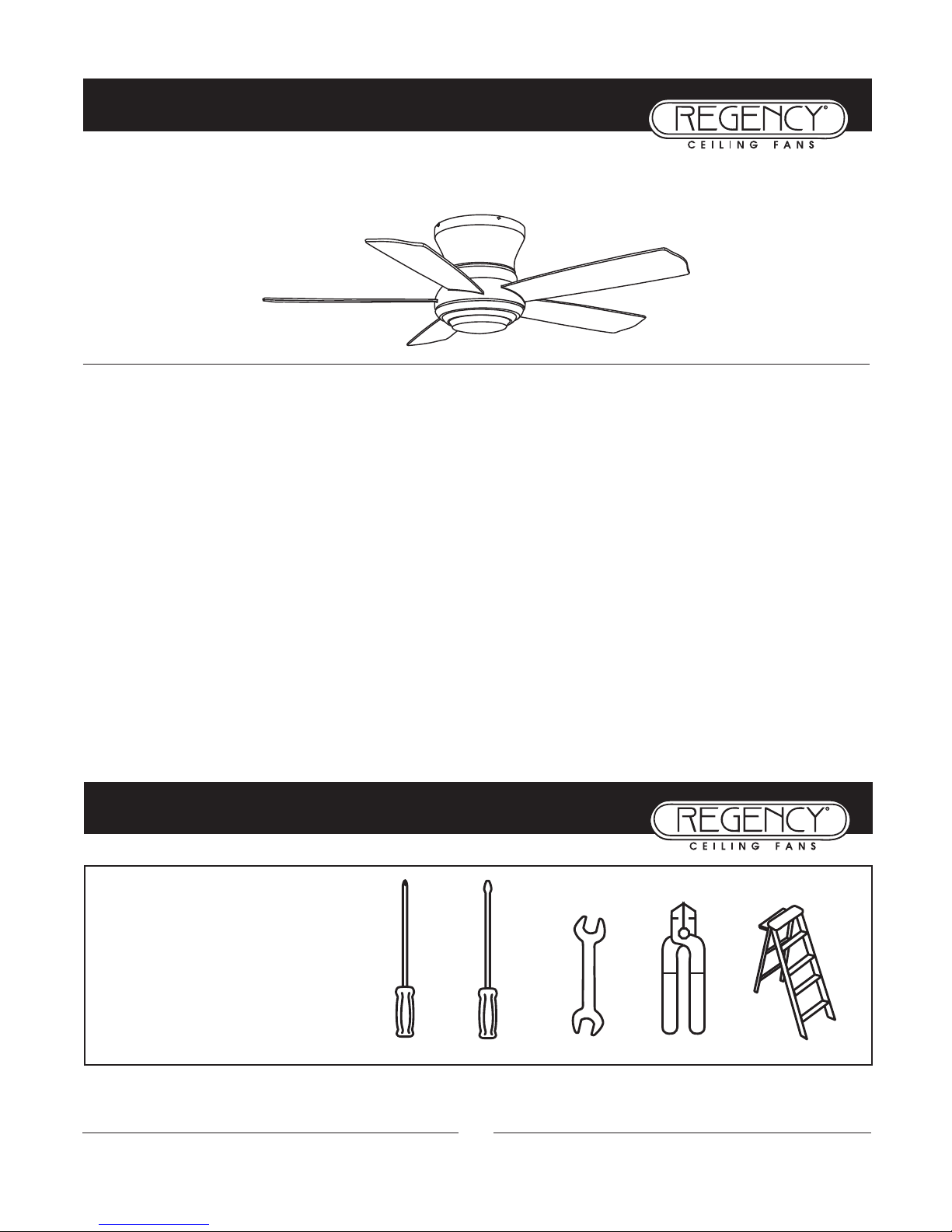

TOOLS AND MATERIALS REQUIRED

• Phillips screwdriver

• Blade screwdriver

• Wrench or pliers

• Wire cutter

• Stepladder

• Wiring supplies as required by

electrical code

UNPACKING YOUR FAN

1. Unpack your fan and check the contents. Do not discard the carton. If warranty replacement or repair is ever

necessary, the fan should be returned in original packing. Remove all parts and hardware. Do not lay motor

housing on its side, or the decorative housing may shift, be bent or damaged.

2. Examine all parts. You should have the following:

1. Fan blades (5)

2. Mounting plate

3. Fan motor

4. Mounting plate

5. Light plate

6. Glass shade

7. 100W JD-type halogen bulb

8. Transmitter incl. holder + 2 mounting screws

9. Bracket mounting hardware (wood screws, screws, lock washers, washers, wire nuts)

10. Blade arm to blade screws, w/washers (16)

NOTE:

Design of parts shown above may look slightly different for your specific model of fan.

PREPARATION

PREPARATION:

Verify you have all parts before beginning the installation. Check foam insert closely for missing parts. Remove motor

from packing. To avoid damage to finish, assemble motor on soft padded surface or use the original foam inset in motor

box. Do not lay motor housing on its side as this could result in shifting of motor in decorative enclosure.

Do not lay motor housing on its side as this could result in shifting of motor in decorative enclosure.

Caution:

To avoid possible electrical shock, be sure electricity

is turned off at the main power box before wiring. All wiring

must be in accordance with National and Local Electrical

Codes and the ceiling fan must be grounded as a precaution

against possible electric shock.

1. Locate ceiling joist where fan is to be mounted, being sure

location agrees with the requirements in the minimum

clearance section of this guide. Wood joist must be sound

and of adequate size to support 35 lbs. (See Page 1, Items 3

and 4).

2. If not already present, mount a UL listed outlet box marked

"suitable for fan support" following the instructions

provided with the outlet box. The outlet box must be able

to support a minimum of 35 pounds.

3. Attach mounting bracket to outlet box using screws

using screws

provided with the outlet box.

Parts identification on assembled fan

Blades

Mounting Plate

INSTALLING THE MOUNTING BRACKET

Motor Housing

Glass

Shade

Outlet box

Mounting

plate

Screws

INSTALLING THE FAN

INSTALLATION:

REMEMBER to turn off the power. Follow the steps below

to hang your fan properly.

Carefully lift fan motor assembly (without the blades) into

position by hanging the motor assembly onto the hook

from the ceiling mounting plate allowing it to hang freely

as shown in Fig. 5.

You are now ready to make the electrical connections.

ELECTRICAL CONNECTIONS

WARNING:

To avoid possible electrical shock, be sure

electricity is turned off at the main fuse box before wiring.

NOTE:

This remote control unit is equipped with 16 code

combinations to prevent possible interference from or to other

remote units. The frequency switches on your receiver and

transmitter have been preset at the factory. Please recheck to

make sure the switches on transmitter and receiver are set to

the same position, any combination of settings will operate

the fan as long as the transmitter and receiver are set to the

same position.

Note:

The receiver has been attached on the motor

housing and wired for ease of installation.

Follow the steps below to connect the fan to your household

wiring. Use the wire connecting nuts supplied with your

fan. Secure the connectors with electrical tape. Make sure

there are no loose strands or connections.

Outlet box

Fan

motor

Hook

Code switch

Receiver

(Pre-installed on top

of the motor housing)

Transmitter

FINISHING THE INSTALLATION

Step 1. Loosen two of the four screws from the mounting

plate and remove the other two.

Step 2. Remove the fan motor assembly from the mounting

plate hook and engage the key holes to the two screws

previously loosened.

Step 3. Install the two screws previously removed and

tighten all four screws.

Step 1 Connect the fan supply (black) wire to the black

household supply wire.

Step 2. Connect the neutral fan (white) wire to the white

neutral household wire.

Step 3 Connect the two green fan ground wires, located on

the mounting plate and motor, to the household ground

wire.

Step 4 After connecting the wires, spread them apart so that

the green and white wires are on one side of the outlet box

and the black wire is on the other side.

Step 5 Turn the connecting nuts upward and push the

wiring into the outlet box.

SUPPLYCIRCUIT

BLACK

WHITE

BLACK

GREEN

WHITE

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Mounting

Plate

ELECTRICAL CONNECTIONS

Screws

Fan

motor

Mounting

plate

BLADE ATTACHMENT

INSTALLING THE MOUNTING PLATE

WARNING:

To reduce the risk of personal injury, do not

bend the blades while installing, balancing the blades, or

cleaning the fan.

Insert the blade through the slot in the housing. Align the

holes in the blade and the fan motor assembly and secure

with a blade attachment screw and fiber washer.

Repeat this procedure with the remaining blades.

1. Remove one of the three screws on the mounting hub

located on the fan motor.

2. Loosen the other two screws.

3. Install mounting plate to mounting hub.

4. Line up the two slotted holes with the two loose screws

on the mounting hub located on fan motor.

5. Re-install the third screw removed and tighten all three.

Fiber Washer

Screws

Blades

Screws

Mounting Hub

Mounting Plate

INSTALLING THE LIGHT BULB AND GLASS SHADE

WARNING:

Shut off the power supply before removing or

replacing lamp. In handling of halogen bulb, care should be

taken not to touch it with your bare hands. Oil residue will

shorten the life of the halogen bulb. If you accidentally

come into contact, wipe thoroughly with a clean, lint-free,

cotton cloth. Allow the bulb to cool for 10 minutes before

changing the bulb. Use light bulb in accordance with the

fan's specification. DO NOT EXCEED THE MAXIMUM

WATTAGE RATING.

Step 1. Remove the 1 of 3 screws from the posts of the light

kit decorative housing and keep it for future use. Loosen

the other 2 screws. (Do not remove)

Step 2. While holding the light kit assembly under your fan,

Make the polarized plug connections:

- White to white

- Blue to black

Step 3. Place the key holes on the light plate over the 2

screws previously loosened, turn the light plate until it

locks in place at the narrow section of the key holes. Secure

by tightening the 2 screws previously loosened and the one

previously removed. (Fig. 1)

Step 4. Install 1x100W halogen bulb (included) into bulb

socket. (Fig. 2)

Step 5. Raise glass shade up against mounting plate and secure

it to the fan by turning the glass shade clockwise until snug.

DO NOT OVERTIGHTEN.

Step 6. Restore power and your light kit is ready for operation.

Screws

Mounting Plate

Light Plate

Wire Connector

Bulb

Glass shade

Mounting Plate

Fig. 1

Fig. 2

OPERATING YOUR WALL TRANSMITTER

9 Volt

Battery

Restore power to ceiling fan and test for proper operation.

Install 9 Volt battery (not included). To prevent damage to transmitter remove

the batteries if not used for long periods of time. (Fig. 1)

1. "LO, MED, HI" buttons:

These three buttons are used to set the fan speed as follows:

LO= Low speed MED= Medium speed

HI= High speed

2. "FAN/OFF" button:

This button turns the fan off.

3. The " LIGHT" button are controlled by pressing the light button. Tap button

quickly to turn light off or on. Push the button once and release to turn the

light on to full brightness. Hold the button down to increase or decrease

light brightness. Release the button at the desired light brightness and that

setting will be remembered the next time the light is turned on. The pre-set

brightness can be changed by holding down the light button again until the

new desired brightness is reached.

NOTE:

If power is lost to the fan receiver, the memory will be lost and all

settings will return to the default.

4. "FOR/REV" button:

This button is used to change the direction of the rotation of the blades;

forward for warm weather or reverse for warm weather.

Fig. 1

Fig. 2

Table des matières

Autres manuels Regency Ventilateur

Regency

Regency Quatro Manuel utilisateur

Regency

Regency MX Excel Manuel utilisateur

Regency

Regency VERA CRUZ Manuel utilisateur

Regency

Regency Cabana Manuel utilisateur

Regency

Regency Vantage Manuel utilisateur

Regency

Regency Marquis Series, Countess Series Manuel utilisateur

Regency

Regency GRAND MARQUIS Manuel utilisateur

Regency

Regency INDY Manuel utilisateur

Regency

Regency Mirada Manuel utilisateur

Regency

Regency Cayman Manuel utilisateur

Regency

Regency THE INDOOR/OUTDOOR FAN Manuel utilisateur

Regency

Regency TROPIC AIR Series Manuel utilisateur

Regency

Regency Professional Series Manuel utilisateur

Regency

Regency FE-45A Manuel utilisateur

Regency

Regency Deuce Hugger Manuel utilisateur

Regency

Regency OASIS Manuel utilisateur

Regency

Regency Orbit Manuel utilisateur

Regency

Regency Cayman Manuel utilisateur

Regency

Regency Regatta Manuel utilisateur

Regency

Regency LX Series Manuel utilisateur

Regency

Regency GLADIATOR GL3 Manuel utilisateur

Regency

Regency ANDROS Manuel utilisateur

Regency

Regency Celsius Manuel utilisateur

Regency

Regency BIMINI Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
