Warnings:

• Disconnect power by removing fuse or turning off circuit breaker before installing the fan .

• Support directly from building structure.

• To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked “acceptable for

fan support” and use mounting screws provided with the outlet box. Most outlet boxes commonly used for the

support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified

electrician if in doubt.

• To reduce the risk of fire, electrical shock, or personal injury, only use this fan with an appropriate speed con-

trol device designed for use with wall fans if you choose a wall control. DO NOT USE INCANDESCENT LIGHT

DIMMER. Do not use this fan with any transformer type fan speed control device.

• To reduce the risk of personal injury, do not bend the blades when installing them, balancing the blades or cleaning

the fan. Do not insert any object(s) between rotating fan blades.

NOTE: The important precautions, safeguards and instructions appearing in this manual are not meant to cover

all possible conditions and situations that may occur. It must be understood that common sense, caution and

carefulness are factors which cannot be built into this product. These factors must be supplied by the person(s)

installing, caring for, and operating the unit.

tO O l s a n d Materials re q u i r e d

Thank you for choosing a Regency Ceiling Fan. You have chosen the best!

Your new wall fan has been designed to provide many years of service and enjoyment.

• Phillips screwdriver

• Blade screwdriver

• Wrench or pliers

• Wire cutter

• Stepladder

• Wiring supplies as required by

electrical code

iM p O r t a n t sa F e t y pr e C a u t i O n s

TCA7101803 SIZE:216x280mm 单黑骑马订 12P 18/01/2008

Page 3 of 12

TCA7101803 SIZE:216x280mm 单黑骑马订 12P 18/01/2008

Page 4 of 12

TCA7101803 SIZE:216x280mm 单黑骑马订 12P 18/01/2008

Page 5 of 12

1. Connect the white power line from the outlet box to the white wire on the AC in side of the receiver (Fig.1).

2. Connect the black power line from the outlet box to the black wire on the AC in side of the receiver (Fig.1)

3. Connect the green / ground wires from the canopy, hanging bracket, and outlet together (Fig.2).

4. Connect the white wire from the canopy to the white wire on the Motor side of the receiver (Fig.2).

5. Connect the black wire from the canopy to the black wire of the Motor side of the receiver (Fig.2).

6. Carefully insert receiver into the hanging bracket making sure that the wires do not get caught or damaged (Fig. 3).

in s t a l l i n g th e re M O t e re C e i v e r

at t a c h re c e I v e r :

White

Black

Power Lines 120V

White

Receiver

Outlet Box

Hanging Bracket

Fi g . 1

Hanging Bracket

Canopy

Green / Ground

Receiver

Green / Ground

Black

White

Black

White Fi g . 2

Fi g . 3

Hanging Bracket

Receiver

TCA7101803 SIZE:216x280mm 单黑骑马订 12P 18/01/2008

Page 6 of 12

in s t a l l i n g t h e Fa n

WARNING: To avoid damaging the blade arms and blades, do not install them onto fan until fan is fastened to wall.

1. Place canopy bracket on to the hanging bracket using the installation tab (Fig.1).

2. Remove the four screws from the hanging bracket, two on top and two on the bottom (Fig. 2).

3. Slide canopy up and fasten to hanging bracket with 4 screws provided (Fig. 2).

4. Remove the three fan canopy mounting screws (Fig. 3)

5. Attach the white fan wire to the white canopy wire using the quick connect wire (Fig. 3).

6. Attach the black fan wire to the black canopy wire using the quick connect wires (Fig. 3).

7. Secure the fan body to the canopy using the three fan canopy mounting screws making sure the

wires do not get caught or damaged between the two parts (Fig. 3).

8. Tighten the angle adjustment knob to the desired angle. Knob is located between the arm and

the fan body (Fig. 4).

Hanging Bracket

Canopy Bracket

Fan Canopy

Installation

Tab

Hanging

Bracket

See

Detail

Fi g . 1

Fan Canopy

Hanging

Bracket

Hanging Bracket

Screws X’s 4

Fi g . 2

Fan Canopy

Fan Canopy Mounting

Screws X’s 3

Quick Connect

Wires

Fan

Fi g . 3 Fi g . 4

Fan

Arm

Adjustment

Knob

Adjustment

Knob

TCA7101803 SIZE:216x280mm 单黑骑马订 12P 18/01/2008

Page 7 of 12

re M O t e CO n t r O l

ge n e r a l InformatIon

NOTE: For use with a standard remote control.

Multiple code choices are included with your fan’s remote control in case:

• you have more than one remote control fan and want them to respond only to their own remote control

• you have other radio controlled devices in your home that may interfere with the fan remote control (i.e. garage door

opener)

• you experience radio interference on a chosen frequency (code setting)

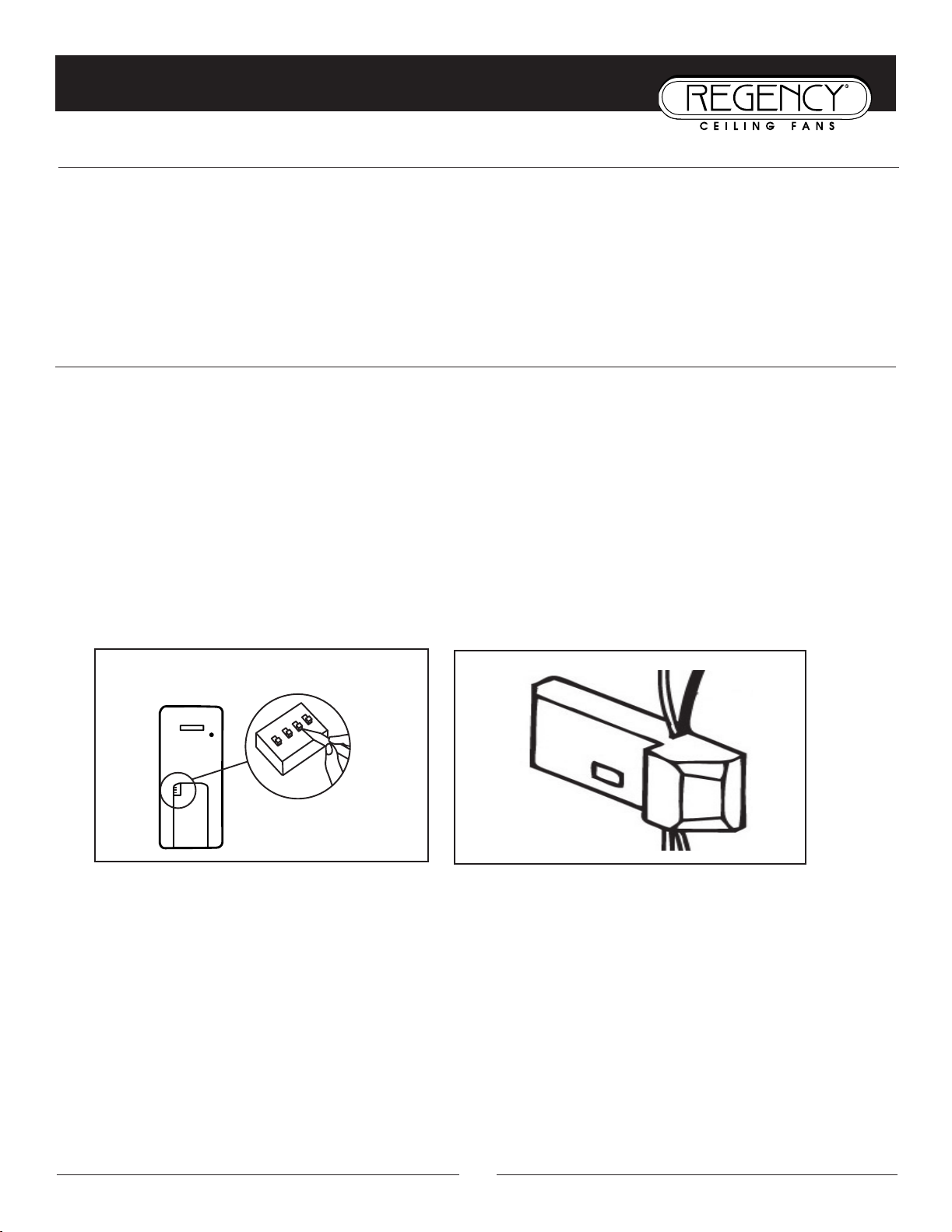

Se t -u p and op e r a t I n g InStructIonS

Setting the code:

This unit has 16 different code combinations. To set the code, perform these steps:

1. Setting the code on the TRANSMITTER:

a. Remove battery cover.

b. Slide code switches to your choice of ON or OFF position. Use a small screwdriver or ball point pen to slide

each switch firmly up or down.

c. Install 9v battery (not included).

d. Replace battery cover on transmitter.

2. Setting the code on the RECEIVER:

a. Locate the code switches on the bottom of the remote receiver.

b. Slide code switches to the SAME POSITIONS as set on your transmitter.

Operating buttons on the transmitter:

HI – fan high speed

MED – fan medium speed

LOW – fan low speed

FAN OFF – fan speed off

• Range of the transmitter is approximately 25 ft.

1234

Code

Switches

TRANSMITTER

Code Switches

TCA7101803 SIZE:216x280mm 单黑骑马订 12P 18/01/2008

Page 10 of 12
