FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988Venture St., Delta, BC Canada,V4G 1H4

920-004g

Regency Horizon®HZ54E

Gas Fireplace

03.31.21

Owners &

Installation Manual

www.regency-ﬁre.com

MODELS: HZ54E-NG11 Natural Gas

HZ54E-LP11 Propane

Horizon HZ54E Product Video

- Do not store or use gasoline or other ﬂammable vapors and liquids in the vicinity of this or any other

appliance.

-WHATTO DO IFYOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch: do not use any phone in your building.

Leave the building immediately.

• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

- Installation and service must be performed by a qualiﬁed installer, service agency or the gas supplier.

WARNING

FIRE OR EXPLOSION HAZARD

failure to follow safety warnings exactly could result in serious

injury, death, or property damage.

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

Certiﬁed to/Certiﬁé pour: CSA 2.17-2017

ANSI Z21.88-2017

CSA 2.33-2017

Tested by:

French Manual: https://bit.ly/3to2Jp3

Manuel en français : https://bit.ly/3to2Jp3

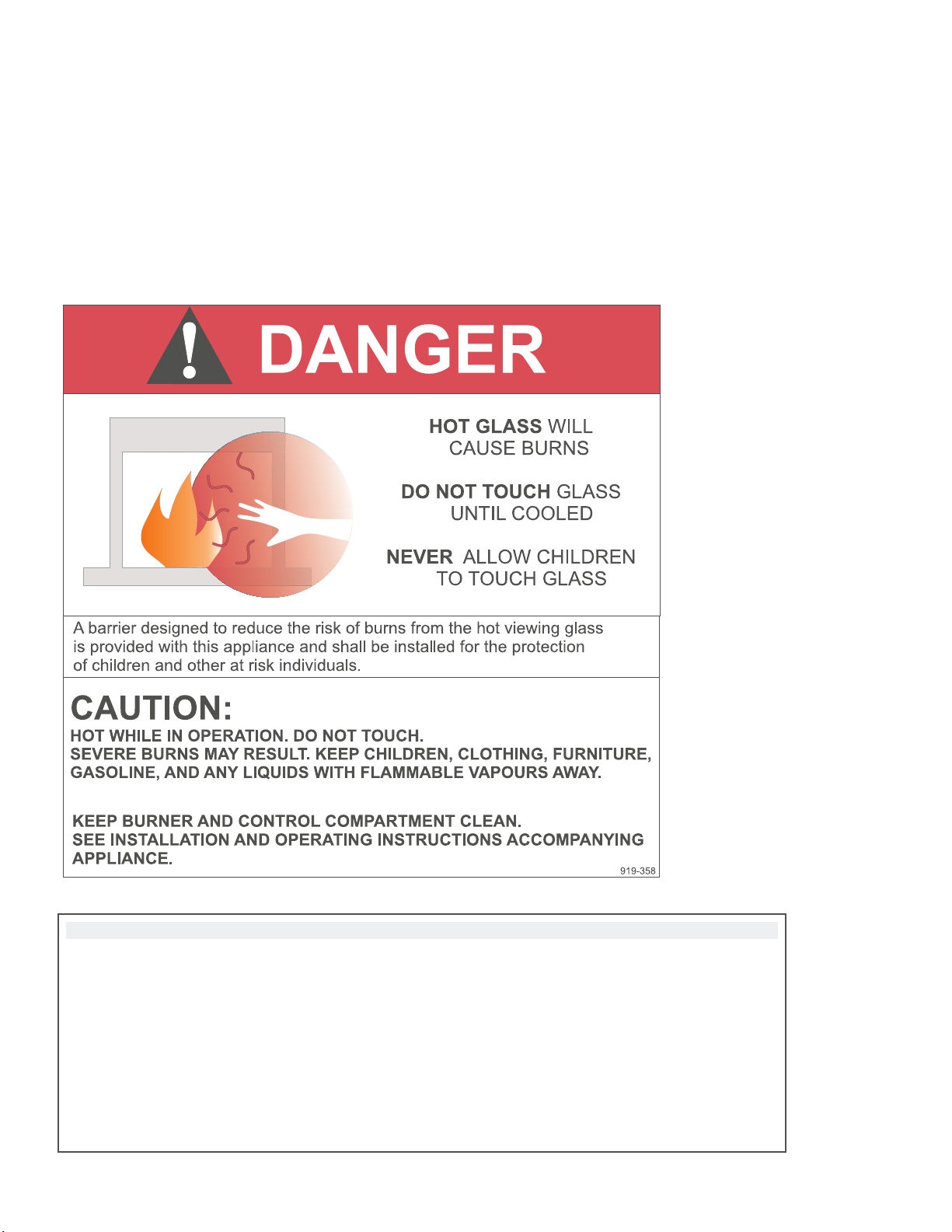

2| Regency Horizon® HZ54E-11 Gas Fireplace

To the New Owner:

Congratulations!

You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The HZ54E has been designed to provide you

with all the warmth and charm of a wood ﬁreplace at the ﬂick of a switch. The model HZ54E has been approved by

Warnock Hersey/Intertek for both safety and efﬁciency. As it also bears our own mark, it promises to provide you

with economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint

yourself with these instructions and the many features of your Regency® Fireplace.

On Demand Pilot Light (seven day safety timer)

Important information if using the appliance in CPI (continuous pilot mode) only.

This appliance is a ProFlame 1 system ﬁtted with the “On Demand” Pilot, a safety feature which will shut down the gas valve com-

pletely by extinguishing the pilot light in the event of a continuous full seven days of inactivity.

This only applies if the CPI (continuous pilot) switch is in the “on” position.

Each time the main burner shuts down, manually or through the call from the thermostat, the seven day timer starts again.

The seven day inactivity timer is controlled within the circuit board. Therefore, if in CPI mode and when the pilot light is extinguished

after seven straight days of inactivity, the IPI/CPI rocker switch will remain in the “on” position. Therefore, all that is required to relight

the pilot would be to press the on/off button on the remote control transmitter from “on” to “off” and back to “on”. Once the pilot has

re-established operation will resume as normal. There is no requirement to do anything with the IPI/CPI rocker switch.

If the unit never goes as long as seven full days without a call for heat, the pilot will remain lit until it is manually shut-off.

If the unit is being operated in IPI (intermittent pilot) mode, neither the above instructions nor the seven day timer will apply.

See the instructions in this manual and on the Lighting Instructions plate on the appliance to light or re-light the pilot.

Regency Horizon® HZ54E-11 Gas Fireplace | 3

This appliance can only be used with the type of gas indicated on the rating plate.

This appliance is not convertible for use with other gases.

This appliance may be installed as an OEM installation in a manufactured home (USA only) or mobile home and must be

installed in accordance with the manufacturer's instruction and the Manufactured Home Construction and Safety Standard,

Title 24 CFR, Part 3280, in the Untied States, or the Standard for Installation in Mobile Homes, CAN/CSA Z240 MH, in

Canada.

MANUFACTURED MOBILE HOME REQUIREMENTS

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home,

where not prohibited by local codes.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the

Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria

for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home

Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence

of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA

70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1

in Canada.

This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as

applicable to local codes.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,

with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

Ensure that structural members are not cut or weakened during installation.

Regency Horizon

Gas Inserts Beneﬁts Video

Horizon HZ54 Product Video

This Regency® product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following

standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2017 / CSA 2.33-2017 and GAS-FIRED APPLIANCES FOR

USE AT HIGH ALTITUDES CSA 2.17-2017.

ALL PICTURES / DIAGRAMS SHOWNTHROUGHOUTTHIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.

ACTUAL PRODUCT MAY VARY DUETO PRODUCT ENHANCEMENTS.

4| Regency Horizon® HZ54E-11 Gas Fireplace

table of contents

On Demand Pilot Light (seven day safety timer) ................................. 2

Copy of Safety Decal ........................................................................... 5

Decal Location .....................................................................................5

MA Code - CO Detector ...................................................................... 6

(for the State of Massachusetts only) .................................................. 6

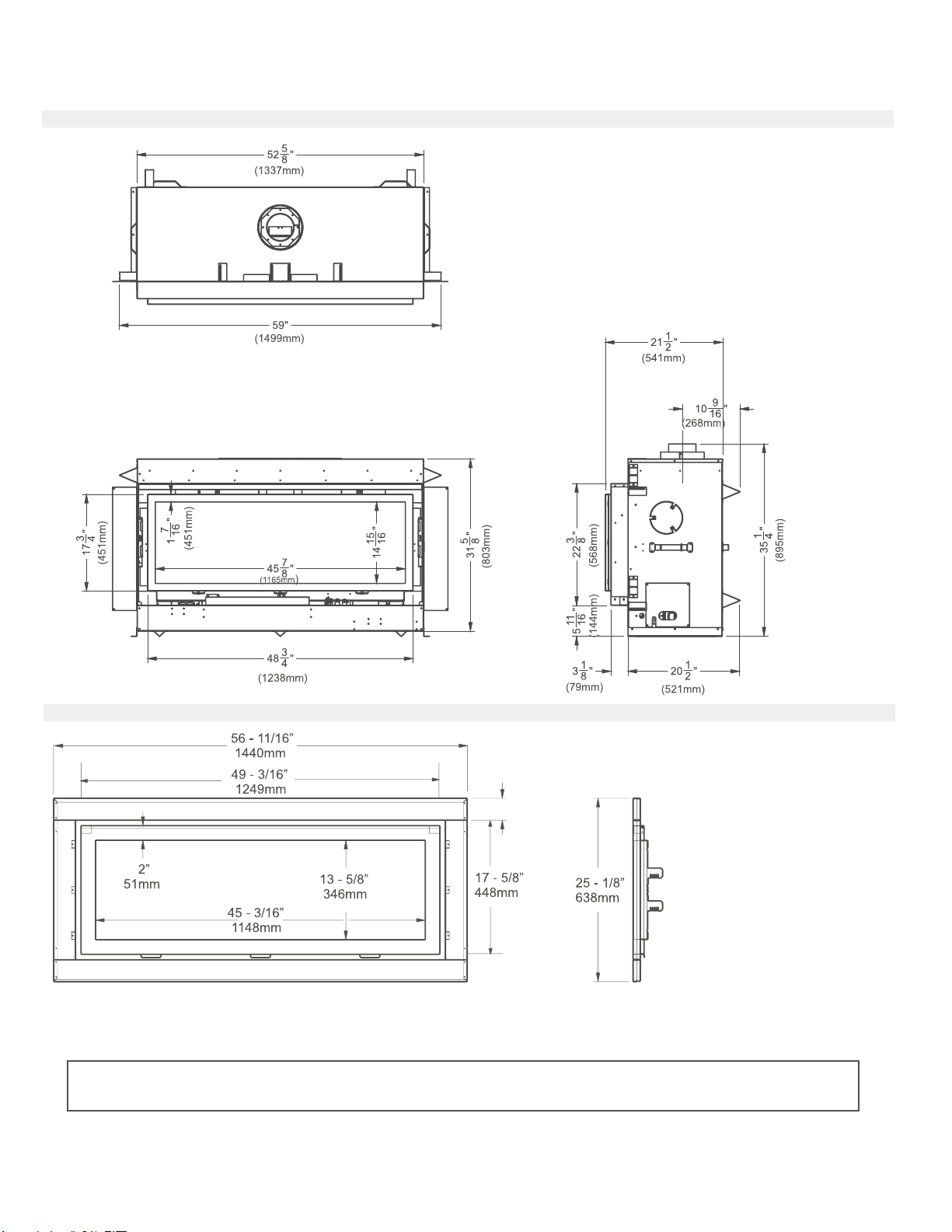

Unit Dimensions .................................................................................. 7

Faceplate & Door Frame Overlay Dimensions..................................... 7

Important Message ............................................................................ 8

Before You Start ................................................................................... 8

General Safety Information .................................................................. 8

Lighting Procedure .............................................................................. 9

Shutdown Procedure ........................................................................... 9

Copy of Lighting Plate Instructions .................................................... 10

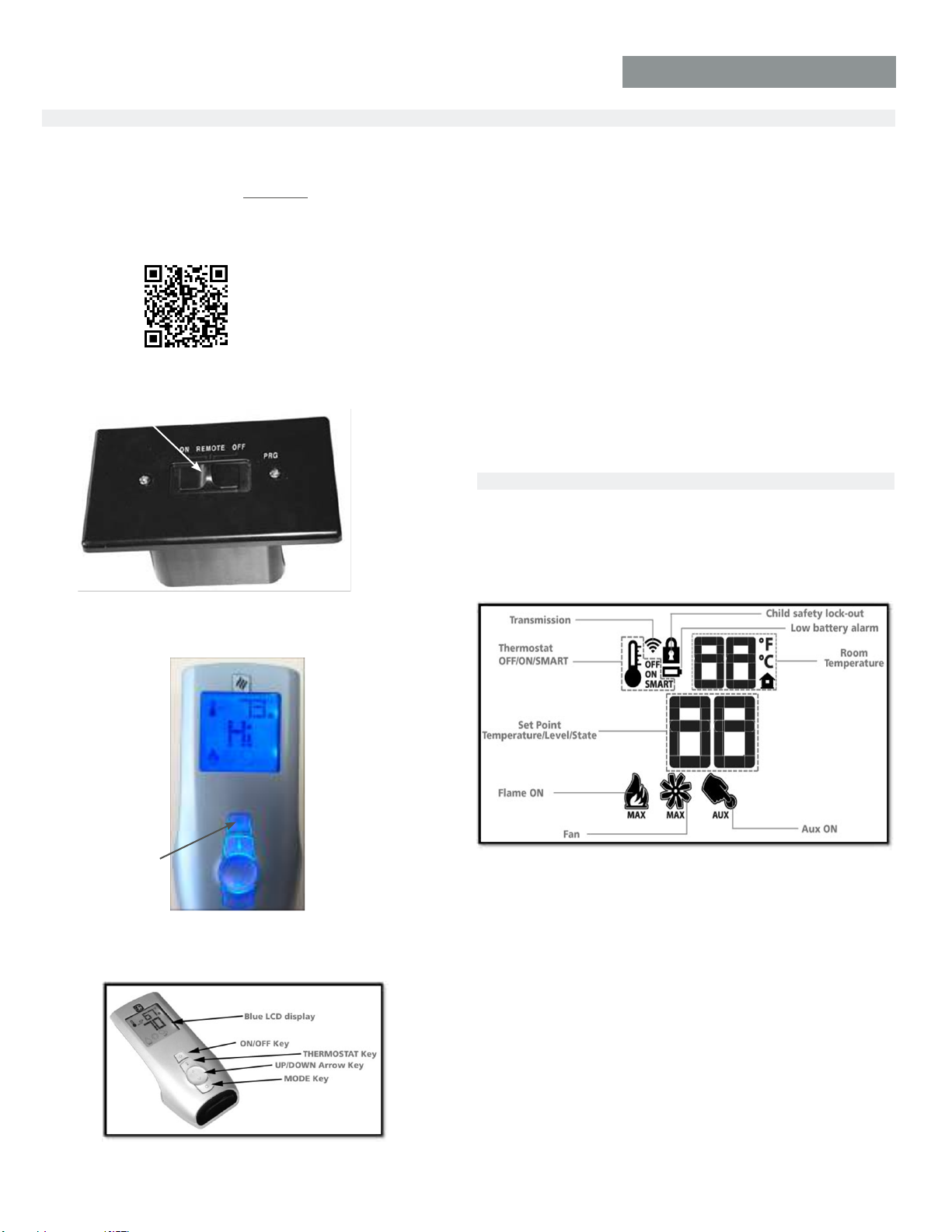

Proﬂame I Remote Control Operating Instructions ............................ 11

Installation Checklist .......................................................................... 15

Locating Your Gas Fireplace .............................................................. 15

Heatwave Duct System Optional Kit #946-556 ..................................15

Clearances ........................................................................................ 16

Non-Combustible Requirements........................................................ 16

Non-Combustible Facing Board ......................................................... 17

Non-Combustible Facing Installation ................................................ 17

Mantel Clearances ............................................................................. 18

Mantel Leg Clearances ...................................................................... 18

Framing & Finishing ........................................................................... 19

Unit Assembly Prior To Installation .................................................... 20

Standoff Assembly ................................................................... 20

Nailing Strips ............................................................................ 20

Venting Introduction ........................................................................... 20

Framing Dimensions .......................................................................... 21

Wall Mount On / Off Switch / Receiver Installation ............................ 23

Vent Restrictor Position ..................................................................... 24

Exterior Vent Termination Requirements ........................................... 25

5” x 8” Rigid Pipe Cross Reference Chart ......................................... 26

Rigid Pipe Venting Systems - Basic Horizontal & Vertical

Terminations .................................................................................... 28

Venting Arrangements-Horizontal Termination (Flex) ........................ 29

Horizontal Venting with Two (2) 90o Elbows - NG and LP .................. 30

Horizontal Venting with Three (3) 90o Elbows - NG and LP ............... 30

Venting Arrangements - Allowable Horizontal Terminations for

HZ54E-NG ....................................................................................... 31

Venting Arrangements - Allowable Horizontal Terminations for

HZ54E-LP ........................................................................................ 31

Unit Installation with Horizontal

Termination ........................................................................................ 32

Unit Installation - Horizontal Termination with Flex Vent System ....... 33

AstroCap XL Dimensions (946-623/P) .............................................. 33

Vertical Venting with Three (3) 90o Elbows - NG and LP ................... 34

Venting Arrangements - Allowable Vertical Terminations for

HZ54E-NG ....................................................................................... 35

Venting Arrangements - Allowable Vertical Terminations for

HZ54E-LP ........................................................................................ 36

Unit Installation with Vertical Termination .......................................... 37

Vertical Terminations - Vertical Flex Vent Kit (Part #946-772) ............ 38

Vertical Flex Extension Kit (Part # 946-769) ...................................... 40

Ceiling Firestop / Firestop Spacer (Part # 946-770) .......................... 41

HZ54E-NG11 SYSTEM DATA ...........................................................42

HZ54E-LP11 SYSTEM DATA ............................................................42

High Elevation .................................................................................... 42

Gas Line Installation .......................................................................... 42

Pilot Adjustment ................................................................................. 42

Gas Pipe Pressure Testing ................................................................ 42

885 S.I.T. Valve Description ............................................................... 42

Valve Cover Removal ........................................................................ 43

Aeration Adjustment .......................................................................... 44

Wiring Diagram .................................................................................. 45

Optional Wall Thermostat Installation ................................................ 46

Optional Reﬂective Panel Installation ................................................ 47

Glass Crystals or Optional Stones - Installation On Burner ..............48

Optional Pebbles / Glass Crystals Installation for Firebox Base ........ 48

Optional Driftwood Log Set Installation ............................................. 49

Faceplate & Door Frame Overlay Installation .................................... 51

Fan Installation .................................................................................. 54

Wiring Diagram with Optional Fan ..................................................... 57

Operating Instructions ....................................................................... 58

First Fire ............................................................................................ 58

Normal Operating Sounds of Gas Appliances ................................... 58

Lighting Procedure ............................................................................ 59

Shutdown Procedure ......................................................................... 59

Copy of Lighting Plate Instructions .................................................... 60

Maintenance Instructions................................................................... 61

General Vent Maintenance ................................................................ 61

Glass Gasket ..................................................................................... 61

Glass Door ......................................................................................... 61

Glass Replacement .................................................................61

Glass Door Removal.......................................................................... 62

Safety Screen Removal / Installation ................................................. 63

Valve Tray Replacement .................................................................... 64

HZ54E-NG Unit ................................................................................. 65

HZ54E-LP Unit .................................................................................. 66

Gas Maintenance - Recommended Annual Routine ......................... 67

Main Assembly .................................................................................. 68

Accessories ....................................................................................... 70

Warranty...........................................................................................72

Owner's information

Installer's Information

Installation Maintenance

Parts

Operating Instructions

Regency Horizon® HZ54E-11 Gas Fireplace | 5

safety decal

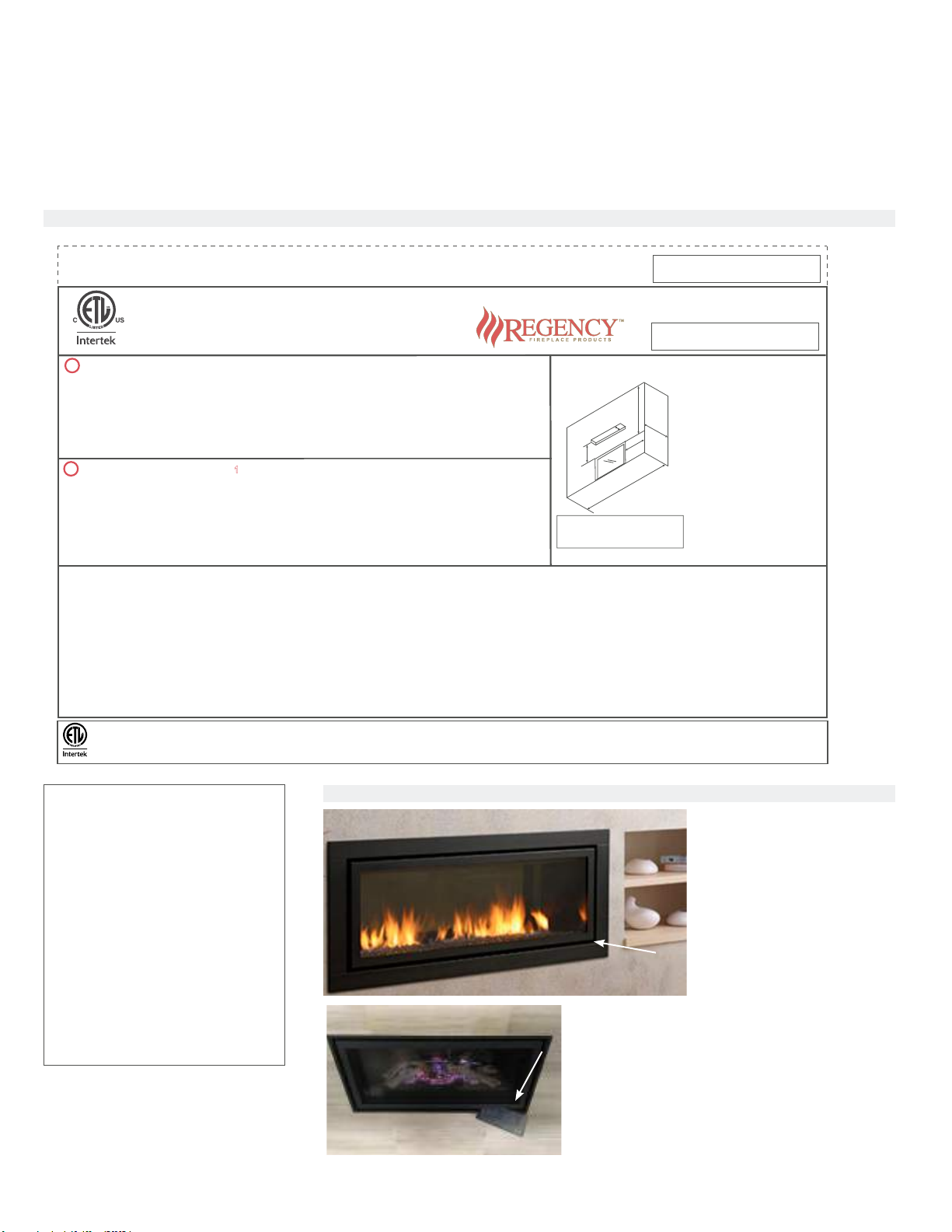

Copy of Safety Decal

Decal Location

For the State of Massachusetts, installation

and repair must be done by a plumber or

gas ﬁtter licensed in the Commonwealth of

Massachusetts.

For the State of Massachusetts, ﬂexible con-

nectors shall not exceed 36 inches in length.

For the State of Massachusetts, the appli-

ances individual manual shut-off must be a

t-handle type valve.

The State of Massachusetts requires the

installation of a carbon monoxide alarm in

accordance with NFPA 720 and a CO alarm

with battery back up in the same room where

the gas appliance is installed.

DO NOT REMOVE THIS LABEL /

NE PAS ENLEVER CETTE ÉTIQUETTE

503

DOOR SEAL: Please

check that the door is

properly sealed

FPI Fireplace Products International Ltd. Delta, BC, Canada

Minimum Clearances to Combustibles /

Dégagements minimaux par rapport aux matériaux combustibles

Serial No./ No de série

NOT FOR USE WITH SOLID FUEL / NE PAS UTILISER AVEC UN COMBUSTIBLE SOLIDE Made in Canada/ Fabriqué au Canada

Duplicate S/N

(See Instruction Manual for

detailed instructions)

APPAREIL FONCTIONNANT AU GAZ PROPANE

Modèle HZ54E-LP11

PROPANE GAS: Model HZ54E-LP11

Pression d'alimentation minimale

Pression manifold - basse

Pression manifold maximale

Taille de l’orifice

D bit calorifique minimalé

D bit calorifique maximalé

Altitude

Pression d'alimentation minimale

Pression manifold - basse

Pression manifold max.

Taille de l’orifice

D bit calorifique minimalé

D bit calorifique maximalé

Altitude

Side Walls/Murs latéraux

A 4” (102mm)

Ceiling/Plafond

B 40-7/8” (1038mm)

Min. Mantel Height/Hteur manteau min.

C 20" (508mm)

Max. Mantel Depth/Prof. manteau max.

D 13” (330mm)

Alcove Width/Largeur alcôve

E 83" (2108mm)

Alcove Depth/Prof. alcôve

F 36" (914mm)

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.

This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in

the United States, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard or ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles

This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See

owner's manual for details.

Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installation ANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.

Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety

Standard. Si ces normes ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C Standard for Recreational

Vehicles.

Cet appareil doit être utilisé uniquement avec le type de gaz indiqué sur la plaque signalétique. Il peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si les

règlements locaux le permettent. Voir le guide de l'utilisateur pour plus de renseignements.

This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.

For Use Only with Barrier (Part # 478-013) Follow installation instructions. Utiliser uniquement avec un écran de protection ( n°478-013). Suivre les consignes d'installation.

FOR USE WITH GLASS DOORS CERTIFIED WITH THE APPLIANCE ONLY À UTILISER UNIQUEMENT AVEC LES PORTES VITRÉES CERTIFIÉES AVEC L'APPAREIL

Min. Supply Pressure 11"WC (2.74 kpa)

Low Setting Man. Pressure 6.4"WC (1.59 kpa)

Max. Manifold Pressure 10"WC (2.49 kpa)

Orifice Size #49 DMS

Minimum Input 30,000Btu/ (8.79 kW)

Maximum Input 37,000Btu/h (10.84 kW)

Altitude 0-4500 ft/pi (0-1372 m)

Part #: 920-005a

Colour: Black on grey except what is indicated as being printed red.

Size: 9.114” W x 6.017” H (File at 100%)

Material: 2 ml silver matt polyester (DPM SMS)

Dec 17/18: Created decal

Jan. 22/19: Rev A - Remodeled decal and added ETL logo at the bottom

Printer: Start number sequence @005000001

Min. Supply Pressure 5“ WC (1.25 kpa)

Low Setting Man. Pressure 1.6"WC (0.40 kpa)

Max. Manifold Pressure 3.5"WC (0.87 kpa)

Orifice Size #30DMS

Minimum Input 29,000Btu/h (8.50 kW)

Maximum Input 41,500 Btu/h (12.16 kW)

Altitude 0-4500 ft/pi (0-1372 m)

NATURAL GAS: Model HZ54E-NG11

MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.

Listed/Nom: VENTED GAS FIREPLACE HEATERS / APPAREIL DE CHAUFFAGE AU GAZ À ÉVACUATION.

Certified to/Certifi : é

ANSI Z21.88-2017 • CSA-2.33-2017

CSA 2.17-2017

Refer to Intertek's Directory of Building Products for detailed information.

Pour plus de détails, se reporter au Répertoire des produits de construction de Intertek.

APPAREIL FONCTIONNANT AU GAZ NATUREL

Modèle HZ54E-NG11

C #: 4001172

920-005a

CSA P.4.1 Fireplace Efficiency (FE) /Efficacité énergétique des foyers (EEF) CSA P.4.1

Natural Gas / Gaz naturel 64.45%

Propane Gas / Gaz propane 67.72%

CANADIAN ENERGY

PERFORMANCE

VERIFIED

RENDEMENT

ÉNERGÉTIQUE

VÉRIFIÉ

EP5011169

This is a copy of the label that accompanies each HZ54E-NG11 and HZ54E-LP11.

This is a copy of the label that accompanies each HZ54E-NG11/HZ54E-LP11 Direct Vent Gas Fireplace. We have printed a copy of the contents here for

your review.

NOTE: Regency® units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

Remove outer faceplate and door (see manual for

instructions) once the Faceplate and Glass door have

been removed the rating plate will be attached to a chain.

DO NOT REMOVE DECAL FROM UNIT.

6| Regency Horizon® HZ54E-11 Gas Fireplace

requirements

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for

residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than

seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the followingrequirements shall

be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled

equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is

installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shallobserve that a battery

operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, buildingor structure

served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of

qualified licensed professionals for the installationof hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon

monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of

thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a batteryoperated carbon

monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions

shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight

(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The

sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation

unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 asadopted by

the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or

structure used in whole or in part for residential purposes.

Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the

instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a

Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, butidentifies

"special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructionsfor that system shall include a parts list and

detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,

all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipmentat the completion of

the installation.

MA Code - CO Detector

(for the State of Massachusetts only)

Regency Horizon® HZ54E-11 Gas Fireplace | 7

dimensions

Faceplate & Door Frame Overlay Dimensions

Unit Dimensions

Verona Glass Surround (Not Shown) Dimensions: 58-9/16" W x 27-1/8" H

Note:Gas connection is from the right hand side of the appliance & electrical connection on left hand side of the appli-

ance. A metal receptacle box is supplied/installed with the appliance to make all 120 volt electrical connections.

8| Regency Horizon® HZ54E-11 Gas Fireplace

owner's information

4) This appliance must be connected to the speci-

ﬁed vent and termination cap to the outside of

the building envelope. Never vent to another

room or inside a building. Make sure that the

vent is ﬁtted as per Venting instructions.

5) Inspect the venting system annually for blockage

and any signs of deterioration.

6) Venting terminals shall not be recessed into a

wall or siding.

7) Any safety glass removed for servicing must

be replaced prior to operating the appliance.

8) To prevent injury, do not allow anyone who is

unfamiliar with the operation to use the ﬁreplace.

9) Wear gloves and safety glasses for protection

while doing required maintenance.

10) Be aware of electrical wiring locations in walls

and ceilings when cutting holes for termination.

11) Under no circumstances should this appliance

be modiﬁed. Parts that have to be removed for

servicing should be replaced prior to operating

this appliance.

12) Installation and any repairs to this appliance

should be done by an authorized service per-

son. A professional service person should be

called to inspect this appliance annually. Make

it a practice to have all of your gas appliances

checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid fuels

(wood, paper, cardboard, coal, etc.) be used in

this appliance.

15) The appliance area must be kept clear and

free of combustible materials, (gases and other

ﬂammable vapours and liquids).

Important Message

SAVETHESE INSTRUCTIONS

The HZ54E Direct Vent Fireplace must be installed

in accordance with these instructions. Carefully read

all the instructions in this manual ﬁrst. Consult the

"authority having jurisdiction" to determine the need

for a permit prior to starting the installation. It is the

responsibility of the installer to ensure this ﬁreplace

is installed in compliance with manufacturers

instructions and all applicable codes.

BeforeYou Start

Safe installation and operation of this appliance

requires common sense, however, we are required

by the Canadian Safety Standards and ANSI

Standards to make you aware of the following:

General Safety Information

1) The appliance installation must conform with lo-

cal codes or, in the absence of local codes, with

the current Canadian or National Gas Codes,

CAN1-B149 or ANSI Z223.1 Installation Codes.

2) The appliance when installed, must be electri-

cally grounded in accordance with local codes,

or in the absence of local codes with the current

National Electrical Code, ANSI/NFPA 70 or CSA

C22.1 Canadian Electrical Code.

3) See general construction and assembly in-

structions. The appliance and vent should be

enclosed.

CHILDREN AND ADULTS SHOULD BE

ALERTED TO THE HAZARDS OF HIGH

SURFACE TEMPERATURES, ESPE-

CIALLY THE FIREPLACE GLASS, AND

SHOULDSTAY AWAYTOAVOIDBURNS

OR CLOTHING IGNITION.

INSTALLATION AND REPAIR SHOULD

BE DONE BY AN AUTHORIZED

SERVICE PERSON. THE APPLIANCE

SHOULD BE INSPECTED BEFORE

USE AND AT LEAST ANNUALLY BY A

PROFESSIONAL SERVICE PERSON.

MORE FREQUENT CLEANING MAY

BE REQUIRED DUE TO EXCESSIVE

LINT FROM CARPETING, BEDDING

MATERIAL,ETC.ITISIMPERATIVETHAT

CONTROLCOMPARTMENTS,BURNERS

ANDCIRCULATINGAIRPASSAGEWAYS

OFTHE APPLIANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE

APPLIANCE SHOULD BE LOCATED

OUT OF TRAFFIC AND AWAY FROM

FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS

APPLIANCE CORRECTLY WILL VOID

YOUR WARRANTY AND MAY CAUSE A

SERIOUS HOUSE FIRE.

CLOTHING OR OTHER FLAMMABLE

MATERIAL SHOULD NOT BE PLACED

ON OR NEARTHE APPLIANCE.

YOUNGCHILDRENSHOULD BE CARE-

FULLY SUPERVISEDWHENTHEY ARE

IN THE SAME AREA AS THE APPLI-

ANCE. TODDLERS,YOUNG CHILDREN

AND OTHERS MAY BE SUSCEPTIBLE

TO ACCIDENTAL CONTACT BURNS. A

PHYSICALBARRIERSISRECOMMEND-

ED IFTHERE ARE AT RISK INDIVIDUAL

INTHE HOUSE. TO RESTRICT ACCESS

TO A FIREPLACE OR STOVE, INSTALL

AN ADJUSTABLE SAFETY GATE TO

KEEP TODDLERS, YOUNG CHILDREN

ANDOTHERATRISKINDIVIDUALSOUT

OF THE ROOM AND AWAY FROM HOT

SURFACES.

A BARRIER DESIGNED TO REDUCE

THE RISK OF BURNS FROM THE HOT

VIEWING GLASS IS PROVIDED WITH

THIS APPLIANCE AND SHALL BE

INSTALLED FOR THE PROTECTION

OF CHILDREN AND OTHER AT-RISK

INDIVIDUALS

IFTHE BARRIERBECOMESDAMAGED,

THE BARRIER SHALL BE REPLACED

WITHTHEMANUFACTURER'SBARRIER

FORTHIS APPLIANCE.

ANY SAFETY SCREEN, GUARD, OR

BARRIER REMOVED FOR SERVICING

AN APPLIANCE MUST BE REPLACED

PRIORTOOPERATINGTHEAPPLIANCE.

Regency Horizon® HZ54E-11 Gas Fireplace | 9

owner's information

Lighting Procedure

IMPORTANT: The remote control system supplied with this appliance has

several options for starting/operating the appliance using the power button

and ON/OFF key on the hand held transmitter.

Prior to operating this appliance, please read the remote control operating

instructions (packaged with remote control) to understand how to operate

this remote control system. Option to download remote functions video

with QR code below.

1. Ensure the wall switch/receiver is in the remote position. (see Diagram 1).

3. After approximately 4 seconds the spark ignition system will spark for 60

seconds to light the pilot.

4. The unit will turn on.

Note: The ﬁrst try for ignition will last approximately 60 seconds. If there is no

ﬂame ignition (rectiﬁcation) the board will stop sparking for approximately

35 seconds. After wait time , the board will start second try for ignition by

sparking for approximately 60 seconds. If there is still no positive ignition

the board will go into lock out.

The system will need to be reset as follows:

a) Turn the system off using ON/OFF switch or press ON/OFF button - if

using remote.

b) After approximately 2 seconds turn on ON/OFF switch or press ON/OFF

button if using remote.

c) Repeat step 2.

ON/OFF

Button

Diagram 1

Diagram 2

Set Switch to

Remote

Shutdown Procedure

1. Turn the wall mounted switch or remote to the "OFF" position.

2. Press "OFF" on the remote control.

3. Turn the gas control knob to the "OFF" position to turn off the pilot.

Remote shown in Manual Mode on Hi

Proﬂame

video

2. Press and release the ON/OFF button on the remote handheld transmit-

ter (see Diagram 2). An audible beep should be heard from the receiver.

10 | Regency Horizon® HZ54E-11 Gas Fireplace

owner's information

Copy of Lighting Plate Instructions

919-401a

Part #: 919-401a

Colours: Black on Grey, except

for parts indicated as being

Red.

Size: 100%

w- 5.16"

h- 10.3"

June 23/14: Created decal

Sept.29/14: Rev. A - Updated shut-

down procedure.

A) This appliance is equipped with an ignition device which automatically lights the pilot.

Do not try to light the pilot by hand.

B) BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the ﬂ oor

because some gas is heavier than air and will settle on the ﬂ oor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

- Do not touch any electric switch, do not use any phone in your building.

- Immediately call your gas supplier from a neighbours phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the ﬁre department.

C) Do not use this appliance if any part has been under water. Immediately call a qualiﬁed service

technician to inspect the appliance and replace any part of the control system and any

gas control which has been underwater.

A) Cet appareil est muni d’un dispositif d’allumage qui allume automatiquement la veilleuse.

Ne tentez pas d’allumer la veilleuse manuellement.

B) AVANT LA MISE EN MARCHE, reniﬂez tout autour de l’appareil pour déceler une odeur de gaz. Reniﬂez au niveau

du plancher, car certains gaz sont plus lourds que l’air et peuvent s’accumuler au niveau du sol.

QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :

• Ne tentez pas d’allumer l’appareil

• Ne touchez à aucun interrupteur; n'utilisez pas de téléphones se trouvant dans le bâtiment.

•Appelez immédiatement votre fournisseur de gaz depuis un téléphone extérieur. Suivez les

instructions du fournisseur.

• Si vous ne pouvez pas rejoindre le fournisseur, appelez le service incendie.

C) N’utilisez pas cet appareil s’il a été plongé dans l’eau, même partiellement. Faites inspecter l’appareil par un tech-

nicien qualiﬁé et remplacez toute partie du système de contrôle et toute commande qui ont été plongés dans l’eau.

DO NOT REMOVE THIS INSTRUCTION PLATE

TO TURN OFF GAS APPLIANCE

This appliance must be installed in accordance with local codes, if any;

if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or

Natural Gas and Propane Installation Codes, CSA B149.1.

CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface

temperatureskeepchildren,clothingandfurniture,gasolineandotherliquidshavingﬂammable

vapors away. Keep burner and control compartment clean. See installation and operating

instructions accompanying appliance.

WARNING: If you do not follow these instructions exactly, a fire or explosion may result

causing property damage, personal injury or loss of life. Improper installation, adjustment,

alteration, service or maintenance can cause injury or property damage. Refer to the owner’s

information manual provided with this appliance. For assistance or additional information

consult a qualified installer, service agency or gas supplier.

AVERTISSEMENT. Quiconque ne respecte pas à la lettre les instructions dans la présente notice

risquede déclencher un incendie ou une explosion entraînant des dommages, des blessures ou

la mort.

Une installation, d'ajustement, de modiﬁcation, de service ou d'entretien peut provoquer

des blessures ou des dommages matériels. Reportez-vous au manuel du propriétaire de

l'information fournie avec cet appareil. Pour obtenir de l'aide ou des informations supplémen-

taires consulter un installateur qualiﬁé, une agence de service ou fournisseur de gaz.

1) Ensure the wall switch/receiver is in the remote position.

2) Press and release the ON/OFF button on the remote handheld transmitter. An audible beep should be

heard from the receiver.

3) After approximately 4 seconds the spark ignition system will spark for 60 seconds to light the main burner.

4) The unit will turn on.

Note: The ﬁrst attempt to ignition will last approximately 60 seconds. If there is no ﬂame ignition (rectiﬁca-

tion) the board will stop sparking for approximately 35 seconds. After this wait time, the board will start a

second try for ignition by sparking for approximately 60 seconds. If there is still no positive ignition after the

second attempt the board will go into lock out.

The system will need to be reset as follows (after going into lock out mode):

a) Wait 5 minutes - turn the system off using ON/OFF switch or press ON/OFF button if using

remote

b) After approximately 2 seconds turn on ON/OFF switch or press ON/OFF button if using remote.

c) Unit will repeat step 2.

1) S’assurer que l’interrupteur mural/récepteur soit sur ''Remote''.

2) Appuyer sur la touche ON/OFF de la télécommande puis relâcher. Un bip se fera entendre depuis le

récepteur

3) Après environ 4 secondes, le système d'allumage par étincelles se mettra en marche pendant 60 secondes

pour allumer le brûleur principal.

4) L'appareil s’allume.

Remarque : Au premier allumage, le système tente d’allumer les ﬂammes pendant 60 secondes. Si l’essai

est infructueux, le système fait une pause de 35 secondes. C’est ce qu'on appelle l'étape de rectiﬁcation.

Ce délai écoulé, le système tente à nouveau d'allumer les ﬂammes en produisant des étincelles pendant 60

secondes. Si les ﬂammes ne s’allument toujours pas, le système se met en mode verrouillage.

Il faut alors le réinitialiser en suivant les étapes ci-dessous (pour le déverrouiller) :

a) Attendre 5 minutes puis éteindre l’appareil en utilisant l’interrupteur ou la touche ON/OFF de la

télécommande.

b) Attendre 2 secondes et rallumer le système à l’aide de l’interrupteur ou de la télécommande.

c) L'appareil répètera l'étape 2.

1) Turn the wall mounted switch or remote to the "OFF" position.

2) If service is to be performed–you must disconnect power and shut off gas to the unit.

1) Utiliser l'interrupteur mural ou la télécommande pour mettre le système sur ''OFF''.

2) Lors de l'entretien de l'appareil –débrancher l'alimentation électrique et couper le gaz de l'appareil.

LIGHTING INSTRUCTIONS

FOR YOUR SAFETY READ BEFORE LIGHTING

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Regency Fireplace Products Cheminée intérieure

Regency Fireplace Products

Regency Fireplace Products Panorama P36 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Greenfire GFI300L Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products GOSFORD F300B Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products HORIZON HZ33CE Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products U900E-11 Manuel utilisateur

Regency Fireplace Products

Regency Fireplace Products P42 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products B41XTE-NG1 Manuel de service

Regency Fireplace Products

Regency Fireplace Products Contura Ri50 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products I2404M Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Onyx EX110 Manuel technique

Regency Fireplace Products

Regency Fireplace Products Energy E18E Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Grandview G800EC Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Excalibur P90EX Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products CI2600 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products I2403M Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Albany F200B-2 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Bellavista B41XTE Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products LRI3E-LP1 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products E21 Gas Insert Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Panorama P33E Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products GFI300LNG-R Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products H2103 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Cascades I1500 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products P121-NG10 Guide de démarrage rapide

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
